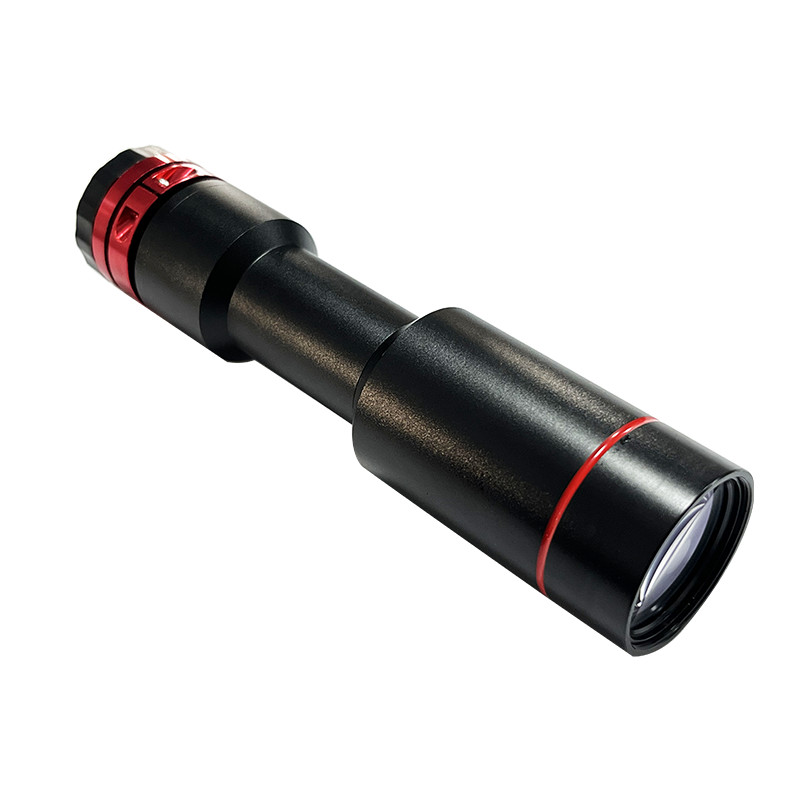

WD110 Series Bi-Telecentric Lenses

High Resolution Bi-Telecentric lenses, machine vision for recognition, mounting, alignment, inspection

WD110 Series Bi-Telecentric Lenses are specially designed for 110m working distance with 4 common magnifications of 0.3X, 0.5X, 0.7X, 1X.

We welcome custom requirements and meet your OEM application needs.

Features:

• Bi-telecentric lens, high resolution
• WD110mm, 4 common magnifications
• Max image format 2/3", C-Mount

Custom requirements and OEM solutions are available, such as magnification, wavelength, focal length, working distance, FOV, etc.

WD110 Series Bi-Telecentric Lenses rapid selection:

Model	Mag.(X)	FNO	Telecentricity	Depth of Field(mm)	Distortion	Resolution	Max.Image Format(mm)	WD(mm)	Mount(mm)
WD110-0.3X	0.3	F8	<0.02°	6.5	0.0008	11.7μm	2/3" (Ø11)	110±3%	C-Mount
WD110-0.5X	0.5	F8	<0.04°	4.5	0.0005	7μm	2/3" (Ø11)	110±3%	C-Mount
WD110-0.7X	0.7	F8	<0.04°	3	0.0003	5μm	2/3" (Ø11)	110±3%	C-Mount
WD110-1.0X	1	F8	<0.06°	1.5	0.0001	3μm	2/3" (Ø11)	110±3%	C-Mount

All optical lenses are tested in our metrology laboratory and then 100% visually inspected by our QA department.

Contact our technical sales team to find out how Band-Optics can help you with your enquiry.
