Views: 3234 Author: Site Editor Publish Time: 2025-05-23 Origin: Site

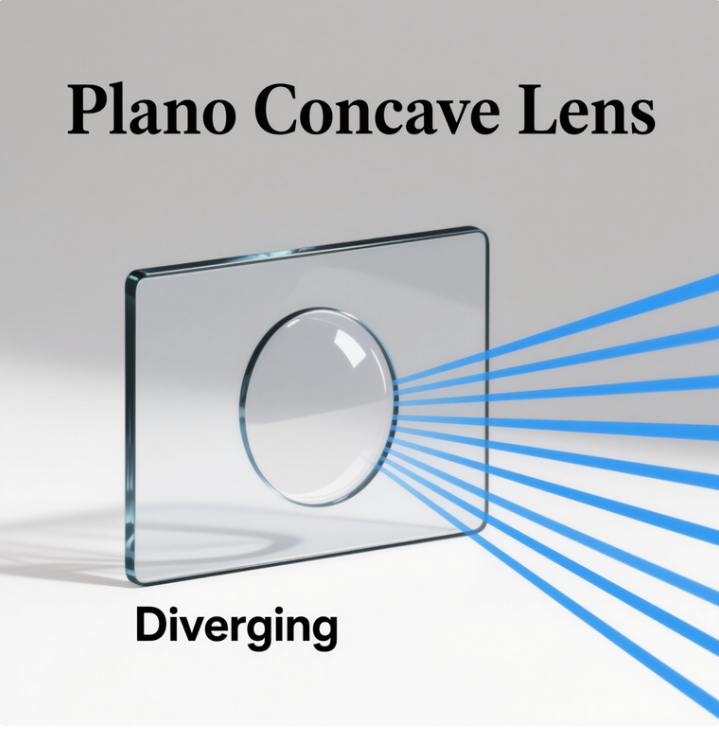

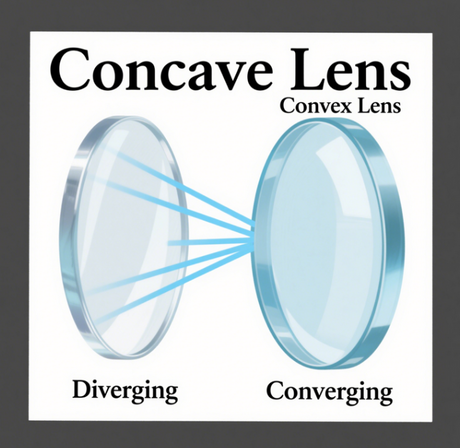

A plano concave lens has one flat surface. The other side curves inward. “Plano” means flat. “Concave” means curved inward. Unlike plano convex lenses, it makes light diverge. It has a negative focal length. Light rays bend away as they pass through. This sets it apart from biconcave and plano convex lenses. For instance, plano convex lenses have one flat and one outward curved surface. Biconcave lenses have two inward curved surfaces. Plano concave lenses are thinner in the center and thicker at the edges. This design is key to their optical performance.
Plano concave lenses are key for light manipulation and optical design. They are in many optical systems. Their ability to control light direction and spread makes them essential. They create virtual images and expand light beams. They help correct optical aberrations. They provide precise light path control. They are used in simple and complex optical setups. Often combined with other lenses, they enhance system performance.
There’s a rising need for high-quality plano concave lenses. This is due to advances in optical tech and more applications. They are crucial in laser systems for beam expansion. In microscopy, they help form images and control light. In fiber optics, they improve light coupling. As optical systems get more complex, lens performance requirements rise. Lenses must be accurate, durable, and resist environmental factors. This drives the demand for high-quality plano concave lenses. Their use is growing in telecom, healthcare, and manufacturing. This fuels the need for advanced plano concave lens manufacturing and customization.
A plano concave lens has one flat surface. This surface is smooth and even. It doesn’t bend light like the curved side. The flat part is often called the entrance face. Light hits this side first. It helps to shape how light enters the lens. The flat surface also makes the lens easier to mount in optical systems. This helps when building telescopes, microscopes, and cameras.
The other side of the lens is curved inward. This is the concave surface. Its shape is like a cave. The curve has a radius of curvature. This radius determines how much the light bends. A smaller radius means more curvature. This makes the light spread out more. The concave surface is the exit face. Light leaves the lens from here. The inward curve creates the diverging effect. This is what makes the lens special and different from others.
The lens is thinner in the center. It’s thicker at the edges. This design is key to its optical performance. The center thickness affects how light travels through the lens. It influences the path of the light rays. This helps in controlling the divergence of light. The thickness also impacts the lens’s durability and weight. A thinner center can make the lens lighter. This is good for applications where weight matters.
Plano concave lenses are made from different materials. Common choices are optical glasses like N-BK7. Specialized materials include UV Fused Silica, CaF2, and ZnSe. Each material has unique properties. They affect the lens’s performance in different ways. For example, UV Fused Silica is good for ultraviolet applications. CaF2 and ZnSe are used in infrared systems. The choice of material depends on the specific requirements of the application. Factors like wavelength range and power handling are important considerations.
When light hits a plano concave lens, it spreads out. This is called divergence. The concave surface causes the light rays to bend away from each other. This happens because of the difference in refractive index between the lens material and air. The flat surface doesn’t bend the light much. The curved surface does most of the work. This makes the lens ideal for applications where light needs to be spread out. Examples include laser beam expanders and optical systems requiring virtual images.
Plano concave lenses have a negative focal length. This means the focal point is on the same side as the incoming light. Unlike converging lenses, the light rays don’t meet at a point on the other side. Instead, they appear to come from a point behind the lens. This property is crucial for creating virtual images. It also helps in applications where the goal is to spread light rather than focus it.
The virtual focal point is on the same side as the incident light. The diverging rays seem to come from this point. This concept is important for understanding how the lens forms images. It also plays a role in how the lens interacts with other optical components. The position of the virtual focus affects the overall performance of the optical system.
A plano concave lens always produces a virtual image. This image can’t be projected onto a screen. It can only be seen through the lens. This is different from real images formed by converging lenses. The virtual image is upright and appears smaller than the object. These characteristics make the lens useful in applications like magnifying glasses and Galilean telescopes.
The image formed by a plano concave lens is reduced in size. It’s always smaller than the actual object. This is because the lens diverges the light rays. The image is also upright. It has the same orientation as the object. The virtual image appears between the lens and the object. This location is important for understanding how the lens works in optical systems.
For best results, position the curved surface towards the incoming light. This helps minimize spherical aberration. Spherical aberration occurs when light rays from different parts of the lens don’t focus at the same point. By facing the curved side towards the light source, the lens performs better. This is especially important in applications where image quality matters. Proper orientation ensures the lens works efficiently and produces the desired optical effects.
The focal length of a plano concave lens is found via the lensmaker’s equation: ( \frac{1}{f} = (n - 1) \left( \frac{1}{R_1} \right) ). Here, ( f ) denotes the focal length, ( n ) represents the refractive index of the lens material, and ( R_1 ) is the radius of curvature of the concave surface, which carries a negative sign as per convention. This equation clearly indicates that the focal length of a plano concave lens is inherently negative. The negative focal length signifies that the lens causes light rays to diverge. This property is crucial for its optical performance, enabling the lens to spread out light beams and create virtual images. The exact focal length is dependent on the refractive index of the material and the curvature of the concave surface. For instance, a lens with a higher refractive index or a smaller radius of curvature will have a shorter focal length, making it more powerful in diverging light.
Optical power is defined as the reciprocal of the focal length, expressed as ( P = \frac{1}{f} ). Given that the focal length of a plano concave lens is negative, its optical power is also negative. Negative optical power implies that the lens diverges light, contrasting with converging lenses, which possess positive optical power. The unit of measurement for optical power is diopters. A plano concave lens with a focal length of -1 meter, for example, has an optical power of -1 diopter. The optical power determines the extent to which the lens bends light. A lens with a higher negative optical power will diverge light more intensely. This makes it particularly useful in applications where a wide divergence of light is required. Negative optical power is also significant in vision correction. Plano concave lenses are utilized in eyeglasses for nearsighted individuals to diverge light before it enters the eye, aiding in proper focus on the retina.

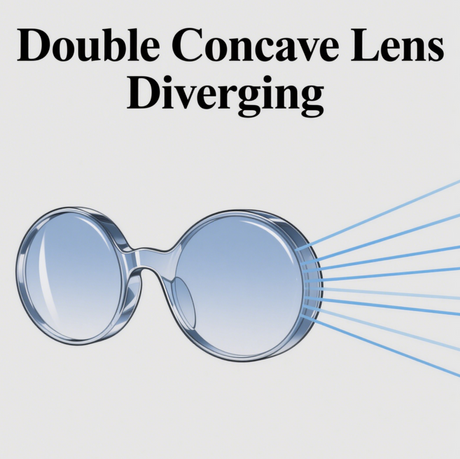

Plano concave and bi-concave lenses are both types of concave lenses, but they have distinct geometric forms. A plano concave lens features one flat surface and one concave surface, while a bi-concave lens has two concave surfaces. Both types of lenses diverge light and possess negative focal lengths. However, their geometric differences result in varying optical properties and applications. Plano concave lenses are commonly employed in laser beam expanders. Their single concave surface makes them suitable for applications where a balance between divergence and minimal aberrations is necessary. Bi-concave lenses, on the other hand, are often used in optical systems requiring a greater degree of divergence, such as in certain cameras and projectors.
The choice between plano concave and bi-concave lenses depends on several factors, including aberration correction and specific conjugate ratios. Plano concave lenses may be preferred in systems where spherical aberration needs to be minimized. Their single concave surface can reduce spherical aberration compared to bi-concave lenses. Additionally, the flat surface of plano concave lenses offers advantages in terms of mounting and alignment, providing a stable and flat reference surface. Bi-concave lenses, however, may be more suitable for applications where a symmetrical optical design is beneficial. Their two concave surfaces can provide a more balanced light divergence. The decision ultimately hinges on the specific requirements of the optical system, such as the desired light divergence, aberration control, and system complexity.
Plano concave lenses are widely used in laser systems. They can expand laser beams effectively. When light passes through a plano concave lens, it diverges outward. This property is crucial in applications like laser cutting and welding. It also helps in medical treatments. By expanding the beam size, the intensity of the laser is reduced. This prevents damage to sensitive areas.
Plano concave lenses can reduce image size in optical systems. They are used in projection systems to achieve even light distribution. This leads to improved image quality. They manipulate light paths to get the desired image size and focus. This makes them valuable in various imaging applications.
Plano concave lenses help reduce spherical aberration. They can compensate for positive aberrations from other lenses in multi-element designs. This is important for high-performance camera lenses, microscope objectives, and telescope eyepieces. By correcting aberrations, plano concave lenses enhance image clarity and resolution. This makes them indispensable in precision optics.
Plano concave lenses are used to diverge collimated light. They can also help create collimated beams from diverging sources. This makes them useful in scientific experiments and laboratory setups. They enable precise light manipulation and measurement. Their ability to control light propagation is vital in many research applications.
Plano concave lenses find use in various optical instruments. For example, in spectroscopes, they help disperse light and focus specific wavelengths. This is crucial for accurate measurements in analytical chemistry. They are also used in optical metrology tools. In these tools, plano concave lenses provide essential optical functions for precise measurements.
When selecting a plano concave lens, material choice is crucial. Common options include N-BK7, UV Fused Silica, and CaF2. Each material has unique properties affecting the lens’s refractive index and transmission characteristics. For instance, UV Fused Silica is ideal for ultraviolet applications due to its high transmission in that range, while CaF2 and ZnSe are often used in infrared systems.
The focal length and dimensions of the lens must match your specific application. A shorter focal length increases light divergence, while a longer one provides more controlled beam expansion. Always specify the precise focal length, diameter, and center thickness to ensure the lens integrates smoothly into your optical system.
Surface quality and accuracy are critical for performance. Look for lenses with minimal scratch/dig marks and high flatness and power specifications. These factors directly impact the lens’s ability to manipulate light effectively and reduce aberrations.
Anti-Reflection (AR) coatings are essential for maximizing light transmission and minimizing reflection losses. Options like MgF2 are effective in specific wavelength ranges, while Broadband AR coatings offer performance across a wider spectrum. The choice of coating depends on the application’s wavelength requirements and the desired level of light transmission.
Band-Optics is dedicated to producing high-quality plano concave lenses that meet the most stringent optical standards. Our advanced manufacturing capabilities ensure precision in every lens we produce. We specialize in custom solutions, tailoring lenses to meet diverse customer needs. Whether you require standard or custom plano concave lenses, Band-Optics can provide the perfect match for your application. Explore our extensive range of plano concave lens products and contact us to discover how we can enhance your optical systems with our superior lenses.
Key considerations include the required wavelength range and power handling. Different materials like N-BK7 and UV Fused Silica offer unique properties. Choose based on your specific application needs.
Focal length determines how strongly the lens diverges light. Shorter focal lengths increase divergence. Select the focal length based on your desired light manipulation.
Anti-reflection coatings maximize light transmission and minimize reflection losses. They enhance lens performance by ensuring more light passes through the lens.
Plano concave lenses excel in laser beam expansion, image reduction, aberration correction, and general light diversion. They are essential in complex optical systems and precision optics.
Yes, many manufacturers offer custom plano concave lenses. You can specify parameters like focal length and coatings to tailor the lens to your application.
Plano concave lenses have unique diverging properties. They can spread light and create virtual images. Their ability to reduce image size makes them useful in various optical systems. These lenses are key in laser beam expansion and optical instruments. They also help correct optical aberrations, improving image quality in complex optical setups. Their importance in optical engineering cannot be overstated.
The plano concave lens plays a crucial role in modern optics. It enables complex optical systems in telecommunications, healthcare, manufacturing, and scientific research. Its ability to control light makes it vital in laser technology and medical equipment. As optical technology advances, the plano concave lens continues to drive innovation across multiple fields. Its versatility ensures it remains a fundamental component in the ongoing development of optical systems.
