A bi-concave lens is a type of optical lens that is thinnest at the center and thickest at the edges. It has two concave surfaces that curve inward, giving it a distinctive shape like two bowls placed back-to-back. The word “bi” refers to the two curved surfaces. This unique structure causes light to diverge or spread out when it passes through the lens. A double concave lens is also known as a negative lens due to its ability to diverge light.
Bi-concave lenses play a fundamental role in various optical applications. They are widely used in vision correction for nearsightedness. Eyeglasses with bi-concave lenses help focus light on the retina, improving vision for people who have difficulty seeing distant objects. These lenses are also crucial in optical instruments like microscopes and telescopes. They can be used as correction lenses to improve image quality by reducing aberrations. Additionally, bi-concave lenses are employed in laser systems to shape and expand light beams. Understanding the properties of bi-concave lenses is essential for anyone interested in optics, as they form the basis for many advanced optical systems.
A bi-concave lens has two inward curving surfaces. It’s thinnest in the middle and thickest at the edges. Its shape looks like two bowls placed back-to-back. Common materials to make bi-concave lenses include N-BK7, UV fused silica, CaF2, and ZnSe. These materials are chosen based on the light spectrum the lens will be used for.

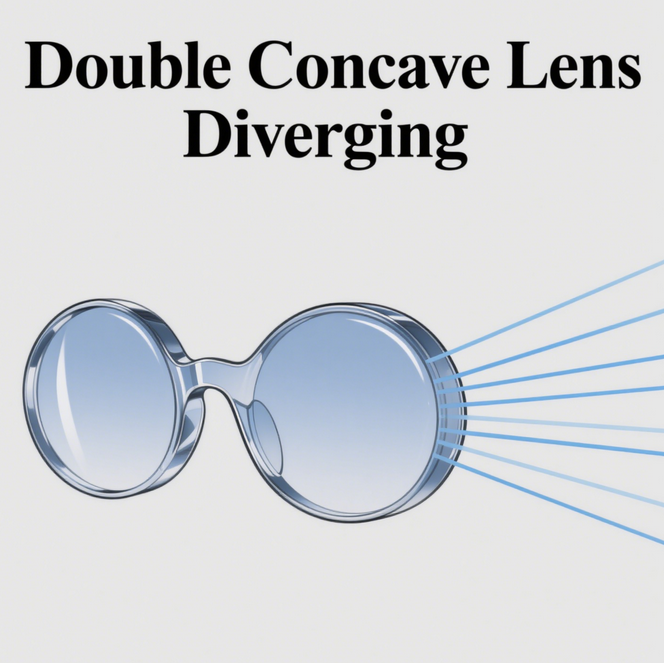

Bi-concave lenses cause parallel light rays to spread out when passing through them. This happens because the lens’s inward curving surfaces bend the light outward. The focal length of a bi-concave lens is always negative. This means the light rays seem to come from a point on the same side of the lens as the incoming light. This point is called the virtual focus. It determines how much the light spreads out.
Bi-concave lenses always form virtual images. These images are always smaller than the object. So, they are reduced or diminished in size. The images are also upright or erect. And they’re located on the same side as the object. This means the virtual image appears between the lens and the object. A simple ray tracing diagram can show how light rays form the image. The image forms where the diverging rays seem to meet when traced backward from the lens.
The lensmaker’s equation, a fundamental tool in optics, helps us determine the focal length of a thin lens based on its physical properties. For a bi-concave lens, the equation takes the form:
[ \frac{1}{f} = (n-1) \left( \frac{1}{R_1} - \frac{1}{R_2} \right) ]
Here, ( f ) represents the focal length of the lens. For a bi-concave lens, ( R_1 ) and ( R_2 ) are the radii of curvature of the two concave surfaces. The refractive index of the lens material is denoted by ( n ). The equation accounts for the fact that light will diverge when passing through a bi-concave lens. Due to the inward curving surfaces, the radii of curvature ( R_1 ) and ( R_2 ) are negative. This results in a negative value for ( \frac{1}{R_1} - \frac{1}{R_2} ), leading to a negative ( \frac{1}{f} ) and hence a negative ( f ).
The thin lens equation is crucial for understanding how the physical dimensions of a lens affect its optical behavior. For instance, a lens with a smaller radius of curvature will have a shorter focal length. This is because the light rays are bent more sharply when passing through a lens with a smaller radius of curvature, causing them to diverge more quickly.
Optical power is a measure of how strongly a lens can bend light. It is defined as the reciprocal of the focal length:
[ P = \frac{1}{f} ]
For a bi-concave lens, since the focal length ( f ) is negative, the optical power ( P ) is also negative. This negative power indicates that the lens has a diverging effect on light. In vision correction, negative optical power is used to correct nearsightedness (also known as myopia). By diverging the incoming light rays, a bi-concave lens helps to focus the light on the retina of the eye, rather than in front of it. This allows individuals with nearsightedness to see distant objects more clearly.
The concept of optical power is particularly useful in ophthalmology and optometry. Eyeglass prescriptions are often expressed in terms of diopters, which is the unit of optical power. A prescription of -2.00 diopters, for example, means that the lens has a focal length of -0.5 meters. This negative power ensures that the light is spread out enough to reach the retina and form a clear image.
Bi-concave lenses are great for correcting nearsightedness. They diverge light rays before they reach the eye. This helps the light focus on the retina instead of in front of it. So, the image becomes clear. That’s why eyeglass prescriptions for myopia are negative. The higher the myopia, the more negative the prescription. This is because more divergence is needed to correct the vision.
Bi-concave lenses are used in optical beam expanders, like in Galilean telescopes. They help increase the beam size and reduce its intensity. This makes them useful in laser systems and scientific instruments. In laser systems, they control the beam’s shape and improve precision. The symmetrical design of bi-concave lenses makes them more efficient in expanding light beams compared to plano-concave lenses.
Bi-concave lenses are used in multi-element lens designs to reduce aberrations. They can be combined with convex lenses to correct chromatic and spherical aberrations. This improves the image quality in cameras, telescopes, and binoculars. In microscopes, they enhance resolution by manipulating light paths. The symmetrical geometry of bi-concave lenses helps balance spherical aberration in the optical path, making them suitable for high symmetry divergence in optical systems.
Bi-concave lenses are used in door peepholes. They provide a wide-angle view, allowing you to see more of what’s outside. Some flashlight designs use bi-concave lenses to create a wider beam of light. This is useful for illuminating larger areas. In lighting design and stage effects, they can create special lighting effects.
When selecting a bi-concave lens for your specific application, several key factors need to be taken into account to ensure optimal performance and functionality.
Material: The choice of lens material is crucial as it determines how the lens interacts with different wavelengths of light. Common materials used for manufacturing bi-concave lenses include N-BK7, UV Fused Silica, CaF2, and ZnSe. N-BK7 is a versatile and cost-effective borosilicate crown glass, suitable for visible and near-infrared applications. UV Fused Silica is ideal for ultraviolet applications due to its excellent transmittance in that spectral range. CaF2 offers good transmittance in the infrared region and is often used in infrared imaging systems. ZnSe is another material that performs well in the infrared spectrum, particularly in CO2 laser applications.
Focal Length and Radii of Curvature: The focal length of a bi-concave lens is determined by the radii of curvature of its two concave surfaces. The lensmaker’s equation helps in calculating the focal length based on the lens’s geometry and the refractive index of the material. Selecting the appropriate focal length is essential for meeting the specific optical design requirements of your application. For instance, a shorter focal length may be needed for applications requiring greater divergence of light, while a longer focal length might be suitable for more subtle divergence effects.
Diameter and Center Thickness: The physical dimensions of the lens, including its diameter and center thickness, must be considered to ensure proper fit and integration into your optical system. The diameter should match the available space in your setup, while the center thickness affects the overall weight and mechanical stability of the lens.
Coatings: Applying anti-reflection (AR) coatings to the lens surfaces can significantly enhance its performance. AR coatings reduce reflections, thereby increasing light transmission and minimizing ghosting or unwanted reflections that can degrade image quality. This is particularly important in applications where maximizing light throughput and minimizing stray light are critical.
Band-Optics stands out as a trusted partner for all your bi-concave lens needs. With extensive expertise in the field of optics, Band-Optics offers a wide range of high-quality bi-concave lenses tailored to meet diverse application requirements. Their product range includes lenses made from various materials, with different focal lengths, diameters, and coatings to suit specific optical systems.
The company emphasizes quality, precision, and custom manufacturing capabilities. This ensures that each lens delivered meets the highest standards of performance and reliability. Whether you need standard bi-concave lenses or custom-designed ones for a particular application, Band-Optics has the expertise and resources to provide the optimal solution.
So, if you’re looking for reliable and high-performance bi-concave lenses, consider exploring Band-Optics’ offerings. Their commitment to excellence and customer satisfaction makes them a preferred choice for optics professionals and enthusiasts alike. Don’t hesitate to reach out to Band-Optics to discover how their bi-concave lens solutions can enhance your optical systems.
A: The primary function of a bi-concave lens is to diverge light rays. It spreads out incoming parallel light rays due to its unique shape, making it a key component in various optical systems.
A: A bi-concave lens diverges light and has a negative focal length, while a convex lens converges light and has a positive focal length. They behave oppositely in optical systems.
A: Common materials include N-BK7, UV Fused Silica, CaF2, and ZnSe. The choice depends on the specific light spectrum the lens will be used for.
A: No, a bi-concave lens cannot form a real image. It always forms a virtual image that is upright and smaller than the object.
A: Bi-concave lenses are used in eyeglasses for nearsightedness, beam expanders in laser systems, and to reduce aberrations in cameras and telescopes. They also find use in door peepholes and some flashlight designs.
The bi-concave lens is a crucial element in the world of optics. With its unique shape, it diverges light rays instead of converging them. Its primary function is to spread out light, making it ideal for applications where light needs to be distributed over a larger area. The lens has a negative focal length, which means it doesn’t form real images but creates virtual images that are smaller and upright. This makes it indispensable in vision correction for nearsightedness and in various optical instruments like microscopes and telescopes.
As we look to the future of optics, the bi-concave lens continues to be a fundamental component. Its ability to diverge light and correct vision makes it essential in the ongoing development of optical technologies. With continued innovation in materials and manufacturing techniques, bi-concave lenses will likely become even more efficient and versatile. Their role in reducing aberrations and improving image quality in complex optical systems ensures that they will remain a key element in the advancement of optical science and technology. Whether in medical imaging, laser systems, or consumer electronics, the bi-concave lens will continue to play a vital role in shaping how we see and interact with the world around us.
