Views: 0 Author: Site Editor Publish Time: 2025-07-28 Origin: Site
The modulation transfer function shows how an optical system moves contrast at different detail levels from an object to its image. MTF checks both modulation and resolution. It helps us see how sharp and clear an image is. By making a graph of contrast and spatial frequency, it shows how well a lens keeps image quality across the whole picture. High MTF values mean the lens works very well. This makes MTF important for Lens 、MTF Testing and checking quality in optical design.
MTF tells us how well a lens keeps pictures clear and sharp at different detail levels.
High MTF values mean the picture is clearer and sharper. Low values make the picture blurry and lose details.
Experts use special charts and tests to measure MTF. They use these to compare and make lenses better.
MTF charts help photographers and engineers choose the best lenses. The charts show how sharp the picture is in different parts.
Knowing about MTF helps people make better choices when buying cameras and optical products.
The modulation transfer function tells us how an optical system moves contrast from an object to its image at different detail levels. Scientists use this to check if a lens or camera keeps images sharp and clear. Modulation is the difference between the brightest and darkest parts of a pattern, like black and white stripes. When light goes through a lens, some of this difference can be lost, so the image may look less sharp.
To measure the modulation transfer function, experts use special charts with thin lines. They look at the contrast in the original pattern and compare it to the image made by the lens. The ratio of these contrasts at each detail level gives the modulation transfer function value. This value is shown on a graph called an MTF curve. The curve shows how contrast drops as the lines get closer together, which means the details are finer. The function puts both resolution and contrast into one number, so it is easier to compare lenses.
The modulation transfer function depends on spatial frequency, which is how many lines fit in a certain space. The formula uses the brightest and darkest parts of the pattern. For example, modulation = (I(max) - I(min)) / (I(max) + I(min)). The system MTF is found by multiplying the MTFs of all the parts, like lenses and sensors. This helps scientists see how each part changes the final image.
Tip: Think of spatial frequency as how many stripes you see in a small area. High spatial frequency means lots of thin stripes. Low spatial frequency means fewer, wider stripes.
The modulation transfer function is important for understanding how well we see details and sharpness. Higher values mean the lens or camera keeps more contrast at fine details, so images look sharper. Studies show that people think images with higher modulation transfer function values look clearer and more detailed. This is because our eyes notice changes in contrast and detail very well.
Manufacturers use the modulation transfer function to compare lenses and make better designs. For example, they test prime and zoom lenses to see which keeps better resolution across the image. Prime lenses often work more evenly, but zoom lenses can change more, especially at the edges. By looking at the system MTF, designers can find weak spots and fix them to make images better.
In science, experts use the modulation transfer function to compare different lenses, like those in medical tools or telescopes. They follow strict rules to make sure tests are fair. The function also helps check quality in high-end optical systems. It makes sure the product meets the needed standards for resolution and contrast.
Manufacturers use modulation transfer function data to find problems in making lenses. They use this to make better products and waste less. By checking real-life performance, they save money and give better quality.
Note: The modulation transfer function is not just a technical number. It is linked to how people see and judge image quality. Better modulation transfer function values mean better images and happier users.
Lens 、mtf testing helps people see how well a lens works. These tests show how much detail and contrast a lens keeps. Scientists use different ways to measure this. Each way has good and bad points.
Think of spatial frequency like music notes. A piano’s low notes are like wide stripes. High notes are like thin stripes close together. In lens 、mtf testing, spatial frequency means how many lines fit in a small space. Contrast is like music volume. High contrast is like loud music. Low contrast is like soft music.
The main lens 、mtf testing ways are reverse projection, slanted-edge, and camera tests. The table below shows how these ways compare:
| Method | Advantages | Disadvantages |
|---|---|---|
| Reverse Projection | Fast, cheap, easy to use, tests many points at once | Not exact, can’t measure contrast well, depends on eyesight |
| MTF Testing | Very exact, finds more lens problems, used a lot | Costs more, tests one point at a time, misses stray light |
| Slanted-Edge MTF | Tests many points at once, easy software, checks whole system | Needs even lighting, hard to pick targets, easy to use wrong |
| Camera Tests | Good for special uses, flexible, checks whole system | Hard to match results, not much outside help |
Scientists also use frequency generation and scanning ways. Frequency generation uses patterns with one spatial frequency, like bar charts or USAF 1951 targets. These patterns help measure image contrast at different frequencies. Scanning ways look at a point source image, like how sound systems check sound. These ways give exact and repeatable results in labs and outside.
The slanted-edge way is popular because it is fast and simple. It checks many points at once and uses software to measure system mtf. Newer ways, like the improved Zernike moment way, give even better results. The chart below shows how slanted-edge ways compare in accuracy:

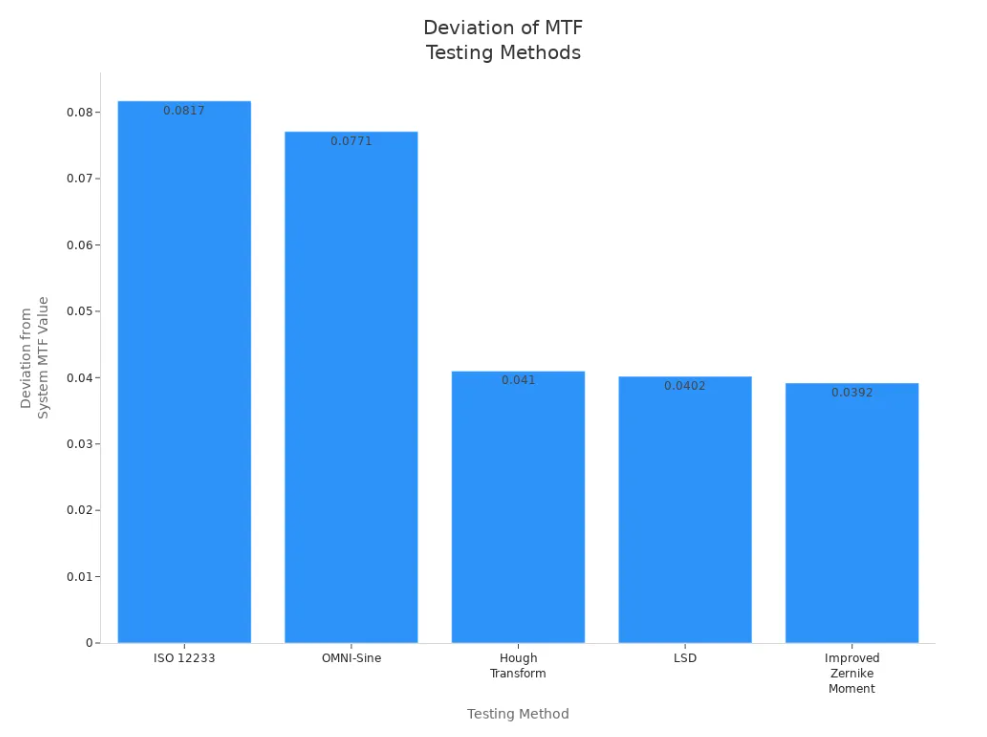

The improved Zernike moment way gives the smallest error from the true system mtf value. This means it is the most exact and trustworthy for lens 、mtf testing. But it takes a bit more time to finish.
Common mistakes in lens 、mtf testing are image noise, alignment errors, and test target problems. Scientists fix these by using smooth tungsten edges, lowering noise, and following strict rules. They also use smart data checks to make sure results are right.
MTF charts help people see how well a lens keeps contrast and detail from the center to the edge. These charts have two main axes. The X axis shows the distance from the center to the edge, usually in millimeters. The Y axis shows the contrast level, from 0 (no contrast) to 1 (full contrast).
MTF charts show values at different spatial frequencies. For example, 10 lines per millimeter shows contrast. 30 lines per millimeter shows resolution. Measurements are taken at many points from the center to the edge. The chart often shows two directions: sagittal (lines from the center out) and meridional (lines at right angles to sagittal). This helps find if the lens works better in one direction.
Tip: An MTF chart is like a music equalizer. Each bar shows how well the lens keeps the “volume” (contrast) at different “notes” (spatial frequencies). If the bars stay high, the lens keeps images sharp everywhere.
A simple example helps explain what happens in an MTF chart. Imagine shining a flashlight through a picket fence. If the fence has wide gaps (low spatial frequency), the light goes through easily. If the gaps are close together (high spatial frequency), less light gets through, and the pattern looks blurry. The MTF chart shows how much of the pattern the lens keeps at each detail level.
MTF charts are important for lens 、mtf testing because they show both contrast and resolution in one place. High values across the chart mean the lens keeps images sharp from the center to the edge. Lower values at high spatial frequencies mean the lens loses fine details. This helps people pick the best lens for photos, science, or medical tests.
MTF helps us see how well a lens keeps contrast and detail. In pictures, resolution means seeing small things clearly. Contrast is how much things stand out by being lighter or darker. The modulation transfer function puts both ideas together. It tells us how much contrast stays at different detail levels. When details get smaller, contrast often goes down. This drop shows up on the MTF curve.
A high MTF value means the lens keeps things sharp and clear. A low value means the picture looks blurry and loses small lines. For example, if two cameras look at far power lines, the one with higher MTF shows sharp lines. The other camera, with lower MTF, shows fuzzy lines. This shows that MTF changes how we see sharpness and detail.
MTF checks how well a lens keeps contrast and detail.
High MTF values mean sharper, clearer pictures.
Low MTF values make pictures blurry and lose detail.
The MTF-50 value is where contrast drops by half and matches what people see as sharpness.
The center of a lens is usually sharpest, but sharpness drops near the edges.
MTF helps people see how well a lens shows contrast and detail. It also shows how well the lens keeps contrast at different detail levels.
Many things can change the MTF of a lens. The point spread function (PSF) shows how light spreads from one spot. A narrow PSF means less blur and higher MTF. Aberrations, like spherical or color errors, make the PSF wider and lower the MTF. Even a perfect lens has limits from diffraction. Diffraction depends on the lens opening size and the color of light.
Small mistakes in making the lens can lower the real MTF. Every part, like the sensor and wires, has its own MTF. The final picture quality depends on all these MTFs together. Things like humidity can also lower MTF by making the air more blurry. In systems that use many colors, different colors can change the MTF. Designers must fix this to keep good pictures.
Tip: To get the best pictures, lens makers must fix aberrations, make lenses carefully, and pick the right settings for each part.
Professionals follow steps to read MTF charts. These charts show how well a lens keeps contrast and detail from the center to the edge. Here are the usual steps:
Find the axes. The bottom line shows distance from the center in millimeters. The side line shows contrast. A value of 1 means perfect contrast.
Look for two spatial frequencies, like 10 and 30 lines per millimeter. These are often in different colors.
Find two curves for different apertures. One is for the lens wide open. The other is for the lens stopped down, often at f/8.
Notice solid and dashed lines. Solid lines show sagittal performance. Dashed lines show meridional performance.
Check how high and flat each curve is. Higher curves mean better contrast and resolution.
Watch how the curves move from left to right. If a curve drops fast on the right, the lens loses sharpness at the edges.
Compare the sagittal and meridional lines. If they stay close, the lens gives smooth background blur. If they spread apart, the lens may have problems like astigmatism.
Use the wide aperture curve to judge low-light or shallow depth of field. Use the stopped-down curve for the sharpest image.
Find the lens’s “sweet spot.” This is where the MTF values are highest, often between f/5.6 and f/16.
Be careful when comparing charts from different lenses or brands. Each company uses its own testing methods.
Remember, MTF charts do not show vignetting, distortion, or flare. Use other tests for a full picture.
Tip: The MTF curve at 50% contrast often matches what people see as sharpness. This value helps people compare lenses in a way that matches what they see.
Some people think published charts always match real lens performance. Most charts show the best results, but real lenses can be different. Field curvature can make dips or bumps in the curve, which may confuse people. Good exposure and not over-sharpening help avoid mistakes in reading MTF charts.
MTF results connect to how pictures look in real life. The table below shows how different image settings change sharpness and the MTF50 value. MTF50 is where contrast drops to half:
| Image Processing Setting | Description | Effect on MTF50 and Perceived Sharpness |
|---|---|---|
| Reference Image | Normal DSLR image with some sharpening. | Medium MTF50 value, normal sharpness. |
| Sharpened 100% | More sharpening, looks a bit sharper. | Higher MTF50, edges look crisper. |
| USM 100%, R=1 | Unsharp Mask, small radius. | Even higher MTF50, some halo effects. |
| USM 100%, R=2 | Strong sharpening, big radius. | Highest MTF50, but halos may hurt quality. |
| Blur 100% | A little blur from lens or focus error. | Lower MTF50, image looks soft. |
In science and everyday cameras, MTF helps make sure images are good. For example, a fisheye lens with high MTF values gives clear pictures for research and military use. In phones, MTF helps engineers make better cameras. In medical and security cameras, high MTF means sharper, more trusted images. The MTF curve gives a quick look at how a lens works. It helps people pick the right lens for their needs.
Note: MTF charts do not show every lens feature. People should also look at things like distortion and flare to fully judge lens quality.
Knowing about Modulation Transfer Function helps people see if a lens keeps details and contrast well.
MTF curves tell us how sharp and clear a lens can make pictures.
Photographers and engineers use MTF to check and compare lenses for image quality.
Shoppers can look at MTF data to pick the best lens for them, not just by cost or brand.
Learning about MTF helps everyone make smarter choices when buying optical products.
MTF stands for Modulation Transfer Function. It measures how well a lens or optical system keeps image contrast at different detail levels. High MTF values mean the lens shows sharp and clear images.
Experts use test charts with fine lines or patterns. They compare the contrast in the original pattern to the image made by the lens. Special software helps calculate the MTF curve for each lens.
MTF values drop at higher spatial frequencies because lenses cannot keep perfect contrast for very fine details. Light spreads and lens imperfections cause this drop. The curve shows how much detail the lens can keep.
Yes. MTF charts show how sharp and clear a lens can make images. Photographers use these charts to compare lenses and pick the best one for their needs. High, flat curves mean better performance.
Not always. A higher MTF means better sharpness and contrast. Other factors like distortion, color errors, and flare also affect image quality. Users should check all lens features before making a choice.
