What Do Objective Lenses Do on A Microscope

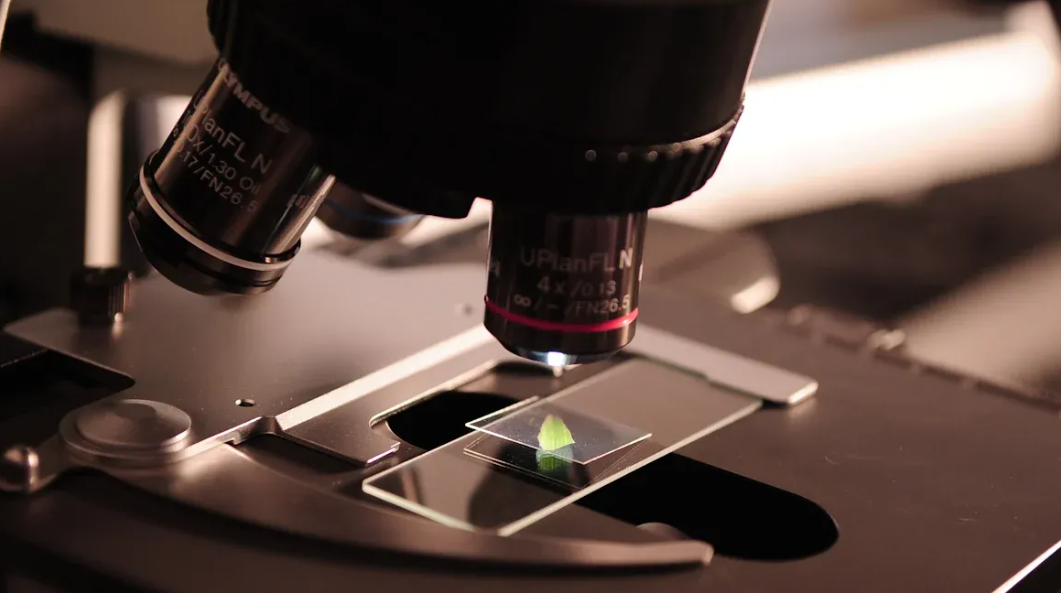

Objective lenses on a microscope collect light from the specimen and provide the primary magnification used to examine small structures. They also play a major role in resolution—the ability to distinguish closely spaced details. Common objective powers are 4x, 10x, 40x, and 100x. A 4x scanning objective helps locate the specimen, while higher-power objectives provide a closer view. The eyepiece further magnifies the image formed by the microscope’s optical system.

Key Takeaways

• Objective lenses collect light from the specimen and provide the microscope’s primary magnification.

• A 4x scanning objective helps you locate and center the specimen before switching to higher power.

• With a 10x eyepiece, 4x, 10x, 40x, and 100x objectives provide 40x, 100x, 400x, and 1000x total magnification.

• Numerical aperture affects resolution; higher magnification alone does not guarantee more detail.

• Use immersion oil only with objectives designed for it, and follow the manufacturer’s cleaning instructions.

Function of Objective Lenses

Light Gathering

Objective lenses help collect light from the specimen. Each lens has a value called numerical aperture (NA). This value tells how well the lens gathers light and shows small details. A higher NA means the lens gets more light. This makes the image look brighter and clearer. The lens collects light in a cone shape. Lenses with higher NA can catch more slanted light rays. This helps show more detail in the specimen.

Tip: Oil immersion objective lenses use special oil between the lens and the slide. This oil has a higher refractive index than air, which increases the NA and lets the lens gather even more light.

The table below lists features that change how objective lenses collect light:

Image Formation

In a finite-tube microscope, the objective lens forms a magnified real image of the specimen at the intermediate image plane. The eyepiece then magnifies this image for viewing.

In an infinity-corrected microscope, the objective sends light from each specimen point toward a tube lens as a parallel bundle. The tube lens forms the intermediate real image. Both systems use the objective to collect specimen light, but the image-forming arrangement differs.

Magnification and Resolution

Objective magnification describes how much the objective enlarges the specimen image in its intended microscope system. For standard eyepiece viewing, total magnification equals objective magnification multiplied by eyepiece magnification. For example, a 40x objective with a 10x eyepiece provides 400x total magnification. The table below compares four common objective powers and their typical uses.

The resolving power of objective lenses lets scientists see tiny details. These are things the human eye cannot see. The resolving power depends on the NA and the light’s wavelength. A higher NA and shorter wavelength give better resolution. The way the lens is made also matters. Good lenses fix optical errors. This keeps the image sharp and clear, even at high magnification.

• Objective lenses act like the “eyes” of the microscope. They collect light, make real images, and give the magnification needed for close study.

• A microscope with a good objective lens can see much smaller details than the human eye. This helps users see things that would be invisible otherwise.

Note: Always pick the right objective lens for your specimen. Higher magnification is not always better if the lens cannot show fine details clearly.

How Objective Lens Works

Refraction and Focusing

The objective lens bends light using refraction. Light changes direction when it goes through the curved glass. This happens because the lens and air have different refractive indexes. The bending helps the lens collect light from the specimen. It brings the light together at one spot. The shape and material of the lens decide how much the light bends. They also decide where the light meets. Focusing lets the microscope show a clear and sharp image.

Here is a table that shows how refraction works in the objective lens:

The objective lens must focus light well to show small details. If it does not focus right, the image will look blurry.

Real Image Creation

The intermediate image in a compound microscope is a magnified real image of the specimen. A finite-tube objective forms it directly; an infinity-corrected objective works with a tube lens to form it. In a conventional compound microscope, the image is inverted relative to the specimen.

The eyepiece acts as a magnifier, allowing the viewer to observe a larger virtual image. For camera imaging, suitable optics project the specimen image onto the sensor.

Tip: Correct focus and optical alignment are important for both eyepiece viewing and camera imaging.

Types of Microscope Objective Lens

Common compound microscopes use 4x scanning, 10x low-power, 40x high-power, and 100x oil-immersion objectives. Each serves a different viewing task. Start with a scanning or low-power objective to locate the specimen, then switch to a higher-power objective to examine the selected area more closely.

Scanning (4x)

A scanning objective lens is usually the 4x objective on a standard compound microscope. Its function is to help you locate the specimen, scan a broad area of the slide, and center the region you want to examine. With a 10x eyepiece, it provides 40x total magnification. Its wide field of view makes initial focusing easier.

Center the specimen before switching to a higher-power objective. As the field of view becomes smaller, an off-center specimen may disappear from view. The scanning objective is best for finding the area of interest rather than examining the finest details.

Low Power (10x)

The low-power objective lens lets you see the specimen closer. You still get a wide view. People use it after the scanning lens to focus on interesting spots.

• The low-power objective lens gives 10x magnification.

• It balances field of view and detail well.

• You can see more than with the scanning lens but still move around easily.

• This lens is good for seeing bigger parts and for first focusing.

Switching from scanning to low-power helps you find special parts before zooming in more.

High Power (40x)

A 40x objective is commonly called the high-power objective on a standard compound microscope. With a 10x eyepiece, it provides 400x total magnification. It is used to examine finer cellular details after the specimen has been located and centered at lower power

• The high-power objective lens gives 40x magnification.

• It is used to look at things like cheek cells or plant cells.

• You can see cell walls, nuclei, and other small parts.

• The field of view gets smaller, so focusing is harder.

People use this lens after the low-power lens to zoom in on details.

Oil Immersion (100x)

The oil-immersion objective lens gives the highest magnification. It uses special oil to make the image clearer.

• The oil-immersion objective lens gives 100x magnification.

• Oil fills the space between the lens and the slide. The oil matches the glass’s refractive index.

• This setup stops light from bending too much and lets in more light.

• The image is much brighter and clearer at high magnification.

• Scientists use this lens to see very tiny things, like bacteria or small cell parts.

Note: Only use oil with the oil-immersion objective lens. Using oil with other lenses can ruin them.

Changing the objective lens changes how much you see and how bright it is. Higher magnification lenses show more detail but have a smaller view and need careful focusing. The chart below shows that numerical aperture goes up and depth of field goes down as magnification increases:

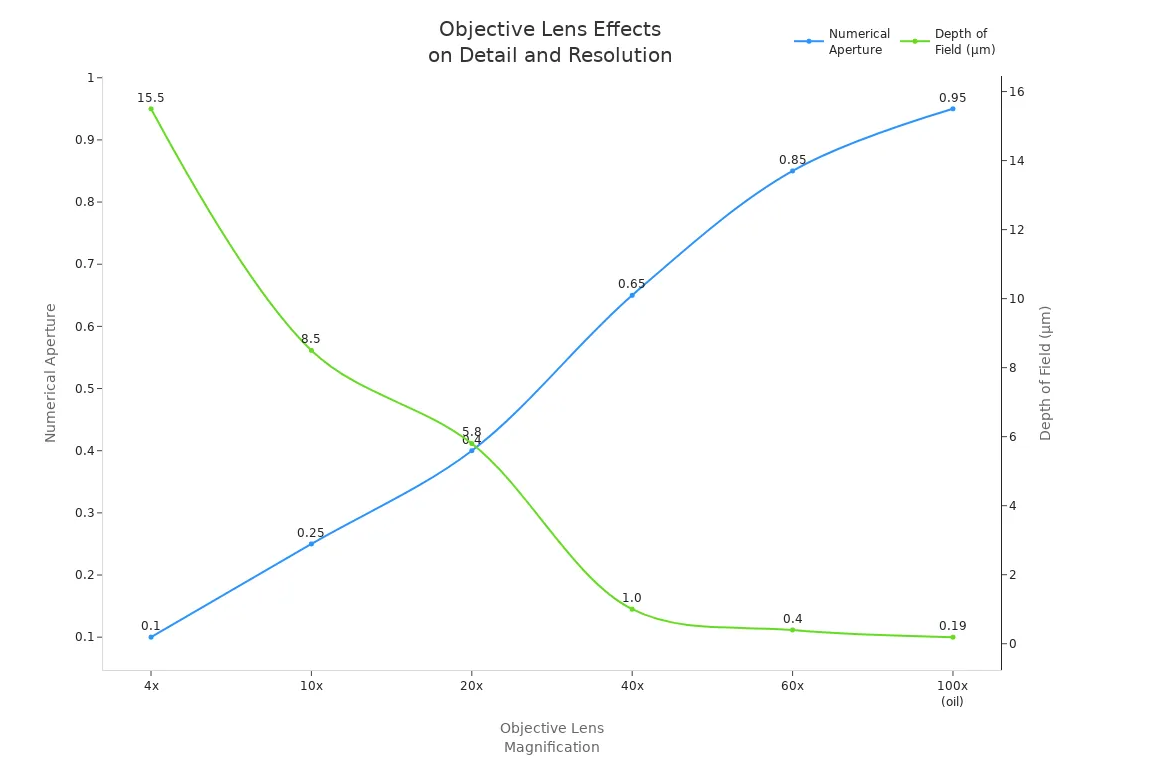

Picking the right microscope objective lens for each step helps you get the best results. Start with a scanning or low-power lens to find the specimen. Then use a high-power or oil-immersion lens to see tiny details. This step-by-step way makes sure you get clear images and good observations.

Key Features of Objective Lenses

Objective lenses have special features that change how a microscope works. These features help people pick the right lens for what they need. The main things that affect how well an objective lens works are numerical aperture, working distance, and correction types. Each one changes how sharp, bright, or true the image looks.

Numerical Aperture

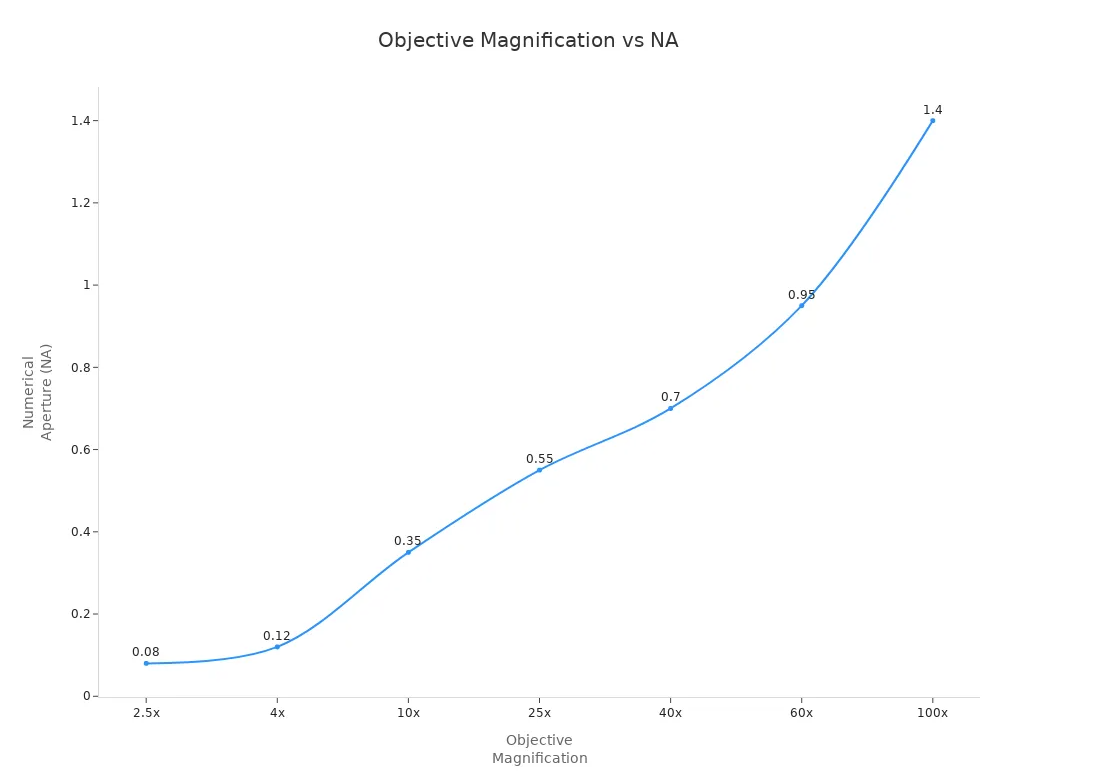

Numerical aperture (NA) tells how much light an objective lens can take in. If the NA is higher, the lens gets more light and shows smaller details. NA depends on how the lens is made and what is between the lens and the sample. Oil immersion lenses use oil to make NA higher, so you see more detail. Lenses with high resolution usually have the highest NA.

Tip: If you need to see tiny things like bacteria, use a lens with high NA.

A higher NA lets the lens show two close points as separate. This is very important for how well the lens works and for making the image clear and sharp.

Working Distance

Working distance is the space from the objective lens to the sample when the picture is focused. When you use more magnification, the working distance gets smaller. This means a high-power objective lens sits closer to the slide than a low-power lens.

Note: Pick a lens with a longer working distance for thick or bumpy samples. This helps keep the lens and the sample safe from damage.

Correction Types

Objective lenses use different correction types to fix problems in the image called aberrations. These corrections help make the image look sharper, clearer, and more even.

Plan objectives give a flat image all the way across the view. Apochromatic objectives fix more colors and give the best color pictures. These things matter a lot for high-resolution objectives and for getting the best image.

Tip: If you need perfect color or want to take photos, use plan apochromatic objectives for the best results.

Practical Tips for Choosing Objective Lenses:

• Use a high-power objective lens with high NA to study cells in detail.

• Pick long working distance objectives for thick samples or when using coverslips.

• Choose correction types for your needs: achromatic for simple use, plan for flat images, and apochromatic for best color.

• Always match the lens to your sample and the total magnification you need.

Care for Objective Lenses

Cleaning Tips

Proper cleaning keeps objective lenses clear and sharp. Dust, oil, and fingerprints can block light and blur images. Regular cleaning helps lenses last longer and work better. Follow these steps for safe and effective cleaning:

1. Inspect the lens under good light to spot dust or smudges.

2. Blow away loose dust with a rubber bulb or lens blower. Never use your breath, as saliva can leave spots.

3. Use a clean, low-lint lens tissue or cotton swab moistened with distilled water. Shake off extra liquid before touching the lens.

4. Wipe the lens gently in a spiral motion, starting from the center and moving outward.

5. For oily dirt, use a small amount of lens cleaning fluid or alcohol on a fresh swab. Avoid strong solvents like acetone on plastic or cemented parts.

6. Discard each tissue or swab after one use to prevent spreading dirt.

7. Remove immersion oil after every use with lens tissue only. Do not use solvents unless needed.

8. Cover the microscope with a dust hood after cleaning to keep lenses clean.

Tip: Clean only when needed. Too much cleaning can scratch or damage the lens coatings.

Handling and Storage

Careful handling and proper storage protect objective lenses from scratches, fungus, and other damage. Good habits keep lenses working well for years.

• Always handle lenses by their metal barrel, not the glass.

• Support the lens with one hand when removing it to prevent drops.

• Store lenses in a clean, dry place with controlled temperature (60–75°F) and humidity (30–50%) to stop mold and static.

• Use separators or cushioned trays to keep lenses from touching each other.

• Keep lenses away from direct sunlight and strong lights to protect coatings.

• Cover the microscope with a dust cover when not in use.

• Inspect lenses often for dust or oil. Clean only if needed.

• Use only the correct immersion oil and remove it right after use.

• Schedule professional checkups every year to keep lenses in top shape.

Keeping objective lenses clean and safe ensures clear images and extends the life of the microscope.

Objective lenses are very important for seeing things clearly with a microscope. They collect and focus light so you can see small details. Without them, many tiny things would stay hidden. Knowing how lenses are made and how strong they are helps you pick the right one. Taking care of your lenses keeps your images sharp and your results good. Using these tips helps everyone get clearer and more correct results when using a microscope.

FAQ

What does the objective lens do in a microscope?

The objective lens collects light from the specimen and provides the microscope’s primary magnification. Its numerical aperture helps determine how much fine detail can be resolved. The eyepiece further magnifies the image for viewing; an infinity-corrected system also uses a tube lens to form the intermediate image.

Why do microscopes have more than one objective lens?

Multiple objective lenses let you choose different magnifications and fields of view. Use the 4x scanning objective to locate the specimen, the 10x objective to examine its overall structure, and higher-power objectives to inspect selected details. Center the specimen at low power before increasing magnification.

How should someone clean an oil immersion objective lens?

Always clean off oil right after you use the lens. Use lens tissue or a cotton swab with a little lens cleaner. Wipe the lens gently in a spiral shape. Do not use strong chemicals or rough things.

What happens if the objective lens touches the slide?

The lens might get scratched or dirty. The slide or the specimen could break. Move the focus slowly and check the working distance to avoid damage.
