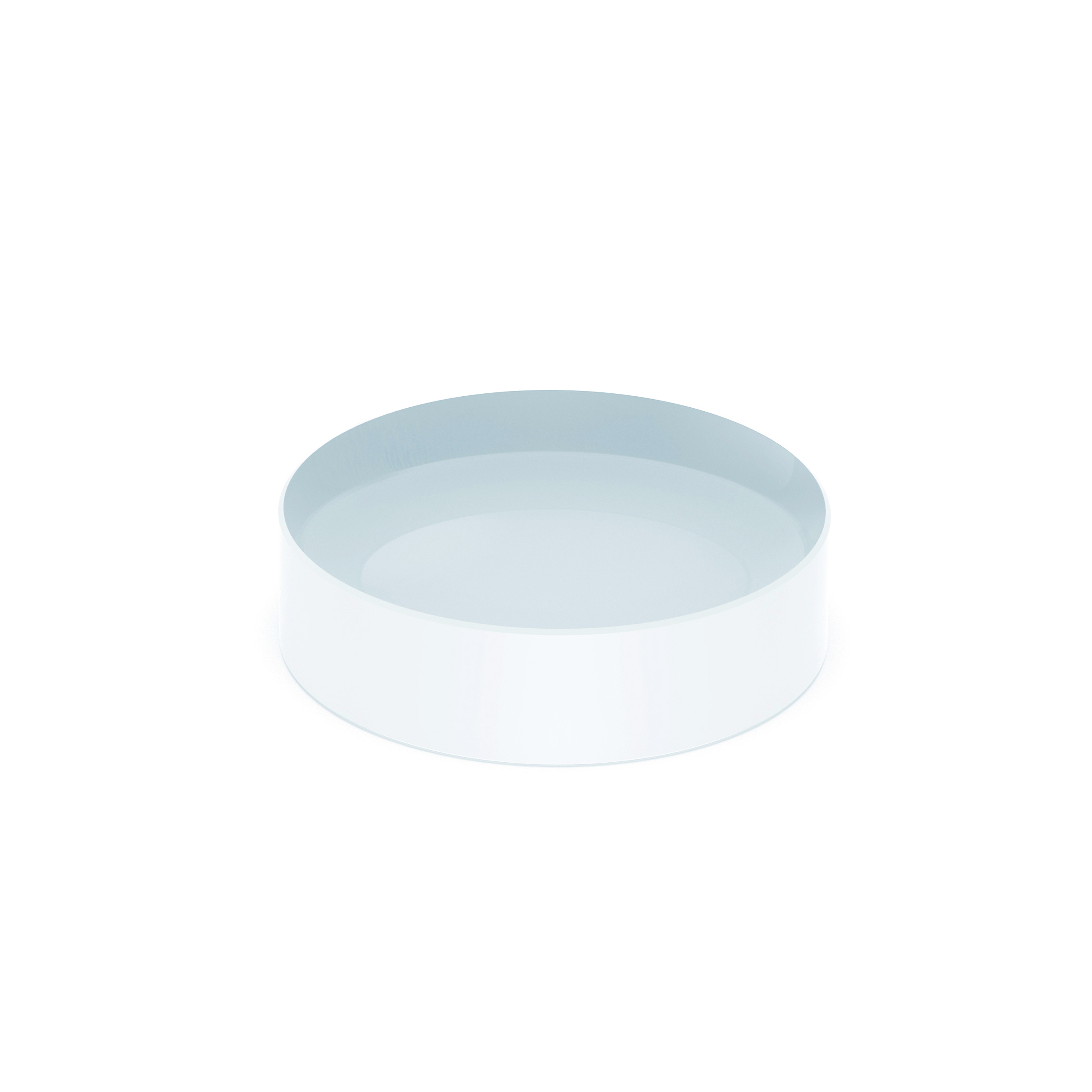

They are commonly used in optical systems to increase the focal length or to diverge a collimated light beam. Bi - concave lenses can be made from various materials, with BK7 glass being a popular choice due to its good optical properties and relatively low cost.
Diverging Light Rays: The most fundamental feature of bi - concave lenses is their ability to diverge light rays. When a parallel beam of light enters a bi - concave lens, the lens causes the rays to spread out, as if they were coming from a virtual point source. This property is useful in applications where a wider distribution of light is required, or where the focal length of an existing optical system needs to be increased.
Negative Focal Length: Bi - concave lenses have a negative focal length, which is a measure of their ability to diverge light. The focal length of a bi - concave lens is typically specified in millimeters, and lenses with different focal lengths are available to meet the specific requirements of different applications. For example, lenses with focal lengths ranging from - 30 to - 1000 mm are commonly available.
Available Coatings: Bi - concave lenses can be obtained with different coatings to optimize their performance in specific applications. Uncoated lenses are suitable for general - purpose applications where cost is a primary consideration. Single - layer MgF₂ coatings are often used to reduce surface reflections, increasing the overall transmission of light through the lens. Broadband anti - reflection (AR) coatings are even more effective in reducing reflections across a wide range of wavelengths, making them ideal for applications where high - transmission over a broad spectral range is required.
Optical Systems for Beam Expansion: In laser systems, bi - concave lenses are used to expand the diameter of a laser beam. By diverging the laser beam, these lenses can increase the beam's cross - sectional area, which may be necessary for applications such as laser projection or material processing, where a wider beam is required.
Correcting for Convergence in Optical Systems: In some optical systems, such as telescopes or microscopes, the light rays may converge too strongly. Bi - concave lenses can be used to counteract this convergence and adjust the focal length of the system, ensuring that the image is properly formed.
Photography and Imaging: In certain photography and imaging applications, bi - concave lenses can be used to create special effects, such as a soft focus or a wider field of view. They can also be used in combination with other lenses to correct for aberrations or to achieve a specific optical performance.
What is the difference between a bi - concave lens and a plano - concave lens?
A bi - concave lens has two concave surfaces, while a plano - concave lens has one flat surface and one concave surface. Bi - concave lenses generally have a stronger diverging effect on light rays compared to plano - concave lenses of the same material and dimensions.
Can bi - concave lenses be used to focus light?
No, bi - concave lenses are diverging lenses and are not used to focus light. Instead, they spread out light rays. Convex lenses, such as bi - convex or plano - convex lenses, are used for focusing light.
How do I choose the right bi - concave lens for my application?
When choosing a bi - concave lens, consider factors such as the required focal length, the diameter of the lens (which should be appropriate for the size of the light beam), the material of the lens (e.g., BK7 for general - purpose use, or other materials for specific wavelength ranges or environmental conditions), and the type of coating needed to optimize the lens's performance in your application.
