Views: 0 Author: Site Editor Publish Time: 2025-07-10 Origin: Site
Published: July 10, 2025 | Updated: August 14, 2026
Prisms appear in everyday life in two different ways. In geometry, a prism is a three-dimensional shape with two parallel, congruent bases. Cereal boxes, books, tents and pencils are familiar examples of geometric prisms.
In optics, a prism is a transparent component designed to redirect, reflect, rotate or disperse light. Precision optical prisms are used in binoculars, cameras, surveying instruments, laser systems, machine vision equipment and many other optical devices.
This guide introduces ten real-life prism examples, explains their shapes and shows how everyday prism geometry connects with precision optical applications.

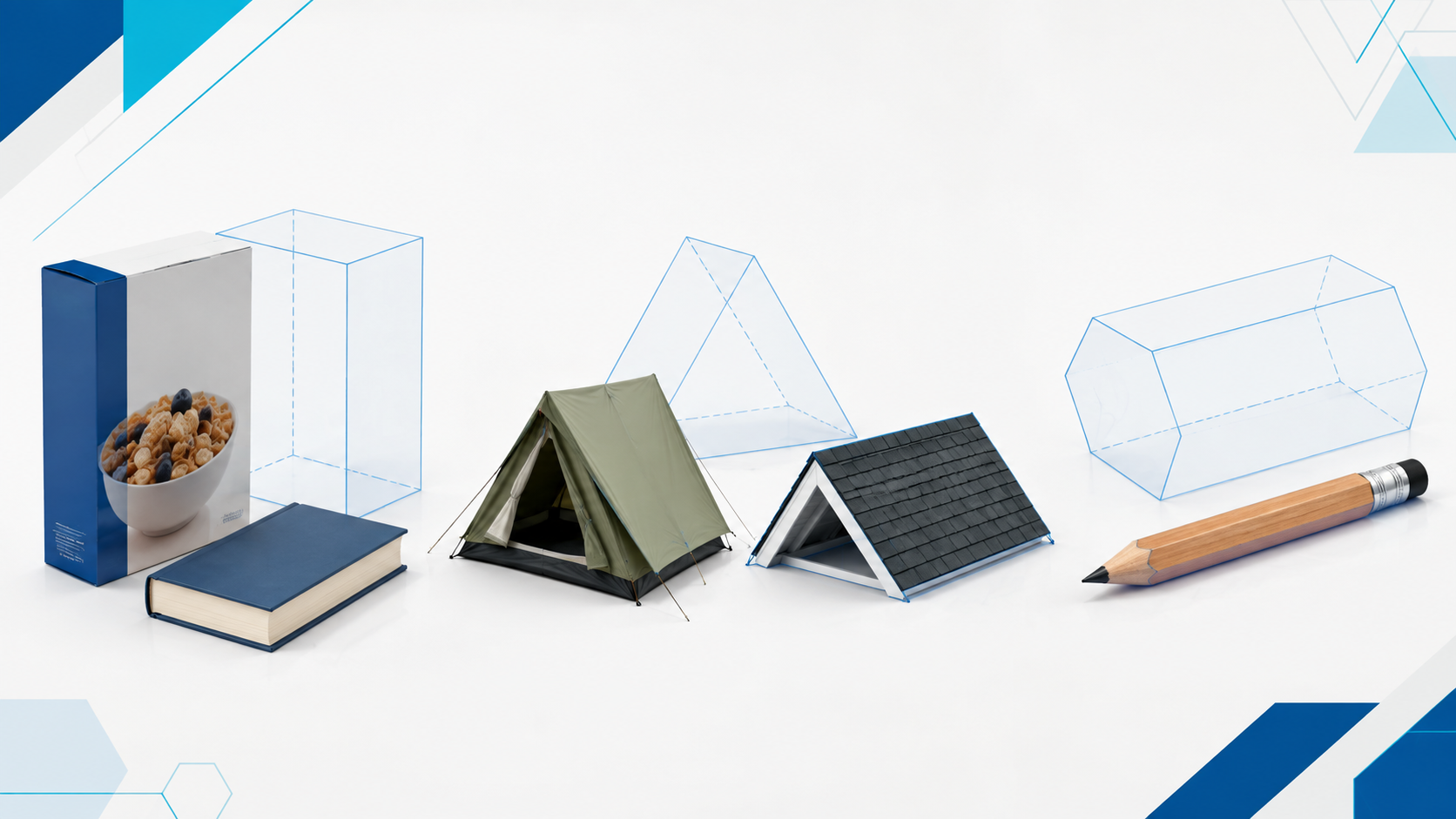

Cereal boxes, books and bricks are rectangular prisms.
A-frame tents and some roof structures resemble triangular prisms.
Hexagonal pencils are examples of hexagonal prisms.
Binoculars, cameras and laser systems use precision optical prisms.
Different optical prism types perform different beam-steering, image-rotation and light-distribution functions.
Table of Contents
Common triangular prism examples include A-frame camping tents, roof structures, triangular packaging and some glass decorations. They have two triangular ends connected by rectangular faces.
Cereal boxes, books, bricks, shipping cartons, storage containers and many buildings are rectangular prism examples. This is one of the most common prism shapes in everyday life.
A traditional wooden pencil is a familiar hexagonal prism. Its six flat sides make it easier to hold and help prevent it from rolling on a desk.
Precision optical prisms are used in binoculars, cameras, laser systems, surveying instruments and machine vision equipment. Unlike ordinary prism-shaped objects, they are designed to control light through reflection, refraction or beam deviation.

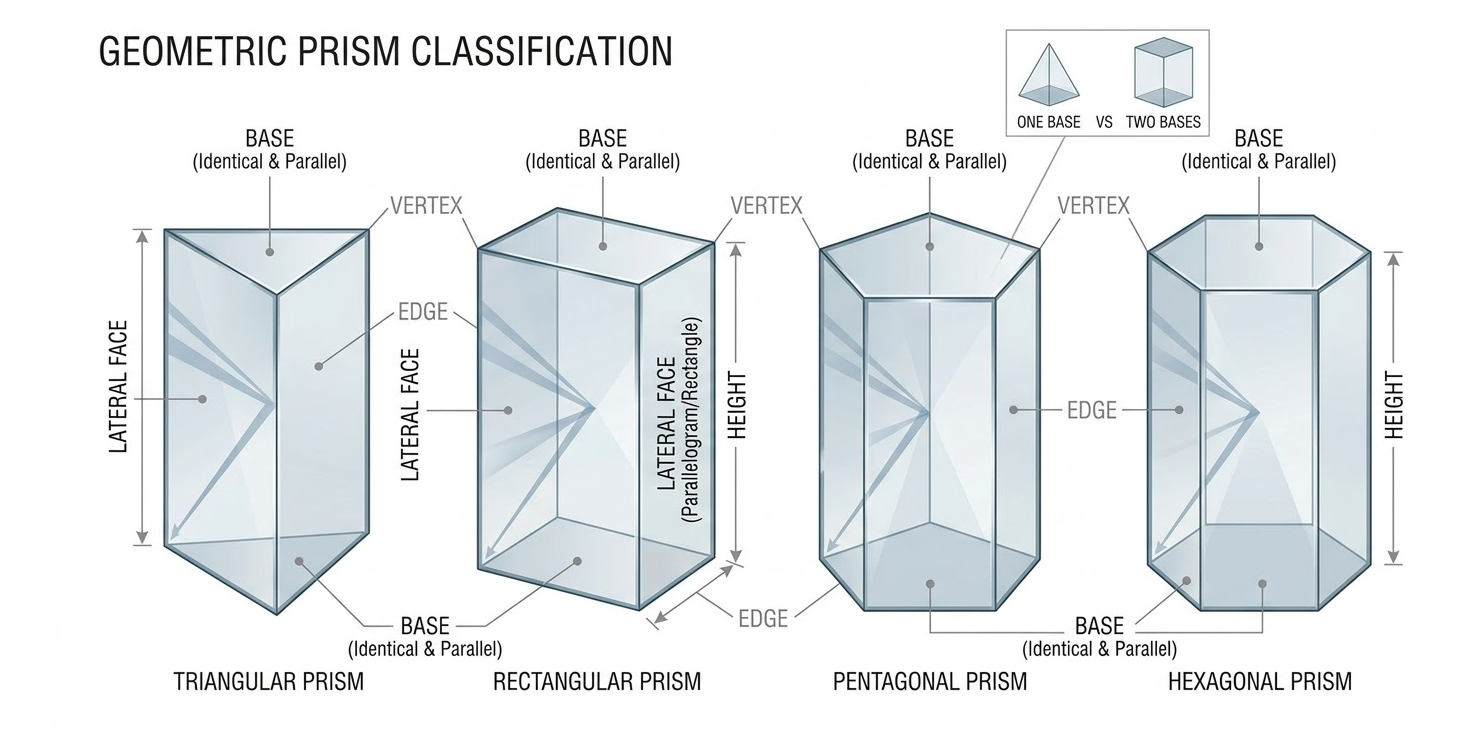

In geometry, a prism is a three-dimensional solid with two parallel and congruent polygonal bases. The remaining faces connect the corresponding sides of the two bases.
The shape of the bases determines the prism type:
Triangular bases create a triangular prism.
Rectangular bases create a rectangular prism.
Pentagonal bases create a pentagonal prism.
Hexagonal bases create a hexagonal prism.
An optical prism is different from an ordinary geometric object. It is usually made from an optical material with carefully controlled surfaces and angles. Depending on its geometry, material and coating, an optical prism can redirect a beam, fold an optical path, rotate an image, separate wavelengths or create a specific light pattern.
For a more detailed technical introduction, read our optical prism guide.
You can usually identify a prism by checking three simple features:
It has two matching and parallel bases.
Its cross-section stays the same shape along its length.
Its side faces connect the two bases and are usually rectangles or parallelograms.
For example, a cereal box, a book and a hexagonal pencil are prisms because they have the same cross-section from one end to the other.
A cone or pyramid is not a prism. Both have a single base and taper toward one point instead of having two matching parallel bases.
Cereal boxes, packaging cartons and many shipping boxes are rectangular prisms. They have six rectangular faces, with opposite faces equal and parallel.
These objects are useful classroom examples because their length, width and height can be measured easily. Their volume is calculated by multiplying these three dimensions.
Most books, bricks and storage containers are also rectangular prisms. Although their materials and dimensions differ, they share the same basic three-dimensional geometry.
Rectangular optical components can also be used as substrates, windows or beam-path elements. However, optical-grade components require controlled materials, surfaces and tolerances that ordinary everyday objects do not provide.
An A-frame tent is a familiar triangular prism example. The two ends of the tent are triangular, while the roof and floor extend along its length.
This shape provides a simple way to visualize how two identical triangular bases form a three-dimensional prism.
Some roofs, greenhouses and structural trusses resemble triangular prisms. When viewed from the end, the structure has a triangular profile that continues along the length of the building.
The same geometric principle appears in optical prisms, although precision optical components are designed according to specific light paths rather than architectural requirements.
Many wooden pencils have a hexagonal cross-section. When that cross-section continues along the length of the pencil, the pencil forms a hexagonal prism.
The flat sides make the pencil easier to grip and help prevent it from rolling. This example demonstrates how prism geometry can provide practical mechanical benefits.
Prisms and pyramids are both three-dimensional geometric solids, but their structures are different.
Feature | Prism | Pyramid |
|---|---|---|
Number of bases | Two matching and parallel bases | One base |
Side faces | Usually rectangles or parallelograms | Triangles that meet at one point |
Shape along its length | Remains consistent | Becomes narrower toward the top |
Real-life example | Cereal box, tent or pencil | Egyptian pyramid or pyramid-shaped roof |
In simple terms, a prism has the same shape at both ends, while a pyramid has one base and a pointed top.
The first five examples focus mainly on geometric shapes found in everyday life. The following examples introduce transparent and precision prisms that interact with light, creating a natural connection between basic prism geometry and practical optical applications.

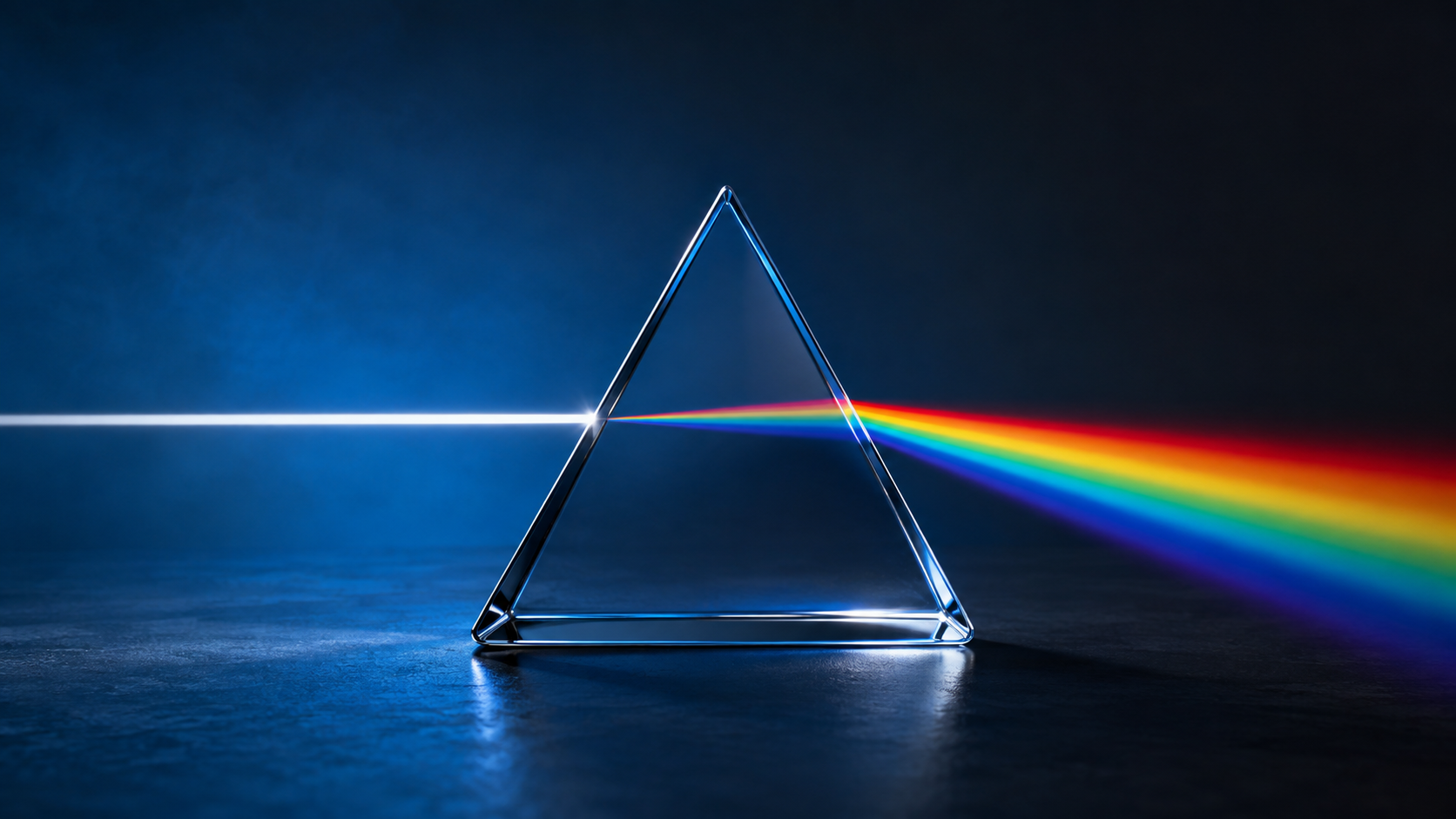

Triangular glass decorations, chandeliers and sun catchers can refract and disperse sunlight into visible colors.

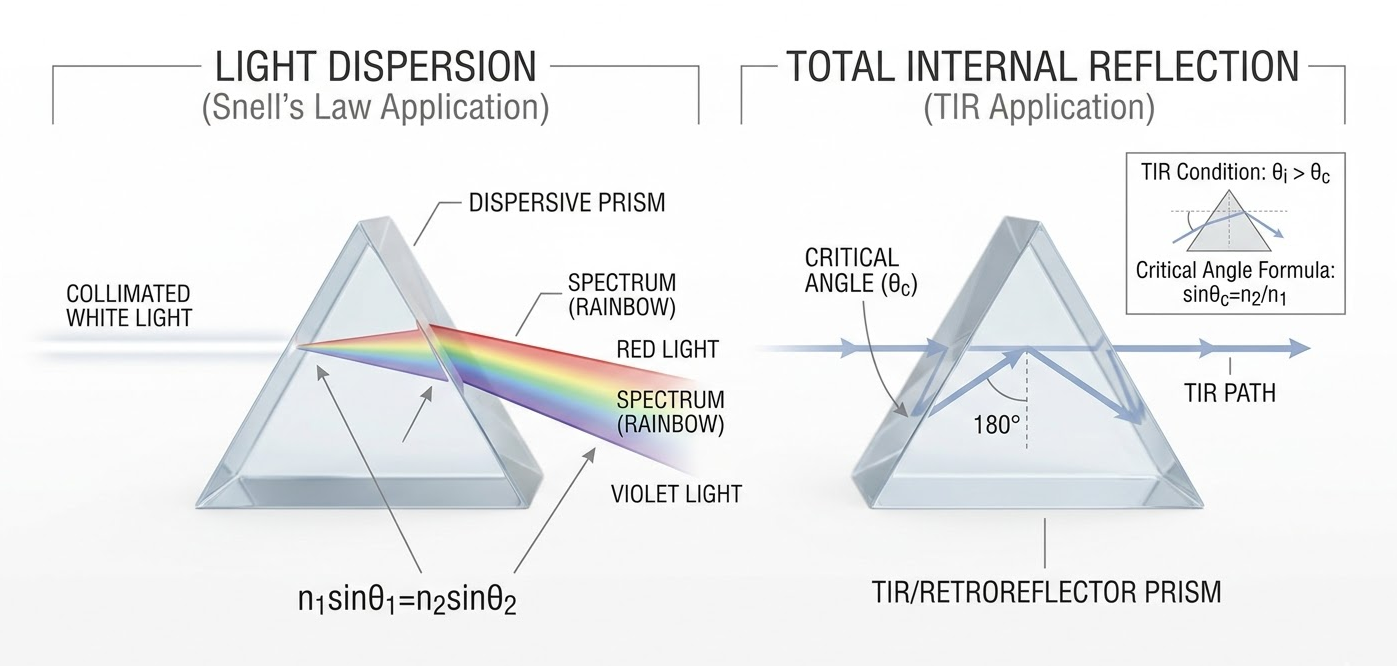

When white light enters a transparent prism, different wavelengths can change direction by different amounts. This is why a glass prism can separate white light into a visible spectrum.
Decorative glass demonstrates the basic principle, but a precision dispersing prism requires controlled optical material, surface geometry, angular accuracy and inspection.
The CIE’s technical report on photopic vision tabulates its modified luminous-efficiency function from 380 to 780 nm in 1 nm steps, providing an authoritative reference range for the wavelengths involved in visible-light dispersion.
A 2019 Japanese Journal of Applied Physics study measured the refractive index of N-SF11 optical glass across 400 to 650 nm and reported that the resulting Sellmeier coefficients agreed closely with standard values. This confirms that prism dispersion is material- and wavelength-dependent, not merely a visual effect.

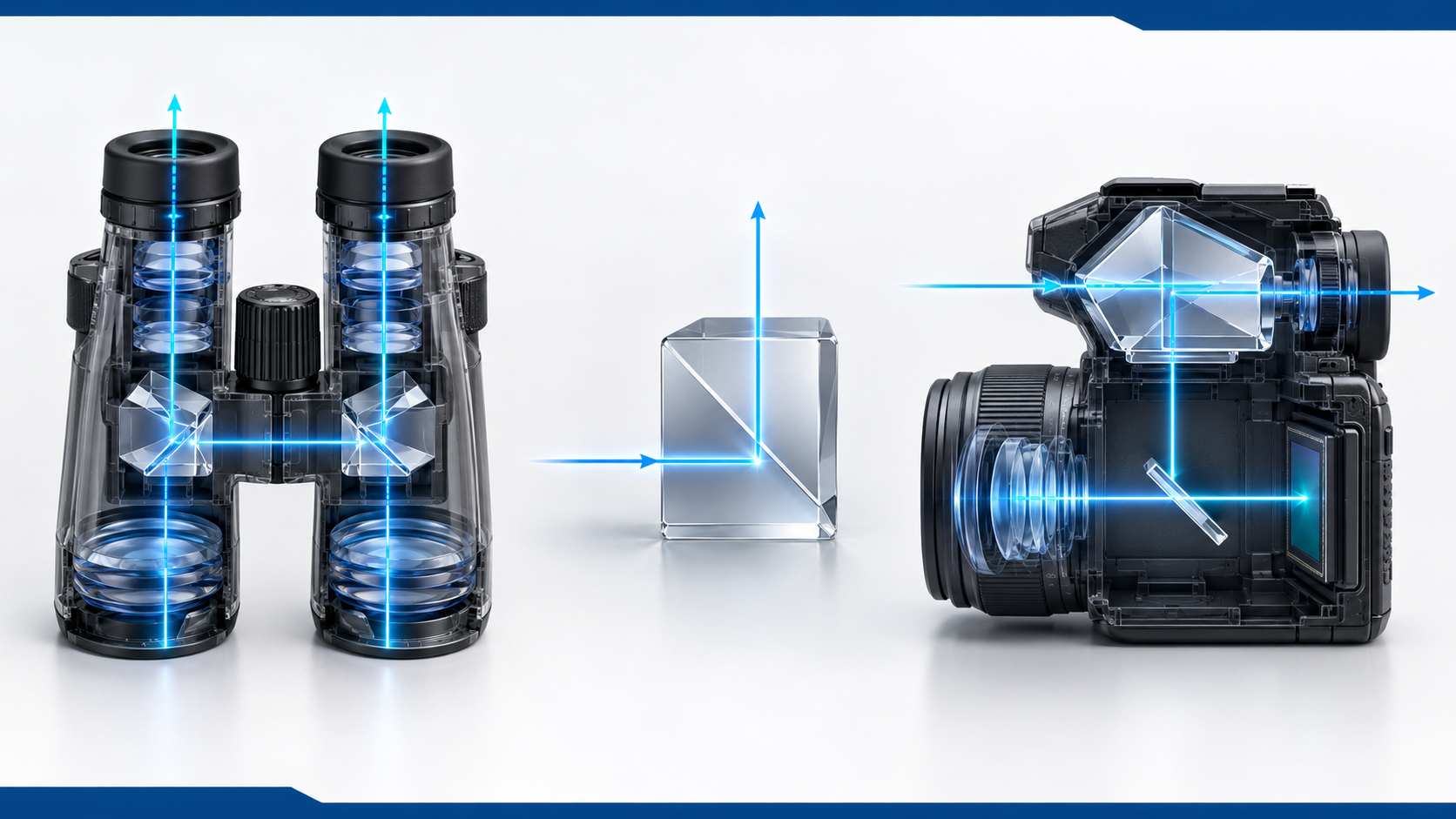

Binoculars use optical prisms to fold the light path and help present an upright image. The compact body of many binoculars would be difficult to achieve using lenses alone.
Different binocular designs use different prism arrangements. Roof prisms are commonly associated with compact, straight-barrel binocular configurations.
A peer-reviewed optical-design study describes the Abbe erecting prism as using a 90° roof and explains that roof-angle error can split the image. This is why roof geometry and edge accuracy are critical in image-erecting prisms.
Learn more about custom roof prisms for image-erecting and beam-folding applications.
Periscopes and compact optical instruments need to redirect light around corners or through limited mechanical spaces.
A right-angle prism can redirect or fold an optical path through reflection, depending on its orientation, coating and system design.
Compared with a separate mirror assembly, a prism can provide a stable reflective geometry within a compact optical system.

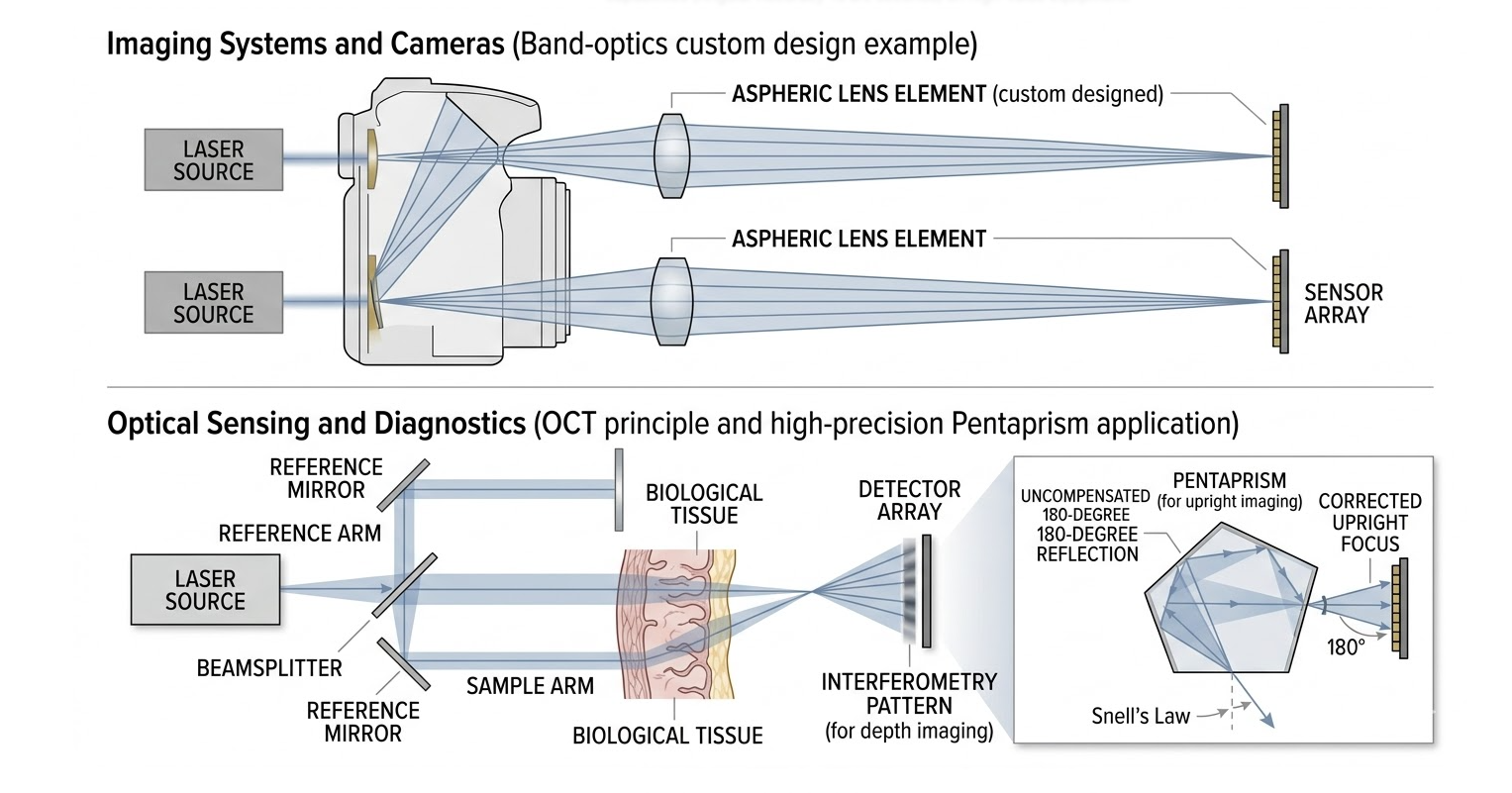

Cameras, viewfinders, surveying systems and alignment instruments may use prisms to change the direction of a beam, erect an image or maintain a defined deviation angle.
A penta prism, for example, is designed to produce a fixed beam deviation and is often considered for applications where alignment stability is important.
In an experimental deflectometric-scanning study, optimized pentaprism alignment reduced orientation-related angle deviations to below 0.001 arcsec (5 nrad). The result illustrates why pentaprisms are used when highly stable beam deviation is required.
The final prism selection depends on the required optical path, image orientation, wavelength, accuracy and available installation space.
Laser systems use precision prisms for beam steering, alignment, line generation and optical-path adjustment.

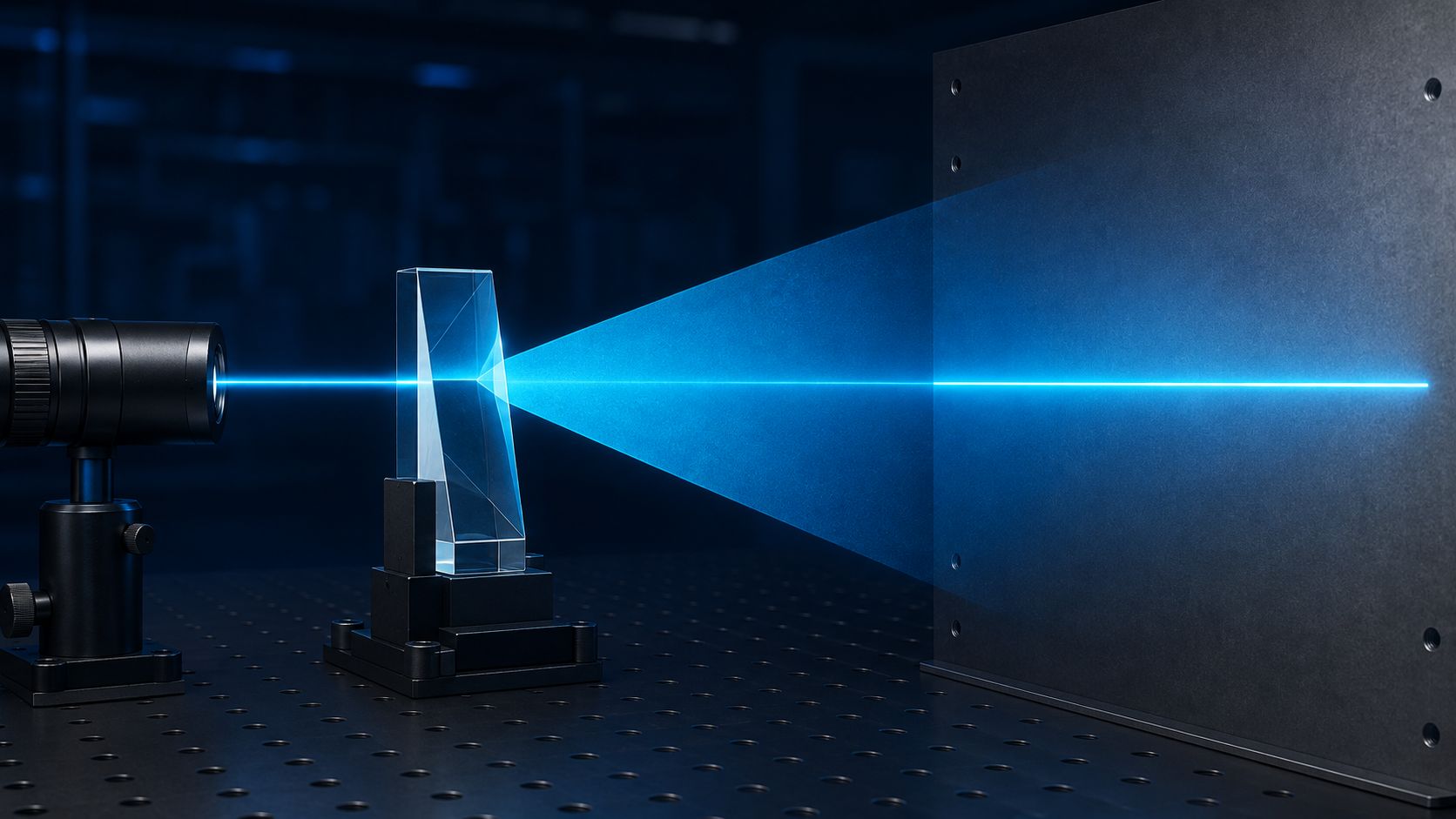

A Powell prism can transform an input laser beam into a line pattern. These prisms are used in machine vision, industrial inspection, alignment, scanning and structured illumination systems.
In a Powell-lens Raman imaging system reported in Applied Spectroscopy, the generated laser line achieved ±5% intensity uniformity; the same study acquired 100 × 350-pixel hyperspectral images in as little as 8 seconds with a signal-to-noise ratio of 24. This provides a measured example of the uniform line illumination a Powell element can support.
A wedge prism can provide controlled angular beam deviation. Two wedge prisms may also be combined in a system when adjustable beam steering is required.
Different optical prism geometries perform different functions. Selecting the appropriate type starts with understanding the required beam path and optical result.
Prism Type | Typical Optical Function | Example Applications |
|---|---|---|
Beam folding and redirection | Periscopes, imaging systems and compact instruments | |
Fixed beam deviation | Alignment, surveying and measurement systems | |
Image erection and optical-path folding | Binoculars and viewing instruments | |
Small angular beam deviation | Beam steering, alignment and compensation | |
Laser line generation | Machine vision, inspection and alignment | |
Lateral beam displacement | Imaging, laboratory and optical assemblies |
Band Optics provides custom optical prisms for applications requiring specific materials, dimensions, angles, coatings or optical-path configurations.
Feature | Everyday Prism-Shaped Object | Precision Optical Prism |
|---|---|---|
Main purpose | Packaging, construction or general use | Controlling and redirecting light |
Material | Cardboard, wood, plastic, metal or ordinary glass | Optical glass, fused silica or application-specific optical materials |
Surface requirements | General dimensional shape | Controlled optical surfaces and angles |
Light performance | Usually not specified | Designed for a defined optical function |
Inspection | General dimensional inspection | Optical and dimensional metrology |
Customization | Based on appearance or mechanical use | Based on wavelength, beam path and system requirements |
An everyday object is identified as a prism mainly by its geometric shape. A precision optical prism must also control light in a predictable way. Its performance can be affected by the optical material, refractive index, surface flatness, surface quality, angular accuracy, clear aperture and coating.
For a custom prism project, the review normally begins with the required optical function, operating wavelength, beam path and installation space. These requirements are then translated into material, geometry, tolerance, coating and inspection specifications.
Band Optics manufactures more than 150 types of prisms, with sizes ranging from 0.5 × 0.5 mm to 300 × 200 mm and annual production exceeding 100,000 pieces. CNC and laser cutting are available for complex features such as drilling and grooving. According to the company’s precision optical prism capabilities, finished prisms are tested in its metrology laboratory and receive 100% visual inspection by the QA department. Additional testing information is available through its optical metrology solutions.
A prism-shaped glass object does not automatically function as a precision optical prism. Optical performance depends on material properties, surface quality, geometry, angular tolerances, coatings and inspection requirements.
A clear specification helps the manufacturer evaluate prism design, manufacturability, inspection requirements and quotation accuracy. When requesting a custom optical prism, provide the following information whenever available:
Optical function: Beam turning, image rotation, dispersion, line generation or another required result.
Wavelength and material: Operating wavelength range and preferred optical material.
Geometry and dimensions: Prism type, overall dimensions, clear aperture and installation-space limits.
Optical tolerances: Surface quality, surface flatness, angular tolerance and permitted beam deviation.
Coating and environment: Anti-reflection, reflective or dielectric coating requirements, plus operating temperature and environmental conditions.
Project requirements: Prototype quantity, estimated production volume and required inspection documentation.
The importance of defining wavelength and measurement uncertainty is supported by a 2023 Metrologia study: its VIS/NIR goniometer-spectrometer reported expanded refractive-index uncertainties no greater than 4.6 × 10⁻⁶ in the near-infrared and 1.2 × 10⁻⁵ in the visible range, with k = 2 (approximately 95% confidence). In practice, a tolerance is meaningful only when the wavelength band and inspection method are also stated.
If some parameters have not yet been finalized, provide the drawing, optical function, wavelength and system requirements first. Band Optics can review the available information through its custom optical manufacturing service and determine which specifications require further confirmation.
A cereal box is a common rectangular prism example. An A-frame tent is a triangular prism example, while a hexagonal pencil is a hexagonal prism example.
A-frame tents, triangular packaging, roof structures and triangular glass decorations are common examples of triangular prisms.
Books, bricks, cereal boxes, shipping cartons, storage containers and many buildings resemble rectangular prisms.
No. A precision optical prism requires controlled optical material, surface geometry, angles and inspection requirements. Decorative or ordinary glass may show refraction but is not necessarily suitable for use in an optical system.
Optical prisms can redirect beams, fold optical paths, rotate or erect images, separate wavelengths and generate laser line patterns. They are used in binoculars, cameras, surveying equipment, machine vision systems and laser instruments.
The appropriate prism depends on the required deviation angle, image orientation, wavelength, available space and accuracy. Right-angle, penta and wedge prisms perform different beam-control functions, so the complete system requirement should be reviewed before selection.
If your application requires a prism with a specific geometry, material, coating or optical performance, explore Band Optics’ custom optical prism capabilities.
For a technical review, contact the Band Optics team and provide your drawing, operating wavelength, dimensions, tolerances, expected quantity and application requirements.
