Fresnel lenses are powerful yet compact optical tools that have transformed how we bend, focus, and control light. Whether you’re curious about how they work or searching for the best Fresnel lens for your application, this ultimate guide covers everything—from basic principles to modern uses in lighting, solar energy, and optics. Want to know which type of Fresnel lens suits your project? Let’s explore the design, advantages, and real-world applications of these uniquely efficient lenses together.
Fresnel lenses are thin, lightweight optical devices that bend light like traditional lenses—only smarter. Instead of using a bulky curved surface, they flatten the curve into a set of slim, circular grooves. Think of them as lenses sliced into rings and stacked in layers.
Fresnel lenses offer a lightweight and compact alternative to traditional bulky lenses by retaining only the essential light-bending elements. This innovative design effectively reduces the weight and thickness while maintaining the same optical power, making them ideal for applications requiring focused light without the cumbersome size.
We call this design a stepped or sectioned lens. Each ring—called a “zone”—bends light a bit, and together, they focus it just like a regular curved surface would. You get the same focal effect with only a fraction of the material.
At first glance, a Fresnel lens looks like it’s made of tiny ripples or rings. These concentric circles are not just for show—they’re the secret sauce.Each groove acts like a miniature prism.Refracts light toward a common focal point.Compared to smooth convex lenses, Fresnel lenses skip the unneeded glass and just keep what counts.
While Fresnel lenses offer significant advantages in terms of weight and size reduction, they are not universally applicable.Their unique design, which involves segmented surfaces, can introduce optical aberrations and reduce image quality compared to traditional lenses. Additionally, their manufacturing process may be more complex and costly. Therefore, the choice between Fresnel lenses and conventional lenses depends on the specific requirements and constraints of the application.
Here’s a quick comparison:
| Feature | Fresnel Lens | Traditional Lens |
|---|---|---|
| Thickness | Very thin (1–5 mm) | Often bulky and heavy |
| Material Usage | Minimal | Full curved surface |
| Optical Precision | Lower (some diffraction) | Higher for imaging tasks |
| Manufacturing Cost | Lower (especially plastic types) | Higher |
| Weight | Lightweight | Often heavy |
| Application Suitability | Best for illumination, magnifying | Best for photography, optics |
From lighthouse beams to solar concentrators, Fresnel lenses are everywhere. They help:
Reduce energy loss in lighting.
Focus sunlight in solar energy systems.
Shape beams in headlights, projectors, and even VR headsets.
In fact, modern lenses in projectors and LED systems often use Fresnel designs behind the scenes.They’re cheap to make, easy to mold, and work well in harsh environments. That’s why they still shine—literally—in everything from handheld magnifiers to aerospace tech.

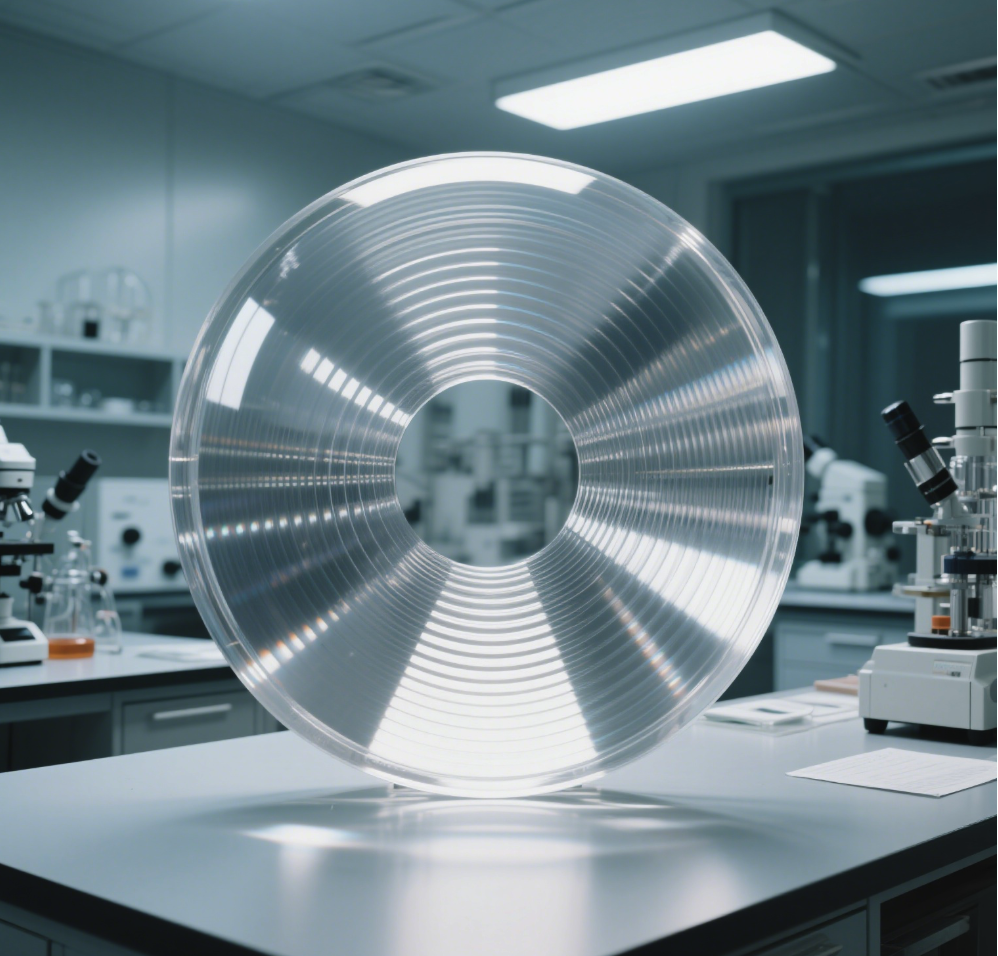

Fresnel lenses might look odd at first—just a flat sheet covered in rings. But don’t let the shape fool you. These grooved layers perform complex optical work with surprising simplicity.
All lenses work by bending (refracting) light. When light hits a transparent material at an angle, it changes direction. A Fresnel lens takes this principle and applies it to a flattened form.Instead of a full curved surface, it keeps only the sloped parts needed to bend light.
These mini-surfaces focus incoming rays toward a single point—the focal point.Each groove is like a tiny prism. Put enough of them together, and they behave like a curved lens.
Here’s what happens:
Light hits a ring.
The angled face of the ring refracts the beam.
It shifts the direction toward the focal point.
The closer a ring is to the center, the shallower its angle. Outer rings have steeper slopes. This combo ensures all light ends up where it’s needed.
Fresnel lenses are usually plano-convex—flat on one side, grooved on the other. This shape is easier to make and handle. It also reduces distortion.In contrast, biconvex lenses are curved on both sides. They focus better but weigh more and need more material.
| Structure | Description | Pros | Cons |
|---|---|---|---|
| Plano-Convex | Flat back, stepped front | Lightweight, easy to produce | Slightly lower clarity |
| Biconvex | Curved both sides | Better image quality | Bulkier, harder to fabricate |
Traditional lenses are thick. A convex lens several inches wide might be a heavy glass dome. In contrast, a Fresnel lens can be just millimeters thin.The advantage of Fresnel is that the focal length is the same, but the material is reduced by 90%.
Fresnel lenses use less glass or plastic. That cuts costs and opens the door to mass production. Many are molded from acrylic (PMMA)—clear, cheap, and easy to shape.In fact,most modern ones are plastic, not glass.
While both Fresnel lenses and traditional lenses effectively transmit light, Fresnel lenses face some limitations. Due to their unique design, Fresnel lenses can lose 5–10% more light through surface reflections compared to conventional lenses. Additionally, without specialized coatings, they may scatter light at the edges of their grooves, further reducing efficiency. However, Fresnel lenses compensate for these losses by capturing light more effectively from off-angles. For applications that do not require high-quality imaging, such as certain lighting or solar applications, the trade-offs associated with Fresnel lenses are often acceptable, making them a practical choice.
In photographic applications, Fresnel lenses often fall short due to several inherent optical issues. The stepped grooves characteristic of Fresnel lenses can produce rings or halos around light sources, introduce edge diffraction that softens images, and cause scattering that reduces overall contrast. These effects collectively diminish the image quality, making Fresnel lenses less suitable for high-precision photography.
| Feature | Fresnel Lens | Traditional Lens |
|---|---|---|
| Image Clarity | Lower (due to grooves) | High (smooth surface) |
| Light Control | Good for broad beams | Precise for sharp focus |
| Diffraction Effects | Present | Minimal |

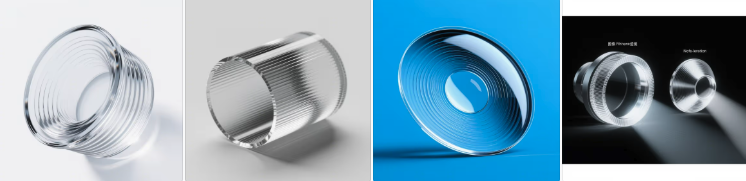

Over the years, engineers have tweaked the shape, structure, and groove pattern to suit different needs. Depending on what kind of light control is required—whether focusing, spreading, or correcting—the type of Fresnel lens changes.
These are the most common and recognizable type. The grooves form concentric rings in a circular (or sometimes square) shape. Each groove bends light slightly—together, they act like a thick, curved lens.They don’t produce sharp images, but they do a great job focusing or collimating light.They are characterized by being thin and lightweight, which not only makes them convenient for handling but also suitable for devices where portability is a priority. Additionally, their ease of mass - production is a significant advantage, allowing for cost - effective manufacturing on a large scale.
You can encounter these components in a range of devices. In flashlights, they play a crucial role in directing and focusing the light beam for better illumination. Overhead projectors utilize them to project images clearly onto a screen. Solar concentrators rely on these components to concentrate sunlight onto a small area, enhancing the efficiency of solar energy conversion. Reading magnifiers also incorporate them, enabling users to see small text and details more clearly.
Standard Fresnel lenses show up in stage lighting too. Fresnel spotlights use them to create a soft-edged, adjustable beam.In old-school overhead projectors, they focus light from a bulb through a transparency.In solar cookers, they concentrate sunlight to boil water or cook food.
Instead of circular grooves, they have parallel ridges in one direction. Each one bends light toward a single axis.A narrow, elongated beam instead of a spot.These optical components are great for two main purposes. Firstly, they are highly effective at collecting light along one axis, which is crucial in applications where focused light is required. Secondly, they play a significant role in reducing glare in scanning systems, thereby improving the accuracy and quality of scanning operations.
They’re often used in:
Optical Character Recognition (OCR) devices: to scan lines of text
Line-scan cameras: for industrial inspection
Medical imaging systems: where light needs to be focused in a flat plane

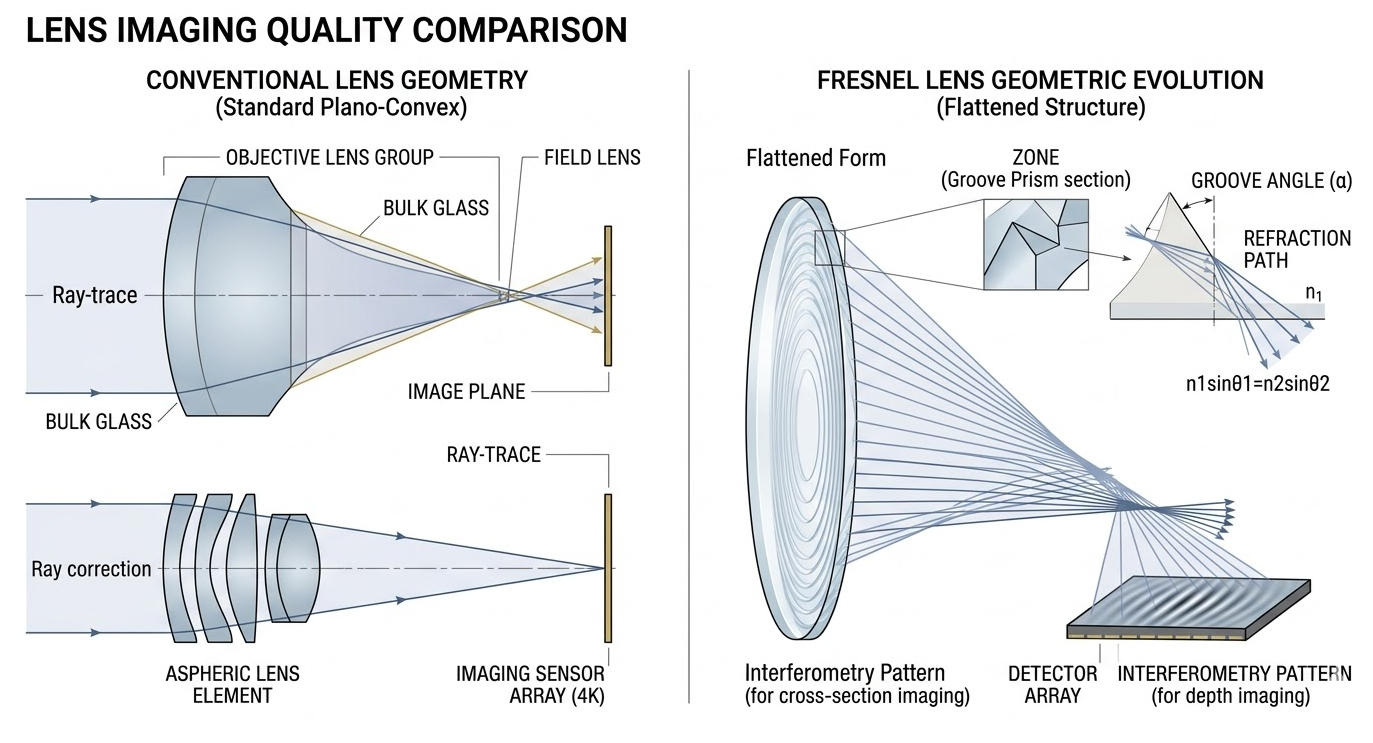

Normal lenses bend light unevenly at the edges. That’s spherical aberration—a fancy way of saying the image gets fuzzy.Aspheric Fresnel lenses fix this. Their grooves follow a specially designed curve—not a circle. This shape keeps light tight and on target.
You’ll find aspheric Fresnels in:
High-end projectors
Laser collimators
Imaging systems that need tight beam control
Biomedical optics

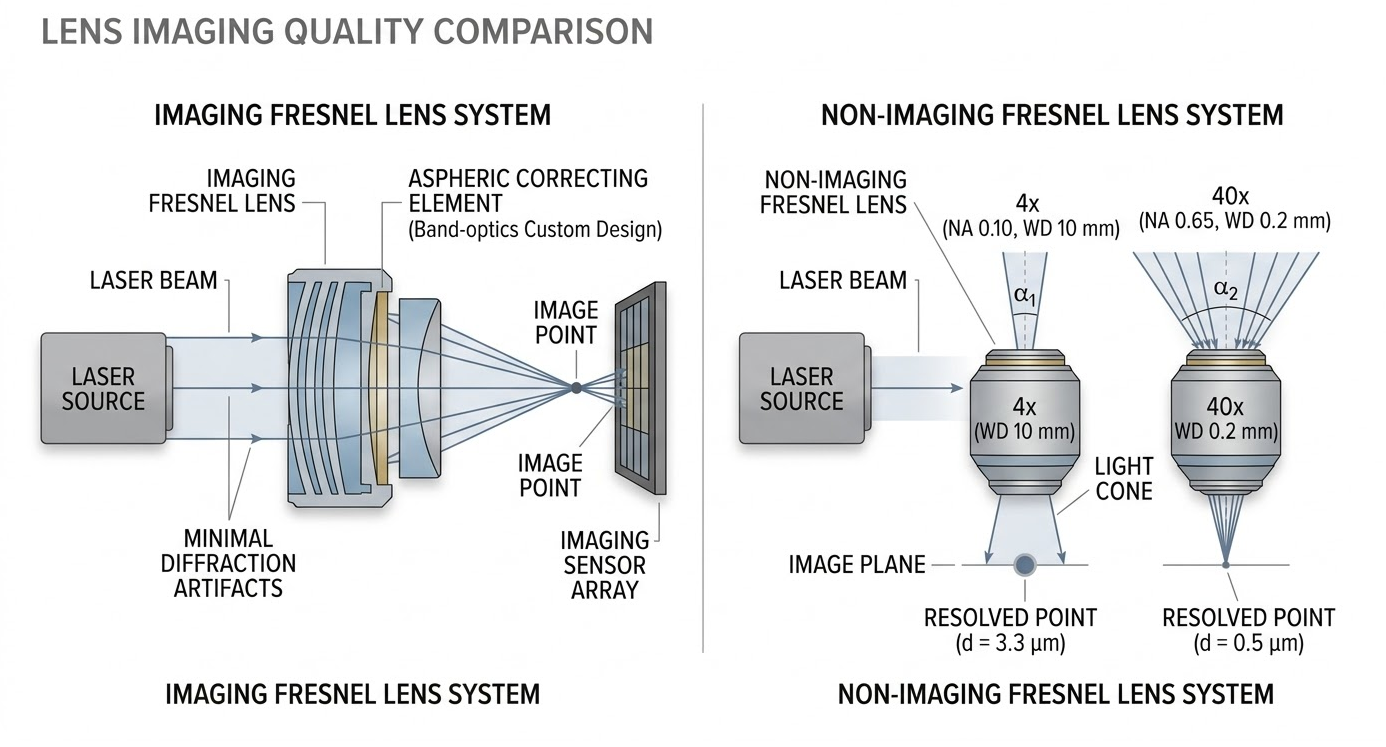

All Fresnel lenses bend light—but not all are meant for sharp images.Imaging lenses form focused points or lines.Non-imaging lenses don’t focus clearly—they gather or spread light.
When you require detail, such as in sensors, laser optics, or optical scanners, imaging lenses should be used. On the other hand, when the goal is to shape light, as in solar collectors, wide - beam lights, or floodlighting, non - imaging lenses are the appropriate choice.
Fresnel lenses aren’t just for science textbooks—they’re everywhere. From century-old lighthouses to cutting-edge VR headsets, they help shape, focus, and redirect light in clever ways. Let’s dive into how different industries use them.
Before GPS, radar, or even reliable maps, sailors relied on one thing—light. In 1823, Augustin-Jean Fresnel lit the world’s first lighthouse using his new lens design. The result? A beam that traveled over 30 kilometers. It saved countless ships from crashing on rocks.
Fresnel lenses come in “orders”—a fancy word for sizes. Bigger orders have longer focal lengths and more light power.
| Order | Focal Length | Use Case |
|---|---|---|
| First Order | 920 mm | Coastal lighthouses, ocean routes |
| Sixth Order | 150 mm | Harbor lights, piers |
| Hyper-Radial | 1330 mm | Major landfall navigation |
Today, many old Fresnel setups are retired. Modern aerobeacons—compact LED systems—have taken over. They’re cheaper, easier to maintain, and survive harsh weather. But nothing beats the beauty of a glass Fresnel glowing at night.
Cars used to rely on bulky reflectors. Now, tiny Fresnel lenses guide beams right where drivers need them—without wasting energy. They’re small but powerful.Low beams avoid glare, high beams focus long-distance vision, and signal lights spread colors clearly
Early models utilized glass, but plastics such as polycarbonate and PMMA have since taken over due to being lighter, cheaper, and moldable into complex shapes. As a bonus, they are safer—plastic does not shatter on impact…
Theater lights called Fresnel lanterns use the lens to shape soft-edged light. These beams don’t cast hard shadows—perfect for mood lighting or backdrops.
Inside the lantern, you can slide the bulb closer or farther from the lens. Want a wide beam? Pull it back. Narrow spotlight? Push it forward.Theaters love Fresnel lenses because they create soft light edges, allow for adjustable beam width, and can hold color gels to achieve various effects.
If you went to school before the 2010s, you probably saw one. Overhead projectors used Fresnel lenses to:Focus light from the bulb;Spread it evenly through the transparent sheet;Project onto the wall.
In SLR and instant cameras, Fresnel lenses:
Help brighten the viewfinder
Make the image easier to see edge-to-edge
Add focus precision, especially in low light
They’re thin, but they help photographers snap clearer shots.
A large Fresnel lens can focus sunlight onto a single spot, generating heat intense enough to boil water or melt metal—a principle applied in solar ovens, solar steam generators, and desalination units.
In Concentrated Solar Power (CSP) systems, Fresnel lenses focus sunlight onto:A fluid-filled pipe (heats up and stores energy);A photovoltaic cell (converts light to electricity).These systems can generate hundreds of watts using a lens just 30 cm wide.
When sunlight is focused on one point, temperatures rise significantly, and this heat can spin turbines (using steam), power Stirling engines, and create sustainable electricity in remote areas.
Fresnel lenses are clever pieces of optical engineering. They simplify the bulky shape of traditional lenses into something much thinner and more practical. But while they offer real advantages in size and weight, they’re not perfect for every job. Let’s explore both sides—where they shine and where they fall short.
The first thing you’ll notice about a Fresnel lens is how thin it is. Traditional curved lenses use thick material to bend light. Fresnel lenses slice off most of that bulk, keeping only the essential parts.A lens that’s often just a few millimeters thick but still focuses light just like a much thicker one.
They’re easier to carry, mount, and ship. That’s why you’ll find them in handheld magnifiers, stage lights, and even solar cookers. In large-scale applications—like lighthouses or industrial lighting—a Fresnel lens can replace something 10 times heavier.
Making Fresnel lenses doesn’t take fancy glass-blowing or grinding. Most are molded from plastic like acrylic (PMMA). This cuts down cost—especially when produced in bulk. It also makes them shatter-resistant and easier to install.
Flexibility is another win. Not all Fresnel lenses are stiff. Thin plastic models can actually bend slightly, making them useful for curved displays or wearable tech. Though bending them too much can change how they focus light, a little flex gives designers more options.
Need a big lens to gather light over a wide area? Fresnel lenses scale up easily without becoming ridiculously heavy. That’s why solar engineers love them. They can focus sunlight onto a small cell or pipe without using thick glass domes.In lighting and projection, larger lenses mean more brightness and reach. A full-sized first-order lighthouse lens, for example, can stand over 8 feet tall—but thanks to the Fresnel design, it’s still manageable.
| Feature | Advantage |
|---|---|
| Thickness | Less than 5 mm for many applications |
| Material cost | Lower than conventional glass lenses |
| Size scalability | Works well even at meter-scale sizes |
| Flexibility | Some models slightly bend without damage |
Fresnel lenses don’t produce sharp images like camera lenses. Their grooved structure causes some distortion. If you look through one, you might notice faint rings or halos. That’s because the grooves redirect light in steps, not in a smooth curve.This is fine for things like lighting or magnification. But for high-precision imaging—like in photography or telescopes—they fall short. Edges can appear fuzzy, and small details get blurred.
Where grooves meet, light doesn’t always follow the perfect path. Some of it diffracts or bounces in odd directions. This leads to scattering—especially near the edges of the lens.If the groove spacing is large or poorly made, the effect is worse. Tiny imperfections or sharp edges at each step can break the light into unwanted patterns. This becomes noticeable when using the lens for projection or focus-sensitive tasks.
Like all lenses, Fresnel types lose a bit of light to surface reflection. But since they have many small angled surfaces, the total loss can be higher—sometimes up to 10%.Using a coating helps, but not all Fresnel lenses come with one—especially the low-cost models. In bright light, you might see glare or ghost images. In dim conditions, that lost light could affect clarity or brightness.
| Drawback | Effect on Performance |
|---|---|
| Ring-based surface | Limits fine detail resolution |
| Groove diffraction | Causes halos and edge softness |
| No anti-reflective coating | Reflects more light, reduces clarity |
Making a Fresnel lens isn’t just about cutting rings into a flat surface. The choice of material—and how the lens is produced—directly affects how well it works, how much it costs, and what it’s used for. From old-school glass to flexible plastics, let’s look at what they’re made from and how they come to life.
Fresnel lenses were originally made from glass, especially in lighthouses. Glass handles heat well, lasts longer outdoors, and offers clearer optical quality. But it’s heavy, brittle, and expensive to shape—especially when you’re working with large lenses or complex grooves.Today, most Fresnel lenses are plastic. The most common is acrylic (PMMA). It’s transparent, lightweight, and easy to mold. While it scratches more easily than glass, it’s cheap to replace and much safer in fragile environments.
The material affects more than weight. It changes how light bends, how much heat the lens can take, and even whether it can survive being bent or dropped.Plastic lenses are great for overhead projectors, solar concentrators, and LED lights.Glass lenses are better where optical clarity or temperature tolerance is a priority.
Plastic costs far less. But in high-precision optics, even slight warping or surface defects can ruin performance. So glass still matters in specialized roles.
Most plastic Fresnel lenses today are mass-produced using injection molding. This process forces melted plastic into a mold shaped like the finished lens. It’s fast, cheap, and great for high-volume production.Once cooled, the result is a ready-to-use lens—often with all grooves molded in. Companies can churn out thousands of lenses with consistent quality.
When accuracy matters, or the design is too complex for molding, manufacturers turn to CNC machining. A computer guides a cutting tool that carves the grooves out of a solid plastic or glass sheet. It’s slower and more expensive, but the detail is much finer.
3D printing is newer but growing. It’s ideal for prototyping or custom, small-batch lenses. The grooves can be printed layer by layer, using transparent resin or polymers. Right now, 3D-printed Fresnel lenses don’t match molded ones in optical quality—but they’re getting better.
There are a few ways to build a Fresnel lens, depending on size and purpose.Pressed lenses use heat and pressure to form grooves into glass—mostly historical, seen in lighthouse optics.Segmented lenses are made from separate prisms fitted into a frame. This method was used when making huge lenses from smaller pieces.Molded lenses are typically plastic, made as a single unit. Most commercial Fresnel lenses today fall into this category.
| Type | Description | Common Use |
|---|---|---|
| Pressed | Single glass piece with grooves | Vintage lighthouses, museums |
| Segmented | Multiple prisms joined in a structure | Large lenses, rotating beacons |
| Molded | One-piece plastic lens | Solar panels, lights, projectors |
Picking a Fresnel lens isn’t just about shape or size. It’s about knowing what you need it to do—focus light to a point, spread it into a line, or gather it over a wide area. Each lens has different specs that change how it behaves, and choosing the wrong one could mean wasted light, blurry images, or even system failure.
This is the distance between the lens and its focus point. Shorter focal lengths bring light together quickly, creating stronger focus in a tight space. Longer ones spread it out more gently.A short focal length(e.g., 50 mm) might be great for a projector lens.A long focal length (e.g., 300 mm or more) fits better in a solar collector or reading magnifier.
Groove spacing refers to how far apart the ridges are. Tight spacing (high groove density) gives better focus and smoother light flow. Wider spacing is easier to manufacture but may scatter more light.The more grooves per inch or millimeter, the more precise the lens—but the cost also rises.
Shape matters. Round lenses are common in projectors and magnifiers. Square or rectangular lenses are often found in solar panels or displays where edges matter.Size also plays a role. A bigger lens captures more light, but it’s heavier and may warp more easily if it’s plastic.
Not all lenses handle heat the same way. Acrylic softens under high temperatures, while glass stays stable. If your lens will face sunlight, bright bulbs, or hot environments, check the safe temperature range.Plastic lenses may warp or cloud if pushed beyond their limit. Always ask the supplier about thermal specs.
Every material lets certain wavelengths pass through better than others. For visible light, PMMA (acrylic) is usually fine. But if you’re working with infrared or UV, you’ll need a material that handles those specific wavelengths.In lasers or spectroscopy, even slight losses matter—so the lens material must match the light source.
Cameras, viewfinders, and microscopes need lenses that deliver clean images. Go with aspheric or spherical Fresnel lenses for sharpness and reduced distortion. High groove density and tight spacing are a must here.Use glass if clarity and stability are top priorities.
Stage lighting, emergency beacons, and flashlights benefit from standard Fresnel lenses. They shape beams without adding bulk. Plastic works well—it’s lightweight and easy to shape into complex housings.
Here, it’s all about collecting and focusing light. Choose large flat or cylindrical Fresnel lenses with long focal lengths. Look for good transmittance in the visible and near-infrared spectrum. Make sure the lens can handle heat from sunlight over long periods.
Rectangular geometry fits solar panels better. High groove count improves focus onto cells or tubes.
In lab optics or sensors, you may need lenses that precisely control light direction. Fresnel lenses in machine vision systems or microfluidic setups often require small form factors and sharp angles.These often use customized groove designs. Some even combine imaging and non-imaging elements in one unit. If you’re aligning lasers or reading barcodes, accuracy and material choice matter more than size.
A: A Fresnel lens uses concentric grooves to focus light, reducing thickness and weight compared to regular curved lenses. It keeps only the necessary parts for bending light, making it lighter and more compact.
A: They can form images but not with high clarity. Due to their stepped structure, image resolution is lower and diffraction may cause halos or blurring.
A: Most have been replaced by modern systems like aerobeacons, but some historic lighthouses still use original Fresnel lenses for display or limited use.
A: Use a soft microfiber cloth with mild soap and water. Avoid harsh chemicals or abrasives that could scratch the grooves.
A: Hyper-radial Fresnel lenses are the largest, over 3.7 meters tall, with more than 1,000 prisms—used in major landfall lighthouses like Makapu’u Point.
A: Yes! They’re great for concentrating sunlight in solar cookers, water heaters, or even powering small Stirling engines or solar cells.
Fresnel lenses may look simple, but there’s a lot going on behind those grooves. Whether you’re building a compact projector, directing light for a stage show, or concentrating solar energy in the field—choosing the right lens makes all the difference. Don’t just go by size—look at focal length, groove density, and material specs to match your project’s needs.
