Views: 255 Author: Site Editor Publish Time: 2025-05-21 Origin: Site
Focal length is one of the fundamental parameters used to describe how a lens or optical system bends light and forms an image. It affects optical power, field of view, magnification, image position, and the overall layout of an optical system. In this guide, we explain what focal length means in optics, how positive and negative focal lengths differ, how convex and concave lenses behave, and how focal length relates to EFL, BFL, FFL, working distance, and practical lens design.
Table of Contents

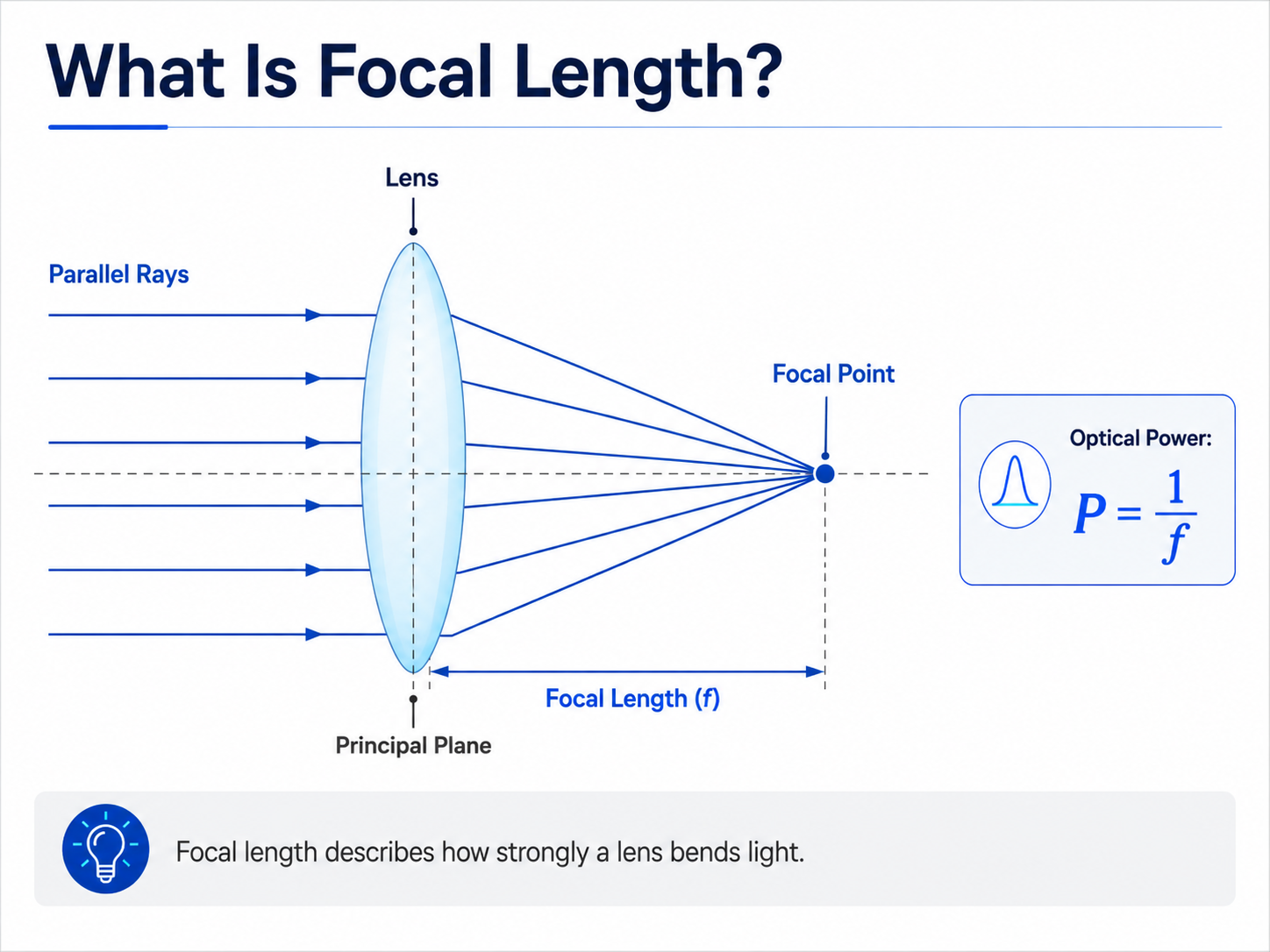

Focal length describes the distance between the principal plane of an optical system and its focal point when incoming rays are parallel to the optical axis. It is usually expressed in millimeters and indicates how strongly a lens converges or diverges light.
In practical terms, focal length is one of the main parameters used to describe the focusing behavior of a lens. It influences field of view, magnification, image formation, and the physical layout of an optical system.
Focal length is directly related to the optical power of a lens. For a thin lens in air, optical power can be expressed as P = 1/f, where P is measured in diopters and f is the focal length in meters.
A shorter absolute focal length corresponds to greater optical power, meaning the lens bends light more strongly. A longer absolute focal length corresponds to lower optical power and weaker refraction.
The sign of the focal length is also important. Positive focal length generally represents a converging optical element, while negative focal length represents a diverging optical element.
Focal length can be either positive or negative depending on how a lens changes the direction of incoming light.
A lens with a positive focal length is generally a converging lens. Parallel rays entering the lens are brought toward a real focal point on the opposite side of the lens. Positive focal length is commonly associated with convex lenses used for focusing and image formation.
A lens with a negative focal length is generally a diverging lens. Instead of bringing parallel rays to a real focus, the lens causes them to spread outward. When these diverging rays are traced backward, they appear to originate from a virtual focal point on the same side as the incoming light.
This is why negative focal length does not mean that a lens has no focus. It means that its focal point is virtual rather than a real convergence point.
In general:
Positive focal length indicates converging optical power.
Negative focal length indicates diverging optical power.
A shorter absolute focal length generally means stronger optical power.
A longer absolute focal length generally means weaker optical power.
Positive and negative focal lengths are frequently combined in multi-element optical systems to control magnification, beam size, aberrations, field of view, and overall system length.
Focal Length Type | Sign | Lens Type | Effect on Light Rays | Use Cases | Example Effects |
|---|---|---|---|---|---|
Positive Focal Length | Positive | Convex Lenses | Converges light rays | Magnifying objects, close-ups | Brings light rays together to a point, useful for detailed close-up shots |
Negative Focal Length | Negative | Concave Lenses | Diverges light rays | Wide-angle views, landscapes | Spreads light rays apart, creates wide-angle effects |

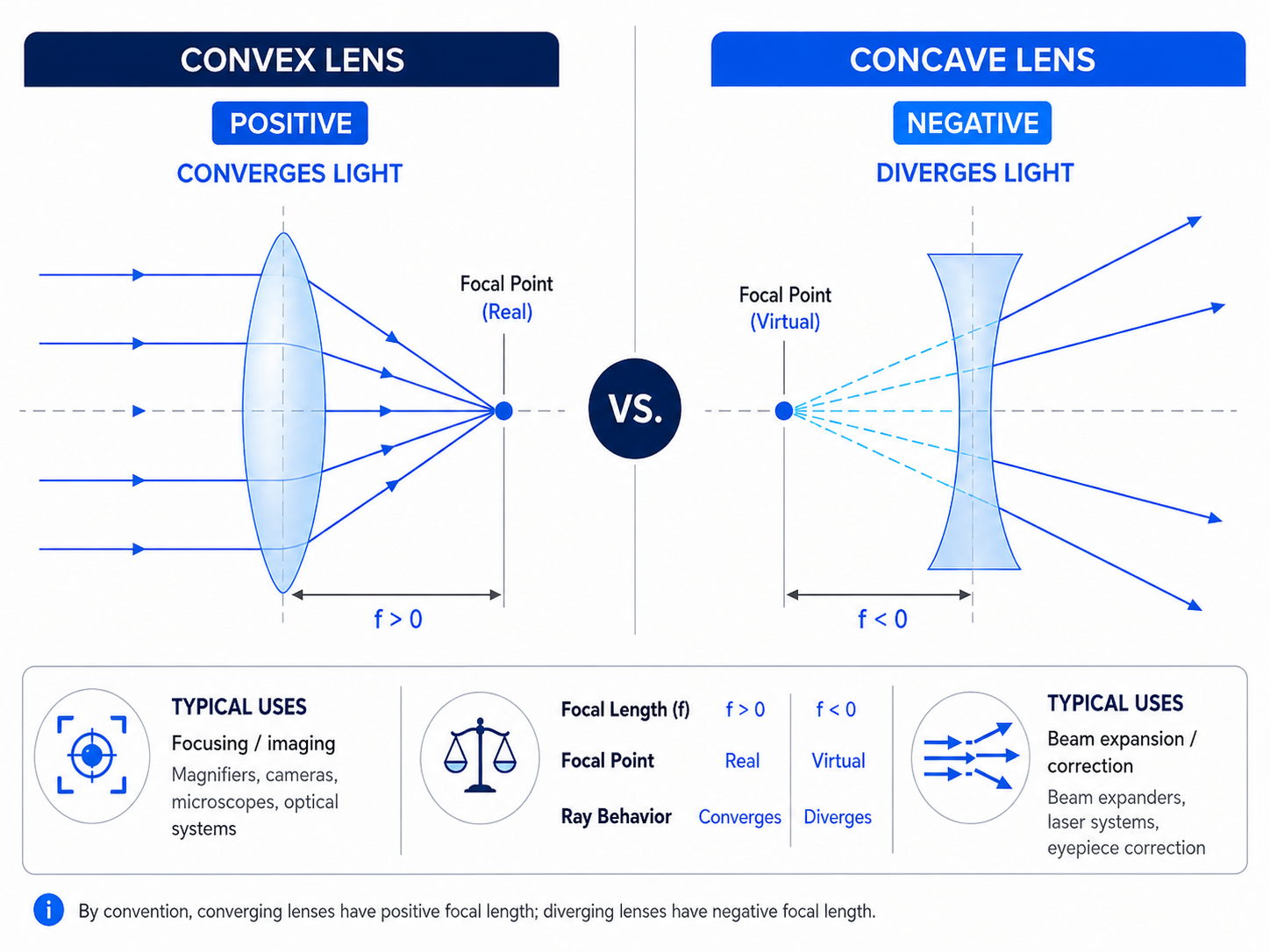

The relationship between lens shape and focal length is fundamental to optical design.
A convex lens is thicker near the center than at the edges. In air, a typical convex lens converges parallel light rays and therefore has a positive focal length. Common examples include bi-convex, plano-convex, and positive meniscus lenses.
Convex lenses are widely used when an optical system needs to focus light, form a real image, collimate a diverging beam, or control magnification.
A concave lens is thinner near the center than at the edges. A typical concave lens in air spreads parallel light rays and therefore has a negative focal length. Common designs include bi-concave, plano-concave, and negative meniscus lenses.
Concave lenses are frequently used for beam expansion, focal length adjustment, aberration correction, and optical system optimization.
Lens Type | Typical Focal Length | Light Behavior | Common Functions |
|---|---|---|---|
Convex Lens | Positive | Converges light | Focusing, imaging, collimation |
Concave Lens | Negative | Diverges light | Beam expansion, correction, system adjustment |
In complex optical assemblies, engineers often combine positive and negative lenses rather than relying on a single lens. This makes it possible to achieve the required effective focal length while also controlling chromatic aberration, spherical aberration, distortion, field curvature, and mechanical dimensions.
Focal length is one of the most important parameters in optical lens design because it helps determine how strongly a lens bends light and how an optical system forms an image.
Engineers evaluate focal length together with aperture, refractive index, lens curvature, sensor size, object distance, image distance, and mechanical dimensions when designing an optical system.

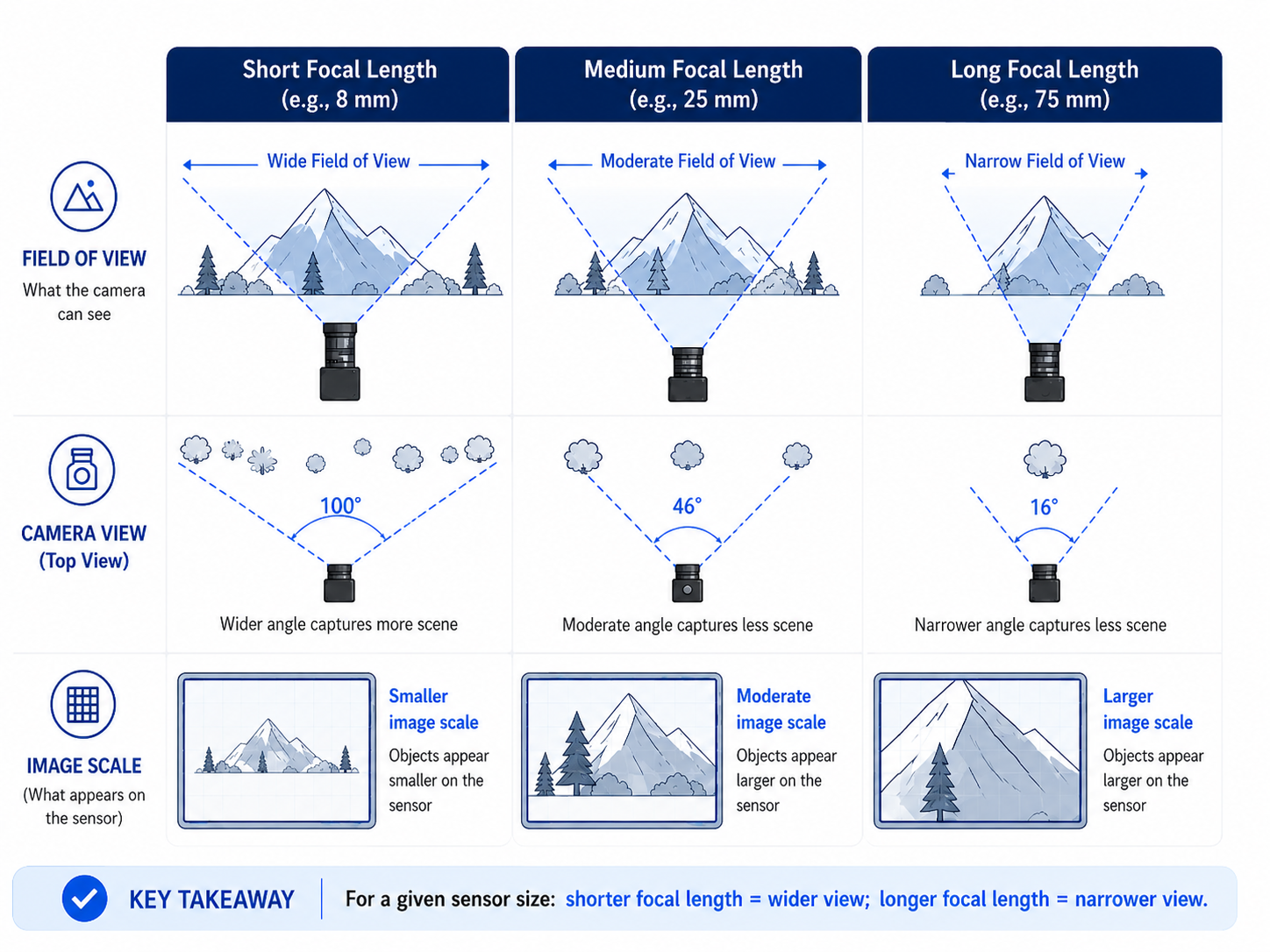

In imaging systems, focal length strongly influences field of view and image scale. For a given sensor size, a shorter focal length generally provides a wider field of view, while a longer focal length produces a narrower field of view and a larger image scale.As a practical wide-angle example, a NIST research weather-station camera uses a 1.4 mm focal-length fisheye lens with a 185° × 185° field of view, allowing full horizon-to-horizon imaging.
This relationship is important in machine vision, cameras, microscopy, inspection systems, and other imaging applications where the optical system must capture a specific object area.
Focal length also affects magnification together with object and image distances. Engineers use these relationships to determine the required lens configuration for a specific field of view, sensor size, and working distance.
In real optical systems, focal length also affects the mechanical arrangement of lenses, detectors, sensors, filters, and other components.
This is why focal length cannot always be considered as a standalone specification. Effective focal length, back focal length, front focal length, working distance, aperture, resolution, and aberration requirements should also be evaluated during optical system design.For example, NASA lists the James Webb Space Telescope with a 131.4 m focal length, approximately 0.1-arcsecond optical resolution, and 0.6–28.5 μm wavelength coverage, illustrating how focal length is specified together with other system-level optical parameters.
Measuring focal length can be simple with the right tools. For thin lenses, we use a basic formula. The formula is ( \frac{1}{f} = \frac{1}{u} + \frac{1}{v} ). Here, ( f ) is the focal length, ( u ) is the distance from the lens to the object, and ( v ) is the distance from the lens to the image. If you have a distant object, ( u ) is almost infinite, so ( \frac{1}{u} ) is close to zero. This makes ( f ) roughly equal to ( v ).
Focal length is directly related to the optical power of a lens.
For a thin lens in air:
P = 1 / f
where:
P = optical power in diopters
f = focal length in meters
A lens with a shorter focal length has greater optical power because it bends light more strongly. A lens with a longer focal length has lower optical power.For example, a +100 mm focal length lens has an optical power of approximately +10 diopters, while a −100 mm focal length lens has an optical power of approximately −10 diopters.
The sign of optical power follows the sign of focal length:
Positive optical power → converging lens
Negative optical power → diverging lens

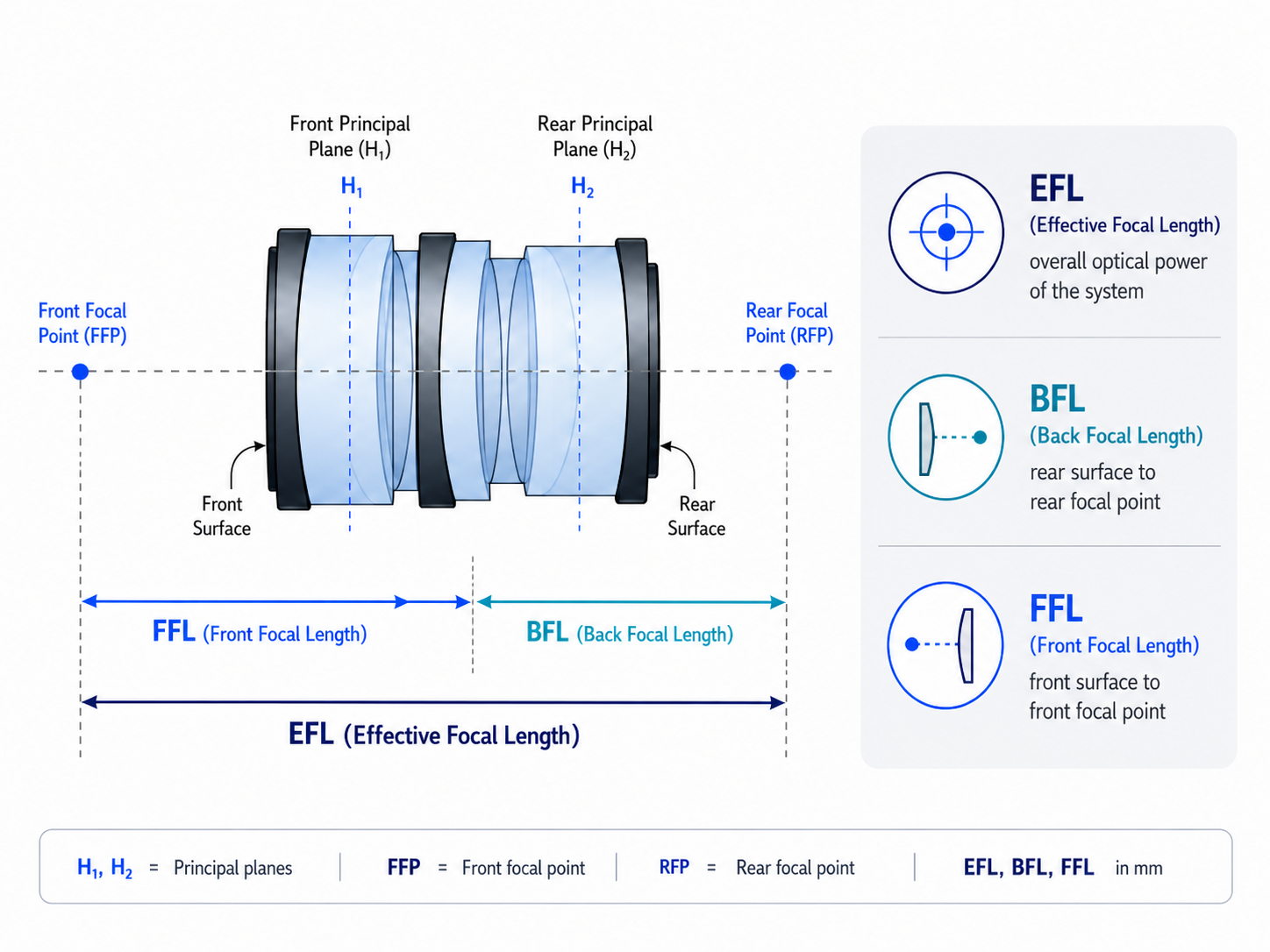

When working with real optical components, focal length can refer to several related but different measurements. Effective focal length, back focal length, and front focal length are particularly important in optical system design.
Effective Focal Length, or EFL, describes the focal length of the complete optical system relative to its principal planes.
EFL represents the overall optical power of a lens or multi-element assembly and strongly influences image magnification, angular field of view, and system focusing behavior.
For a simple thin lens, EFL may appear close to the physical distance between the lens and focal point. In thick lenses and multi-element systems, however, the principal planes may be located away from the physical lens surfaces.
Back Focal Length, or BFL, is the distance from the rear surface of the optical element or assembly to the rear focal point.
BFL is especially important for mechanical integration because it determines how much physical space is available behind the lens for components such as image sensors, detectors, filters, windows, and mounting structures.
Two optical systems can have the same EFL but different BFL values because their internal structures and principal-plane positions are different.
Front Focal Length, or FFL, is the distance from the front optical surface to the front focal point.
Like BFL, FFL can differ significantly from EFL in thick lenses and multi-element optical systems because the principal planes do not necessarily coincide with the physical surfaces of the lens.
In simple terms:
EFL describes the optical focusing behavior of the system.
BFL describes the physical distance from the rear optical surface to the rear focal point.
Measuring the focal length of convex lenses is pretty straightforward. You can use a distant light source and a screen. Place the lens between them and move the lens until a sharp image forms on the screen. The distance from the lens to the screen is roughly the focal length. For concave lenses, it’s a bit trickier. Since concave lenses diverge light, you need to trace the light rays backward to find the focal point. You can use a laser and observe how much the light spreads after passing through the lens. By following the light rays backward, you can find the focal point. This method requires a bit more precision but works well for measuring diverging lenses.For precision optical metrology, more advanced methods can achieve much higher accuracy. A peer-reviewed Applied Optics study using laser reflection-confocal focal-length measurement reported a relative expanded uncertainty of less than 0.0015%.
Understanding these methods helps you choose the right lens for your needs. Whether you’re building a telescope or just curious about how lenses work, knowing how to measure focal length is a valuable skill.
Choosing the right focal length is like picking the right tool for the job. Different types of photography need different lenses.
For landscapes, wide-angle lenses are your best friend. These lenses, with focal lengths under 35mm, let you capture vast scenes.Plus, it adds a sense of depth, making your photos feel more immersive.
When it comes to portraits, you want to flatter your subject. Lenses around 50mm to 85mm are ideal. These focal lengths give a natural perspective, making faces look just right. A 50mm lens is great for full-body shots, while an 85mm lens is perfect for close-ups. These lenses avoid the distortion you get with wide-angle lenses, so your subject looks their best.

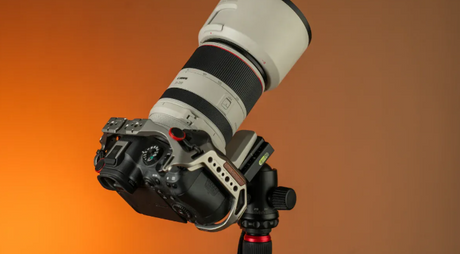

Wildlife and sports photographers need telephoto lenses. These lenses, with focal lengths over 200mm, let you get close to the action without disturbing it. Imagine trying to photograph a bird in a tree or a player on a distant field. A telephoto lens brings them right into your frame. These lenses are essential for capturing details from a distance.
Architectural and real estate photographers often use ultra-wide lenses. Lenses under 24mm can capture entire buildings or interiors in one shot. This is perfect for showing off spacious rooms or tall buildings. Just remember to keep your camera level to avoid distortion.
Focal length isn’t just about capturing a scene—it’s also about telling a story and creating a mood.
You can use wide-angle lenses to show the vastness of a scene, making your viewer feel like they’re right there. On the other hand, telephoto lenses can isolate a subject, making them the star of the photo. By choosing the right focal length, you guide your viewer’s eye and tell a story with your image.
Use a wide-angle lens to create a sense of depth or to emphasize a subject in the foreground. With a telephoto lens, you can compress the scene, making the background appear closer. This can create a dramatic effect, especially in landscapes or portraits. Experiment with different focal lengths to see what unique effects you can create.

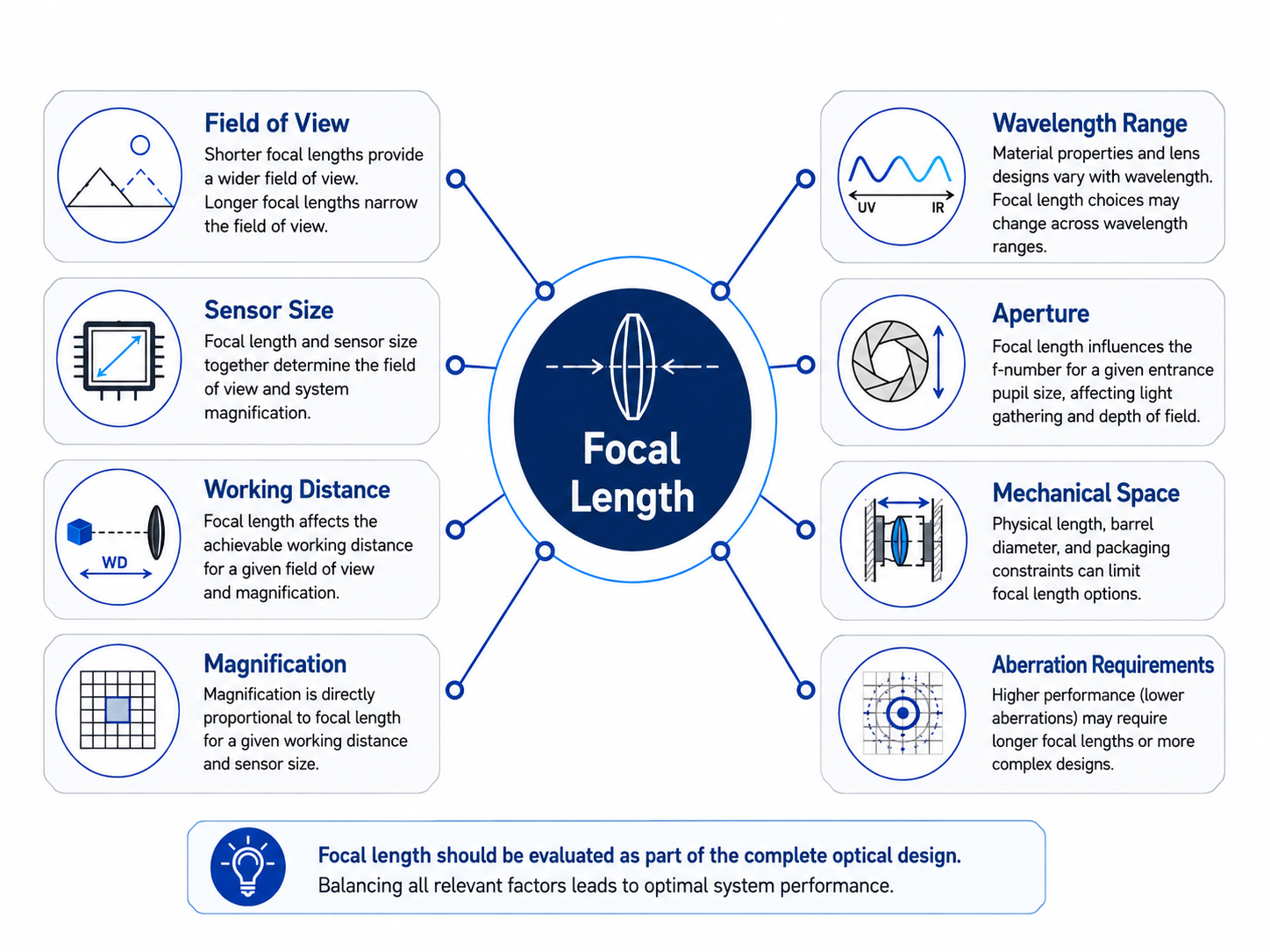

Selecting the correct focal length involves more than choosing a single numerical value. The focal length must match the complete optical and mechanical requirements of the application.
Engineers typically evaluate several parameters together:
Required field of view
Object size
Sensor or detector size
Working distance
Magnification
Resolution requirements
Aperture and numerical aperture
Available mechanical space
Wavelength range
Aberration requirements
For imaging applications, shorter focal lengths generally provide a wider field of view, while longer focal lengths provide a narrower field of view and greater image scale when other conditions remain comparable.A peer-reviewed binocular imaging-system design, for example, combined a 20 mm effective focal length with a 30° full field of view, F/4 aperture, and 480–660 nm working spectrum, demonstrating why focal length is evaluated together with field of view, aperture, and wavelength range.
For laser and beam-control applications, focal length also influences focused spot size, beam convergence or divergence, and the physical layout of the optical path.
For demanding optical systems, focal length should therefore be treated as part of the complete optical design rather than as an isolated specification.
A: Focal length measures the distance between the optical center of a lens and the camera sensor, affecting how much of a scene is captured and how subjects appear in photos. It indicates how strongly a lens converges or diverges light.
A: Focal length impacts the angle of view: shorter focal lengths (wide-angle lenses) provide a wider angle of view, capturing more of the scene, while longer focal lengths (telephoto lenses) offer a narrower angle, focusing on specific subjects.
A: Wide-angle lenses, with short focal lengths under 35mm, are great for landscapes and architecture. They capture broad scenes, add a sense of depth, and are ideal for tight spaces. However, they may cause distortion around the edges.
A: Positive focal lengths are associated with converging lenses (like convex lenses) and indicate that light rays are brought to a focus. Negative focal lengths are associated with diverging lenses (like concave lenses) and indicate that light rays spread out.
A: Focal length affects subject size: short focal lengths make subjects appear smaller as more of the scene is captured, while long focal lengths magnify subjects, making them appear larger and more prominent in the frame.
A: Use wide-angle lenses to show vast landscapes and add depth, or telephoto lenses to isolate subjects and create dramatic compression effects. Experiment with different focal lengths to guide the viewer’s eye and tell a story through your photos.
Understanding focal length is essential for selecting and designing optical systems. From positive and negative focal lengths to optical power, EFL, BFL, FFL, and working distance, each parameter affects how light is controlled and how an optical system performs.
Whether the application involves imaging, machine vision, laser optics, microscopy, or precision measurement, focal length should be evaluated together with field of view, magnification, sensor size, aberration requirements, and mechanical constraints.
