The diffraction limit tells us the smallest detail an optical system can see because light acts like a wave. In optics, this limit is a strict rule for how clear things can look. If two stars or car headlights are far apart, we see them as two points. But if they get close, diffraction makes their light mix and blur. Scientists use equations like d = λ / (2 NA) to show how wavelength and numerical aperture affect what we can see. Experiments prove that diffraction always affects real-life pictures.
| Imaging Technique | Resolution Range (nm) | Description |
|---|---|---|
| STED | 20 - 50 | Gets very sharp images past the diffraction limit by using stimulated emission depletion. |
| STORM | 20 - 50 | Can see single molecules with super-resolution. |
| PALM | 20 - 50 | Like STORM, it lets us see very tiny things. |
| SIM | 100 - 200 | Gives better resolution and works with live cells. |
Knowing about the diffraction limit helps people understand what optical tools can and cannot do.
The diffraction limit is the smallest detail we can see with optics because light spreads out like waves when it goes through tiny spaces.
How clear an image is depends on the wavelength of light and the lens’s numerical aperture. Shorter wavelengths and bigger apertures make images clearer.
The Rayleigh criterion tells us when two points look separate. It helps optical tools measure how well they can see details.
New super-resolution methods like STED and STORM use special light patterns and tricks with molecules. These let us see things smaller than the diffraction limit.
Knowing about the diffraction limit helps scientists make better microscopes and cameras. This lets them study tiny things in biology and materials.
The diffraction limit tells us the smallest detail we can see. This happens because light bends when it goes through small spaces. Light acts like a wave, so it spreads out and mixes. Scientists use the diffraction limit to know how clear microscopes, telescopes, and cameras can be. The limit changes with the color of light and the size of the opening in the device.
Light moves in waves. When it goes through a tiny hole or past an edge, it spreads out. This makes patterns with bright and dark spots. These are called diffraction patterns. In Young’s Double Slit Experiment, light waves mix together. Bright spots show up where waves add, and dark spots show up where they cancel. How much light spreads depends on its color and the size of the hole. If the hole is almost as small as the light’s wavelength, the spreading is bigger. This spreading makes it hard to see two points as separate if they are close.
Modern experiments, like the Mach-Zehnder interferometer, also prove light is a wave. These tests show that diffraction is real and not just an idea. The wave nature of light sets the main limit for how much detail we can see.
Young’s Double Slit Experiment shows:
Light makes bright and dark stripes because of waves mixing.
The stripes depend on the color of light and how far apart the slits are.
The experiment proves light spreads out, which leads to the diffraction limit.
When light goes through a round opening, like a lens, it makes a special pattern. This is called an Airy pattern. The middle is a bright spot called the Airy disk. Around it are rings that get dimmer. The Airy disk’s size depends on the color of light and the lens’s numerical aperture. A shorter wavelength or a bigger aperture makes the Airy disk smaller. This helps us see more detail.
How far apart two Airy disks are decides if we can see two points as separate. If the disks are too close, they blend and look like one. Scientists use math to find the Airy disk size and how far apart two points must be to see them clearly:
| Aspect | Description | Formula / Measurement |
|---|---|---|
| Airy Pattern Size Dependence | Airy disk size changes with numerical aperture (NA) and wavelength (λ). | Airy disk radius r = 1.22λ / (2 NA(obj)) |
| Numerical Aperture (NA) | NA of the lens and condenser change resolution; NA(obj) = n sin(θ), where n is refractive index and θ is half the angle of the light cone. | NA(obj) = n sin(θ) |
| Resolution Adjustment | Using a shorter wavelength or bigger NA makes the Airy disk smaller and improves resolution. | Shown in experiments and tutorials with sliders for λ and NA. |
Interactive lessons and tests show how changing the color of light or the opening size changes the Airy disk and what we can see. The Airy pattern happens because of diffraction and the wave nature of light.
The Rayleigh criterion gives a rule for when we can just see two points as separate. It says two points are just seen apart when the middle of one Airy disk lines up with the first dark ring of the other. This means the distance between the two Airy disks must be at least as big as the center of the disk. The Rayleigh criterion uses this formula:
Resolution = 0.61λ / NA
Here, λ is the color of light, and NA is the numerical aperture. The Rayleigh criterion links the diffraction limit to the parts of the optical system. It is not a strict law, but it works for most cases.
| Criterion | Description | Formula | Supporting Evidence |
|---|---|---|---|
| Rayleigh Criterion | Two points are seen apart when the middle of one Airy disk matches the first dark ring of the other. | Resolution = 0.61λ / NA | Graphs show two peaks with a dip of 20-30% between them, showing they can be seen apart. |
| Sparrow Limit | The limit where two points blend with no dip between them. | Resolution = 0.47λ / NA | Graphs show even brightness between peaks, so the points cannot be seen apart. |
| Physical Basis | Resolution depends on diffraction and light waves, which limits what we can see. | Based on point-spread function and Fourier transform of the image. | Experiments and computer models prove these limits. |
The Rayleigh criterion comes from both ideas and tests. Lord Rayleigh made it based on how people see contrast between two points. The brightness in the middle of two Airy disks drops to about 26.5% of the highest brightness. This drop lets people see two points as separate. The Rayleigh criterion is used a lot because it matches what people see and what tests show.
Scientists have checked the Rayleigh criterion in many ways. They found that the diffraction limit is a real boundary for regular imaging. But new methods, like super-resolution, can sometimes do better than the Rayleigh criterion by using extra details, like the phase of light. These new ways show that the diffraction limit comes from how we measure light, not from a hard wall in nature.
The Rayleigh criterion and Airy disks help scientists make clear rules for seeing detail in optics. They show how light waves and diffraction patterns work together to set the diffraction limit. By learning these ideas, people can make and use optical tools better.
Optical resolution means how well a system can tell two close points apart. The limit comes from how light acts like a wave. When light goes through a lens or hole, it spreads out. This spreading is called diffraction. It makes two points look like they blend if they are too close.
In 1873, Ernst Abbe found the smallest gap needed to see two points as separate. This gap depends on the color of light and the lens’s numerical aperture. The Abbe formula is d = λ/(2NA). Here, d is the smallest gap, λ is the color, and NA is the numerical aperture. This shows that diffraction sets a hard limit for optical resolution. The point spread function shows that one point of light looks like a small spot, not a perfect dot. If two spots overlap, the image gets blurry.
Scientists use different rules to measure resolution. These include the Rayleigh criterion, Dawes limit, Abbe limit, and Sparrow limit. Each rule tells how close two points can be before they blur together. The table below compares these limits:
| Criterion | Proportion of Wavelength | Proportion of Wavelength/Aperture Diameter (radians) | Resolution (arc seconds) per mm aperture diameter | Resolution (arc seconds) per inch aperture diameter |
|---|---|---|---|---|
| Rayleigh | 0.61 | 1.22 | 138 | 5.45 |
| Dawes | 0.515 | 1.03 | 116 | 4.56 |
| Abbe | 0.50 | 1.00 | 113 | 4.46 |
| Sparrow | 0.47 | 0.94 | 107 | 4.20 |
Both Abbe resolution and the Rayleigh criterion show that the limit depends on the color of light and the lens opening. New digital cameras can sometimes see more detail by using special tricks. But diffraction still sets the main limit.
Many things change how well an optical system can see details. The most important are the color of light, the size of the opening, and the f-number. Shorter wavelengths help us see smaller things. A bigger opening lets in more light and makes the image sharper.
The table below shows how these things change resolution:
| Numerical Aperture (N.A.) | Wavelength (nm) | Resolution (µm) |
|---|---|---|
| 0.10 | 550 | 2.75 |
| 0.25 | 550 | 1.10 |
| 0.40 | 550 | 0.69 |
| 0.65 | 550 | 0.42 |
| 1.25 | 550 | 0.22 |
| 0.95 | 360 | 0.19 |
| 0.95 | 400 | 0.21 |
| 0.95 | 450 | 0.24 |
| 0.95 | 500 | 0.26 |
| 0.95 | 550 | 0.29 |
| 0.95 | 600 | 0.32 |
| 0.95 | 650 | 0.34 |
| 0.95 | 700 | 0.37 |
This table shows that a higher numerical aperture or a shorter wavelength gives better resolution. For example, if the numerical aperture goes from 0.10 to 1.25, the resolution gets better from 2.75 µm to 0.22 µm. If the wavelength drops from 700 nm to 360 nm, the resolution also gets better.
Tip: To get the best resolution, scientists use lenses with high numerical aperture and light with a short wavelength.
Other things, like pixel size in cameras, also matter for resolution. Smaller pixels can show more detail, but only up to the diffraction limit. The f-number is the lens’s length divided by its width. A lower f-number means a wider opening, which helps the system see more detail.
The next table shows how different things affect information density and resolution:
| Parameter Variation | Effect on Optical Resolution (Information Density, I_d) | Notes |
|---|---|---|
| Numerical Aperture (NA) increase | Increasing NA from 0.7 to 0.8 results in a 2.1× increase in I_d | NA affects both the optical transfer function (OTF) and photon collection angle, making it highly influential |
| Emission Wavelength decrease | Changing wavelength from 0.8 μm to 0.7 μm yields only a 1.5× increase in I_d | Wavelength influences resolution but less strongly than NA |
| Structured Illumination Frequency (SIM) | Generally, higher structured illumination frequency (k_st) increases I_d and improves resolution, but exceptions exist where lower frequencies outperform higher ones | Common practice uses frequency at OTF boundary, but some lower frequencies can yield better resolving power |
| Pixel Size (related to aperture and sampling) | Smaller pixel size improves frequency transmission and increases I_d, especially near the diffraction limit boundary | Pixel binning acts as a low-pass filter, reducing resolution; improvement is less pronounced near DC frequency |

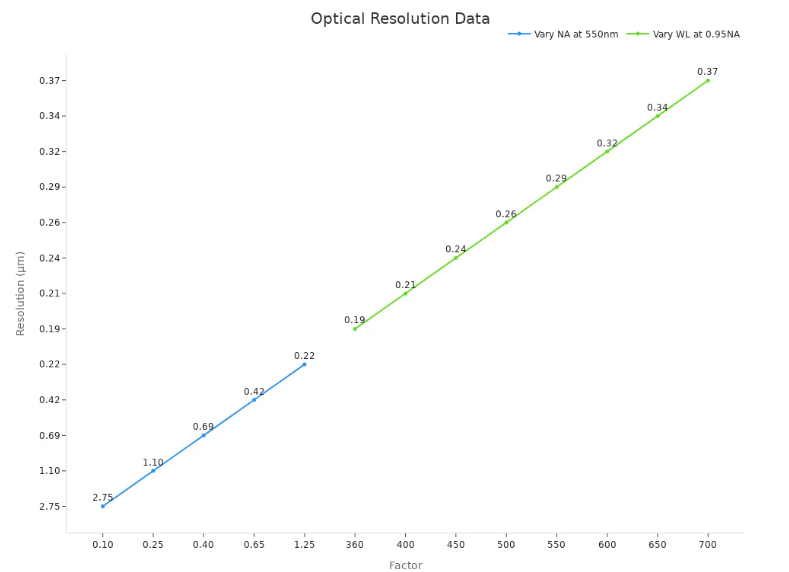

A line chart below shows that higher numerical aperture and shorter wavelength give better resolution:
Cutoff frequency is the highest detail an optical system can show. It is the final limit for how much detail we can see. Cutoff frequency depends on numerical aperture and the color of light. If we try to see details smaller than this, the image loses contrast and the details vanish.
The table below shows how cutoff frequency and resolution are linked:
| Parameter/Factor | Relationship/Effect on Resolution Limit (dˆ/λ) |
|---|---|
| Numerical Aperture (NA) | Resolution limit scales linearly with 1/NA (higher NA → better resolution) |
| Signal-to-Noise Ratio (SNR) | Higher SNR → lower minimum resolvable distance; lower SNR increases dˆ/λ |
| Spectral Separation (Δ) | Nonzero Δ (spectral imaging) allows same spatial resolution at higher noise levels compared to Δ=0 |
| Noise Variance (σ⊃2;) | For Δ=0.5, σ⊃2; can be twice as high; for Δ=1, σ⊃2; can be five times higher to maintain resolution |
| Trade-offs | Spectral enhancement improves resolution but requires higher acquisition time and complex hardware |
Cutoff frequency acts like a filter. It blocks details that are too small for the system to see. The Rayleigh criterion and point spread function both show how cutoff frequency limits what we can see. If two points are closer than this limit, their images blend.
Computer models show that cutoff frequency depends on the type of signal and noise. Sharper spectral features let us see finer details. In spectroscopic imaging, cutoff frequency sets the smallest difference in frequency we can see.
Note: Cutoff frequency is important because it explains why even the best lenses and sensors cannot see details smaller than a certain size. It shows the true limits of all optical systems.
Optical microscopy helps scientists see things too small for our eyes. Microscopes use lenses to focus light and make images of tiny objects. But the diffraction barrier stops microscopes from showing every small detail. When light goes through a lens, it spreads out and makes blurry spots. This spreading limits how sharp the image can be. Both side-to-side and up-and-down resolution are affected. The smallest thing a microscope can show depends on the color of light and the lens’s f-number.
The table below shows how changing the f-number changes what details we can see:
| f/# | Diffraction-Limited Resolution (lp/mm) |
|---|---|
| 1.4 | ~1370 |
| 2 | ~960 |
| 2.8 | ~690 |
| 4 | ~480 |
| 5.6 | ~340 |
| 8 | ~240 |
| 11 | ~175 |
| 16 | ~120 |

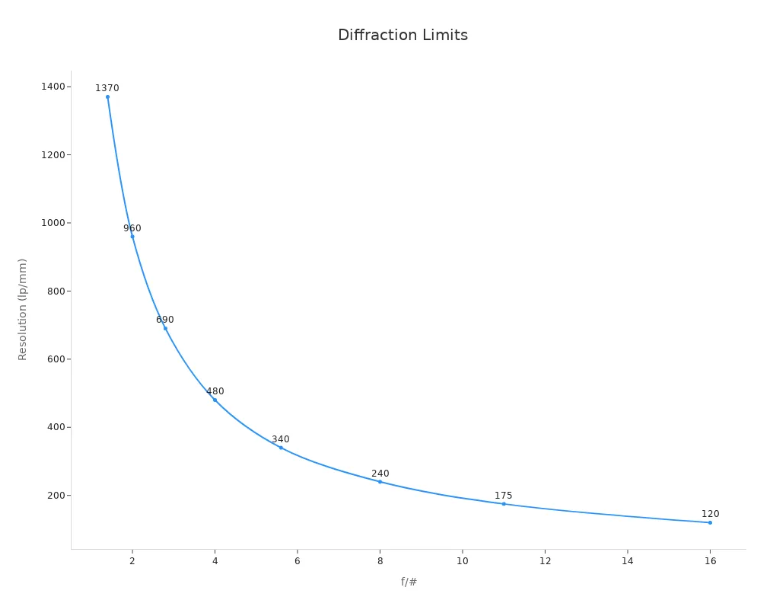

If the f-number gets bigger, the microscope sees less detail. The chart below shows this:
When scientists use microscopes, they see speckle patterns and blurring from diffraction. These patterns mix up the edges and make the picture less clear. Some new methods can help fix lost details, but it is still a challenge in microscopy.
Scientists have found ways to get past the diffraction barrier in microscopes. Some use special light patterns or turn fluorescent molecules on and off. Others stretch the sample to make it bigger. These tricks help microscopes see much smaller things than before.
The table below lists some new methods and how they help:
| Technique | Principle / Methodology | Quantitative Resolution Improvement / Metric |
|---|---|---|
| MINFLUX | Uses doughnut-shaped illumination and stochastic switching of fluorophores | Achieves nanometer-level resolution; increased speed in single-molecule tracking |
| Expansion Microscopy (ExM) | Physically expands specimen by up to 20-fold linear expansion using swellable hydrogel | Up to 20-fold improvement in resolution, combined with standard microscopy |
| STED | Patterned illumination to deplete fluorescence around focal spot, sharpening image | Resolution improved beyond diffraction limit (~tens of nanometers) |
| STORM / PALM / FPALM | Stochastic activation and localization of single molecules | Subdiffraction resolution by reconstructing positions of individual fluorophores |
| iSCAT | Label-free detection using interference of scattered light | Nanometer localization precision (<1% of diffraction limit at 532 nm) |
| Nanofluidic Scattering Microscopy | Label-free detection of molecules in nanochannels | Real-time imaging of single biological nanoparticles as small as tens of kDa |
| Computational Enhancement | Advanced image processing and AI-based denoising/enhancement | Improves image quality and resolution beyond optical limits |
These new ways let scientists see past the old limits of microscopes. For example, spatial mode demultiplexing and image scanning microscopy help show more detail in all directions, making images clearer.
Super-resolution microscopy has changed how microscopes are used. These methods let scientists see things smaller than the diffraction barrier. STED, STORM, PALM, and SIM use smart tricks with light and molecules to do this.
Single-Molecule Localization Microscopy (SMLM) turns fluorophores on and off to find their exact spots.
DNA-PAINT and QD-PAINT use special molecules or quantum dots for even sharper pictures.
Stimulated Emission Depletion (STED) uses a special beam to make the light spot smaller, so we see more detail.
Structured Illumination Microscopy (SIM) uses patterned light to show extra details.
Studies show super-resolution microscopy can see things smaller than 250 nanometers, much better than regular microscopes. The 2014 Nobel Prize in Chemistry was given for these discoveries. Scientists keep making these methods better, so we can study the tiniest parts of cells and materials. Super-resolution microscopy now helps us learn more about biology and science.
The diffraction limit is the smallest detail we can see with light. Knowing about this limit helps people make better tools for seeing tiny things. Scientists and engineers use this knowledge to build better imaging devices. New microscopes can now see much smaller things than before. The table below shows how these new methods help us see more:
| Technique/Concept | Resolution Limit / Improvement | Key Features and Mechanisms |
|---|---|---|
| Conventional Optical Microscopy | ~200 nm (visible light) | Limited by diffraction; numerical aperture and wavelength define resolution |
| Helium Ion Upconversion Nanoscopy | ~28 nm (nearly 10x improvement) | Uses helium ions for ultrahigh spatial resolution imaging |
| STED, PALM, STORM | Nanometer-level precision | Use special light patterns and molecule switching to surpass diffraction limits |
Scientists are still finding new ways to see even smaller details in biology and materials.
The diffraction limit happens because light moves in waves. When light goes through a small hole, it spreads out. This spreading makes it tough to see tiny things.
No normal lens or microscope can get past the diffraction limit. The wave nature of light always sets a limit. Super-resolution methods can help, but they use special tricks.
Blue or violet light has a shorter wavelength than red light. Shorter wavelengths help optical systems see smaller things. Scientists often pick blue light for clearer pictures.
Super-resolution methods use special light patterns, molecule tricks, or computers. These ways let scientists see things smaller than the normal diffraction limit.
Tip: Super-resolution microscopes help scientists study tiny cell parts that regular microscopes cannot show.
