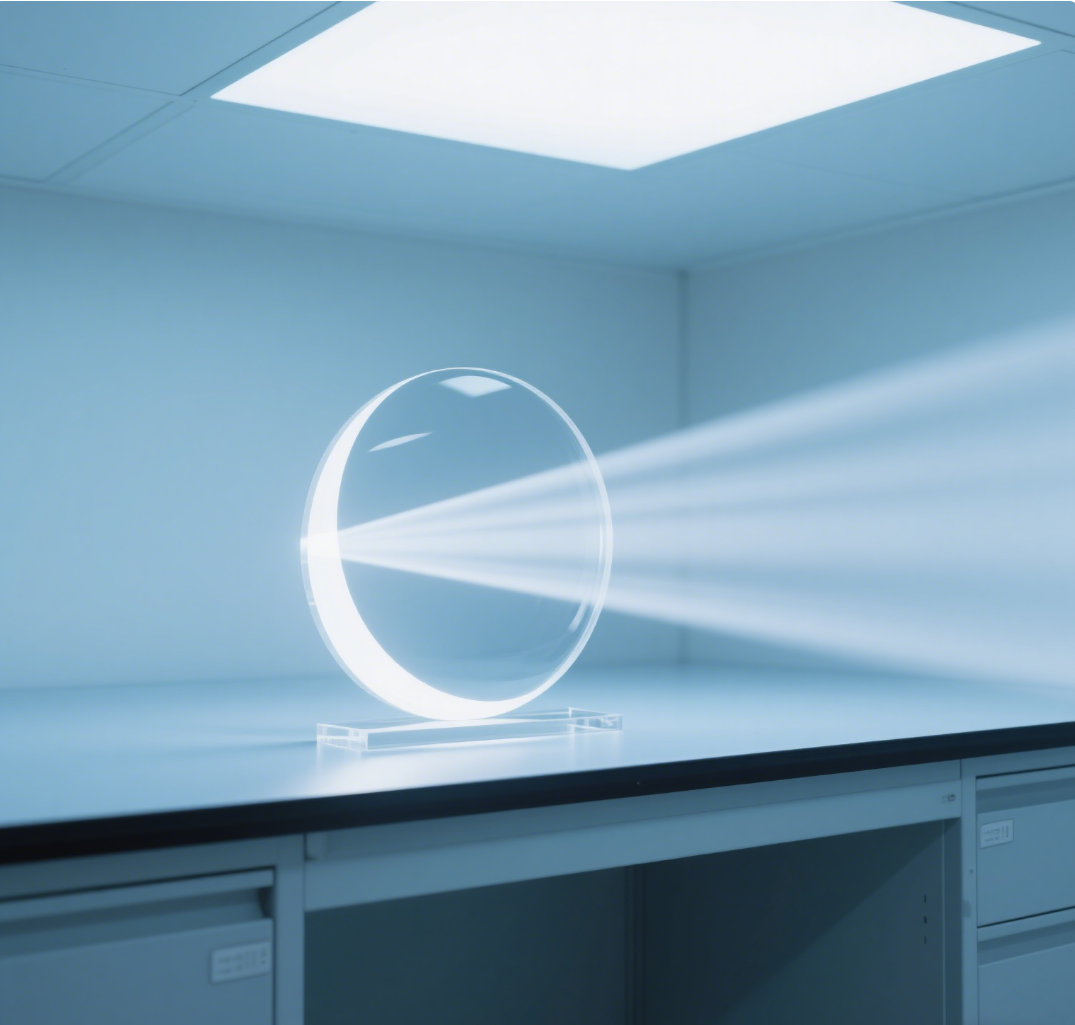

The concave meniscus lens is a special type of optical lens. It has one convex side and one concave side. The concave side has a greater curvature than the convex side. So, the lens is thinner at the center than at the edges. This gives it a crescent - moon appearance. Its unique shape makes it different from other common lenses. Like the biconvex lens, which is thicker in the middle and has two convex sides. Or the biconcave lens, which is thinner in the middle and has two concave sides.
When compared to convex lenses, the concave meniscus lens has some key differences. Convex lenses are designed to converge light rays, bringing them together to a single point. They are thicker in the center and have two convex sides. But concave meniscus lenses diverge light rays. They are thinner in the center and have one convex and one concave side.
Similarly, when contrasted with concave lenses, the concave meniscus lens also stands out. Concave lenses are typically thinner in the center and have two concave sides. They are primarily used for diverging light. But the concave meniscus lens has one concave and one convex side. This unique structure gives it different optical properties and makes it suitable for specific applications.
The concave meniscus lens has a long history of use. It was first used in simple optical instruments like early microscopes and telescopes. These early lenses helped scientists and researchers make important discoveries. For example, they allowed for closer examination of small objects and distant objects.
Over time, advancements in manufacturing technology have improved the concave meniscus lens. New techniques and materials have made these lenses more precise and effective. Today, they are used in a wide range of applications, from cameras to laser systems. They play a key role in modern optical technology.

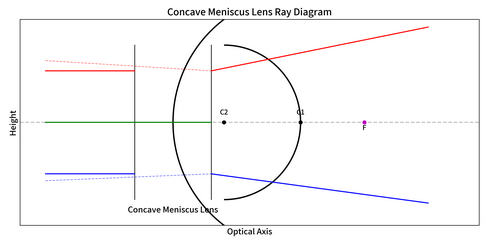

The concave meniscus lens has a divergent effect on light. It causes parallel light rays to diverge when they pass through it. This is because the lens is thinner at the center than at the edges. The concave side has a greater curvature than the convex side, so the light rays bend outward as they pass through.
The physical mechanisms behind this can be explained with optical principles. The lens’s shape and curvature affect the way light travels. The convex side helps to converge light slightly, while the concave side diverges it more. This results in the overall divergent effect. The focal length of the lens can be calculated using the lensmaker’s equation.
The concave meniscus lens can correct spherical aberration. Spherical aberration occurs when light rays passing through the outer part of a lens focus at a different point than those passing through the center. The concave meniscus lens helps to reduce this by adjusting the path of the light rays. Its unique curvature and thickness gradient help to mitigate spherical aberration.
It also helps to minimize chromatic aberration. Chromatic aberration happens because different wavelengths of light bend at different angles when passing through a lens. This can cause color fringing and reduce image quality. The concave meniscus lens can be used in combination with other lenses to correct this phenomenon.
The concave meniscus lens changes the direction and convergence state of light. It can bend light rays outward, which is useful for controlling the spread of light in optical systems. This property makes it valuable in applications like photography and laser systems.
It also helps to adjust the size and shape of light beams. By controlling the way light spreads, the lens can be used to shape light beams for different applications. This is important in optical systems that require precise control over light, such as in microscopes and telescopes.
The concave meniscus lens is often made from materials like BK7 and fused silica. BK7 is a common borosilicate crown glass. It is used for visible and near-infrared optics. It has high homogeneity and low bubble content. Fused silica is another popular material. It has excellent transmission in the ultraviolet, visible, and infrared ranges.
The properties of these materials affect the lens’s optical performance and environmental adaptability. BK7 has a transmission range of 380–2100 nm. It is not ideal for temperature-sensitive applications. Fused silica has a lower coefficient of thermal expansion and better homogeneity than BK7. This makes it more suitable for applications requiring thermal stability.
Surface accuracy is crucial for the performance of the concave meniscus lens. Key indicators include surface roughness and figure accuracy. Surface roughness measures the texture of the lens surface. Figure accuracy refers to how closely the surface matches the desired shape.
High surface quality reduces light scattering and loss. This is essential for applications requiring precise control of light, such as in microscopes and telescopes. The surface quality of optical lenses is often specified using scratch-dig ratings. For example, a rating of 40-20 indicates the size and number of scratches and digs allowed on the surface.
The center and edge thickness of the concave meniscus lens affect its optical performance and mechanical strength. A thicker center can increase the lens’s mechanical strength but may affect its optical performance. Conversely, a thinner center can enhance optical performance but may reduce mechanical strength.
Selecting the appropriate thickness depends on the specific application. For example, in laser systems, the lens may need to be thinner at the center to achieve the desired beam divergence. In optical instruments like microscopes, a balance between optical performance and mechanical strength is necessary.
The effective aperture of the concave meniscus lens is the actual diameter of the lens that allows light to pass through. It is usually expressed in terms of diameter. A larger effective aperture allows more light to pass through, which can improve the performance of optical systems in low-light conditions.
The effective aperture affects the light flux and imaging range in optical systems. A larger aperture increases the amount of light entering the system, which can improve image brightness and quality. However, it may also introduce more aberrations. Selecting the appropriate effective aperture is crucial for optimizing the performance of optical systems.
In microscopes, the concave meniscus lens plays a vital role in correcting aberrations. It helps to reduce spherical and chromatic aberrations, which can distort the image of tiny objects. By adjusting the lens’s position and combination with other lenses, it enhances the clarity and precision of magnified images.
In telescopes, concave meniscus lenses are used in combination with other lenses to achieve clear and precise imaging of distant objects. They help in correcting aberrations and improving the overall image quality. The unique curvature of the lens allows it to manipulate light in a way that enhances the viewing experience of celestial bodies and faraway objects.
Concave meniscus lenses are commonly used in wide - angle lenses to correct barrel distortion. The concave surface helps counteract the natural tendency of wide - angle lenses to bend straight lines outward. This results in more accurate and realistic images. The increased thickness at the center of the lens also allows it to gather more light, leading to sharper images and improved low - light performance.
The optical properties of concave meniscus lenses can be utilized to achieve specific photographic effects. For instance, they can help control the depth of field, allowing photographers to create images with a desired balance between sharp and blurred areas. This adds versatility and creativity to photography.
Concave meniscus lenses are used in laser systems to collimate and focus laser beams. They help in shaping the beam and improving its quality. By adjusting the lens’s parameters and position, the laser beam can be precisely controlled for various applications.
In laser processing and communication, concave meniscus lenses work in coordination with other components. For example, they are used in laser cutting and welding to focus the laser beam onto a specific point. In optical fiber communication, they help couple the laser beam into the fiber. These practical applications highlight the lens’s importance in modern technology.
Concave meniscus lenses can shape light beams to meet the requirements of different optical systems. They can expand or focus the beam as needed. This is crucial in applications like optical testing and laser beam shaping where precise control of light is necessary.
Selecting appropriate parameters for the concave meniscus lens and combining it with other optical components is essential. Factors like the lens’s curvature, thickness, and material need to be considered based on the specific application. This ensures optimal performance and desired results in the optical system.
The concave meniscus lens excels at correcting aberrations. Its unique shape reduces spherical aberration and coma. This is vital for achieving high - quality images with sharpness and clarity. In infrared imaging systems, it minimizes aberrations that are common in optical systems.
It significantly boosts overall imaging performance. The lens’s ability to correct aberrations and minimize distortions results in improved image quality. This makes it an ideal choice for high - precision imaging applications.
The parameters of the concave meniscus lens can be adjusted to meet specific design requirements. Factors such as the radius of curvature, thickness, and material can be customized. This customization ensures optimal performance for each application.
For instance, in laser beam - collimating applications, the lens can be designed with specific curvature and thickness to achieve desired beam divergence. Also, in optical systems requiring a small focal length, it can be combined with other lenses to create a system with minimal spot size and enhanced image quality.
The concave meniscus lens can be combined with other lenses to achieve a variety of optical functions. When paired with a positive lens, it can shorten the focal length of the system. This increases the system’s numerical aperture (NA) without significant spherical aberration.
To leverage its compatibility for optimal optical performance, consider the specific requirements of your optical system. Select lenses with complementary properties. For example, if you need to correct chromatic aberration, combine it with lenses made of different materials with varying dispersion properties. Also, use optical design software to model and optimize the lens combination for your specific application. This ensures the best possible optical performance.
1. Importance of Selection Based on Design Requirements
Stress selecting parameters and specifications according to specific optical system designs.
2. Assessment Using Software and Calculations
Explain how to use software and calculations to evaluate performance requirements.
1. Selecting Based on Environmental Conditions
Discuss choosing materials considering factors like temperature and corrosion resistance.
2. Trade - offs Between Materials
Analyze trade - offs between different materials in terms of optical performance and environmental adaptability.
1. Key Steps for Optical Axis Alignment
Detail assembly processes, adjustment methods, and inspection techniques.
2. Precautions During Assembly
Highlight precautions like avoiding scratches and contamination and explain their impact on optical performance.
The concave meniscus lens has one convex side and one concave side. It is thinner at the center than at the edges. This unique shape gives it different optical properties.
The concave meniscus lens helps reduce spherical and chromatic aberrations. Its special curvature adjusts the path of light rays. This improves image quality and clarity.
It is used in microscopes, telescopes, wide - angle lenses, and laser systems. The lens is also used for beam shaping and controlling light beams.
Common materials include BK7 optical glass and fused silica. The choice of material affects the lens’s optical performance and environmental adaptability.
Consider factors like optical design requirements, material properties, and operating environment. Use optical design software to model and optimize the lens for your specific application.
The concave meniscus lens has one convex surface and one concave surface, leading to a crescent shape. It has unique optical properties like divergent effect, aberration correction, and light control function. Its parameters and specifications include material selection, surface accuracy, thickness, and effective aperture. It is widely used in optical instruments, photography, laser systems, and beam shaping. It offers superior optical performance, design flexibility, and good compatibility.
Remember, the concave meniscus lens is key in optics. Its unique shape and properties make it great for correcting aberrations and improving image quality. It’s used in microscopes, telescopes, cameras, and laser systems. The lens’s customizable parameters allow it to be tailored for different applications.
Future advancements may include new materials, like high-performance glasses and crystals, enhancing the lens’s optical performance and environmental adaptability. Ultra-precision manufacturing processes will improve surface accuracy and reduce errors. The lens may also find expanded application fields in areas like augmented reality and virtual reality.
Stay updated on the concave meniscus lens’s developments. Explore its potential in emerging technologies. Participate in research and applications to contribute to optical technology advancement. Its importance in optics will only grow, making it a crucial area of study.
