Views: 0 Author: Site Editor Publish Time: 2025-05-16 Origin: Site
They gather light from objects and form clear images, playing a vital role in various optical instruments like microscopes, telescopes, and cameras. From observing tiny cells to capturing stunning photos, objective lenses provide the foundation for these devices’ capabilities.
This blog post will explore the definition, types, working principles, and applications of objective lenses. We will also touch on their exciting connection to modern technologies like deep learning.
Objective lenses are crucial in many fields. In biology, they allow scientists to study microscopic organisms and cells. In industry, they inspect products for quality control. In astronomy, they help researchers explore distant galaxies. With advancements in technology, objective lenses are becoming even more powerful. Combined with deep learning, they can enhance image processing and automate tasks like focusing and sample recognition. This makes them indispensable tools in scientific research and industrial applications.
Objective lenses are the unsung heroes of optical systems. They are the optical elements closest to the object being observed. Their main job is to gather light and form a primary real image. Think of them as the eyes of devices like microscopes and cameras. They help us see things that are too small or too far away for our naked eyes to see.
Objective lenses work by capturing light rays from an object and bringing them into focus. They gather light from the specimen and bend it to create a focused image. This process ensures that the details of the specimen are accurately represented. The numerical aperture (NA) of the lens plays a significant role in light capture. A higher NA allows the lens to gather more light, improving the image’s resolution and brightness.
Objective lenses are the first step in the imaging process. They form the foundation of the image that we see. The quality of the image produced by an objective lens directly impacts the final image quality. A good objective lens will provide a clear, sharp image with high resolution and minimal aberrations. Even with a high-quality eyepiece or camera sensor, if the objective lens is poor, the final image will also be poor. The objective lens sets the stage for the entire imaging system.

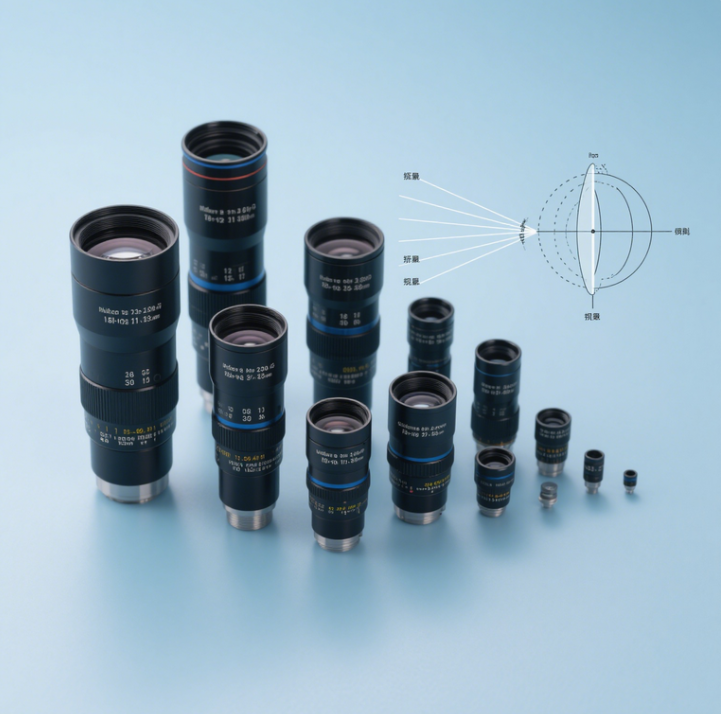

Understanding an objective lens means knowing its specs. These numbers tell you how it performs. They are printed right on the lens body.
Let’s break down what they mean. We focus on the most important ones.
| Characteristic | Description |
|---|---|
| Magnification | Indicates how much the lens enlarges the image (e.g., 5X, 10X, 40X, 100X). |
| Numerical Aperture (NA) | Measures the lens’s ability to gather light and resolve fine details. Higher NA improves image clarity. |
| Focal Length | The distance over which the lens focuses light. Related to magnification and NA. |
| Working Distance (WD) | The physical distance between the front of the objective lens and the specimen. Longer WD allows easier sample manipulation. |
| Aberration Correction | High-quality lenses correct for chromatic, spherical, and field curvature aberrations to ensure clear images. |
Look at the objective lens. You see a number followed by ‘X’. This is its magnification.
It tells you how much bigger the object appears. A 40X lens magnifies 40 times.
Microscope objective lenses show this clearly. Typical ones range from 4X to 100X.
Total system magnification uses this number. You multiply the objective’s mag.
Then multiply by the eyepiece mag. This gives you the total view size.
NA is a critical number. It is usually next to the magnification. It might look like 0.10 or 1.25.
NA shows how much light the objective lens gathers. It’s related to the angle of light entering the lens.
A higher NA collects more light. This means brighter images for you.
More importantly, NA determines resolution. Resolution is the ability to see fine details.
Higher NA objective lenses provide better resolution. You can see smaller structures clearly.
It’s a key factor in image quality. Especially for microscopy objective lenses.
Every lens has a focal length. It’s the distance light converges. Parallel rays meet at this point.
For objective lenses, focal length connects to magnification. Shorter focal lengths mean higher magnification.
It also relates to the NA. Focal length, NA, and magnification are all linked. They describe the lens’s basic geometry.
Working distance matters a lot. It’s the space from the objective lens front. It goes to your sample.
You need enough room to work. High magnification objective lenses often have short WDs.
This can make sample handling tricky. Longer WD objective lenses give more space.
Consider this for your experiments. Or for machine vision applications.
Light behaves in complex ways. Simple lenses distort images. We call these distortions aberrations.
Chromatic aberration is one type. Different colors bend differently. They don’t focus at the same point.
Spherical aberration is another issue. Light hitting different lens parts focuses unevenly.
Field curvature makes flat objects look curved. The image isn’t sharp across the whole view.
Good objective lens design corrects these problems. Multiple glass elements are used. Special coatings help too.
Correction is essential for a clear view. It ensures accurate images from the objective lens.
| Type | Description | Application |
|---|---|---|
| Achromatic Objectives | Correct chromatic aberration at two wavelengths. | General-purpose applications, monochromatic applications. |
| Apochromatic Objectives | Correct chromatic aberration at three wavelengths and spherical aberration at two or three wavelengths. | High-resolution imaging, white light applications. |
| Plan Objectives | Correct for field curvature, providing a flat field of view. | Applications requiring a wide, distortion-free field of view. |
| Plan Achromatic and Plan Apochromatic Objectives | Combine corrections for enhanced performance. | High-precision applications. |
Achromatic objectives are designed to correct chromatic aberration at two wavelengths. These are the simplest and most common objectives. They are suitable for many standard applications but have limited chromatic aberration correction and lack a flat field of view. They are particularly well-suited for monochromatic applications.
Apochromatic objectives correct chromatic aberration at three wavelengths. They also correct spherical aberration at two or three wavelengths. These lenses have a higher numerical aperture and longer working distance. They are ideal for white light applications and provide sharper, high-contrast images without color fringing.
Plan objectives correct for field curvature, providing a flat field of view. This makes them suitable for applications where a wide, distortion-free field of view is essential.
Plan achromatic and plan apochromatic objectives combine corrections for enhanced performance. These lenses provide both chromatic aberration correction and a flat field of view, making them suitable for high-precision applications.
| Type | Description | Application |
|---|---|---|
| Dry Objectives | Designed for use with air as the medium between the lens and the specimen. | General-purpose applications. |
| Immersion Objectives | Require a special medium (e.g., oil or water) between the lens and the specimen. | High-resolution imaging. |
Dry objectives are designed for use with air as the medium between the lens and the specimen. They are suitable for general-purpose applications and are easy to use.
Immersion objectives require a special medium, such as oil or water, between the lens and the specimen. Oil immersion objectives, for example, increase the numerical aperture and resolution. This makes them suitable for high-resolution imaging.
| Type | Description | Application |
|---|---|---|
| Finite Conjugate Objectives | Focus light directly onto the image plane. | Applications requiring a simple optical path. |
| Infinity-Corrected Objectives | Require a tube lens to form the final image. | Modern microscopy with flexible optical component integration. |
Finite conjugate objectives are designed to focus light directly onto the image plane. They are suitable for applications where a simple optical path is required.
Infinity-corrected objectives are the prevalent design in modern microscopy. They require a tube lens to form the final image. This design allows for greater flexibility and the addition of other optical components in the light path.
| Type | Description | Application |
|---|---|---|
| Phase Contrast Objectives | Enhance contrast in transparent and unstained specimens. | Visualizing cellular structures without staining. |
| Differential Interference Contrast (DIC) Objectives | Utilize prisms to create optical path differences. | Highlighting minute features in specimens. |
| Fluorescence Objectives | Designed to observe specimens emitting light when illuminated with specific wavelengths. | Fluorescence microscopy applications. |
Phase contrast objectives enhance the contrast in transparent and unstained specimens. They are categorized based on the construction and neutral density of their internal phase ring. These lenses allow for detailed visualization of cellular structures without the need for staining.
DIC objectives utilize Nomarski or Wollaston prisms to create optical path differences. This produces an image with a pseudo-three-dimensional appearance, highlighting minute features in specimens.
Fluorescence objectives are designed to observe specimens that emit light when illuminated with specific wavelengths. They are made with materials that allow high transmission from ultraviolet to infrared regions. This makes them suitable for capturing emitted light from fluorescently labeled specimens.
Objective lenses are crucial in optical microscopy. They gather light from the specimen and form a magnified image. The quality and clarity of the image largely depend on the objective lens. Different objective lenses offer varying degrees of magnification, allowing users to observe specimens at different scales. This versatility is essential for scientific and educational purposes, enabling detailed examination of minute structures such as cells or microorganisms.
Brightfield Microscopy: Requires objective lenses that can provide high contrast and resolution. Achromatic objectives are commonly used as they correct for chromatic aberration at two wavelengths.
Transmitted Light Microscopy: Needs objective lenses that can handle transmitted light effectively. These lenses are designed to optimize the contrast and clarity of specimens illuminated from below.
Reflected Light Microscopy: Utilizes objective lenses that are optimized for light reflected from the specimen. Reflected light objectives are often used for observing opaque specimens.
Confocal Microscopy: Requires high numerical aperture (NA) objective lenses to achieve high-resolution imaging. These lenses help in obtaining clear images with minimal background noise.
Refracting Telescopes: Use glass lenses to bend light and form an image. The objective lens in a refracting telescope is typically a convex lens made from crown or flint glass. The lens shape and material influence the telescope’s field of view, magnification, and overall performance.
Reflecting Telescopes: Use mirrors instead of lenses to reflect light and form an image. Reflecting telescopes can overcome spherical aberration by using a parabolic mirror, which eliminates this type of distortion completely.
Challenges in Designing Large Aperture Telescope Objectives:
Size and Weight: Large-diameter lenses are heavy and can distort under their own weight. This makes refracting telescopes with large apertures challenging to construct and maneuver.
Chromatic Aberration: Refracting telescopes suffer from chromatic aberration, where different wavelengths of light are focused at different points. This can be reduced but not eliminated entirely.
Camera lenses are complex systems that focus light to capture clear photographs. They consist of multiple optical elements designed to minimize aberrations and enhance image quality. The construction and design of these lenses determine their effectiveness in light-gathering and focusing.
DSLR Lenses: Designed for digital single-lens reflex cameras. They offer high-quality imaging with various focal lengths and apertures to suit different photography needs.
Mirrorless Lenses: Optimized for mirrorless cameras. These lenses are often smaller and lighter while maintaining excellent optical performance.
Mobile Phone Lenses: Compact lenses integrated into mobile phones. They are designed to provide decent image quality in a highly portable format.
Machine vision objectives are essential in industrial settings for inspection and automation tasks. They provide high-resolution images that enable precise analysis and control of manufacturing processes. These lenses are designed to operate in challenging environments and deliver reliable performance.
Applications in Industrial Inspection and Automation: Machine vision objectives are used in quality control, parts inspection, and robotics. They help in detecting defects, measuring dimensions, and guiding automated systems.
Introduction to Telecentric Lenses: Telecentric lenses are a specialized type of objective lens used in machine vision. They are designed to have a constant magnification over a wide range of working distances. This makes them ideal for measuring and inspecting objects where perspective errors can be a problem. Telecentric lenses ensure that the image remains consistent and accurate, regardless of the object’s position within the field of view.
Projectors: Objective lenses in projectors are responsible for focusing and projecting the image onto a screen. They must handle high light levels and maintain image quality over a large projection area.
Measuring Instruments: In measuring instruments, objective lenses provide precise imaging for accurate measurements. They are designed to minimize distortions and ensure that the measured objects are represented accurately.
Scientific Equipment: Objective lenses are integral to various scientific instruments, such as spectrometers and microscopes used in research laboratories. They enable scientists to observe and analyze samples with high precision and clarity.
The numerical aperture (NA) of an objective lens plays a key role in determining its resolution. Resolution refers to the ability of the lens to distinguish between small details in the specimen. A higher NA means the lens can gather more light and resolve finer details, resulting in a clearer image. The resolution can be calculated using the formula: R = 0.61 λ / NA, where R is the resolution, λ is the wavelength of light, and NA is the numerical aperture. For example, a microscope objective with an NA of 0.95 and used with visible light (λ = 550 nm) would have a resolution of approximately 350 nm. If the NA is increased to 1.4 (using oil immersion), the resolution improves to about 240 nm. This improved resolution allows for more detailed observation of small structures like cellular organelles.
The contrast of an image is influenced by the transmission of light through the objective lens and the control of stray light. High-quality objective lenses are designed to maximize light transmission while minimizing stray light, which can cause glare and reduce image clarity. The transmission of the lens depends on the quality of the glass and the coatings applied to the lens surfaces. Coatings can reduce reflections and increase the amount of light that passes through the lens. This results in images with higher contrast, where the differences between light and dark areas are more pronounced. For instance, in a well-designed objective lens, light transmission can be as high as 95%, leading to images that are bright and clear with well-defined edges.
The depth of field is the range of distances over which the image remains acceptably sharp. Objective lenses with a higher NA and longer focal length typically have a shallower depth of field. This means that only a small portion of the specimen is in focus at any given time. This can be advantageous in applications where isolating specific features is important, such as in confocal microscopy. However, in situations where a larger portion of the specimen needs to be in focus simultaneously, such as in some industrial inspection tasks, a lens with a deeper depth of field may be more suitable.
Uncorrected aberrations in objective lenses can lead to various image problems. Chromatic aberration occurs when different wavelengths of light are focused at different points, resulting in color fringing around the edges of the image. Spherical aberration happens when light rays passing through the edges of the lens are focused at a different point than those passing through the center, causing the image to appear blurry. Field curvature refers to the bending of the image plane, making it difficult to keep the entire field of view in focus. High-quality objective lenses incorporate various design elements to correct these aberrations. For example, achromatic lenses use combinations of glass types to correct chromatic aberration at two wavelengths, while apochromatic lenses correct it at three wavelengths. Plan objectives include additional elements to correct for field curvature, ensuring a flat field of view. These corrections are essential for applications requiring high precision and accuracy, such as in scientific research and medical diagnostics.
Deep learning can help objective lenses by cleaning up images. It can remove noise and make details sharper. This is called denoising and super-resolution reconstruction. It can also make images from lower-NA lenses look almost as good as those from higher-NA lenses. This is like turning a blurry photo into a clear one. For example, in positron emission tomography, deep learning can turn low-dose images into high-quality ones, reducing the radiation dose for patients.
Deep learning can also automate tasks like focusing and finding regions of interest in samples. This makes using objective lenses faster and more efficient. For instance, in automated focusing, a neural network can quickly determine the best focus position, saving time and effort. In sample recognition, it can identify specific features or areas in a sample, aiding in tasks like cell counting or defect detection.
Using AI to optimize complex objective lens structures: AI can be used to design more efficient and effective objective lenses by simulating different configurations and predicting their performance. This helps in creating lenses that meet specific requirements for resolution, contrast, and aberration correction.
Accelerating the development of new objective lenses (e.g., for computational imaging): AI can speed up the design and testing phases of new objective lenses. It can analyze large amounts of data to identify optimal designs and materials, reducing the time and cost involved in bringing new lenses to market.
Looking ahead, the integration of deep learning with objective lenses will lead to more intelligent imaging systems. These systems will not only capture images but also process and analyze them in real-time, providing immediate insights and decisions. This will be particularly beneficial in fields like medical diagnostics, where quick and accurate analysis can save lives. The combination of advanced objective lens technology and AI-driven imaging will open up new possibilities for scientific research and industrial applications, pushing the boundaries of what we can see and understand.
When selecting an objective lens, the first thing to consider is the specimen type. Is it a small cell or a larger sample like a plant section? For tiny specimens, a high magnification lens like a 40X or 100X is often needed to see details. If you’re studying something like a blood smear, a medium-power lens like a 20X might be sufficient. The required resolution is another key factor. If you need to see very fine details, such as the internal structures of a cell, a high numerical aperture (NA) lens is essential. NA determines the resolution, which is the ability to distinguish between small details. The imaging mode also plays a role. For fluorescence microscopy, you’ll need a lens that can efficiently collect the emitted light, which often means a high NA lens. For brightfield microscopy, a standard achromatic lens might be sufficient. So, think about what you’re looking at and what details you need to see. This will guide you in choosing the right magnification and resolution capabilities in an objective lens.
Next, consider the microscope you’ll be using. Different microscopes have different interfaces. Some use finite conjugate systems, where the objective lens directly forms an image of the specimen. Others use infinity-corrected systems, which require a tube lens to form the final image. If your microscope is infinity-corrected, you’ll need objectives designed for that system. These objectives allow you to add other optical components, like filters or polarizers, without introducing aberrations. Finite conjugate objectives are simpler and often more economical, making them suitable for basic applications. So, check your microscope’s specifications and choose objectives that are compatible with its optical system.
Objective lenses come in different grades, each offering different levels of performance. Achromatic lenses are the most common and affordable. They correct for chromatic aberration at two wavelengths, typically red and blue. This makes them suitable for general-purpose applications like basic brightfield microscopy. Apochromatic lenses offer higher correction, handling three or more wavelengths. They provide better resolution and color fidelity, making them ideal for demanding applications like fluorescence and confocal microscopy. Plan lenses address field curvature, ensuring a flat field of view. This is particularly useful for imaging large samples or when using cameras for documentation. So, consider your budget and the performance you need. If you’re doing general observation, achromatic lenses might be sufficient. For more specialized work, apochromatic or plan lenses could be worth the investment.
If you’re unsure about which objective lens to choose, don’t hesitate to seek expert advice. Microscope manufacturers and suppliers often have technical support teams that can help you select the right lens for your application. They can provide guidance based on your specific requirements and help you navigate the various options available. Additionally, online forums and communities dedicated to microscopy can be a valuable resource. Many experienced microscopists share their knowledge and recommendations there. So, if you’re in doubt, reach out to the experts and the microscopy community. They can offer valuable insights and help you make an informed decision.
To ensure the longevity and optimal performance of objective lenses, proper cleaning is essential. Follow these steps:
Remove dust first: Use an air blower to gently remove any loose dust particles from the lens surface. Hold the air blower upright and use short bursts of air to avoid blowing particulates onto the lens. This prevents scratches that could damage the lens.
Use appropriate cleaning materials: Use lens-cleaning solution and lens paper or tissues specifically designed for optics. Avoid using harsh solvents or paper towels, which can scratch the lens. Moisten a lens tissue with a small amount of cleaning solution. Wipe the lens in a circular motion, starting from the center and moving outward. Do not apply excessive pressure to avoid damaging the lens.
Inspect the lens: After cleaning, inspect the lens under magnification using a loupe or inverted ocular to ensure all particles and contaminants have been removed. If any streaks or smudges remain, repeat the cleaning process.
Proper handling and storage are crucial to maintaining the quality of objective lenses:
Handle with care: Avoid touching the lens surface with your fingers. Oils and dirt from your skin can leave residues that are difficult to clean. Always hold the lens by its metal barrel or use lens holders if available.
Use covers: Protect the objective lens from dust and contaminants by using the microscope’s lens covers when not in use. This helps maintain the lens’s optical performance and extends its lifespan.
Store correctly: Store the microscope with the nosepiece in the lowest magnification position, usually the 4x or lowest-powered lens. This prevents the objective lens from being too close to the specimen stage and reduces the risk of accidental damage. Keep the microscope covered when not in use to protect it from dust and potential damage.
Immersion oil lenses require additional care:
Clean after use: After each use, remove immersion oil completely. Use a small drop of oil and clean it off immediately after observing the specimen. Excess oil can accumulate and damage the microscope’s substage mechanism or even the objective itself. Use lens paper to gently remove the oil, being careful not to apply excessive pressure.
Avoid mixing media: Do not mix different immersion media or lots of the same medium, as this can result in blurred images. Always use the immersion media specified by the manufacturer.
Special solvents for dried oil: If immersion oil has hardened on the objective, moisten a piece of lens paper with a small amount of distilled water and hold it against the lens for a few seconds to dissolve the oil. If this doesn’t work, try using isopropyl alcohol (at least 90% pure). After using solvents, clean the objective again with distilled water to ensure all solvents are removed.
By following these cleaning and maintenance guidelines, you can ensure that your objective lenses remain in excellent condition, providing clear and sharp images for all your optical needs.
Objective lenses are essential in optical systems, driving scientific and industrial progress. They play a key role in various fields. In scientific research, they enable detailed observation of tiny objects like cells and microorganisms, helping researchers achieve high-resolution imaging. In industrial applications, they are used for quality control and product inspection. The evolution of objective lenses continues with technological advancements. Modern high-performance objective lenses, such as the X Line series, offer improved numerical aperture, image flatness, and chromatic aberration correction. These improvements allow for brighter, high-resolution images across a larger field of view, enhancing the efficiency and reliability of various applications.
Band-Optics is committed to providing high-quality objective lenses. They leverage advanced technologies and manufacturing processes to ensure their lenses meet the highest standards of performance and reliability. Their product line includes various types of objective lenses to meet different application requirements. Whether it’s for scientific research, industrial production, or medical diagnostics, Band-Optics offers suitable solutions.
Looking ahead, the importance of high-performance objective lenses will continue to grow in scientific research and industrial applications. With continuous technological innovation, objective lenses will achieve higher resolution, better image quality, and more versatile functionalities. They will open up new possibilities for human exploration of the microscopic world and contribute to advancements across multiple fields.
