Views: 324 Author: Site Editor Publish Time: 2025-05-30 Origin: Site
Are Fresnel Lenses efficient? This question often comes up when exploring innovative optical solutions. Fresnel Lenses, with their unique design and lightweight structure, have transformed various industries by focusing light in smarter ways. Whether you’re curious about their applications in solar energy, lighting, or motion detection, let’s dive into what makes these lenses so efficient and how they can benefit your projects.

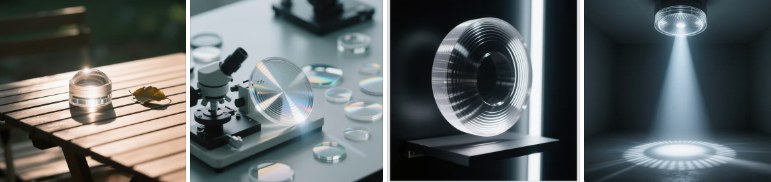

Ever seen a flat sheet that focuses light like a bulky glass lens? That’s a Fresnel lens. It’s not your average lens—it’s thinner, lighter, and full of clever design.
Instead of one smooth curved surface like a traditional lens, a Fresnel lens uses stepped sections to bend light. Think of a regular lens sliced into many thin rings. Those rings are then flattened and stacked, keeping the same focal effect but ditching the bulk.
These tiny steps—or grooves—act like little prisms. Each one bends light toward a common focus. It’s still using the same physics—refraction—but does so with much less material.In simple terms,it redirects light like a dome-shaped lens.But it’s flat or slightly curved.Great for large-diameter lenses without the weight

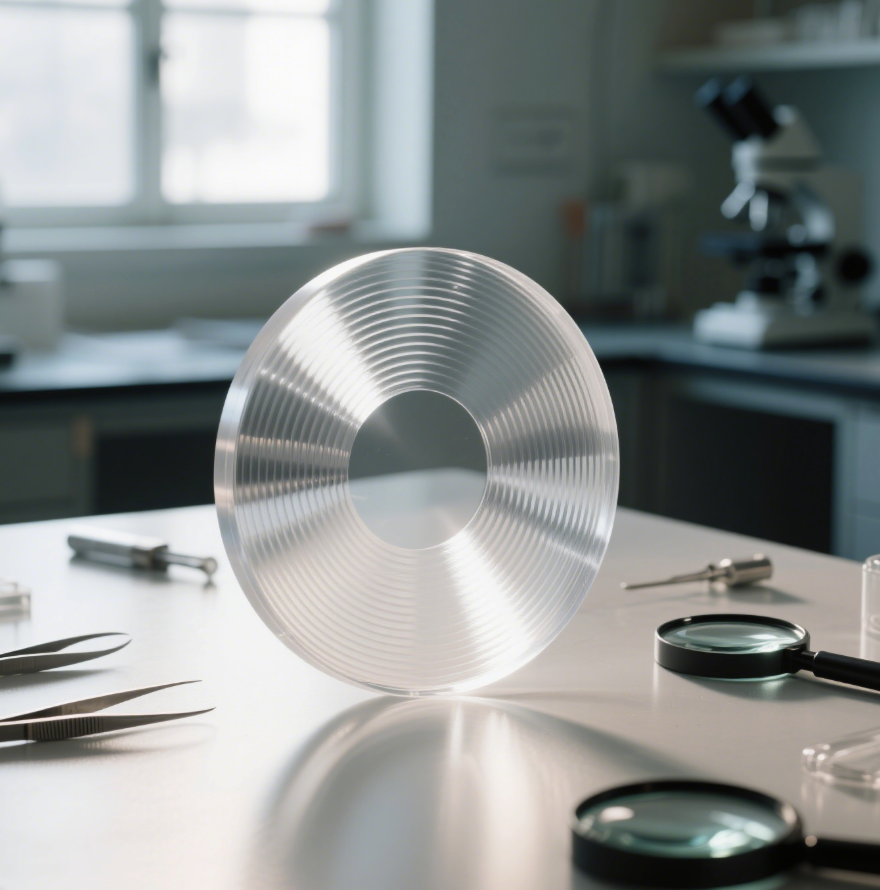

A Fresnel lens is covered in concentric grooves—think ripples in a pond. Each groove is actually a miniature version of a lens surface. When light hits them, it’s bent (or refracted) just like in a traditional curved lens.
These grooves are arranged in circular patterns, forming a radial layout that mimics the curvature of a traditional lens. Their size can vary across the surface, allowing precise control over how sharply the lens focuses light. By replacing the continuous curve of conventional lenses with these stepped segments, the overall thickness is reduced significantly.
| Feature | Traditional Lens | Fresnel Lens |
|---|---|---|
| Shape | Full curved surface | Series of grooves |
| Thickness | Thick | Thin |
| Weight | Heavy | Lightweight |
| Material Use | High | Low |
| Focusing Ability | High precision | Good enough (varies) |
Not all Fresnel lenses are built the same. Their design changes depending on the light direction and application.
Radial Fresnel Lenses
Grooves spread in circles
Focus light to a single point
Great for omnidirectional light collection
Used in PIR sensors, spotlights, solar concentrators
Cylindrical Fresnel Lenses
Grooves run in straight lines
Focus light into a line, not a point
Used in linear motion detectors or scanning optics
The material makes a big difference—especially in weight, cost, and durability.Plastic lenses are usually made from PMMA or polycarbonate. They’re flexible, cost-effective, and perfect for mass production.
| Type | Advantages | Typical Uses |
|---|---|---|
| Glass | High clarity, scratch-resistant | High-end optics, research labs |
| Plastic | Cheap, easy to mold, very lightweight | Consumer products, PIR sensors |
When people talk about lens efficiency, they don’t just mean how clear the image looks. It’s a mix of physics, materials, and smart design. Let’s break down what really matters.
A good lens should let as much light through as possible. Less light loss = better brightness. Fresnel lenses, especially those made from clear acrylic or polycarbonate, can transmit high levels of visible or infrared light. But surface imperfections or cheap materials can scatter or absorb some of it.
This is all about directing light to where you want it. Traditional lenses curve smoothly and focus light to a point very precisely. Fresnel lenses try to do the same using segmented grooves. The focus is decent, especially in larger or less demanding setups. But it’s not always as sharp.
Aberrations are weird distortions. Think blurry edges or warped images. Fresnel lenses—because of their stepped design—often have spherical and distortion aberrations. Engineers can reduce these using groove depth tuning or software simulations (like Zemax). It helps, but there’s always some trade-off.
This measures how much of the incoming energy—usually light or IR—is actually focused and usable. In optimized Fresnel lenses, especially for PIR systems, up to 85% of infrared radiation can hit the sensor directly. That’s a solid number for a flat, lightweight lens.
Fresnel lenses are not trying to replace traditional ones. They serve different needs. Here’s a quick comparison:
| Feature | Traditional Lens | Fresnel Lens |
|---|---|---|
| Material Use | Thick glass | Thin plastic or glass |
| Weight | Heavy | Very lightweight |
| Image Quality | High precision | Moderate (some distortion) |
| Light Focus | Sharp point focus | Good enough for detection |
| Cost | Expensive to make | Cheap to mass-produce |
| Size Flexibility | Limited by bulk | Easy to scale (large & flat) |
| Best For | Cameras, microscopes | PIR sensors, lighting, solar |
Traditional lenses require thick, heavy glass—especially if the diameter increases. Fresnel lenses slice that weight down drastically. They’re made from molded plastic or thin glass and often just a few millimeters thick.
Yes, Fresnel lenses are light and slim. But image quality takes a hit. The grooves can scatter light. The focus is softer. They’re great where high-res images aren’t required—like motion sensors or traffic lights.
Fresnel lenses shine in specific roles. In passive infrared systems, they help detect motion with wide coverage. In solar concentrators, they focus sunlight without bulky hardware. Not perfect for photography—but ideal for energy, detection, and smart control systems.
From solar concentrators to motion detectors, they perform well where lightweight, large-aperture lenses are needed.
Fresnel lenses are great at collecting and directing light, especially over wide areas. Instead of relying on a bulky curved surface, they use grooves to bend light toward a central point—or along a line.In systems like solar panels or stage lighting, this means more light focused using less space and weight. They’re often used to replace large convex lenses, especially where compactness matters.
Fresnel lenses handle visible and infrared (IR) light well. For IR-based applications, like PIR sensors, their ability to guide low-energy radiation onto small detectors is critical.
They can:
Gather diffused or wide-angle light
Focus that light into small areas
Maintain decent accuracy at reduced size
In motion detection systems—like PIR (Passive Infrared) sensors—Fresnel lenses boost performance dramatically. They help by capturing a wide field of infrared light and channeling it toward a focused point on the sensor array.Studies show:Optimized Fresnel lenses can capture up to 85% of incoming IR energy.They extend detection range up to 30 meters (around 100 feet).Performance holds steady across environmental changes, thanks to IR-transparent materials like PMMA.
Real-World Use:
Home automation (motion-activated lights)
Security systems (thermal tracking)
Energy-saving smart devices
Fresnel lenses aren’t ideal for everything. In high-precision applications—like professional cameras or microscopes—their stepped groove design introduces errors.Users may observe soft image edges, slight surface distortion, and focus inconsistencies in multi-groove configurations.That’s why industries dealing with high-resolution imaging usually stick to conventional optics.
When NOT to use Fresnel lenses:
DSLR or mirrorless camera lenses
Scientific imaging tools
Any device needing sub-millimeter focus accuracy
Fresnel lenses aren’t just clever optical components—they’re highly practical in the real world. Their thin profile, strong light-gathering ability, and low cost make them ideal for many industries.
City infrastructure relies on compact, bright, and durable optics. Fresnel lenses tick all three boxes.
They help:
Focus light into narrow beams for better visibility
Spread LED light uniformly across signs and indicators
Reduce energy use in traffic control systems
Fresnel lenses are widely used in overhead projectors, large displays, and backlit panels.Fresnel lenses are ideal for directing light across a wide viewing angle, improving brightness uniformity, and reducing the size of projection systems.
In short-throw projectors or LED panels, they help guide light without bulky lenses or mirrors.Fresnel lenses enhance displays by focusing image light in compact devices, redirecting light in rear-projection TVs, and boosting brightness in low-light conditions.
Fresnel lenses do more than focus light—they concentrate solar energy for real power.
They’re often used to:
Focus sunlight onto photovoltaic cells
Increase thermal collection in solar furnaces
Reduce the number of cells needed in solar arrays
| Feature | Traditional Lens | Fresnel Lens |
|---|---|---|
| Weight | Heavy | Light |
| Solar Concentration | Moderate | High |
| Material Cost | High | Low |
| Surface Area Required | Large | Small (due to focus) |
This is one of the most efficient uses of Fresnel lenses. In PIR (Passive Infrared) sensors, they direct infrared radiation from a wide field into a focused point on the sensor.They enhance detection accuracy, extend range up to 30 meters, and boost sensitivity in low-light or low-heat conditions.
These fields need precision tools that are lightweight, scalable, and rugged. Fresnel lenses offer tailored solutions.In the medical field, Fresnel lenses are used in diagnostic light guides and integrated into imaging panels, providing lightweight solutions for portable equipment. In defense applications, they are crucial for infrared targeting and night vision devices, as well as surveillance systems requiring wide-angle detection. Industrially, Fresnel lenses enhance machine vision systems, sensors in automation and robotics, and illumination control in safety systems.
Fresnel lenses provide notable performance advantages relative to their compact form factor; however, their segmented structure introduces inherent optical and fabrication limitations that constrain their effectiveness in high-precision or imaging-critical applications.
Because a Fresnel lens uses segmented grooves instead of a smooth curve, light doesn’t always focus perfectly.Spherical aberration: Light rays near the edge don’t converge at the same point as central rays. This creates a blurry or smeared image.Distortion aberration: Straight lines may appear bent, especially near the lens edges.
These effects get worse when the lens is large or poorly optimized. Designers can reduce them by tweaking groove depth, curvature, and spacing, but some distortion is usually unavoidable.
Fresnel lenses aren’t built for high-resolution imaging. Their groove structure scatters light and reduces sharpness. Even when optimized, the image may have:
Lower contrast
Reduced detail in fine textures
Edge softness or haloing
Where image quality is paramount, Fresnel lenses may not be the best choice. They are generally not used in high-end applications such as DSLR or mirrorless cameras, microscope objectives, or telescope eyepieces, where even the slightest aberrations can significantly impact image clarity and precision.
Another limitation lies in manufacturing precision. Fresnel lenses rely on tiny grooves—often just fractions of a millimeter deep. Any slight imperfection can throw off focus, reduce efficiency, or create visual artifacts.Plastic versions are more prone to this due to thermal expansion during molding. While they’re cheaper to produce, they may sacrifice uniformity.
Even in high-quality molds, issues may include:
Inconsistent groove spacing
Irregular groove depth
Surface roughness or warping
Common manufacturing challenges for Fresnel lenses include mold wear over time, deformation during the cooling process, and surface defects caused by dust or debris.These flaws can lead to uneven light distribution, hot spots, or detection blind zones in sensitive optical systems.
Fresnel lenses excel when cost and weight matter most. They offer a lightweight, slim design compared to traditional lenses, making them ideal for portable devices. If your project requires gathering or focusing light efficiently but must keep expenses low, Fresnel lenses are a smart option. They shine in applications like solar concentrators, overhead projectors, and certain types of lighting. Their ability to deliver good optical performance while being thin and light often outweighs minor losses in image sharpness.
Key benefits:
Low manufacturing cost
Lightweight and thin profile
Effective light concentration
Easy to integrate in compact systems
| Application Type | Why Fresnel Lenses Fit |
|---|---|
| Solar energy systems | Maximizes light focus, saves weight and cost |
| Portable lighting devices | Reduces bulk, efficient illumination |
| Large-area projection | Cost-effective for big, flat lens surfaces |
Fresnel lenses aren’t suited for precision optical tasks. When sharpness, minimal distortion, or fine detail is critical—like in high-end cameras or microscopes—you should look elsewhere. Traditional multi-element lenses or aspheric designs provide superior image quality and reduce aberrations. They’re heavier and costlier but deliver the accuracy needed for professional photography or scientific instruments.
Situations to avoid Fresnel lenses:
Precision optical imaging
High-end camera lenses
Applications requiring minimal distortion or chromatic aberration
| Optical Need | Recommended Lens Type |
|---|---|
| High image clarity | Multi-element glass lenses |
| Low distortion | Aspheric or precision ground lenses |
| Scientific imaging | Specialized optics tailored to application |
The groove geometry in Fresnel lenses plays a crucial role in their efficiency. Key factors include groove depth, frequency, and profile shape.Fine-tuning these parameters helps reduce optical losses and improve light concentration. Small changes in groove design can lead to noticeable efficiency differences.
Depth: Controls how light bends; too shallow or too deep affects focusing.
Frequency: Refers to the number of grooves per unit length; higher frequency usually means better resolution but can be harder to manufacture.
Profile Variations: Different groove shapes (triangular, trapezoidal, curved) influence light diffraction and scattering.
Simulation is essential before physical prototyping. Zemax, a leading optical design software, is often used. It uses ray tracing to track light paths through lens grooves.Allows testing different groove geometries without making lenses. Predicts focal quality, efficiency, and aberrations accurately.Ray tracing helps visualize where light energy focuses, guiding design improvements. It saves time and resources by identifying flaws early.
Optimizing Fresnel lenses involves finding the best groove parameters to maximize efficiency. Two common methods are: Global Optimization: Explores many design variables simultaneously to find the best overall solution. Good for complex, multi-parameter problems.Hammer Optimization: A more focused method that adjusts parameters step-by-step, hammering out local improvements quickly.Combining both can yield a balance between speed and accuracy. These methods refine groove geometry, minimizing energy loss and boosting lens performance.
A: Yes, Fresnel lenses are efficient for solar energy due to their ability to focus light with large apertures and short focal lengths, making them suitable for solar concentration applications.
A: The lifespan of Fresnel lenses depends on materials and environmental conditions. Plastic lenses may degrade over time in harsh conditions, while glass lenses are more durable.
A: Yes, Fresnel lenses can be used underwater. They are designed to focus light efficiently in various environments, including underwater applications.
A: Yes, Fresnel lenses are suitable for outdoor environments. They are often made from durable materials like acrylic or polycarbonate, which can withstand temperature variations.
A: Yes, Fresnel lenses can degrade image clarity due to inherent optical aberrations like spherical and distortion aberrations, but they are still effective for applications where precise imaging is not critical.
In summary, Fresnel lenses offer a compelling balance of efficiency and practicality. Their lightweight design and strong light-gathering ability make them perfect for applications like solar energy, traffic lighting, and motion detection. While they may not be ideal for high-precision imaging, their versatility and cost-effectiveness can’t be ignored. If you’re looking to integrate Fresnel lenses into your projects, considerBand-Optics for high-precision custom solutions. Visit Band-Optics to explore how their expertise can enhance your optical needs.
