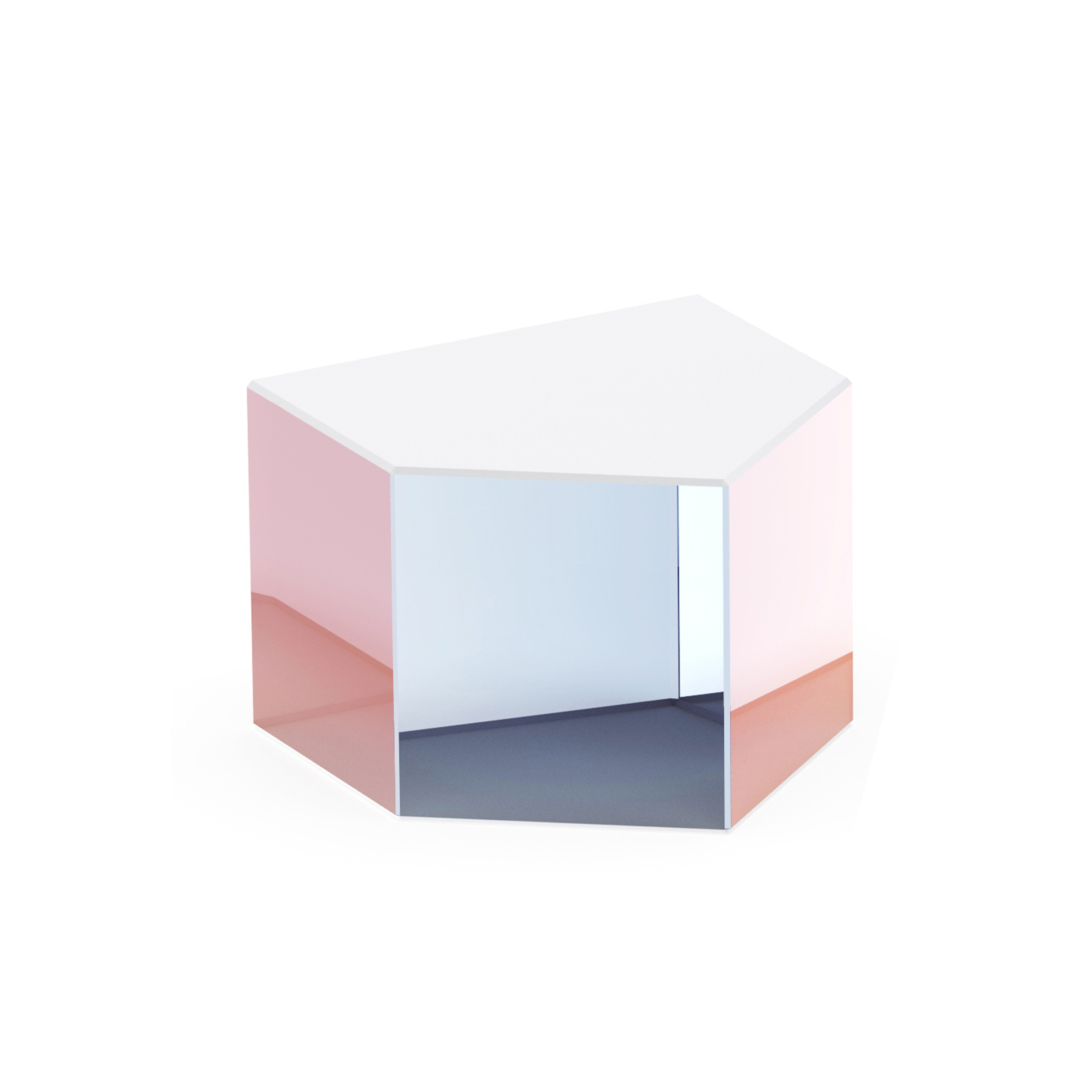

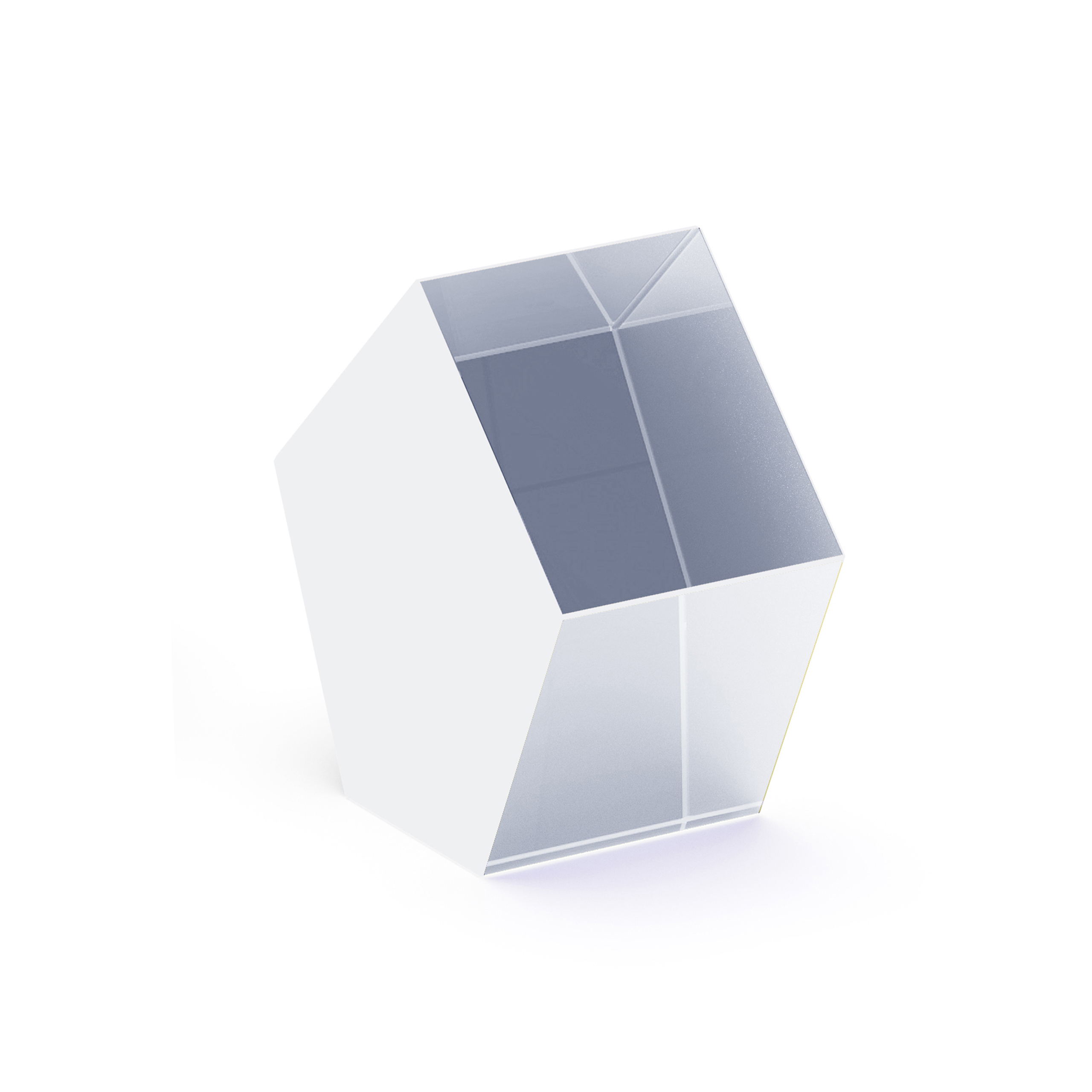

Their unique design uses two internal reflections (at 45° angles to the incident beam) to redirect light, ensuring the deflection angle remains stable (±0.1°) even if the prism is slightly misaligned. This alignment insensitivity makes Penta Prisms indispensable in applications where maintaining image orientation and beam stability is critical, such as rangefinders (military or surveying), optical metrology (precision length measurement), and professional photography (viewfinders) .
• Material Excellence: Crafted from Schott optical glass (BK7 for visible-range applications, offering >92% transmission at 550nm), silicon (for NIR applications, 1.2-6μm wavelength range, ideal for thermal imaging), and germanium (for mid-IR applications, 2-14μm, suitable for gas sensing). Each material is selected for its spectral compatibility: BK7 for cameras and rangefinders, silicon for industrial thermal sensors, and germanium for aerospace IR systems. All materials undergo strict quality control, with refractive index uniformity <5×10⁻⁶ to ensure consistent beam deflection .
• Precision Engineering: Angular tolerance <2 arcseconds guarantees consistent 90° deflection across the prism’s clear aperture (the area through which light passes). This tolerance is critical for applications like laser rangefinders, where a 1 arcsecond deviation in deflection angle can cause a 1-meter error in distance measurement at 1km range. The prism’s two reflection surfaces are polished to a parallelism of <1 arcsecond, ensuring the two internal reflections work in tandem to produce a precise 90° turn .
• Optical Performance: Surface quality 10-5 (superior to standard 20-10 grade) minimizes light scatter (stray light <0.05%), while flatness PV<1/10λ (at 632.8nm) ensures the beam remains collimated (parallel) after deflection. Collimation is essential for metrology applications—uncollimated beams would expand or converge, leading to measurement errors. For high-power laser applications (e.g., 100W+ industrial lasers), prisms can be fabricated with heat-resistant materials like sapphire, which has a thermal conductivity 10× higher than BK7 .
• Coating Options: Mirror coatings (aluminum, silver, or gold) on the two reflection surfaces enhance durability and reflectivity. Aluminum coatings offer >85% reflectivity across 400-700nm (ideal for visible applications), silver coatings provide >95% reflectivity (but require a protective overcoat to prevent tarnishing), and gold coatings offer >98% reflectivity in the IR range (1-14μm). AR coatings on the input and output faces reduce reflection losses to <0.5% per surface, ensuring maximum beam power is retained .
• Robust Construction: The five-sided geometry provides mechanical stability, with a low center of gravity that resists tipping in optical mounts. Prisms are often housed in anodized aluminum or stainless steel holders (with shock-absorbing gaskets) to protect against vibration—critical for aerospace systems (e.g., missile guidance lasers) or industrial scanning systems (exposed to machine vibration). The housing also prevents dust accumulation on optical surfaces, which would degrade performance over time .
Penta prisms are critical in:
• Defense & Aerospace: Targeting systems (e.g., fighter jet laser targeting pods), missile guidance (IR-guided missiles that track heat signatures), and surveillance cameras (drone-mounted high-resolution cameras). In targeting pods, Penta prisms deflect the laser beam 90° from the pod’s sensor to the target, maintaining image orientation so the pilot sees the target as it appears in real space. Missile guidance systems use germanium penta prisms to steer IR beams, ensuring the missile tracks the target even if the missile itself rotates .
• Engineering: Laser scanning systems for dimensional inspection (e.g., automotive body panel measurement) and quality control (semiconductor wafer defect detection). In automotive inspection, a laser scanner uses a penta prism to deflect the laser beam 90° across the panel’s surface, creating a 2D scan of the panel’s shape. The prism’s stability ensures the scan is consistent, with measurement errors <0.1mm—critical for ensuring proper fit of body panels .
• Photography: Viewfinders in professional single-lens reflex (SLR) cameras and medium-format cameras. Unlike right-angle prisms, which invert the image (requiring additional optics to correct), penta prisms deflect the light 90° without inversion, so the photographer sees the scene as it appears. This direct orientation is essential for precise composition, especially in portrait or landscape photography .
• Instrumentation: Calibrating optical benches (used in lab research to align lasers and detectors) and aligning precision measurement tools (e.g., interferometers for length calibration). In optical bench calibration, a penta prism is used to set a reference 90° beam path, against which other components (e.g., mirrors, lenses) are aligned. The prism’s alignment insensitivity ensures the reference path remains stable, even if the bench is slightly disturbed .
Q: How does temperature affect performance?
A: Temperature affects penta prisms primarily through thermal expansion, which can change the prism’s dimensions and refractive index. Low-thermal-expansion materials like fused silica (CTE <0.5×10⁻⁶/°C) minimize this effect, ensuring <0.1 arcsecond/°C drift in deflection angle. By contrast, standard BK7 glass has a higher CTE (7×10⁻⁶/°C), leading to ~0.5 arcseconds/°C drift—acceptable for room-temperature applications but not for extreme environments. For high-temperature applications (e.g., engine bay sensors), sapphire prisms (CTE <5×10⁻⁷/°C) offer even greater stability, with drift <0.01 arcseconds/°C .
Q: Can penta prisms be used with high-power lasers?
A: Yes, when fabricated from heat-resistant materials and coated with high-damage-threshold (HDT) coatings. Sapphire or silicon prisms are preferred for high-power use: sapphire can withstand continuous-wave (CW) laser powers up to 1kW/cm², while silicon handles up to 5kW/cm² in the NIR range. The mirror coatings must also be HDT—for example, dielectric mirror coatings (instead of metal coatings) have HDTs >10kW/cm² for CW lasers. In pulsed laser applications (e.g., femtosecond lasers), the prism’s damage threshold is determined by pulse energy; fused silica prisms can handle pulse energies up to 1J/cm² without damage .
