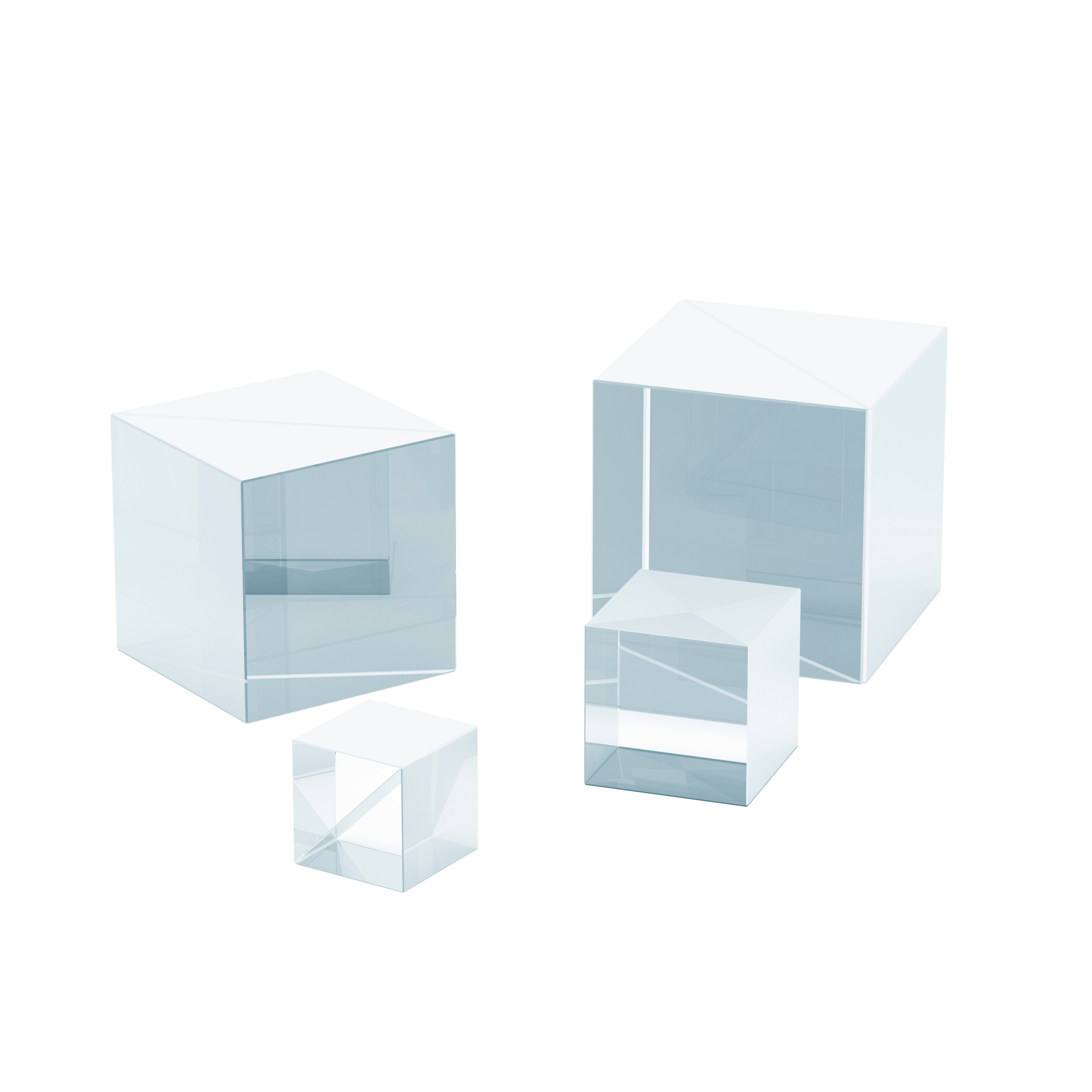

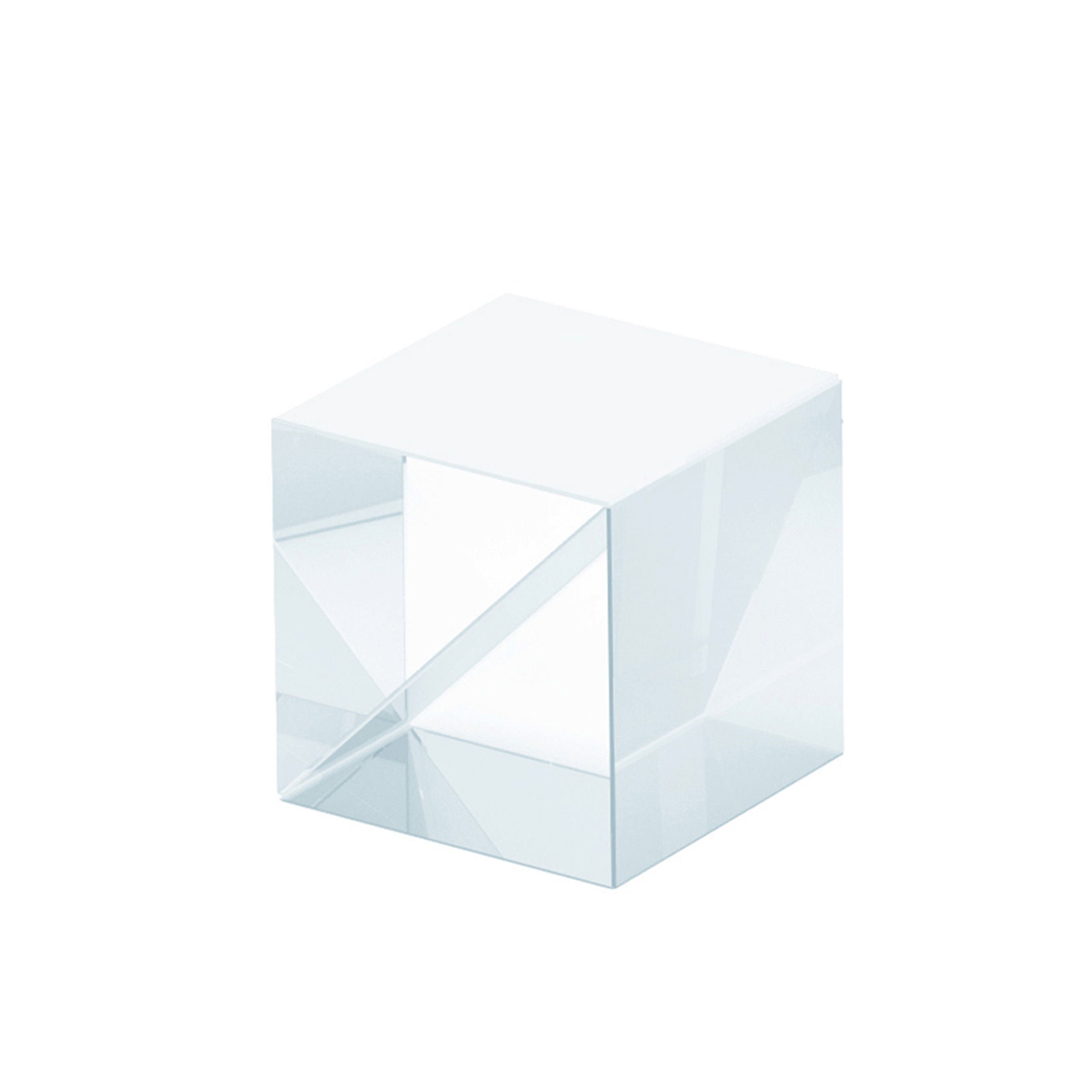

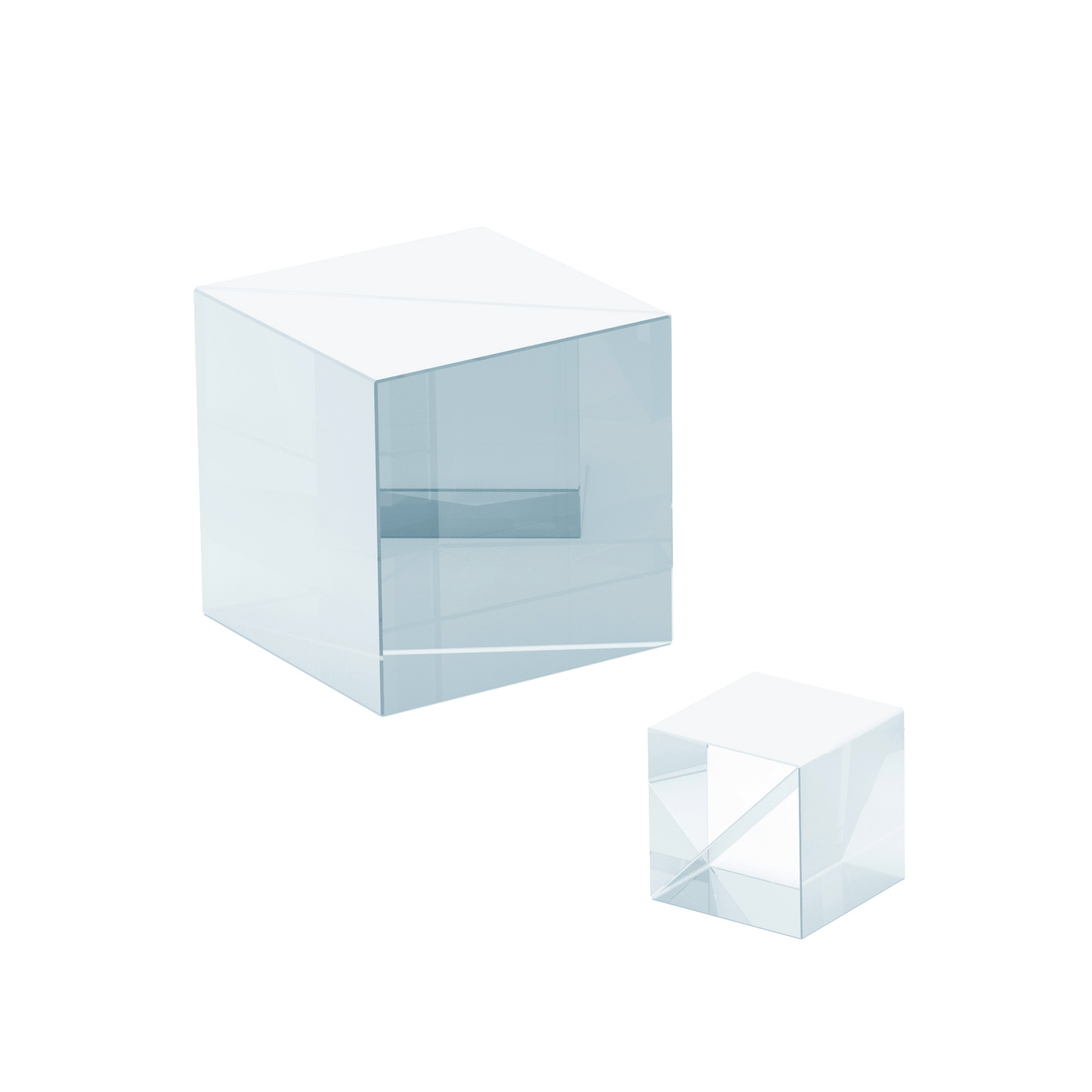

Unlike non-polarizing beamsplitters (which split light by intensity), polarizing PBS leverage Brewster’s angle geometry (where the angle of incidence equals the Brewster angle, θB) to achieve exceptional polarization discrimination: at θB, P-polarized light is transmitted with minimal reflection, while S-polarized light is strongly reflected. For example, at 1064 nm (a common laser wavelength), these devices typically transmit P-polarized light (>95% transmission) while reflecting S-polarized light (>99% reflection). The latest designs incorporate advanced thin-film coatings (e.g., dielectric stack coatings) deposited using ion-beam sputtering— a process that ensures coating uniformity (<1% thickness variation) and maximizes laser damage resistance, making them suitable for high-power CW and pulsed lasers .
High Polarization Extinction Ratio: Achieves >1000:1 extinction ratio (the ratio of desired polarization to unwanted polarization) at the design wavelength (1064 nm standard). This means that for every 1000 units of P-polarized light transmitted, less than 1 unit of S-polarized light is transmitted—critical for applications like quantum cryptography, where polarization purity ensures secure data transmission .
Superior Laser Damage Resistance: Tested to withstand extreme laser intensities, with dielectric-coated models handling 2 J/cm² at 355 nm (10 ns pulses, 20 Hz repetition rate) and 100 W/cm² CW power at 1064 nm. This resistance is achieved through high-purity coating materials (e.g., SiO₂, TiO₂) and substrate cleaning (ultrasonic cleaning in alkaline solutions to remove contaminants) before deposition .
Broadband Performance: Long-wave pass (LWP) design strategies enable operation across extended wavelength ranges beyond the primary design target. For example, a PBS designed for 1064 nm can also operate effectively at 980 nm (NIR) and 1310 nm (telecom wavelength) with only a 5-10% reduction in extinction ratio. Broadband AR coatings on input/output surfaces further extend usability across 400-1700 nm .
Precision Angle Fabrication: Manufactured with a 56.4° angle of incidence (the Brewster angle for N-BK7 glass at 1064 nm) with ±0.1° tolerance—this tight tolerance ensures that polarization separation remains consistent across the beam aperture. The beam splitter’s wedge angle (typically 33.6° for 56.4° incidence) is also machined to ±0.05° to prevent beam walk-off (lateral displacement of the transmitted beam) .
Durable Substrate and Coating Combination: Available in two primary substrates: UV fused silica (ideal for UV-NIR applications, 190-2500 nm) and N-BK7 (cost-effective for visible-NIR, 400-2000 nm). Both substrates are paired with dielectric coatings that have high adhesion strength (>5 N/mm², tested via tape peel) and resistance to environmental factors (e.g., 95% relative humidity, -40°C to +80°C temperature range) .
High-Power Laser Systems: Enable beam splitting and combining in industrial lasers (e.g., 1 kW fiber lasers for metal cutting) and research lasers (e.g., ultrafast Ti:sapphire lasers for spectroscopy). In laser cutting, PBS split a single high-power beam into two lower-power beams, allowing simultaneous cutting of two workpieces—doubling production efficiency .
Quantum Optics: Essential for polarization-based quantum state manipulation and detection in systems like quantum key distribution (QKD) and quantum computing. In QKD, PBS separate entangled photon pairs (each with orthogonal polarizations) to enable secure encryption key generation—extinction ratios >1000:1 ensure that quantum states remain uncorrupted .
Metrology: Provide polarized light sources for ellipsometry (measuring thin-film thickness and refractive index) and polarimetry (characterizing optical materials). In semiconductor manufacturing, ellipsometers use PBS to analyze the polarization state of light reflected from wafer surfaces, enabling measurement of oxide layer thickness with ±0.1 nm precision .
Fiber Optics: Interface between free-space optical systems and fiber optic networks, where polarization control is critical for signal integrity. For example, in telecom systems operating at 1310 nm or 1550 nm, PBS align the polarization of free-space lasers with fiber polarization axes, reducing signal loss (insertion loss <0.5 dB) .
Imaging Systems: Enhance contrast in polarization-sensitive imaging applications, such as biomedical imaging (detecting cancerous tissue) and remote sensing (identifying oil spills). In biomedical imaging, PBS separate polarized light reflected from healthy and cancerous tissue—cancerous tissue has a different polarization signature, making it distinguishable even in early stages .
Three key factors influence LIDT: coating materials, deposition process, and substrate preparation. Coating materials with high bandgap energy (e.g., SiO₂, bandgap ~9 eV) are more resistant to laser-induced breakdown than low-bandgap materials. The ion-beam sputtering deposition process (vs. thermal evaporation) produces denser coatings with fewer defects, increasing LIDT by 30-50%. Substrate preparation—including ultrasonic cleaning and plasma etching to remove surface contaminants—reduces absorption sites that can initiate damage. For high-power applications, choose PBS with "high-LIDT" specifications and avoid operating near the maximum power density (derate by 20-30%) .
Yes, but specify femtosecond-rated models, as standard coatings may exhibit different damage characteristics under short pulses (fs vs. ns). Femtosecond-rated PBS use thicker dielectric coatings (10-20 layers vs. 5-10 for standard) to distribute pulse energy more evenly, reducing peak electric fields in the coating. These models typically handle pulse widths down to 10 fs and peak power densities up to 10⊃1;⊃2; W/cm² (for 100 fs pulses at 800 nm). Always confirm the LIDT for your specific pulse width and wavelength—fs LIDT is often lower than ns LIDT for the same coating .
Standard models perform reliably from -20°C to +70°C, with minimal changes in extinction ratio (<5% variation) and transmission (<2% variation) within this range. At temperatures beyond this range, substrate expansion/contraction can alter the angle of incidence, reducing extinction ratio—for example, at +100°C, N-BK7’s thermal expansion (7.1 × 10⁻⁶ /°C) can shift the angle of incidence by 0.2°, lowering the extinction ratio to 500:1. For extreme-temperature applications (e.g., aerospace), high-stability versions use fused silica substrates (lower thermal expansion: 0.55 × 10⁻⁶ /°C) and flexible coating bonds, extending the range to -40°C to +100°C .
