Views: 661 Author: Site Editor Publish Time: 2025-04-30 Origin: Site
Mirrors are essential components in optical systems, reflecting light waves with precision and control. They consist of a highly polished substrate, often made of glass, metal, or plastic, coated with reflective materials like aluminum, silver, or gold. The substrate provides structural support, while the polished surface ensures accurate light reflection. Mirrors are categorized by their shape and coating material, each offering unique optical properties. For instance, flat mirrors reflect light straight back, concave mirrors focus light to a point, and convex mirrors spread light out. In this comprehensive guide, we will explore the different types of mirrors, their key specifications, and their diverse applications across various industries. Whether you're involved in medical technology, laser systems, semiconductor manufacturing, or defense & aerospace, understanding the right mirror for your application is crucial. We'll also provide insights into how to choose the perfect mirror based on reflection requirements, wavelength range, shape, size, coating type, budget, and timeline. Join us as we delve into the world of optical mirrors and discover how Band-Optics can provide high-quality customized solutions to meet your specific needs.
Optical mirrors are essential components in various optical systems, designed to reflect light waves in a controlled manner. They are constructed with a highly polished substrate, often made of glass, metal, or plastic, and coated with a thin layer of reflective material such as aluminum, silver, or gold. The polished surface of a mirror reflects incident light, while the substrate provides structural support. Mirrors can be categorized into different types based on their shape and coating material, each with unique optical properties and applications. For example, flat mirrors reflect light straight back, while concave mirrors focus light to a point and convex mirrors spread light out.
Aluminum-coated mirrors are widely used for their excellent reflective properties in the ultraviolet, visible, and near-infrared spectral regions. These mirrors offer high reflectivity across a broad wavelength range, making them suitable for various applications. They are cost-effective and durable, with a relatively high resistance to oxidation and corrosion. Common applications include general-purpose optical systems, lighting, and imaging systems where broad spectral coverage is required. Additionally, they are often used in medical devices, such as endoscopes and microscopy equipment, due to their biocompatibility and reliability.
Silver-coated mirrors are known for their exceptional reflectivity in the visible and near-infrared regions, offering higher reflectivity than aluminum coatings. This makes them ideal for applications requiring maximum light reflection, such as in high-precision optical instruments and laser systems. Silver coatings are highly reflective and provide excellent performance in applications like spectroscopy, where minimal light loss is crucial. However, silver is more prone to oxidation and tarnishing, so protective coatings are often applied to enhance durability.

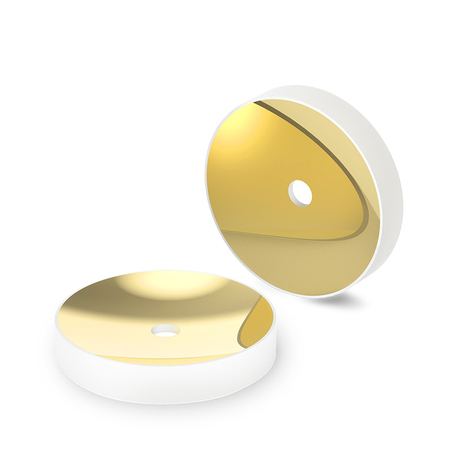

Gold-coated mirrors excel in the infrared region, providing high reflectivity for wavelengths longer than about 1 micron. Gold's excellent conductivity and resistance to oxidation and corrosion make these mirrors highly durable and suitable for harsh environments. They are frequently used in infrared imaging systems, thermal imaging applications, and aerospace instrumentation. Gold coatings are also valued for their stability and consistency in performance over time, making them reliable choices for precision optical systems.
Broadband dielectric mirrors are designed to reflect a wide range of wavelengths, typically spanning multiple spectral regions. They consist of alternating layers of materials with different refractive indices, creating constructive interference for reflected light over a broad bandwidth. These mirrors are commonly used in applications requiring high reflectivity across various wavelengths, such as in lasers, optical coatings for lenses and filters, and in spectroscopy equipment. Their ability to reflect a wide spectrum of light makes them versatile tools in optical design and engineering.
HR (High Reflectivity) laser line mirrors are specifically engineered to provide exceptional reflectivity at particular laser wavelengths. With reflectivity values exceeding 99.5%, these mirrors are critical components in laser systems, ensuring efficient laser beam reflection and minimal energy loss. They are commonly used in high-power laser applications, such as cutting, welding, and marking, where precise control of laser energy is essential. The high reflectivity and durability of HR laser line mirrors make them indispensable in industrial and research laser setups.
Narrowband dielectric mirrors are designed to reflect specific, narrow ranges of wavelengths while transmitting other wavelengths. This selective reflection is achieved through precise layer thickness control during the coating process. These mirrors are often used in applications requiring wavelength-specific filtering, such as in fluorescence microscopy, laser harmonic generation, and optical sensors. Their ability to isolate specific wavelengths makes them valuable tools in optical systems where precise spectral control is necessary.
Non-polarizing beamsplitters are specialized mirrors designed to split incoming light into two beams of equal intensity without affecting the polarization state of the light. They are constructed using specialized coatings that ensure uniform light splitting regardless of the polarization of the incident light. These mirrors are crucial in applications where maintaining the original polarization of light is important, such as in polarization-sensitive optical systems, quantum optics experiments, and certain types of interferometry. Their ability to preserve light polarization makes them essential components in precision optical measurements and experiments.
HR right-angle retroreflectors are designed to reflect incoming light back parallel to the incident beam, regardless of the angle of incidence. This unique property makes them invaluable in applications requiring precise alignment and measurement, such as in distance measurement systems, laser targeting, and optical testing setups. Their retroreflective capability ensures that light is returned along the same path, providing accurate and reliable performance in various measurement and alignment tasks.
Elliptical mirrors feature an elliptical shape that allows them to focus light from one focal point to another. This property makes them highly effective in applications where light needs to be concentrated or directed between specific points. They are commonly used in optical systems requiring efficient light collection and focusing, such as in lighting design, laser beam shaping, and certain types of imaging systems. The unique focusing properties of elliptical mirrors enable precise control over light distribution and intensity.
D-shaped mirrors are characterized by their distinctive D-shaped form factor, which provides unique mounting and alignment advantages. The flat edge of the D-shape allows for secure and stable mounting in optical systems, ensuring precise positioning and minimizing movement during operation. These mirrors are often used in applications where space constraints or specific mounting requirements exist, such as in compact optical instruments, laser systems, and industrial optical setups. Their specialized shape makes them ideal solutions for challenging mounting scenarios while maintaining high optical performance.
YAG laser mirrors are specifically designed for compatibility with YAG (yttrium-aluminum-garnet) laser systems, which operate in the near-infrared region. These mirrors are engineered to withstand the high power and specific wavelength of YAG lasers, providing high reflectivity and durability. They play a crucial role in YAG laser applications, such as cutting, welding, and marking, by ensuring efficient reflection and precise control of the laser beam. YAG laser mirrors are essential components in industrial and medical YAG laser systems, offering reliable performance and long service life.
The key specifications of mirrors are critical factors that determine their performance and suitability for various applications. These include dimensional and thickness tolerances, which ensure precise fitting and functionality within optical systems. Flatness and surface quality directly impact the clarity and accuracy of reflected light, while roughness affects scattering properties. Parallelism is essential for maintaining consistent optical performance, and chamfering protects the mirror edges from damage. Each specification has different tolerance ranges depending on the required precision level, from precision-grade to commercial-grade. Optimizing these specifications allows mirrors to meet the exacting demands of industries such as medical technology, laser systems, semiconductor manufacturing, and defense & aerospace.
| Key Specification | Importance | Typical Tolerance Range | Impact |
|---|---|---|---|
| Dimensional Tolerance | Ensures proper installation and alignment in optical systems, preventing beam displacement or focusing issues. | +/-0.02mm (Precision Grade) +/-0.05mm (Factory Grade) +/-0.1mm (Commercial Grade) | Inaccurate dimensions can lead to beam path errors and performance degradation. |
| Thickness Tolerance | Affects mechanical stability and optical performance; thickness influences weight and rigidity. | +/-0.01mm (Precision Grade) +/-0.02mm (Factory Grade) +/-0.05mm (Commercial Grade) | Variations can cause wavefront distortion and mechanical instability. |
| Flatness | Directly impacts the quality and precision of reflected light, affecting imaging clarity and beam focusing. | PV<1/50λ (Precision Grade) PV<1/10λ (Factory Grade) PV<1/4λ (Commercial Grade) | Poor flatness introduces wavefront distortion and image blurring. |
| Surface Quality | Surface defects scatter light, reducing reflection efficiency and degrading image quality. | 5-1 (Precision Grade) 10-5 (Factory Grade) 40-20 (Commercial Grade) | Defects cause light scattering and image flaws. |
| Roughness | Influences reflection efficiency and scattering characteristics; low roughness ensures high-quality reflections with minimal scattering. | RMS<0.3nm (Precision Grade) RMS<0.8nm (Factory Grade) RMS<1nm (Commercial Grade) | High roughness leads to scattering and reflection losses. |
| Parallelism | Ensures precise alignment in optical systems, preventing beam deviation and interference issues. | <10 arcsec (Precision Grade) <30 arcmin (Factory Grade) <1 arcmin (Commercial Grade) | Poor parallelism results in beam deviation and performance issues. |
| Chamfer | Protects edges from damage during handling and installation, reducing the risk of breakage. | <0.05mm × 45° (Precision Grade) <0.15mm × 45° (Factory Grade) <0.3mm × 45° (Commercial Grade) | Improper chamfering can lead to edge reflections and mechanical damage. |
In endoscopic procedures, mirrors are used within endoscopes to reflect and direct light onto internal body surfaces. This allows for visual inspection and diagnosis of internal organs and tissues with minimal invasiveness, providing clear views for accurate medical assessments.
Mirrors play a crucial role in medical imaging techniques like MRI and CT scans. They help in directing and focusing the imaging beams, ensuring precise and clear images of internal body structures for accurate diagnosis and treatment planning.
Mirrors enhance image contrast and detection in fluorescence imaging by precisely reflecting and filtering specific wavelengths of light. This improves the visualization of fluorescent markers in biological samples, aiding in disease diagnosis and research.
In microscopy, high-quality mirrors are essential for achieving high-resolution images. They reflect light accurately onto the specimen and back to the detector, ensuring minimal distortion and clear, detailed images for microscopic analysis.
Mirrors are used in non-contact temperature measurement devices. They reflect infrared radiation emitted by objects, allowing sensors to accurately measure temperature without physical contact, which is useful in medical and industrial applications.
Mirrors are vital in optical coherence tomography (OCT), used in ophthalmology and other medical fields. They help generate high-resolution images of biological tissues, enabling detailed examination of structures like the retina for early disease detection.
In spectrometry, mirrors are used to analyze light spectra for diagnostic purposes. They precisely reflect and direct light within spectrometers, enabling accurate measurement of light properties and identification of substances based on their spectral signatures.
Mirrors are integral to therapeutic laser systems, where they guide and focus laser beams onto treatment areas. This allows for precise and controlled delivery of laser energy, enhancing the effectiveness of laser-based medical treatments like dermatology and surgical procedures.
Mirrors assist in thermographic imaging by reflecting infrared radiation emitted by the body. This helps in detecting heat patterns, which can indicate various medical conditions, providing a non-invasive diagnostic tool for assessing blood flow and identifying areas of inflammation or injury.
In laser cutting, mirrors are used to guide and focus high-power laser beams onto materials. Their precise reflection ensures accurate cutting, enabling clean and efficient material separation in industrial manufacturing processes.
Mirrors play a crucial role in laser welding by directing and focusing laser beams onto the workpiece. This allows for precise and strong welds with minimal heat affected zones, enhancing the quality and efficiency of welding operations in various industries.
Mirrors are utilized in laser ranging systems to reflect laser pulses and measure the time it takes for the light to return. This enables accurate distance measurement and is widely used in navigation, surveying, and military applications for precise positioning and targeting.
In laser guidance systems, mirrors help direct laser beams to provide precise targeting information. They are used in military and industrial applications to guide missiles, projectiles, and cutting tools, ensuring accurate and controlled operations.
Mirrors are essential in laser surgery, where they deliver laser energy to specific areas of the body with minimal invasiveness. This allows for precise and controlled surgical procedures, reducing recovery time and improving patient outcomes.
Mirrors are used in laser marking and engraving systems to precisely direct laser beams onto materials. This enables permanent and high-contrast markings for identification, serialization, and decorative purposes in various industries.
In semiconductor manufacturing, grating substrates are used for light diffraction in processes like spectroscopy and optical measurement. They help in analyzing and controlling the properties of light during semiconductor production, ensuring quality and precision.
Wafer substrates are crucial in photolithography processes. They provide the foundation for semiconductor devices and are coated with photosensitive materials. Mirrors play a role in directing and focusing light during photolithography, enabling the precise patterning of silicon chips.
Ultraviolet (UV) light source systems utilize mirrors to direct and focus UV light onto semiconductor wafers. This is essential for processes like UV curing and inspection, where precise light control is required for manufacturing high-quality semiconductor devices.
Laser technology is extensively used in semiconductor manufacturing for processes like laser doping and annealing. Mirrors are crucial in these applications to guide and focus laser beams, ensuring precise and controlled modifications of semiconductor materials.
In the electronics and optoelectronics industries, mirrors are used in various components and devices. They help in directing and controlling light in displays, sensors, and optical communication systems, enhancing the performance and efficiency of electronic devices.
Mirrors are used in semiconductor engineering and manufacturing equipment for precise light control and manipulation. They assist in processes like photolithography, inspection, and metrology, ensuring the production of high-quality semiconductor devices with strict dimensional and performance requirements.
In defense systems, mirrors are used in missile and rocket launching systems to align and direct the trajectory of projectiles. They ensure precise targeting and guidance, enhancing the accuracy and effectiveness of defense operations.
Receiving mirrors are used in satellite communication and data reception systems. They capture and reflect incoming signals, enabling the transmission and reception of data in aerospace applications.
Mirrors are integral to aircraft imaging systems for aerial surveillance and reconnaissance. They help in capturing high-resolution images and video footage, providing valuable intelligence and situational awareness for defense and aerospace missions.
In subsea technology, mirrors are used for underwater exploration and communication. They assist in directing and reflecting light signals in underwater environments, enabling data transmission and imaging for various marine applications.
Mirrors are used in infrared tracking and imaging systems to detect and track targets based on their heat signatures. They enhance the performance of surveillance and targeting systems in defense and aerospace applications.
In robotics and automation systems, mirrors contribute to the precise guidance and manipulation of robotic arms and automated guided vehicles. They help in directing sensors and cameras, enabling accurate navigation and operation in various defense and aerospace applications.
Mirrors are widely used in university and research settings for aerospace research and development. They support various experiments and studies, contributing to the advancement of aerospace technology and knowledge.
| Field | Mirror Type | Specific Application |
|---|---|---|
| Medical & Bio-technology | Endoscopy | Visual inspection of internal organs |
| Medical Imaging | MRI and CT scans | |
| Fluorescence Imaging | Enhancing image contrast | |
| Microscopy | High-resolution imaging | |
| Optical Coherence Tomography | Ophthalmology and early disease detection | |
| Spectrometry | Light spectrum analysis | |
| Therapeutic Lasers | Laser-based treatments | |
| Thermography | Heat pattern detection | |
| Laser Technology | Laser Cutting | Material cutting |
| Laser Welding | Precision welding | |
| Laser Ranging | Distance measurement | |
| Laser Guidance | Targeting systems | |
| Laser Surgery | Minimally invasive surgical procedures | |
| Laser Marking and Engraving | Permanent material marking | |
| Semiconductor | Grating Substrate | Light diffraction in manufacturing |
| Wafer Substrate | Photolithography processes | |
| Ultraviolet Light Source System | UV curing and inspection | |
| Laser Technology | Laser doping and annealing | |
| Electronics & Optoelectronics | Light control in devices | |
| Engineering & Manufacturing | Photolithography and metrology | |
| Defense & Aerospace | Launcher | Missile and rocket trajectory alignment |
| Receiving Mirror | Satellite communication | |
| Aircraft Imaging System | Aerial surveillance | |
| Subsea Technology | Underwater exploration | |
| Infrared Tracking and Imaging Systems | Target detection and tracking | |
| Robotics & Automation Systems | Robotic guidance and navigation | |
| University & Research | Aerospace technology development |
Band-Optics specializes in crafting mirrors to meet specific client requirements. By utilizing customers' drawings and precision specifications, Band-Optics ensures that each mirror is tailored to exact needs. This customization process involves advanced manufacturing techniques and rigorous quality control to achieve the desired dimensions, thickness, flatness, surface quality, roughness, parallelism, and chamfer specifications. Band-Optics' expertise allows for the production of mirrors that comply with various precision grades, from precision-grade to commercial-grade, ensuring optimal performance in diverse applications.
Band-Optics offers a range of substrate materials suitable for different applications. These include glass with low thermal expansion, float glass, and borosilicate. Each substrate type is selected based on its specific properties and benefits. Glass with low thermal expansion is ideal for applications requiring dimensional stability under temperature variations. Float glass provides excellent surface quality and flatness for optical systems needing high clarity. Borosilicate glass offers good thermal shock resistance and chemical durability, making it suitable for harsh environments. The choice of substrate ensures that mirrors perform reliably and effectively in their intended applications.
In the medical and bio-technology field, Band-Optics provides customized mirrors for medical imaging and surgical instruments. For medical imaging, mirrors are designed to meet the exacting standards required for clear and precise diagnostic images. In surgical instruments, customized mirrors ensure optimal performance and reliability during procedures. These custom solutions enhance accuracy and effectiveness in medical applications.
For laser technology applications, Band-Optics offers tailored mirrors for high-power laser systems. These mirrors are engineered to withstand high laser power while maintaining precise beam control. Customized solutions ensure optimal reflection, minimal energy loss, and reliable performance in laser cutting, welding, and marking systems. The specialized design and manufacturing processes guarantee that mirrors meet the specific demands of high-power laser applications.
In the semiconductor industry, Band-Optics delivers custom optics for semiconductor manufacturing equipment. These mirrors are designed to meet the stringent requirements of photolithography and inspection processes. Custom solutions ensure precise light control and manipulation, essential for the accurate patterning of silicon chips and the quality inspection of semiconductor devices. Band-Optics' expertise in this field ensures that mirrors meet the high precision and reliability standards needed for semiconductor manufacturing.
For defense and aerospace applications, Band-Optics provides specialized mirrors that meet the unique demands of these industries. These include mirrors for missile and rocket launching systems, satellite communication, aerial surveillance, and infrared tracking. Customized solutions ensure precise alignment, reliable performance, and durability in challenging environments. Band-Optics' commitment to quality and precision makes its mirrors ideal for the critical applications in defense and aerospace.
When selecting a mirror, it is crucial to match its reflectivity to the specific wavelengths used in your application. Different mirror types vary in their reflective properties across different regions of the spectrum. Metal-coated mirrors, such as aluminum, silver, and gold, offer broad reflectivity across ultraviolet, visible, and infrared ranges but may have lower reflectivity at certain wavelengths compared to dielectric mirrors. Dielectric mirrors can be designed to achieve very high reflectivity (>99%) over narrower or specific wavelength bands, making them suitable for applications requiring optimal performance at particular wavelengths, such as laser systems or monochromatic imaging.
Ensure the mirror operates within your application's required spectral range. Consider if your system uses UV, visible, or infrared light, as mirrors perform differently across these regions. For example, in UV applications, mirrors with coatings optimized for UV wavelengths are essential to minimize reflectivity loss and ensure stable performance. Dielectric mirrors can be tailored to specific spectral ranges, allowing precise control over which wavelengths are reflected or transmitted. Understanding your application's wavelength requirements helps in selecting a mirror that provides the desired reflectivity and functionality.
The mirror's geometry must align with your optical system's design and functional requirements. Shape affects light reflection and focusing properties, while size influences the optical path and system dimensions. Flat mirrors are common for general reflection and redirecting light paths. Concave and convex mirrors offer focusing and diverging capabilities, respectively. The size should match the optical system's aperture and ensure adequate coverage for the desired beam manipulation. Consider space constraints and how the mirror's shape and size integrate with other components to achieve optimal system performance.
Coating selection significantly impacts the mirror's performance and durability. Metal coatings (aluminum, silver, gold) provide good reflectivity across broad spectral ranges and are cost-effective. Dielectric coatings offer higher reflectivity for specific wavelengths and better durability in harsh environments but may come at a higher cost. Factors such as the required reflectivity, environmental conditions (humidity, temperature), and wavelength specificity should guide your choice between metal and dielectric coatings. Dielectric mirrors are often preferred in high-power laser systems and precision optical instruments due to their superior reflective properties and stability.
Balance cost and delivery time with your desired specifications. Custom mirrors with specialized coatings, substrates, or tight tolerances may have higher costs and longer lead times. Consider your project budget and timeline when selecting a mirror. Off-the-shelf options may offer cost savings and faster delivery if they meet your needs. For unique requirements, custom fabrication is necessary, and working with a reliable supplier can help manage costs and ensure timely delivery without compromising quality.
Mirrors play a critical role in optics and numerous industries. They are fundamental in medical applications like endoscopy, imaging, and laser surgery, where they enhance diagnostic accuracy and enable minimally invasive procedures. In laser technology, mirrors guide and focus beams for cutting, welding, and marking in industrial settings, ensuring precision and efficiency. The semiconductor industry relies on mirrors for photolithography and inspection, contributing to the production of advanced electronic components. Defense and aerospace sectors utilize mirrors in missile systems, satellite communication, and infrared tracking, ensuring security and technological advancement. Beyond these fields, mirrors are integral to scientific research, spectroscopy, and various optical systems, driving innovation and enabling technological progress.
Band-Optics is dedicated to delivering high-quality optical mirrors that meet the diverse needs of its customers. With over 10 years of experience in mirror production and a wide range of equipment, the company offers mirrors in sizes from 1.0mm to 1200mm in diameter and thicknesses down to 0.17mm. Band-Optics' expertise lies in producing customized mirrors according to clients' drawings and precision requirements, ensuring high reflectivity and performance across UV, VIS, and IR spectral regions. Their product range includes various mirror types such as metal-coated mirrors (aluminum, silver, gold), dielectric-coated mirrors (broadband, HR laser line, narrowband), and specialized mirrors (non-polarizing beamsplitters, HR right-angle retroreflectors, elliptical, D-shaped, YAG laser mirrors). Band-Optics is also committed to providing customer-oriented services and maintaining strict quality control. They offer a range of substrates including glass with low thermal expansion, float glass, and borosilicate. The company's mirrors are used in medical imaging, surgical instruments, high-power laser systems, semiconductor manufacturing equipment, defense, aerospace, and other applications. Band-Optics' comprehensive specifications and precision grades ensure optimal performance for specialized applications. By prioritizing customer satisfaction and continuous innovation, Band-Optics stands as a reliable partner for high-quality optical mirrors.
Optical mirrors include flat, concave, convex, and dielectric types. Flat mirrors reflect light straight back, concave mirrors focus light to a point, and convex mirrors spread light out. Dielectric mirrors reflect specific wavelengths and are used in laser systems and optical communications.
Broadband dielectric mirrors achieve high reflectivity across a broad spectral range. They minimize photon absorption, reducing heat buildup and energy loss. This makes them ideal for high-power laser applications.
Mirror coatings are made of metals like aluminum, silver, and gold, or dielectric materials. Metal coatings offer broad reflectivity across UV, visible, and IR ranges. Dielectric coatings provide higher reflectivity for specific wavelengths and better durability.
Band-Optics offers substrates like glass with low thermal expansion, float glass, and borosilicate. Low thermal expansion glass is ideal for dimensional stability. Float glass provides high clarity. Borosilicate is suitable for harsh environments due to its durability.
Band-Optics uses advanced manufacturing techniques and rigorous quality control. They produce mirrors according to clients' drawings and precision requirements. Their expertise ensures optimal performance for specialized applications.
