Spherical mirrors are mirrors with curved surfaces. They are parts of a sphere. There are two main types. One is concave mirrors. Their reflecting surfaces face the center of the sphere. The other is convex mirrors. Their reflecting surfaces are outward.
Spherical mirrors are very useful in many fields. In optics, they help form images and control light. In imaging, they are used in cameras and microscopes to get clear images. In industry, they are in car headlights and solar cookers. They help save energy and improve safety.
Click to view the products provided by Band-Optics
Band - Optics is a great company in the field of optics. It has many years of experience. It focuses on making high - quality optical components. Its products are used worldwide.
Band - Optics is really good at making custom optical components. They have advanced technology and skilled workers. They can make spherical mirrors with high precision. They can meet different customer needs. Whether you need a single mirror or a large order, they can do it well.

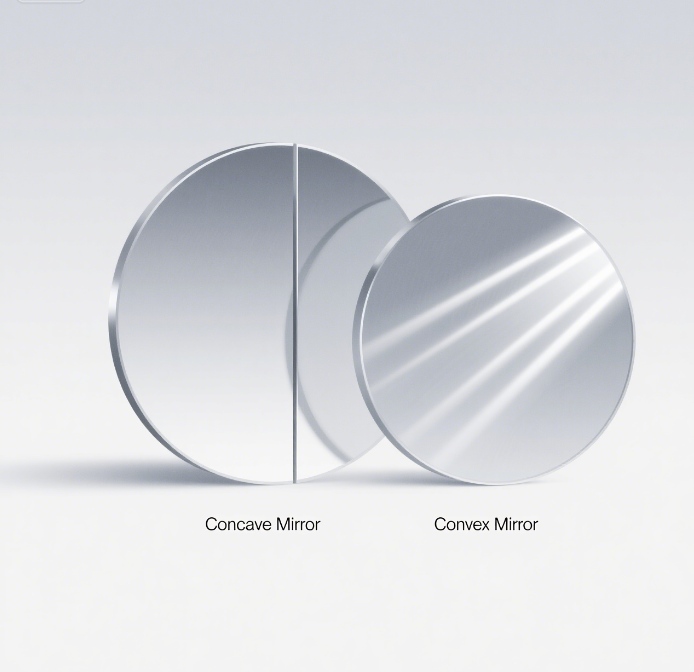

Spherical mirrors have curved surfaces. They are parts of a sphere. There are two main types. One is concave mirrors. The reflecting surfaces face inward. The other is convex mirrors. Their reflecting surfaces face outward.
Concave mirrors can focus light. They make parallel light rays meet at a point. Convex mirrors spread light out. They make parallel light rays seem to come from a point.
Key Terminology & Definitions
Sphere is a round object. Every point on its surface is equidistant from the center.
Curvature is the degree to which something is curved.
Radius of Curvature ® is the distance from the mirror surface to the center of the sphere.
Focal Point (F) is where parallel light rays meet after reflecting from a concave mirror.
Focal Length (f) is the distance from the mirror to the focal point.
Principal Axis is an imaginary line through the center of curvature and the pole of the mirror.
Vertex (Pole) is the center point of the mirror’s surface.
Center of Curvature © is the center of the sphere of which the mirror is a part.
How Spherical Mirror Geometry Affects Light Behavior
The shape of spherical mirrors determines how light behaves.
Concave mirrors focus incoming parallel rays to a focal point.
Convex mirrors make outgoing rays appear to come from a focal point.
The curvature and focal length decide the mirror’s light - controlling ability.
Positive vs. Negative Sign Conventions
Focal Length Sign differs for concave and convex mirrors.
For concave mirrors, the Focal Length (f) is positive.
For convex mirrors, the Focal Length (f) is negative.
Object Distance (u) and Image Distance (v) also have sign rules.
Object Distance (u) is usually negative, as the object is in front of the mirror.
Image Distance (v) is positive for real images and negative for virtual images.
Magnification (m) and Image Orientation
Magnification (m) is the ratio of image height to object height.
It can be calculated using the formula m = v / u.
Magnification also tells about image orientation.
If m is positive, the image is upright relative to the object.
If m is negative, the image is inverted.
Real images are usually inverted, while virtual images are upright.

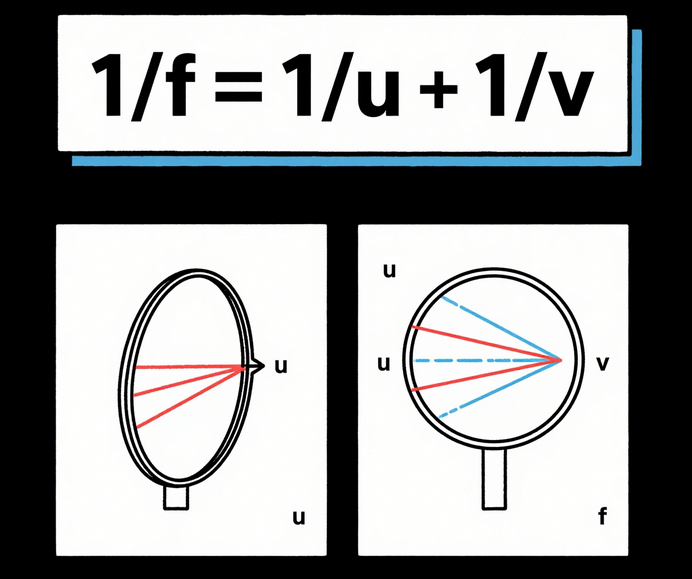

The mirror equation is 1/f = 1/u + 1/v. Let’s see how it comes.
Imagine an object and its image. The distances are object distance (u) and image distance (v). The focal length is f.
We can derive the equation using geometry and light ray behavior.
Special Cases: When the object is very far (at infinity), the image forms at the focal point. So, if the object is at infinity, the image distance v equals the focal length f.
Practical Examples:
Example 1: A concave mirror has a focal length of 10 cm. An object is 30 cm away. What’s the image distance?
Using 1/f = 1/u + 1/v,
1/10 = 1/30 + 1/v.
Solving this, we get v = 15 cm.
The magnification formula is m = hᵢ / hₒ = v / u.
hᵢ is image height. hₒ is object height.
It tells how big or small the image is compared to the object.
If |m| is bigger than 1, the image is enlarged. If |m| is less than 1, the image is reduced.
The sign of m shows the image orientation. m positive means upright. m negative means inverted.
Sample Problems:
Concave Mirror Sample:
A concave mirror has u = 20 cm, f = 10 cm.
Find m.
First, use mirror equation to find v. 1/10 = 1/20 + 1/v → v = 20 cm.
Then m = v / u = 20/20 = 1. So image is same size and inverted.
Convex Mirror Sample:
A convex mirror has u = 30 cm, f = -15 cm.
Find m.
Using mirror equation: 1/(-15) = 1/30 + 1/v → v = -10 cm.
Then m = -10/30 = -1/3. Image is缩小 and upright.
Rule 1: Rays parallel to the principal axis reflect through the focus.
Rule 2: Rays through the focus reflect parallel to the principal axis.
Rule 3: Rays through the center of curvature reflect back on themselves.
Rule 4: Rays through the vertex reflect symmetrically about the principal axis.
Here’s how to use them for drawing ray diagrams:
For concave mirrors:
Draw an incident ray parallel to the principal axis. Reflect it through F.
Draw a ray through F. Reflect it parallel to the principal axis.
Where they meet is the image point.
For convex mirrors:
Draw a ray parallel to the principal axis. Reflect it as if coming from F.
Draw a ray going toward F. Reflect it parallel to the principal axis.
The intersection gives the virtual image point.
Illustrative Diagrams & Interactive Animations:
Videos can show how rays behave. One video could show ray tracing for concave mirrors with objects at different positions.
Another could show convex mirrors and virtual image formation.
These visual helps make understanding easier.
Concave mirrors are converging mirrors. They curve inward. They can focus light rays. This makes them useful for many applications.
How Concave Mirrors Converge Light: They reflect light inward. They make parallel light rays meet at a point. This point is the focal point.
Object Beyond C → Real, Inverted, Reduced Image.
Object at C → Real, Inverted, Same-Size Image.
Object Between C and F → Real, Inverted, Enlarged Image.
Object at F → Image at Infinity.
Object Between F and P → Virtual, Upright, Enlarged Image.
| Object Position | Image Type | Image Orientation | Image Size |
|---|---|---|---|
| Beyond C | Real | Inverted | Reduced |
| At C | Real | Inverted | Same-Size |
| Between C and F | Real | Inverted | Enlarged |
| At F | At Infinity | - | - |
| Between F and P | Virtual | Upright | Enlarged |
Telescopes use concave mirrors as primary mirrors. They collect and focus light from distant objects.
Headlamps and flashlights use them as reflectors. They focus light into a strong beam.
Makeup mirrors and cosmetic reflectors use them. They provide enlarged images for detailed work.
Convex mirrors are diverging mirrors. They curve outward. They spread light rays apart. This makes them useful for different purposes.
How Convex Mirrors Diverge Light: They reflect light outward. They make parallel light rays seem to come from a point behind the mirror.
For all object distances, convex mirrors form virtual images. The images are upright and reduced in size. The apparent focus is behind the mirror. It’s a virtual focal point.
| Object Position | Image Type | Image Orientation | Image Size |
|---|---|---|---|
| All Positions | Virtual | Upright | Reduced |
Vehicle rearview and side - view mirrors use convex mirrors. They provide a wide field of view. They help drivers see more of what’s behind and beside them.
Security and surveillance mirrors use them. They cover large areas. They are useful in stores and warehouses.
Wide - angle reflectors in hallways and warehouses use them. They help people see around corners and in large spaces.

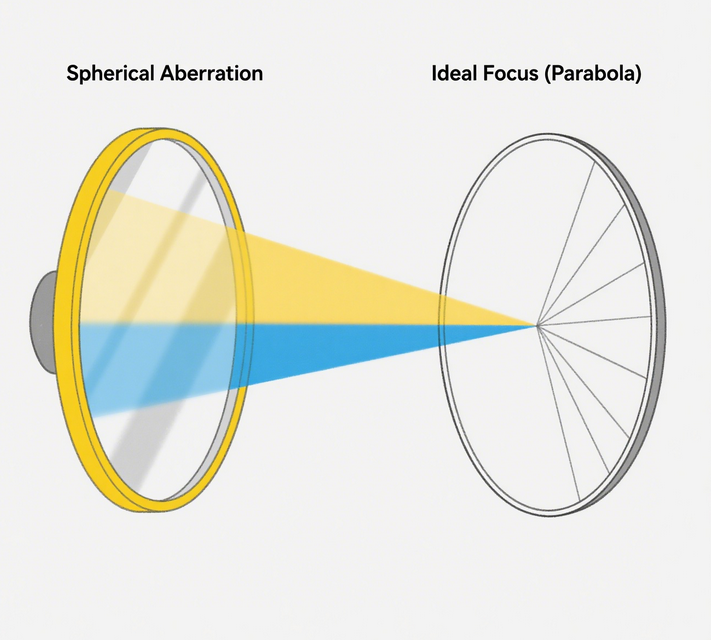

Spherical aberration is a common issue with spherical mirrors. It happens because of how light rays behave.
Definition & Physical Cause: It’s caused by off - axis rays. These rays focus at different points compared to the central rays. The mirror’s curvature makes this happen. The further from the center, the more the problem.
Impact on Image Quality: It makes images blurry. The edges aren’t sharp. Details get lost. Images look messy and unclear.
Methods to Minimize Spherical Aberration:
Use an aperture stop. It limits the light entering the mirror. Only central rays are used. This reduces the problem.
Aspheric corrections can help. They change the mirror’s shape slightly. It’s not a perfect sphere anymore. This helps focus rays better.
Adjust the mirror design. Sometimes changing how the mirror is made can help. Special coatings or multiple mirrors can be used.
Coma is another aberration. It affects off - axis point sources.
Off - axis points get distorted. They look like comet tails. Hence the name “coma.”
Astigmatism & Field Curvature are other issues. Astigmatism makes images have streaks. Field curvature makes the image not flat. It’s curved, so it’s hard to focus everything at once.
Corrective Strategies & Coating Considerations:
Corrective lenses can help. They fix the light paths.
Special coatings can reduce unwanted reflections. This helps control light better.
Using multiple mirrors or lenses together can also help. They can correct different aberrations.
| Aberration Type | Main Effect | Correction Method |
|---|---|---|
| Spherical | Blur_edges | Aperture stop |
| Coma | Comet_tails | Corrective lenses |
| Astigmatism | Streaks | Special coatings |
| Field Curvature | Curved image | Multi - element sys |

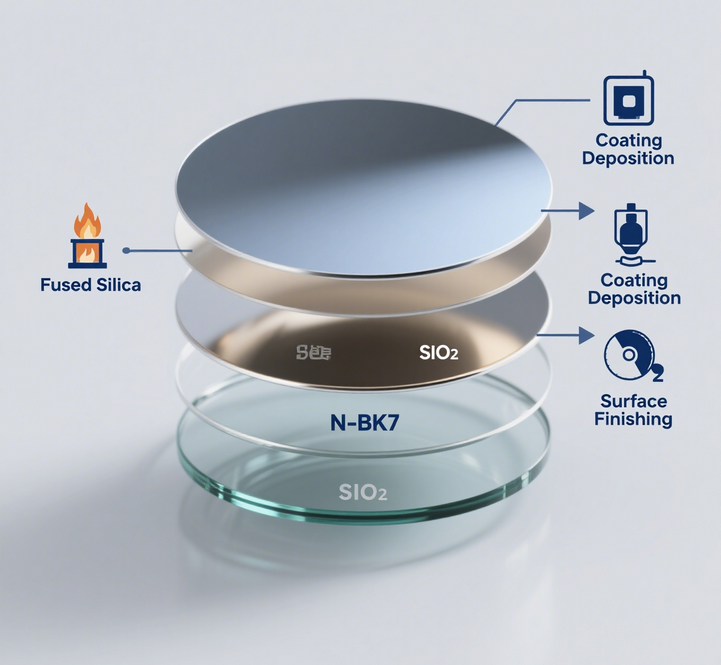

Optical glass is often used. N-BK7 and fused silica are common types.
They are good because they are clear and can be shaped well.
Low-expansion glass like ZERODUR® and ULE® is also used.
They don’t expand or contract much with temperature changes. This keeps the mirror shape stable.
Metallic substrates such as aluminum and copper are used too. They are strong and can handle high power.
Aluminum coating is very common. It can be protected or enhanced.
It works well across a broadband range from 400–2000 nm.
Its reflectance is typically over 85% in the visible range and over 90% in the near-infrared range.
Silver and gold coatings are used for special purposes.
Gold is good for infrared and high-temperature environments.
Silver works well in the visible range of 400–700 nm.
Dielectric multilayer coatings are used for specific applications like EUV and VUV mirrors.
Mo/Si coatings are used for EUV lithography at 13.5 nm.
They can be designed for narrowband or broadband use.
| Coating Type | Wavelength Range | Reflectance | Applications |
|---|---|---|---|
| Aluminum | 400–2000 nm | >85% VIS, >90% NIR | General use |
| Silver | 400–700 nm | High | Visible range |
| Gold | Infrared | High | IR & high heat |
| Dielectric | Specific bands | High | EUV & VUV |
Surface figure accuracy is crucial. It’s measured in fractions of a wavelength like λ/4 or λ/10.
The closer to perfect, the better the mirror performs.
Surface finish and roughness matter too. For EUV mirrors, RMS should be less than 3 Å.
Scratch-dig specifications indicate how many scratches and digs are allowed. Standards include 60-40 and 40-20.
Center and edge thickness, diameter tolerances must also be controlled. They affect how the mirror fits and works in devices.

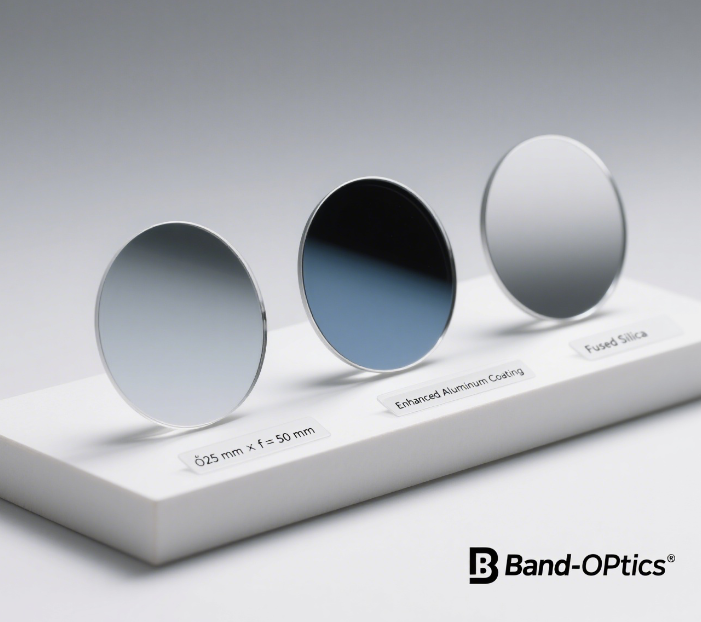

Band - Optics offers concave spherical mirrors in various sizes. Available diameters include 12 mm, 25 mm, 50 mm, 100 mm, etc. The focal length ranges from 10 mm to 500 mm. Different coating options are available. They are protected aluminum, gold, and dielectric coatings.
Compact convex mirrors are available for different uses like imaging systems and safety mirrors. Typical focal lengths are from −10 mm to −200 mm. You can choose various coatings and get reflectance curves.
| Mirror Type | Diameters (mm) | Focal Length Range (mm) | Coating Options |
|---|---|---|---|
| Concave | 12,25,50,100 | 10–500 | Aluminum,Gold,Dielectric |
| Convex | Compact sizes | −10–−200 | Multiple choices |
You can order custom focal length and diameter mirrors. When ordering, you need to select the right substrate for harsh environments. Precision requirements like surface figure and λ/10 tolerances must be met. Lead time, pricing, and minimum order quantities vary. Contact Band - Optics for details.
Band - Optics provides EUV spherical mirrors with Mo/Si multilayer coatings for 13.5 nm applications. They have quasi - normal incidence and 5° incident angle designs.
VUV spherical mirrors have Al/MgF₂ coating for the 120–200 nm range. They feature ultra - low surface roughness and high reflectance.
| Mirror Type | Coating | Wavelength Range (nm) | Features |
|---|---|---|---|
| EUV | Mo/Si | 13.5 | Multilayer |
| VUV | Al/MgF₂ | 120–200 | Low roughness |
Band - Optics offers precision mirror mounts and adjustment stages. They also have protective housings and enclosures. Mirror holders for vacuum chambers are available. Plus, they provide alignment and laser tools for mounting.

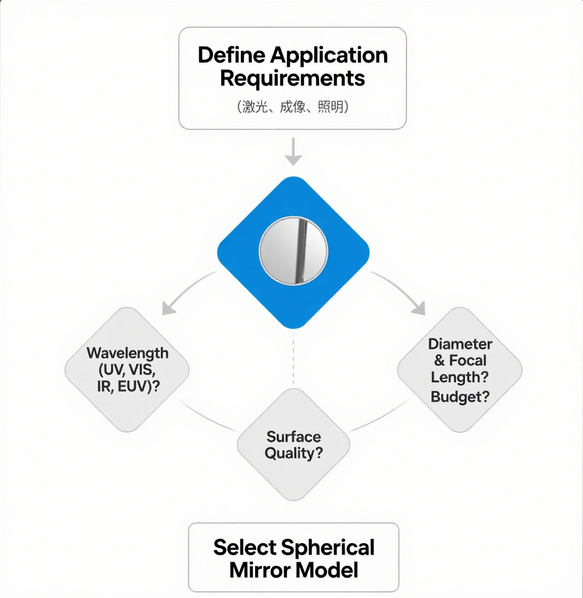

Start by knowing what you need the mirror for. Is it for lasers, imaging, or illumination?
Different applications need different mirrors. For example, laser needs high power handling. Imaging needs good resolution.
Wavelength is important too. Mirrors can be used in UV, VIS, IR, or EUV ranges. The coating must match the wavelength.
Also, think about the environment. Will it be in a vacuum, high temperature, or corrosive atmosphere? The mirror must survive there.
Diameter and focal length are key. They decide the size and focus of the mirror.
Surface quality and figure tolerance matter. They affect image sharpness.
Coating durability and reflectance curve are important. The coating must last and reflect well.
Substrate material affects thermal expansion and mechanical stability. Choose based on your needs.
Budget is a factor. Higher performance usually costs more. Find a balance.
| Criterion | Considerations |
|---|---|
| Diameter | Size needed |
| Focal Length | Focus required |
| Coating | Durability & Reflectance |
| Substrate | Stability & Expansion |
| Budget | Cost vs. performance |
Concave mirrors converge light. They form real or virtual images.
Convex mirrors diverge light. They form virtual images with wider fields of view.
Choose based on your light path and image needs. Consider space and optical layout.
| Mirror Type | Light Path | Image Formation | Use Cases |
|---|---|---|---|
| Concave | Converging | Real/Virtual | Imaging, lasers |
| Convex | Diverging | Virtual | Safety, security |
Don’t ignore aberrations. They can blur images, especially at high angles.
Don’t overlook coating damage threshold. High power can damage coatings.
Be careful with sign conventions. Mistakes in image distance can lead to errors.
Choose mounting hardware wisely. Inappropriate mounts can affect performance.
| Pitfall | How to Avoid |
|---|---|
| Aberrations | Use proper design |
| Coating Damage | Check damage threshold |
| Sign Errors | Double-check conventions |
| Mount Issues | Select right hardware |
Spherical mirrors have a curved surface shaped like a sphere. Parabolic mirrors are shaped like a parabola. Parabolic mirrors focus parallel rays to a single point without spherical aberration, while spherical mirrors may cause aberrations.
The focal length (f) is calculated as f = R / 2, where R is the radius of curvature of the mirror.
Not ideally. Spherical mirrors often have aberrations. Parabolic mirrors are better for collimating laser beams as they can focus parallel rays accurately.
Convex mirrors curve outward and reflect light rays outward. The reflected rays diverge, so the images formed are virtual, upright, and smaller than the object, located behind the mirror.
Gold coatings offer high reflectance in the infrared range. They are also durable and resistant to oxidation and corrosion, making them suitable for IR applications and harsh environments.
Use an aperture stop to limit the light entering. Apply aspheric corrections to the mirror surface. Consider using multiple mirrors or lenses together to minimize aberrations.
You can purchase custom-made spherical mirrors from optical suppliers such as Band - Optics, Edmund Optics, and Thorlabs. These companies offer various customization options.
Lead time varies by manufacturer and the complexity of the order. Generally, it can range from a few weeks to several months. Contact the supplier for specific lead time information based on your requirements.
Understanding spherical mirrors is important. They have many uses in optics and industry. Band - Optics is dedicated to producing high - quality spherical mirrors. They offer customization to meet different needs.
Check out Band - Optics’ catalog. They have a wide range of spherical mirrors. You can find mirrors that fit your project’s requirements. Their products are reliable and precisely made.
Take action now! Request a quote to know the cost. Download the datasheet for detailed specs. Contact technical support if you have questions. They are ready to help you choose the right mirror.
