Step-by-Step Guide to Installing an Optical Mirror in Your Setup

You want your optical setup to perform at its best and last a long time. Every stage in handling a mirror affects how well your optics work. Cleanliness matters.

• Dust or debris on a mirror can harm performance and shorten its life.

• Use soft brushes or compressed air to keep the primary mirror clean at every stage.

• Regular care for your optics helps each stage go smoothly and keeps your mirror working well.

A study showed that careful cleaning over many stages does not damage optical surfaces. This means you protect your mirror’s quality if you stay precise and gentle at each stage. Treat every stage as important, from the first touch to the last adjustment.

Key Takeaways

• Keep your workspace neat and tidy. This helps protect your mirror from dust and harm while you install it. - Always wear gloves and a mask when you touch the mirror. This stops fingerprints and keeps it clean. - Use the correct tools and soft pads to mount the mirror. Be gentle so you do not bend or stress it. - Align the mirror with care. Check the beam path often. Make small changes for the best results. - Check if everything is stable and clean often. Write down each step to keep your optical setup strong and lasting.

Tools and Materials

Essential Tools

You need special tools to put in an optical mirror the right way. Get a set of precision screwdrivers for small screws. Tweezers or soft-tipped forceps help you hold tiny parts. These tools stop you from scratching the mirror. Use a soft brush or compressed air to take off dust before you start. A torque wrench can help you not tighten screws too much. If you use adhesive, a small spatula or applicator spreads it out evenly.

Safety Gear

You must protect yourself and the mirror. Wear powder-free nitrile gloves to keep fingerprints off the glass. A dust mask stops you from breathing on the mirror. It also keeps dust out of the air. Safety glasses keep your eyes safe from glue splashes. Wear a clean lab coat or apron so your clothes do not drop fibers.

Tip: Put on gloves and a mask before you touch the mirror. This helps keep the surface clean and safe from harm.

Materials List

Professional setups use high-quality materials for optical mirror installs. Most setups use first surface mirrors. These mirrors have very flat optical grade glass. The glass gets a shiny aluminum layer in a vacuum chamber. A dielectric protective overcoat goes on top. This makes the mirror reflect more and stops oxidation. Some mirrors have hydrophobic coatings to make cleaning easier.

You need these materials for your install:

You might use adhesive for extra hold. Many people pick silicon rubber adhesive. It holds well and does not stress the glass. Always check if the adhesive works with your mirror and mount. Use only a little silicon rubber adhesive so it does not spill onto the mirror. This careful way helps your mirror stay strong and last a long time.

Workspace and Mount Prep

Clear Area

You need a clean and organized workspace before you start any stage of installing your optical mirror. Remove all unnecessary items from your table. Wipe down the surface with a lint-free cloth. This step keeps dust and debris away from your mirror cell. Place all your tools and materials in easy reach. You want to avoid searching for items during any stage. Good lighting helps you see every detail at each stage. If you work in a shared lab, put up a sign to let others know you are working on a sensitive stage.

Tip: A clutter-free area lowers the risk of dropping or damaging your mirror cell during any stage.

Mount Inspection

Check your mirror cell and mount before you move to the next stage. Look for any loose screws or worn pads. Make sure the mirror cell holds the mirror in the correct position. Test the movement of any adjustment screws. They should turn smoothly at every stage. If you see any dirt or residue, clean it off before you continue. Inspect the pads that support the mirror cell. They must be soft and free from cracks. This inspection stage helps you avoid problems later.

• Checklist for mount inspection:

• Are all screws tight?

• Do the pads look clean and soft?

• Does the mirror cell hold the mirror in the right position?

• Can you adjust the mount easily at each stage?

Environmental Factors

Environmental factors play a big role at every stage of mirror installation. Dust can settle on your mirror cell and affect its performance. Try to work in a room with filtered air. Avoid working near open windows or vents during any stage. Vibration is another concern. Place your setup on a sturdy table. If possible, use vibration-damping pads under your mirror cell. Even small shakes can change the position of your mirror at a critical stage. Keep pets and people away from your workspace during each stage. This helps you keep your mirror cell safe and in the best position.

Note: Every stage of preparation protects your mirror cell and ensures the mirror stays in the right position for top performance.

Mirror Handling

Gloves and Mask

You must always wear clean nitrile gloves before you touch any mirror. Gloves protect the surface from fingerprints and oils. A dust mask helps keep your breath and tiny droplets away from the mirror. You should also wear a lab coat to stop fibers from your clothes from landing on the glass. Handle the mirror only by its edges. This keeps the optical surface safe from smudges and scratches.

Tip: Never touch the mirror with bare hands. Even a small fingerprint can lower its performance.

Marking Orientation

Before you place the mirror in its mount, mark the edge with a soft pencil or a removable sticker. This mark helps you remember which side faces forward. It also helps you keep the mirror in the same position if you need to remove it later. Do not put any marks on the reflective surface. Always use a gentle touch when marking the edge.

• Steps for marking orientation:

1. Put on gloves and mask.

2. Hold the mirror by the edge.

3. Place a small mark on the edge, away from the coated side.

Cleaning Steps

You should only clean the mirror if you see dust or smudges. Too much cleaning can damage the coating. Start by blowing off loose dust with clean compressed air or dry nitrogen. Never use your mouth to blow on the mirror. If you need to wipe the surface, use a lint-free wipe soaked in fresh alcohol or acetone. Wipe gently from the center outward. Use slow, steady strokes and very little pressure. Throw away each wipe after one use to avoid spreading dirt.

Note: Always clean the mirror in a clean, well-lit area. Good lighting helps you see any dust or streaks.

Follow these best practices to prevent contamination and damage:

1. Identify sources of contamination, such as dust, tools, or your hands.

2. Use only approved cleaning supplies and gentle methods.

3. Store the mirror in a clean tray or container when not in use.

Taking care at every step keeps your mirror clean and ready for installation. This careful handling protects the mirror’s surface and ensures top performance in your optical setup.

Mounting the Mirror

Placing on Pads

You must use the right pads to hold the primary mirror. The kind of pad you pick changes how well your mirror works. Most setups use small, hard plastic pads. These pads give the mirror strong support and do not squish down. Hard pads let the mirror move a little when it gets hot or cold. This stops the mirror from sticking and keeps its shape.

• Hard plastic pads are smooth and let the mirror slide if needed.

• Vegetable tanned leather can work too. It fits bumps but stays strong.

• Felt or cork pads are used in some scopes. They are fine for light mirrors but can stick to heavy glass and cause trouble.

Tip: Use small, hard pads for thick or heavy mirrors. This helps stop bending and keeps your mirror working well.

Securing with Screws

After you put the mirror on the pads, you need to hold it in place. Set screws keep the mirror steady but should not be too tight. If you turn the screws too much, the mirror can break or bend. Use a torque wrench to check the force.

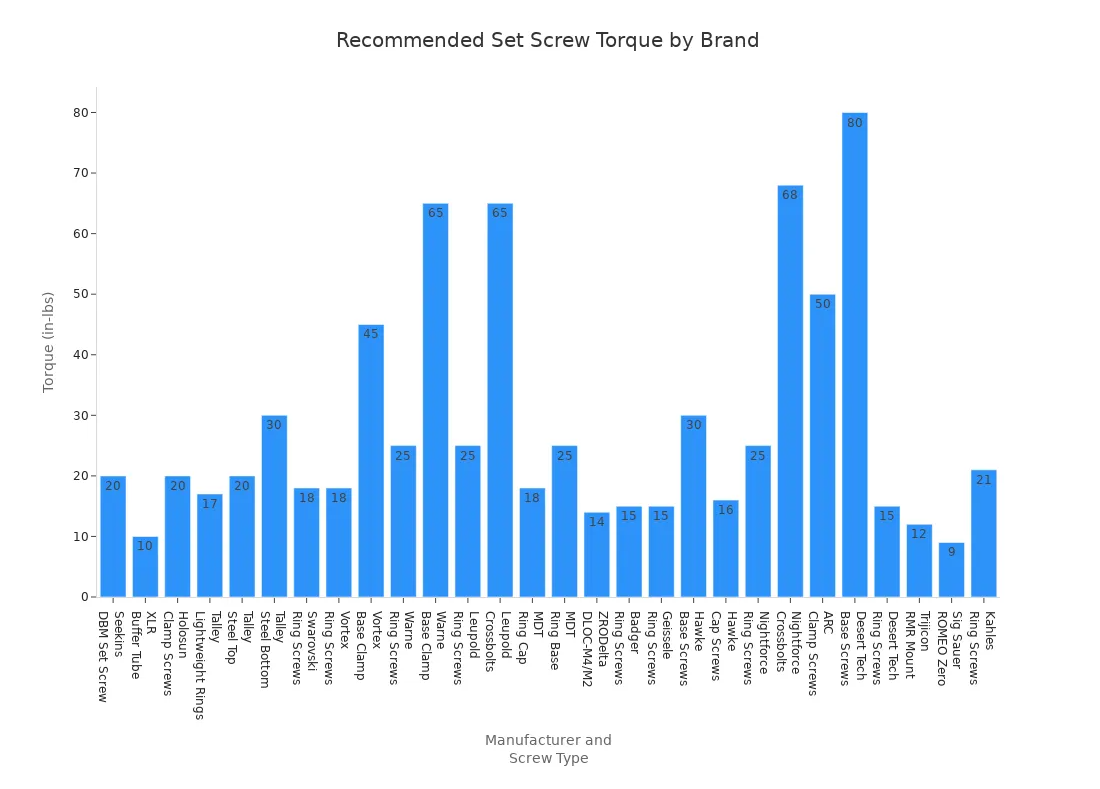

Here is a table that shows how tight to make set screws from different brands:

Always check which screws and torque your mirror cell needs. Tighten each screw a little at a time and go around the mirror. This spreads the pressure and keeps the mirror safe. Never force a screw if it will not turn.

Note: If you hear a crack or see the mirror shift, stop right away. Make sure the mirror is flat and does not move in the mirror cell.

Adhesive Use

Sometimes, you use adhesive instead of screws to mount a mirror. The right adhesive holds the mirror tight but does not hurt it. Urethane and silicon rubber adhesive are both good picks. They do not have strong chemicals, so they will not make the mirror peel. Urethane adhesive sticks very well and does not shrink as it dries. Silicon rubber adhesive is bendy, waterproof, and lasts a long time. It also stands up to sunlight and pulling.

You can use VHB tape or mirror mastic too. These adhesives are easy to use and look neat. They work for small mirrors or if you do not want screws. But you must clean the surfaces first. If the mirror or mount is dirty, the adhesive may not stick. Humidity can also make the glue weaker over time.

Tip: Use only a little silicon rubber adhesive or VHB tape. Too much glue can squeeze out and touch the mirror. Always let the adhesive dry all the way before you move the mirror cell.

When you use adhesive, make sure the mirror is flat and does not bend. The glue should hold the mirror tight but let it move a tiny bit if it gets hot or cold. This keeps your primary mirror safe and working well for a long time.

Mirror Alignment

Getting your mirror alignment right is the most important stage for any optical setup. You want the incoming beam and outgoing beam to follow the exact path you need. Each stage of alignment builds on the last, so take your time and check your work often.

Visual Alignment

Start with a visual check. Place your eye or a marked card in the path of the incoming beam. Look at how the beam hits the mirror. You want the beam to strike the center of the mirror and reflect at the correct angle. If you use two mirrors, try a Z-Fold or Figure-4 setup. These configurations help you control the position of the beam and the outgoing beam.

Use a crosshair reticle or a white card with an X to help you see the position of the beam. Move the mirror slightly if the beam does not hit the right spot. Repeat this stage until the incoming beam and outgoing beam are close to your target.

Tip: Always check the position of the beam from both the incoming beam and outgoing beam sides. This helps you spot errors early in the alignment stage.

Adjustment Screws

Now, use the adjustment screws on your mirror mount. These screws let you change the tip and tilt of the mirror. Fine-thread screws, like 100 threads per inch, give you very small movements. Turn the screws with a hex wrench. You will feel each stage of movement as you adjust the mirror.

The adjustment screws push against steel balls on carbide pads. This setup gives you smooth and repeatable motion. You can control the angle of the mirror with great precision. Make small changes and watch how the position of the beam shifts. If you see the incoming beam move off target, turn the screw back a little. Keep checking the outgoing beam as you adjust.

Note: Always adjust one screw at a time. This keeps the mirror stable and helps you avoid mistakes during this stage.

Fine Tuning

For the final stage, use a laser or collimated light source. This step helps you reach a perfectly aligned stage. Follow these steps to fine-tune your mirror alignment:

1. Center the secondary mirror under the focuser with a sight tube. Make sure the mirror is in the right position to catch the incoming beam.

2. Adjust the tilt of the secondary mirror so the axis matches the eyepiece. Use a thin beam laser or a collimation tool with crosshairs.

3. Align the primary mirror by tilting it until the parabola’s axis matches the eyepiece axis. Use a Cheshire or a barlowed laser for best results.

4. Check that the reflected laser beam returns to the source. This shows the outgoing beam is on target.

5. Rotate and position the secondary mirror before using the laser. Lasers cannot set the position or rotation of the secondary mirror.

6. Try Z-Fold or Figure-4 setups with kinematic mounts to control both the angle and position of the beam.

You may need to move the mirror slightly and repeat the alignment stage. This helps you center the incoming beam and outgoing beam. Use double-sided tape to mark the position of the beam on your target. If you see the beam drift, adjust the mirror and check again. Keep repeating this stage until the beam stays centered when you move the mirror or the laser head.

✅ When you align the last mirror, make sure the outgoing beam matches the aligned incoming beam. This step ensures your optical system works at its best.

Check your work by rotating the primary mirror and watching the laser reflection. If the position of the beam shifts, you need more adjustment. Use a star test or a calibrated Cheshire eyepiece for the most accurate results. Always keep your optics at the same temperature and orientation during this stage.

By following these steps, you will reach a perfectly aligned stage. Your mirror will guide the incoming beam and outgoing beam exactly where you want them. This careful process gives you the best performance from your optical setup.

Final Checks

Stability

You want your optical mirror to stay steady during every stage of use. After you finish the main installation, check the stability of your setup. Start by gently tapping the mount and watching if the beam moves. If the beam shifts, you may need to adjust the screws or pads. You can also perform several tests to make sure your mirror will not move during any stage of operation:

• Thermal cycling tests help you see if the mirror and mount stay stable when the temperature changes. The beam should not drift during these tests.

• Multi-axis vibration testing lets you check if the mirror can handle shaking or bumps. Watch the beam closely during this stage.

• Use accelerometers to measure how much vibration the mirror feels. If the beam wobbles, you may need to improve the mount.

• Optical wavefront testing checks if the beam stays smooth and clear after you finish mounting.

• Inspect the adhesive and mount for cracks or loose spots. If you see problems, fix them before moving to the next stage.

These steps help you keep the incoming beam and outgoing beam on the right path. You want the beam to stay centered at every stage.

Cleanliness

Cleanliness is important for every stage of your optical setup. Dust or smudges can change the path of the beam and lower performance. Use a soft brush or compressed air to remove dust from the mirror and mount. Check the surface for fingerprints or streaks. If you see any, clean them right away. Always keep the area around the incoming beam free from dirt. A clean mirror keeps the beam sharp and bright through every stage.

Tip: Store your mirror with a cover when you finish each stage. This protects the beam path from dust and keeps your setup ready for the next use.

Documentation

Good records help you track each stage of your installation. Write down the date and time for each stage. Note the position of the mirror, the angle of the beam, and any changes you make. You can use a simple table to keep your notes organized:

Take photos of the beam at each stage. This helps you spot changes if the incoming beam moves later. Good documentation lets you repeat each stage and fix problems quickly. You will keep your beam and incoming beam aligned for every stage of your project.

Common Mistakes

Over-Tightening

You might think that making the screws extra tight will keep your mirror safe. In reality, over-tightening can cause big problems at every stage. When you turn the screws too much, you put stress on the mirror. This stress can bend the glass or even crack it. If the mirror bends, the beam will not travel straight. The beam may shift at each stage, making your setup less accurate. Always tighten screws just enough to hold the mirror steady. Use a torque wrench if you have one. Check the beam after each stage to make sure it stays centered.

Tip: If you hear a crack or see the beam move suddenly, stop and check the mirror right away.

Handling Errors

Handling mistakes happen often during the installation stage. You must always use gloves and a mask. Touching the mirror with bare hands leaves oils and dirt. These can change how the beam reflects at every stage. Rubbing dust on the mirror surface instead of rinsing can damage the delicate coating. Using dry wipes or the wrong materials can strip or smear the coating, leaving marks that affect the beam. Even light contact with the wrong wipe can cause blotches. Good cleaning means rinsing with distilled water and using air blowers. Never blow on the mirror with your breath. Oil and moisture from your mouth can cause contamination. If dust builds up, remove it carefully. Sometimes you need to vacuum without touching the mirror. Improper cleaning can ruin the mirror and lower the quality of the beam at every stage.

• Common handling errors:

• Using dry wipes or paper towels

• Touching the mirror surface

• Blowing on the mirror with your mouth

• Skipping gloves or a mask during any stage

Misalignment

Misalignment is a mistake that can happen at any stage. If you do not check the beam path after each adjustment, the beam may drift off target. Even a small tilt in the mirror can send the beam in the wrong direction. This can cause the beam to miss the next mirror or the final target. Contamination on the mirror increases laser wavelength absorption. This causes uneven heating and thermal lensing. The beam may lose power or change its focal point. You might see the beam shift during thermal cycling or vibration tests. Always check the beam after every stage. Use a marked card or a crosshair to track the beam’s position. If you see the beam move, adjust the mirror and repeat the alignment stage.

Note: Good cleaning and careful alignment at every stage help your mirror last longer and keep the beam strong.

You now know how to put in an optical mirror step by step. Begin by making sure your workspace is clean and neat. Always be gentle when you touch your optics. Set the mirror on the mount and fasten it, but do not use too much force. Make sure the mirror is lined up so the beam goes the right way each time. Check often to see if everything is steady and clean. Being careful at every step keeps your optical system safe and your beam strong. If you install things the right way, your optics will last longer and work well.

Remember: Each step is important for the best beam in your optical setup.

FAQ

How do you keep your optical mirror clean during installation?

You should always wear gloves and a mask. Use compressed air or a soft brush to remove dust. Never touch the mirror surface with your fingers. Store the mirror in a clean container when not in use.

What should you do if the mirror gets a fingerprint or smudge?

Use a lint-free wipe with a small amount of alcohol or acetone. Wipe gently from the center outward. Do not rub hard. Always use a new wipe for each cleaning.

Can you use regular glue to mount an optical mirror?

No, you should not use regular glue. Use only adhesives made for optics, like silicon rubber adhesive or VHB tape. These adhesives hold the mirror without causing stress or damage.

How tight should you make the screws when securing the mirror?

Tighten the screws just enough to hold the mirror steady. Do not over-tighten. Use a torque wrench if possible. Over-tightening can crack or bend the mirror.

What is the best way to check if your mirror is aligned?

• Shine a laser or light source at the mirror.

• Watch where the beam goes.

• Adjust the mirror until the beam hits your target.

• Repeat the check from different angles to make sure the alignment is correct.
