Optical Mirror Coatings And Their Advantages And Disadvantages

You see optical coatings in many places, like mirrored sunglasses and special glasses. Optical mirror coatings are thin layers put on surfaces to help them reflect light better. There are three main types: metallic, dielectric, and hybrid. Each type has good and bad points. Metallic coatings reflect a lot of light but can scratch easily. Dielectric coatings last longer and can reflect certain colors. Hybrid coatings mix the good things from both types. These coatings change how sunglasses and glasses work. They affect how much light bounces off, how strong they are, and how much they cost. More people want optical coatings now, as you can see in the chart below.

Key Takeaways

• Optical mirror coatings help surfaces reflect light better. There are three types: metallic, dielectric, and hybrid. Metallic coatings reflect light well and are cheaper. But they can scratch and rust if not protected. Dielectric coatings reflect even more light and last longer. They cost more and work best at certain angles. Hybrid coatings use both metal and dielectric layers. They reflect well and last a long time. But they cost the most. You should pick a coating based on what you need. Think about the kind of light, how strong it is, and the price. This is important for sunglasses to stop glare and keep your eyes safe.

Optical Mirror Coatings

What Are Optical Coatings

You can find optical coatings on things like lenses and mirrors. These coatings are very thin layers put on glass. They change how light acts when it hits the surface. There are two main kinds of optical coatings. One kind is metal coatings. These use thin layers of metals such as aluminum, silver, or gold. The metal type decides how much light the mirror reflects. The other kind is dielectric coatings. These use many thin layers of different materials. Each layer has its own refractive index. The layers work together to control light. Some coatings mix metal and dielectric layers for special effects. How these coatings work depends on the materials and science behind them.

Optical coatings help you get the right amount of reflection or let light pass through. You can pick coatings that block glare, make things brighter, or split a beam of light.

Purpose in Optical Systems

People use optical coatings to control light in many devices. These coatings let you change how much light reflects or passes through. The layers in coatings have different thicknesses and refractive indices. This design makes interference effects. These effects can boost or lower reflection. For example, anti-reflective coatings lower glare with a special layer. High-reflectance coatings use many layers to reflect almost all the light. Beam splitter coatings divide light into two or more beams. This is helpful in cameras and science tools.

• Optical coatings can help you:

• Cut down glare in glasses and screens

• Make projectors brighter

• Protect your eyes with mirrored sunglasses

• Split light for science experiments

Optical coatings are important for making optical systems work better. They help you see clear images, protect your eyes, and make devices work well.

Types of Mirror Coatings

Metallic Coatings

Metallic coatings are used in many optical tools. They use metals like aluminum, silver, or gold. These coatings reflect lots of light at many colors. They work well even if the light hits from different angles. You can find them in telescopes, lasers, and sunglasses. Metallic coatings can get damaged over time. To help them last, makers add extra layers for protection.

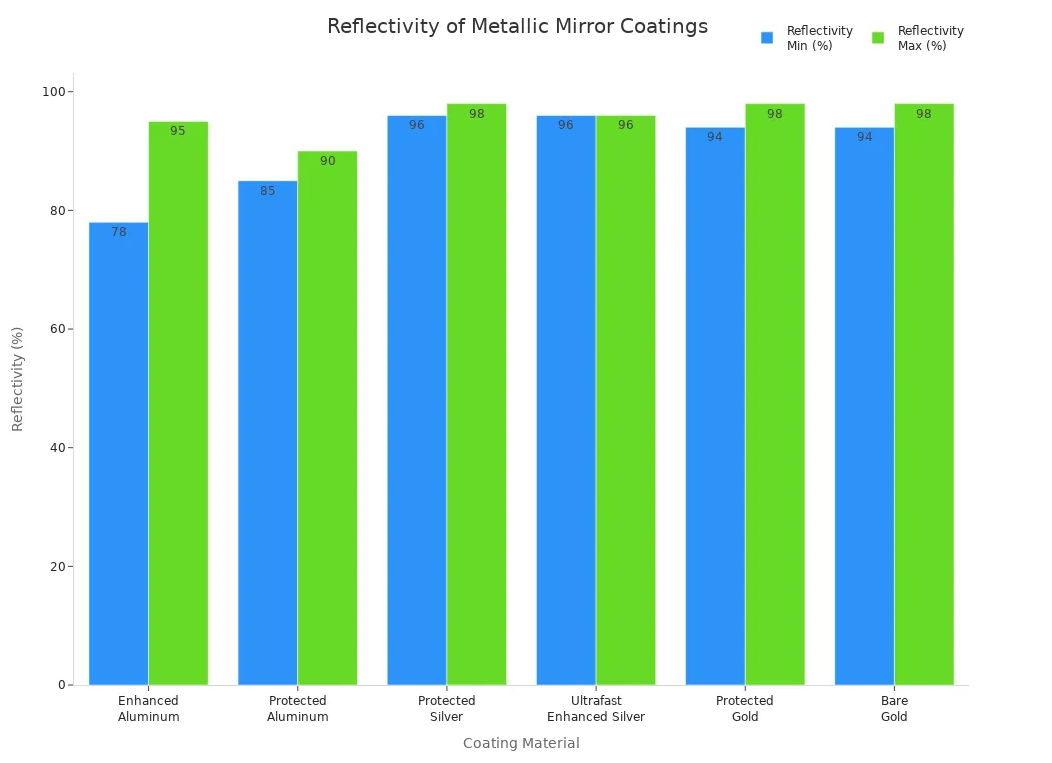

Here is a table showing common materials and their reflectivity:

Dielectric Coatings

Dielectric coatings have many thin layers made from special materials. These coatings are tough and reflect certain colors very well. They are good for making filters or mirrors for lasers. Dielectric coatings work best when light hits them at a certain angle. Making these coatings takes careful work to get the layers right.

• Dielectric coatings:

• Use clear oxides or sulfides like TiO2 or ZnO.

• Keep metal layers safe from harm.

• Change how much UV or visible light gets through.

• Stay strong even when it gets hot.

Hybrid Coatings

Hybrid coatings mix metallic and dielectric layers together. This gives you strong coatings that reflect lots of light. They also last longer and do not get damaged easily. Hybrid coatings are used in special optical tools that need to be both tough and work really well.

Tip: Hybrid coatings cost more and are harder to make, but they work great for tough optical jobs.

• Key features of hybrid coatings:

• Reflect lots of light at many colors

• Last longer and resist damage

• Good for high-performance optical tools

Metallic Mirror Coatings

Aluminum, Silver, Gold

There are three main metals used for these coatings: aluminum, silver, and gold. Each metal is good for different uses in optics. Aluminum works well with visible and ultraviolet light. It is cheap and used in many industries. Silver reflects a lot of visible and shortwave infrared light. This makes it great for high-quality mirrors and some devices. Gold is best for near-infrared and infrared light. You see gold coatings in thermal cameras and satellite optics.

How much light these metals reflect depends on the light’s wavelength. Aluminum reflects most visible and UV light but less after 850 nm. Silver keeps reflecting well in visible and shortwave IR. Gold is best in near-infrared and infrared. The metal must be very pure to work well. Pure aluminum, silver, or gold gives the best results. Sometimes, a dielectric overcoat is added. This protects the metal and helps it reflect better at some wavelengths. It helps aluminum and silver work better in UV or blue light.

Note: Dielectric overcoats can protect metal coatings and help them work better for special optical needs.

Advantages

Metallic mirror coatings have many good points:

• They reflect a lot of light in visible, UV, and IR.

• They work as first surface mirrors, so you do not get ghost images or color splitting.

• You can change their properties for your needs, like reflectance at certain wavelengths or angles.

• Dielectric layers protect the coatings and make them last longer.

• Aluminum coatings are cheap and easy to make, so they are used the most.

• Silver coatings look more real and reflect more than aluminum.

• Gold coatings are strong and stable, even in tough or hot places.

• You can use these coatings in projectors, displays, astronomy, and lasers.

Here is a table that compares how these coatings handle the environment and corrosion:

Disadvantages

There are also some problems with metallic mirror coatings:

• Aluminum makes an oxide layer that lowers reflection and is hard to clean.

• Silver can tarnish and does not stick well to glass unless protected.

• Silver coatings can be hurt by UV light, but thicker dielectric layers help.

• Aluminum and silver coatings can break down in tough places.

• Even with protection, aluminum can corrode if it touches oxygen, especially outside.

• Protective layers can sometimes lower how much light is reflected.

• You need very pure metals for the best results, which can cost more.

• Making these coatings can be hard if there are supply problems or you need special tools.

Tip: Pick the right metal and protective layer for your optical system. This helps you get the best results and longest life for your mirror.

Dielectric Mirror Coatings

Construction

Dielectric mirror coatings are made using vacuum deposition. This means thin layers are put on glass or plastic. Each layer is a different material. The layers have different refractive indices. The thickness of each layer is controlled very carefully. Usually, each layer is about one-fourth the light’s wavelength. This helps the mirror reflect certain colors well. Materials like titanium dioxide or zinc oxide are often used. These coatings are great for lasers and science tools.

Tip: The order and thickness of layers are very important. Even a tiny mistake can change how the coating works.

Pros

Dielectric mirror coatings have many good points over metal coatings:

• They reflect a lot of light, often more than 99%. This is better than most metal mirrors.

• These coatings last longer and do not scratch easily. This keeps your optical devices safe.

• You can make them reflect only certain colors. This is useful for lasers and cameras.

• Dielectric coatings can stop scratches and lower glare on lenses.

• These coatings stay strong in hot or bright places.

Cons

There are some problems with dielectric mirror coatings:

• Making these coatings is hard and needs careful work. It is even harder and costs more for big mirrors.

• The mirror’s reflectivity can change at different angles. This can be a problem for curved mirrors.

• These coatings can put stress on the mirror’s surface. This might change the mirror’s shape and make it work less well.

• You cannot just peel off these coatings if you want to remove them. You have to polish and fix the surface.

• High-power lasers can damage these coatings. The layers can get hot and break if too much energy is used.

• In tough places, the layers can break from heat or other damage.

• These coatings can cost a lot, especially for big or special mirrors.

Note: For very big mirrors or harsh places, you might use enhanced metal coatings instead of only dielectric ones.

Hybrid and Enhanced Coatings

Features

Hybrid and enhanced coatings use both metallic and dielectric layers. This means you get the good things from each type. The metallic layer, like silver or aluminum, helps the mirror reflect lots of colors. Dielectric layers make the coating stronger and help it last longer. You often find these coatings in fancy telescopes or laser tools. The layers work together to keep the mirror steady. They help the mirror work well with bright light or in tough places.

Hybrid coatings give you both strong reflection and long-lasting use.

Benefits

There are many good things about hybrid and enhanced coatings:

• The metallic layer helps the mirror reflect more light.

• Dielectric layers protect the coating from scratches and tarnish.

• These coatings can handle lasers and heat better than just metal coatings.

• You can use them in many optical tools, like science gear or sunglasses.

• Hybrid coatings help you avoid problems from using only one type of coating.

Hybrid coatings mix the best parts of both types. You get strong reflection and better strength. This makes them a smart pick for hard optical jobs.

Drawbacks

Hybrid and enhanced coatings also have some problems:

• The coatings can be thick, which may cause more light to scatter, mostly in ultraviolet light.

• Aluminum layers can oxidize under the dielectric layer. This can make the coating swell and crack, which causes more light scatter and less strength.

• Making these coatings needs special tools and careful steps, like heating and ion bombardment. This makes them cost more and harder to put on big mirrors.

• If the coating gets hurt, it is hard to remove. You might need to fix the mirror, which costs more money.

• Some coatings made for hobby use do not last as long because they skip important steps.

• These coatings can be sensitive to changes in the environment, which can change how they work in some optical tools.

Tip: Always make sure a hybrid coating is right for your optical tool before you pick it.

Comparison Table

When you pick an optical mirror coating, you should know the good and bad things about each type. The table below lets you compare metallic, dielectric, and hybrid coatings. You can check how they do in reflectivity, durability, environmental resistance, and cost.

Tip: Use this table to help you decide which coating is best for your project. Each type has its own good and bad points.

You can see that metallic coatings reflect light well and cost less, but they do not last long in harsh places. Dielectric coatings give the best reflection and last a long time, but they cost more. Hybrid coatings mix the good and bad parts of both. They work well and last long, but they are more expensive and harder to make.

When you look at the good and bad points, think about what you need most. If you want a mirror for outside, you may need better protection from the weather. If you need a mirror that reflects a lot of light for a laser, dielectric or hybrid coatings could be best. Always choose the coating that fits your use for the best results.

Choosing Coatings

Performance Factors

When picking coatings for sunglasses, you want them to work well. Good sunglasses should help you see clearly and keep your eyes safe. There are some things you should check:

• Surface quality: A smooth lens helps stop light from scattering. This keeps your vision clear.

• Coating type and reflectivity: Different coatings, like metallic or dielectric, change how much light bounces off.

• Durability: You want coatings that last a long time, even with daily use.

• Cleaning: Some coatings need special care to stay clear and not get scratched.

• Substrate material: The base, like glass or plastic, changes how strong and comfy your sunglasses feel.

• Light source and wavelength: Some mirrored sunglasses work better with certain colors of light.

• Angle of incidence: The way light hits your sunglasses can change how much glare you see.

• Flatness and curvature: The shape of the lens changes how well it focuses light.

• Cost: Better coatings can cost more, but they may work better.

Tip: For sports or outdoor sunglasses, pick coatings that block glare and reflect the right colors.

Durability and Environment

You want your sunglasses to last, especially if you wear them outside. Sun, rain, wind, and sand can hurt the coatings. UV rays can make some coatings fade or crack. Humidity and chemicals can also damage your sunglasses. If you live near the ocean, salt in the air can make coatings break down faster. Sunglasses worn inside last longer because they do not face tough weather. Clean your mirrored sunglasses often to keep them looking nice. Some coatings protect against UV, heat, and water. This makes them a popular choice for many people.

Cost Considerations

Price is important when picking coatings for sunglasses. Coatings that block more glare or UV usually cost more. If you want simple sunglasses, you can pick basic metallic coatings. For better results, you might pay more for dielectric or hybrid coatings. You can save money by choosing coatings with fewer features, but they may not last as long or block as much glare. Always think about what you need and how much you want to spend.

Applications in Sunglasses

Mirrored sunglasses are popular for style and eye safety. These sunglasses use thin metal or special coatings to reflect light and cut glare. You can get mirrored sunglasses in many colors, like blue, green, or gold. Each color helps block certain types of light, so you see better in different places. Brown mirrored sunglasses help you see on bright days. Yellow ones work well when it is cloudy. Many mirrored sunglasses also block UV rays to keep your eyes safe. Some sunglasses have scratch-resistant, hydrophobic, or anti-reflective coatings. These features help your sunglasses last longer and stay clean. Mirrored sunglasses are great for sports, driving, or being outside. They look good and work well, so many people like them.

Note: If you mix mirror coatings with UV, scratch-resistant, and hydrophobic layers, your sunglasses will look good, protect your eyes, and last longer.

You have learned about metallic, dielectric, and hybrid coatings for sunglasses. Each type has its own good and bad sides. To get the best sunglasses, you should:

• Pick the right metal for what you need. Aluminum is good for UV light. Silver works well for visible light. Gold is best for infrared light.

• Add protective layers to make your sunglasses last longer.

• Always keep your sunglasses clean and dry.

1. Decide what you want your sunglasses to do before you choose a coating.

2. Think about the kind of light, the angle, and where you will wear them.

If you remember these tips, your sunglasses will last longer and work better.

FAQ

What is the main reason to use a mirror coating?

You use mirror coatings to control how much light reflects off a surface. These coatings help you get clearer images, reduce glare, and protect your eyes or devices.

Can you clean coated mirrors with any cleaner?

You should use a soft cloth and gentle cleaner. Strong chemicals or rough cloths can scratch or damage the coating. Always follow the care instructions for your product.

Do all mirror coatings block UV light?

Not all coatings block UV light. Some metallic and dielectric coatings can block UV, but you need to check the product details. For sunglasses, look for coatings that say “UV protection.”

Why do some mirrored sunglasses look different colors?

• The color comes from the coating material and thickness.

• Different coatings reflect different colors of light.

• You can pick a color that fits your style or helps you see better in certain places.

How long do mirror coatings last?

Most coatings last several years if you care for them. Exposure to sun, water, or scratches can shorten their life. Protective layers help them last longer.
