Views: 0 Author: Site Editor Publish Time: 2025-09-17 Origin: Site
An off-axis parabolic mirror, also called an oap mirror, has a special shape to guide light. This mirror is a piece cut from a bigger parabolic mirror. Engineers and scientists use oap mirrors because they send light straight without changing its colors. Each oap does not block the main path of light, so it is useful in many optical tools. The parabolic curve in an oap helps focus light very well, which is why these mirrors are used a lot in research and technology.
Off-axis parabolic mirrors focus light very well. They do not change the color of the light. This makes them great for exact optical uses.
OAP mirrors do not block the main path of light. This helps people reach and control things in small spaces. It also helps in advanced optical systems.
These mirrors cost more than regular parabolic mirrors. They are harder to make, but they work better.
You must line up OAP mirrors the right way. If you do not, the focus will not be sharp. This can make images look blurry.
OAP mirrors are used in many areas. People use them in astronomy, laser systems, and spectroscopy. They help make light beams clear and strong.
An oap mirror is used in optics. Engineers make it by cutting a bigger parabolic mirror. This creates a mirror that guides light well. It does not block the main beam of light. The oap mirror can focus or collimate light easily. Scientists use oap mirrors in experiments. They help control light paths with great accuracy.
Oap mirrors keep the color of light the same. This is called achromatic. The curve of the oap helps focus light to one spot. Many optical systems need this to get clear images or strong beams. Oap mirrors are used in telescopes, laser setups, and other tools.
Tip: Oap mirrors help scientists stop unwanted shadows or reflections.
A parabolic mirror has a curved surface. The curve looks like a parabola. This shape lets it focus light from far away to one spot. Telescopes and satellite dishes use parabolic mirrors. They collect and direct light well.
Oap mirrors are made by cutting a piece from a parabolic mirror. This gives oap mirrors a special advantage. They can send light away from the main axis. This makes it easier to reach the focal point. Oap mirrors do not block incoming light. They work well when space is tight or clear access is needed.
Making oap mirrors is different from making regular parabolic mirrors. The table below shows how each type is made:
| Type of Mirror | Manufacturing Method |
|---|---|
| Off-Axis Parabolic Mirror | Often cut and shaped from metal blanks or formed from a molten base material in a rotating furnace. |
| Standard Parabolic Mirror | May involve different techniques that are not specified in detail. |
Oap mirrors cost more than regular parabolic mirrors. Makers use careful methods to shape each oap. The price can be three to five times higher than a normal parabolic mirror. This means oap mirrors are not used much in projects with small budgets.
Scientists pick oap mirrors for high performance and clear light paths. Parabolic mirrors are good for basic focusing. Oap mirrors give better access and control in advanced optical systems.
An oap mirror is a part of a bigger parabolic mirror. Engineers cut it out to make a special shape. The optical axis is not in the middle. It sits off to one side. This helps people reach the focal point easily. No part of the mirror blocks the light. Scientists use oap mirrors when space is small. They also use them when they need a clear path for the beam.
The offset makes it easier to get to the focal point. Regular parabolic mirrors can block some light. The off-axis design stops this from happening. Users can put detectors right at the focal point. This is good for small setups. The mirror does not have rotational symmetry. It needs to be lined up very carefully. If the beam does not hit the mirror right, the light will not focus well.
Note: The off-axis design helps people reach the focal point and stops unwanted shadows in optical systems.
Oap mirrors keep the color of light the same. They focus light to one spot no matter the color. This means the oap does not change the color when it focuses or collimates light. Tests show oap mirrors work for any wavelength. In laser labs, scientists saw oap mirrors remove astigmatism. The beam shape stayed almost perfect, with ellipticity over 0.98. This proves oap mirrors keep the beam shape and help with achromatic focusing.
The parabolic curve helps the mirror focus light very sharply. This is called diffraction-limited imaging. It means the mirror focuses light as well as physics allows. The table below shows what affects this:
| Evidence | Description |
|---|---|
| Geometric Aberrations | The aspherical shape of oap mirrors can cause geometric aberrations. |
| S-shape Geometry | S-shape geometry helps fix misalignment and makes images better. |
| Frequency Dependence | Diffraction-limited performance is better at higher frequencies like 500 GHz. |
Oap mirrors work best when lined up just right. The curve and off-axis shape help make sharp images and strong beams in many optical tools.
An oap mirror has a parabolic curve to guide light. It is a piece taken from a bigger parabolic mirror. This design moves the focal point away from the main axis. Engineers use oap mirrors to make beams that are straight or focused. The light path stays open and clear. The parabolic shape lets the mirror bring parallel rays to one spot. Scientists like oap mirrors because they do not cause spherical aberration or lose light.
The main ideas behind oap mirrors are:
The focal point is moved away from the center
The mirror focuses all colors the same way
It is very precise
The design keeps the light path open
It can focus beams without changing their color
It does not cause spherical aberration
A parabolic mirror can bring straight light to a sharp point. The off-axis design keeps this skill and makes the focal point easy to reach. Oap mirrors are good for making straight beams and for focusing. Scientists use them in laser labs and telescopes to keep the beam shape just right.
Tip: Oap mirrors help people avoid shadows and reflections by keeping the light path clear.
Oap mirrors must be lined up carefully to work well. The off-axis shape means the mirror is not the same all around. Users need to make sure the straight beam hits the mirror at the right angle. If it is not lined up, the focus will not be sharp. Many people say it is hard to use two oap mirrors together. They must make sure the light bounces right from one mirror to the next before going through a lens.
Helpful tips for using oap mirrors:
Use the whole mirror at first
Learn the local setup for each oap
Watch the path of the straight beam closely
The parabolic curve and off-axis shape help scientists reach the focal point without blocking light. Oap mirrors work well for making and focusing beams. Their special shape makes them important in advanced optical tools.

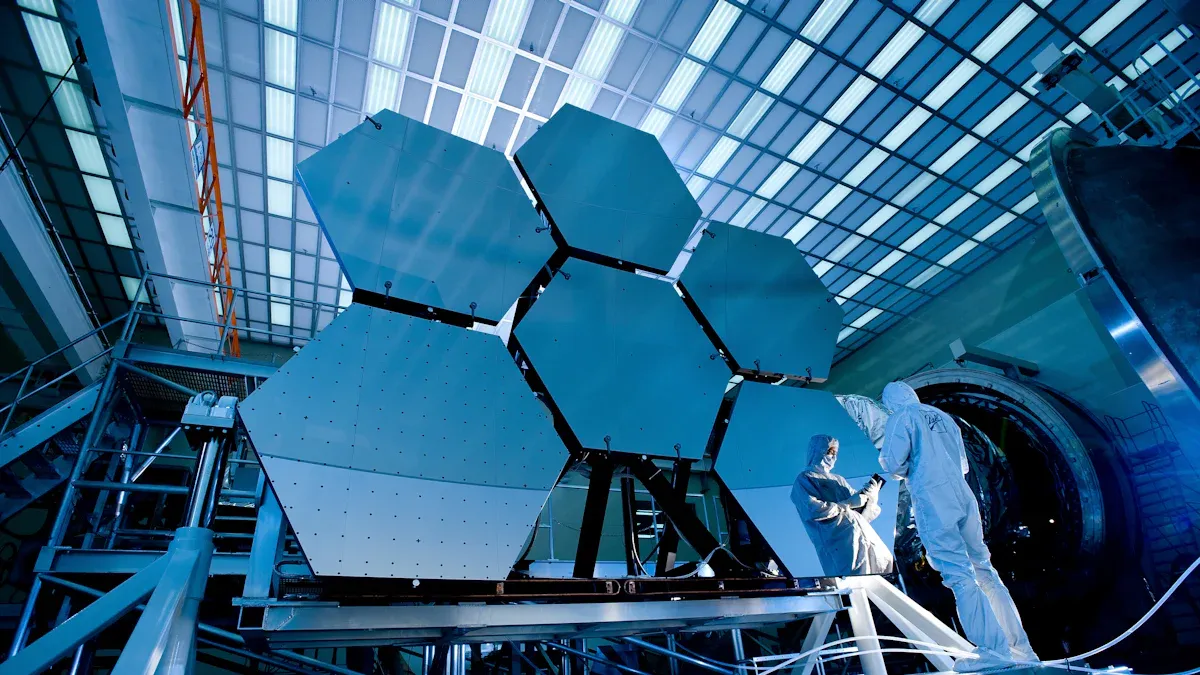

Image Source: pexels
Many science tools use the oap mirror to control light. Engineers use oap mirrors in things like communications, LiDAR, spectroscopy, astronomy, and particle physics. These mirrors help scientists collect, focus, and measure light very well. The table below shows how different fields use oap mirrors:
| Field | Application |
|---|---|
| Communications | Used in satellite communication systems for efficient signal gathering and transmission. |
| LiDAR | Plays a key role in accurate detection and tracking of targets. |
| Spectroscopy | Focuses light of different wavelengths onto detectors for high-resolution spectral measurements. |
| Astronomy | Used in telescopes to observe distant celestial bodies. |
| Particle Physics | Essential for high-resolution measurements in experiments. |
Oap mirrors let scientists send straight beams and focus light without blocking it. This makes them important in tests that need clear and sharp results.
Note: Oap mirrors help researchers collect straight light and focus it on detectors for better results.
Laser systems need to focus and control straight beams very well. Engineers use oap mirrors in strong, short-pulse laser systems. These mirrors help aim and focus laser beams without making mistakes in the light. Oap mirrors can join many laser beams into one strong, straight beam. This is important for getting high energy and power in advanced laser work. The parabolic shape of the oap mirror keeps the beam sharp and focused.
Scientists pick oap mirrors for laser labs because they keep the beam shape and color the same. The parabolic mirror design helps make straight beams that stay strong and clear.
Oap mirrors are better for making straight beams than lens-based collimators. They help make a straight beam with good quality and less bending. The parabolic curve of the oap mirror keeps the beam focused and straight. Here are some good things about using oap mirrors for straight beams:
Better image quality: Oap mirrors give sharper, clearer images without bending or blurring.
Less astigmatism: They show less astigmatism than round mirrors, so there is less bending in side views.
Smaller size: Oap mirrors can be smaller than regular parabolic mirrors, so they fit in small spaces.
Better light collection: They gather more light, which helps when you need to collect a lot of light.
Oap mirrors help scientists make straight beams for experiments, telescopes, and laser systems. The parabolic design and off-axis shape make them great for focusing and guiding straight light.
Off-axis parabolic mirrors have many good uses in optics.
They make beams better and lower cross-polarization.
Their shape helps with dynamic range and imaging.
OAP mirrors work better than flat or stiff mirrors.
| Application Area | Performance Benefits |
|---|---|
| Laser Systems | They focus light better for cutting and surgery. |
| Optical Instruments | They give less distortion and sharper pictures. |
| Medical Devices | They help control light for clearer images. |
| Research Institutes | They focus light well for science tests. |
| Aerospace and Defense | They give good images for satellites and guidance. |
OAP mirrors send light to a spot away from the middle. This lowers distortion and is important for careful work. People use them more in astronomy, spectroscopy, and medical imaging. Scientists and engineers pick OAP mirrors for new optical tools. They give steady results and help with new technology.
An off-axis parabolic mirror is a piece of a bigger parabolic mirror. Its special shape moves the focal point away from the center. This lets people reach the focused light more easily. It also stops the beam from getting blocked.
Scientists pick OAP mirrors because they guide laser beams well. The design keeps the light path open and clear. OAP mirrors do not change the color of the beam. This helps make strong and accurate beams for tests.
People need to set the mirror so the beam hits the curve at the right angle. Careful setup helps the mirror focus light sharply. It also stops the image from getting blurry. Many scientists use special tools to line up the mirror.
OAP mirrors work with many kinds of light, like visible and infrared. The parabolic curve focuses light but does not change its color. This makes OAP mirrors helpful in lots of science areas.
