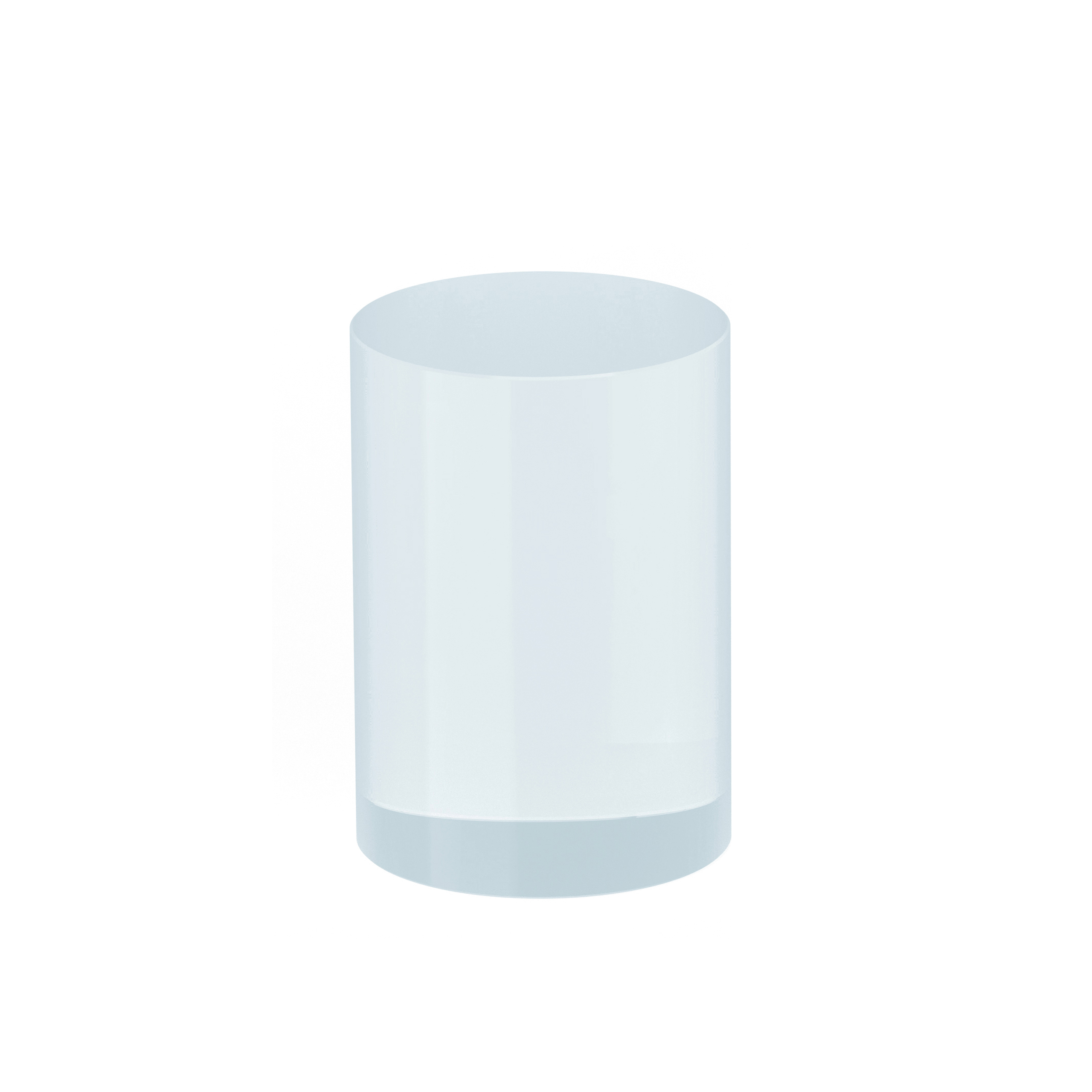

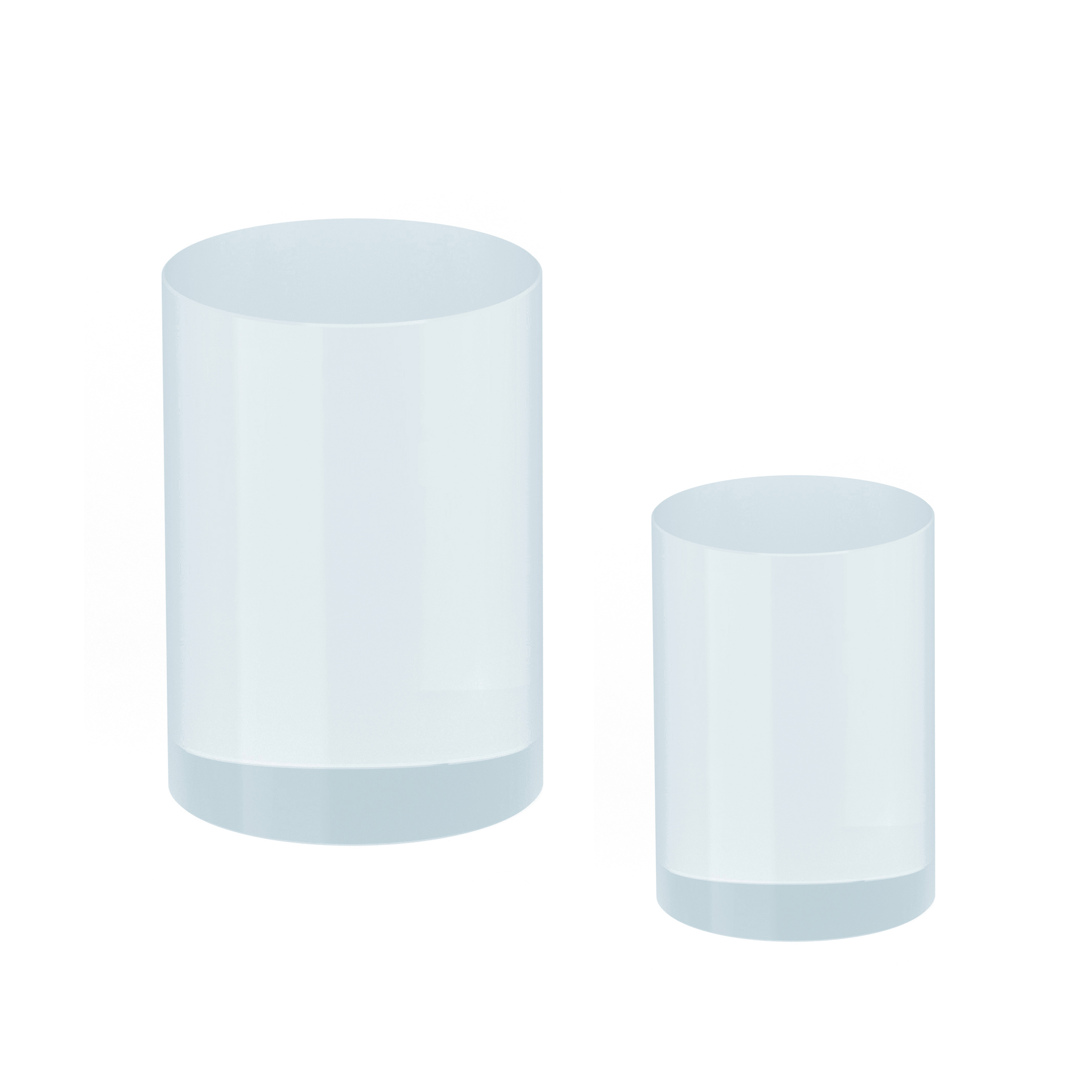

Whether as straight light guide rods for medical imaging or hexagonal mixing rods for laser systems, these components serve as the backbone of modern photonics, enabling applications from minimally invasive surgeries to aerospace instrumentation. Their ability to maintain total internal reflection (TIR) and transmit light across wavelengths from 175 nm to 1 μm makes them indispensable in precision optical setups .
UV-grade fused silica rods offer >90% transmittance in the ultraviolet spectrum (175–400 nm) and withstand operational temperatures up to 400°C, making them ideal for high-power laser applications .
Sapphire rod lenses provide exceptional hardness (9 Mohs) and chemical resistance, ensuring durability in harsh environments like chemical processing equipment .
Niobium-zirconium alloy rods deliver superior strength-to-weight ratios and biocompatibility, critical for aerospace structural components and medical implants .
Tight tolerance control of ±0.01 mm on diameter and length ensures seamless integration into optical assemblies .
Customizable geometries include straight, tapered, and hexagonal profiles, with options for anti-reflective (AR) coatings that reduce surface losses to <0.5% per surface .
45° angled rod lenses enable precise 90° light redirection, essential for endoscopes and borescopes .
Multi-core rods (MCR) facilitate complex 2D/3D light mixing, while single-core rods (SCR) excel in bulk light transmission .
Biocompatible and autoclavable variants meet medical device standards (ISO 13485), supporting repeated sterilization.
Endoscopic imaging systems use 45° rod lenses for minimally invasive procedures .
Laser therapy devices employ fused silica rods to deliver precise energy dosages .
Niobium-zirconium rods reinforce aircraft engine components under extreme temperatures .
Optical guidance systems utilize light guide rods for reliable signal transmission .
Hexagonal mixing rods convert Gaussian laser beams into uniform flat-top profiles for material processing .
High-power cutting machines integrate AR-coated rods to minimize energy loss .
Q1: What is the typical lifespan of optical rods?
A1: Fused silica and sapphire rods maintain performance for 5–10 years in controlled environments. Alloy rods have service lives exceeding 15 years in structural applications .
Q2: Can rods be customized for specific wavelengths?
A2: Yes. UV-grade rods are optimized for 175–400 nm, while NIR variants perform best at 650–1050 nm with AR coatings .
Q3: How to clean optical rods safely?
A3: Use lint-free wipes with isopropyl alcohol. Avoid abrasive materials to prevent scratching AR coatings .
Q4: Are rod lenses compatible with high-power lasers?
A4: Fused silica rods handle up to 20 kW laser power when properly cooled, making them suitable for industrial cutting systems .
