Views: 565 Author: Site Editor Publish Time: 2025-06-19 Origin: Site
The main difference between concave and convex mirrors is the direction of their reflecting surfaces. A concave mirror curves inward and can form either real or virtual images, depending on the object position. A convex mirror curves outward and always forms a virtual, upright, reduced image while providing a wider viewing area.
This guide compares concave and convex mirrors by surface shape, reflected-light behavior, image formation, field of view, and practical uses. It also explains what engineers should specify when selecting a custom optical mirror.

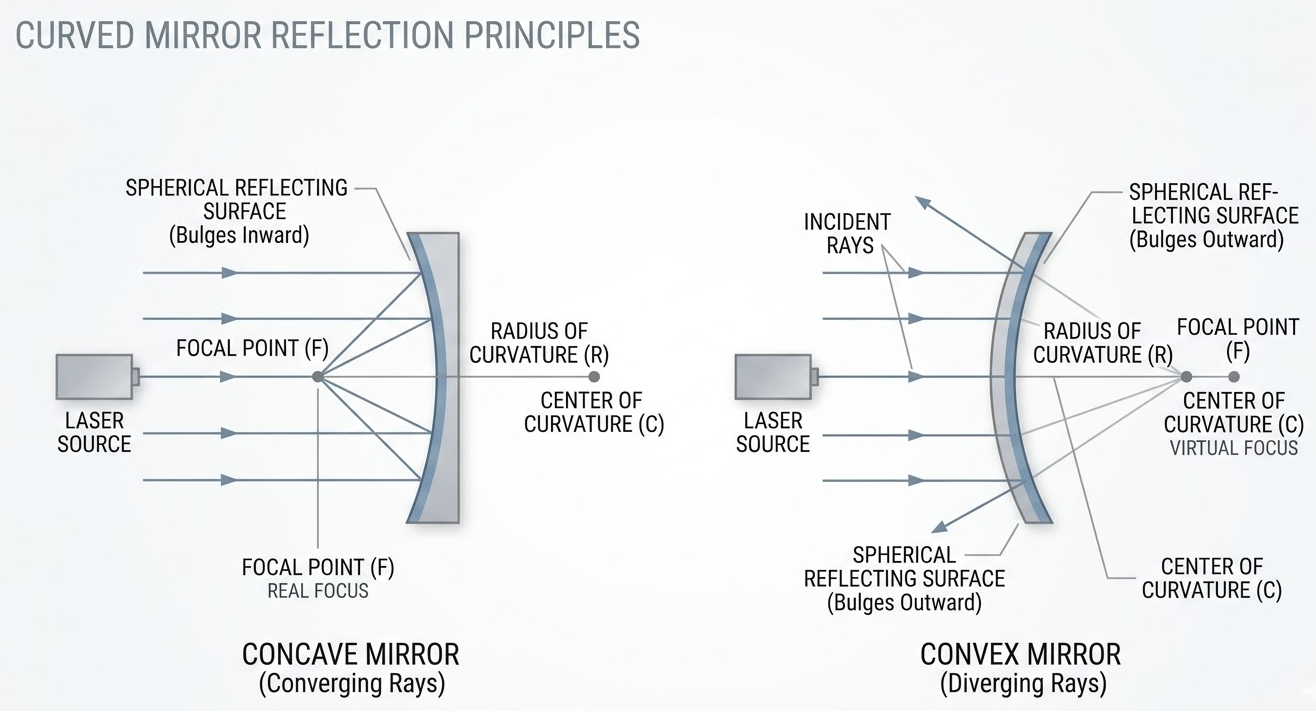

Concave mirrors reflect light toward a real focal point, while convex mirrors reflect light outward as if it came from behind the mirror.
A concave mirror has a reflecting surface that curves inward, like the inside of a spoon. It is a converging mirror: parallel rays reflected from the surface move toward a focal point in front of the mirror. A convex mirror curves outward, like the back of a spoon. It is a diverging mirror: reflected rays spread outward and appear to originate from a virtual focal point behind the mirror.
| Feature | Concave Mirror | Convex Mirror |
|---|---|---|
| Reflecting surface | Curves inward | Curves outward |
| Light behavior | Converges reflected parallel rays toward a focal point | Diverges reflected rays as if they originate behind the mirror |
| Focal point | Real focal point in front of the mirror | Virtual focal point behind the mirror |
| Image formation | Can form real or virtual images, depending on object position | Always forms a virtual, upright, reduced image |
| Viewing coverage | Often selected for focusing or magnification; actual field of view depends on system geometry | Often selected when wider viewing coverage is needed |
| Common uses | Focusing, illumination, telescopes, magnification, optical instruments | Safety viewing, blind-spot reduction, surveillance and wide-angle observation |
Quick answer: choose a convex mirror when a wider view is the priority. Choose a concave mirror when the optical system needs to collect, focus, or magnify light.
For a concave mirror, image characteristics change as the object moves relative to the focal point (F) and center of curvature (C). In the paraxial approximation, an object outside the focal point forms a real, inverted image in front of the mirror. An object between the focal point and mirror surface forms a virtual, upright, magnified image behind the mirror.
| Object Position | Image Position | Image Type | Orientation and Size |
|---|---|---|---|
| Beyond C | Between C and F | Real | Inverted and reduced |
| At C | At C | Real | Inverted and approximately the same size |
| Between C and F | Beyond C | Real | Inverted and enlarged |
| At F | At infinity | No finite image plane | Reflected rays are approximately parallel |
| Between F and the mirror | Behind the mirror | Virtual | Upright and enlarged |
A convex mirror always produces one image type for a real object placed in front of it: virtual, upright, and reduced. The reflected rays do not physically meet. Instead, their backward extensions appear to meet behind the mirror, where the virtual image is perceived.

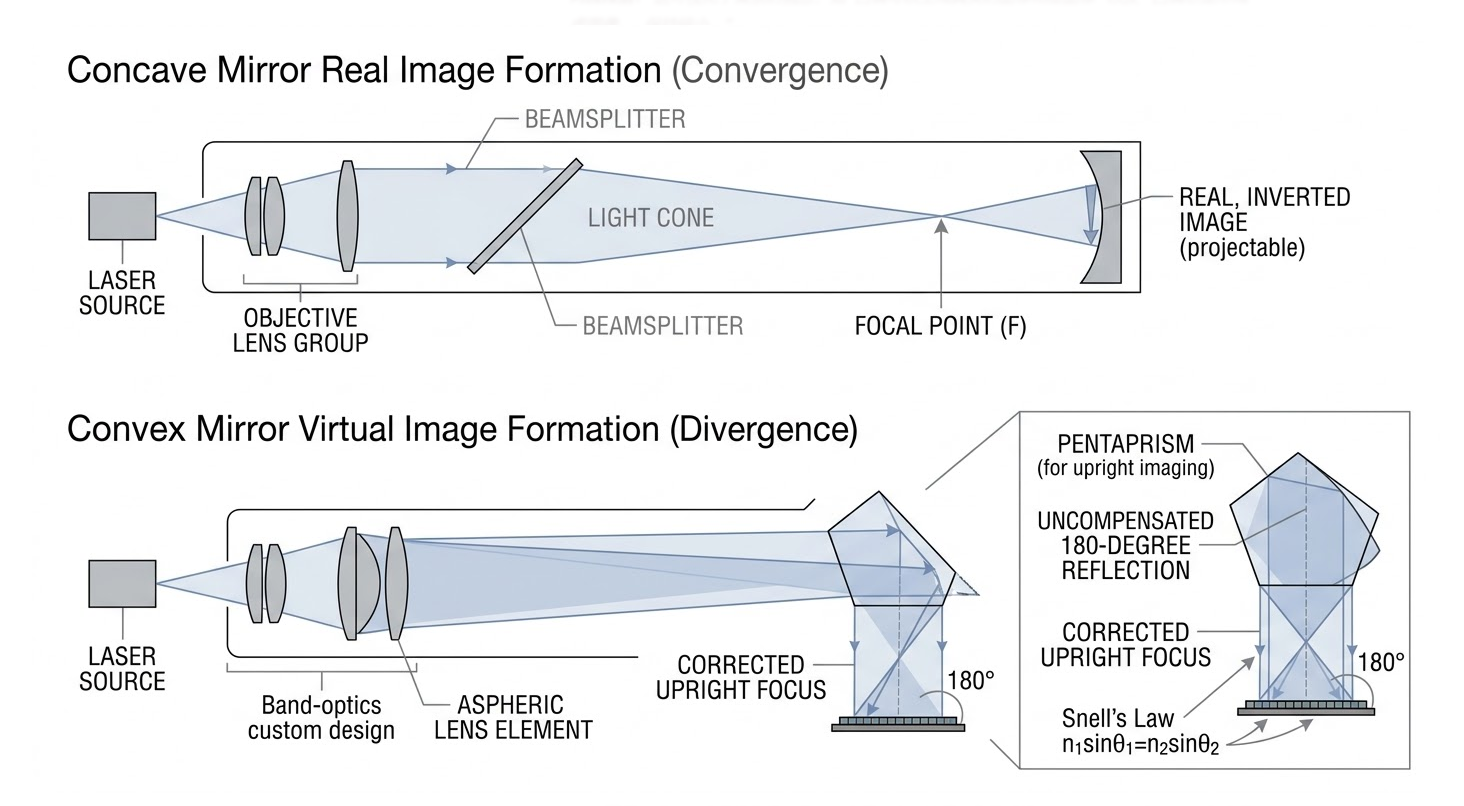

Concave mirrors can form real or virtual images; convex mirrors form virtual, upright, reduced images.
A concave mirror has an inward-facing reflective surface. A convex mirror has an outward-facing reflective surface. This geometric difference determines how each mirror redirects incident light.
Concave mirrors are converging mirrors. Parallel rays incident near the optical axis reflect toward a focal point in front of the mirror. Convex mirrors are diverging mirrors. Their reflected rays spread outward and appear to originate from a virtual focal point behind the mirror.
Concave mirrors can create real images that can be projected onto a screen, or virtual images that cannot. The result depends on the object's position relative to the focal point. Convex mirrors always create virtual, upright, reduced images.
Convex mirrors are frequently used where broad viewing coverage is useful, such as at intersections, in warehouses, and in safety-viewing systems. Concave mirrors are commonly used when an optical system needs to focus or collect light, such as in illumination systems, telescopes, and magnifying mirrors.
Field of view is not determined by mirror type alone. Mirror diameter, curvature, mounting position, object distance, and the overall optical system also affect the usable viewing area and image quality.
| Application | Typical Mirror Type | Why It Is Used |
|---|---|---|
| Security and corner viewing | Convex | Provides a wider observable area with an upright image |
| Vehicle and blind-spot viewing | Convex or aspheric mirror designs | Helps increase visible coverage; image reduction must be considered when judging distance |
| Makeup and shaving mirrors | Concave | Can provide an upright, magnified virtual image when the face is inside the focal length |
| Reflecting telescopes | Concave | Collects and focuses light from distant objects |
| Illumination and beam collection | Concave | Can collect or redirect light toward a defined optical path |
| Machine vision and optical instruments | Depends on system design | Curvature, coating, substrate, surface figure, and alignment determine performance |
Convex mirrors are often used for wide viewing coverage, while concave mirrors are used to focus or collect light.
For an engineered optical system, mirror type is only the first selection step. The mirror must also be specified for the actual application, wavelength range, optical layout, environment, and performance target.
When requesting a custom concave or convex mirror, prepare the following information:
Application and optical function
Operating wavelength or wavelength range
Mirror type, radius of curvature, focal length, or prescription
Diameter, clear aperture, thickness, and edge requirements
Substrate material and environmental conditions
Reflective coating and target reflectance range
Surface figure, surface quality, roughness, and centration requirements
Quantity, prototype requirements, and engineering drawing
For custom optical requirements, review the available Custom Optical Service. For inspection and verification considerations, see Key Metrology Solutions.
Share your drawing and required wavelength, diameter, radius of curvature, substrate, coating, surface-quality requirement, and quantity. A clear specification helps the engineering team evaluate manufacturability and recommend a suitable mirror configuration.
A concave mirror curves inward and converges reflected light. A convex mirror curves outward and diverges reflected light. This causes them to form different image types and serve different optical purposes.
No. A convex mirror forms a virtual, upright, reduced image for a real object in front of the mirror. The image appears behind the reflecting surface and cannot be projected onto a screen.
Yes. When an object is outside the focal point of a concave mirror, the reflected rays can converge in front of the mirror to form a real, inverted image. When the object is inside the focal point, the image is virtual, upright, and magnified.
In comparable safety-viewing applications, a convex mirror generally provides wider viewing coverage because it forms a reduced image. The actual field of view still depends on mirror size, curvature, installation position, and system geometry.
The outward curvature causes reflected rays to diverge. Your eye traces those rays back to a virtual image behind the mirror, and that image is smaller than the object. This is why distance perception must be considered in safety-viewing applications.
Provide the application, wavelength, mirror prescription or radius of curvature, dimensions, substrate, coating, surface-quality requirements, quantity, and a drawing when available. These details allow an optical manufacturer to evaluate the design accurately.
For foundational ray-tracing principles and spherical-mirror image formation, see OpenStax: Spherical Mirrors.
