Choosing the right optical mirror begins with knowing what you need. You must think about wavelength, reflectivity, and coating. Surface quality is important for how the mirror works. The angle of incidence and polarization also affect performance. Environmental conditions can change how the mirror works. Cleaning needs are important for precision optics. Users should decide what they need early. This guide helps you pick the best mirror for your use. It makes sure the mirror works well and lasts a long time.
Pick a mirror that works with your light’s wavelength and reflectivity. This helps the mirror work its best.
Think about the angle of incidence and polarization. These change how well the mirror reflects light.
Choose mirrors with the right surface flatness and curvature. This keeps images clear and beams focused.
Make sure the laser damage threshold is high enough. The mirror must handle your laser’s power safely.
Pick coatings and substrates that are strong. They should last in your environment’s temperature, humidity, and dust.
Clean mirrors the right way, like using compressed air or the drag method. This keeps them clean without harm.
Use the right mirror type—metallic, dielectric, or metal-dielectric—for your application. This gives the best results.
Don’t make common mistakes. Know what your system needs, handle mirrors with care, and keep them maintained.
Reflectivity tells us how much light a mirror sends back. Many optical systems need high reflectivity to work well. Most top mirrors have reflectivity from 99.8% to 99.999%. These mirrors help laser systems by letting more light move through with less loss. Makers use special ways to test reflectivity, like cavity ring down spectroscopy. This test checks for all light loss, like scatter and absorption. It makes sure the mirror is safe and works well.
Different coatings change reflectivity. Ion-assisted electron-beam coatings give medium reflectivity. They work best for visible and near-infrared light. Ion beam sputtering makes very smooth and thick coatings. These coatings can have reflectivity over 99.9%. They also stay strong in harsh places. The number of layers and the coating materials also change how much light the mirror reflects. Silver mirrors reflect a lot of light but can get worse if not protected. Adding layers like aluminum oxide or magnesium fluoride helps protect silver. This keeps reflectivity high, especially for visible light. Picking the right high reflection coating is very important.
Tip: Always pick a mirror with reflectivity that fits your needs. Higher reflectivity means less light is lost and better results.
Each mirror works best for certain wavelengths. The wavelength range shows what colors or types of light the mirror reflects well. Metallic mirrors, like protected aluminum or silver, cover a wide range. They work from ultraviolet (about 300 nm) through visible and into infrared. These mirrors usually reflect between 86% and 98% of light. The metal and coating decide the exact amount.
Dielectric mirrors use many thin layers to reflect certain wavelengths. They can reach reflectivity above 99.9%, but only for a small range of wavelengths. This makes them great for lasers or systems that use one color of light. The table below lists common mirror types and their wavelength ranges:
| Mirror Type | Typical Wavelength Range Supported | Reflectivity Characteristics |
|---|---|---|
| Protected Aluminum | ~300 nm (UV) to IR | Average reflection >86%, broad coverage |
| Protected Silver | ~400 nm (visible) to IR | Average reflection >96%, high in visible |
| Enhanced Silver | 600 nm - 1100 nm | Reflectivity >98.5%, good for femtosecond lasers |
| Protected Gold | ~900 nm (near IR) to IR | Average reflection >98%, best in IR |
To pick the right mirror, make sure its wavelength range matches your light source.
The angle of incidence is the angle where light hits the mirror. This angle can change how well the mirror reflects light. If the angle gets bigger, the mirror’s performance can change. The color the mirror reflects best may shift to a shorter wavelength. This is called a blue shift.
Polarization is also important. Light can be s-polarized or p-polarized. S-polarized light reflects better than p-polarized light at big angles. This can make the mirror reflect some colors better than others. It depends on the angle and the light’s polarization. At large angles, the mirror may not reflect as well. The reflected light may look different than at small angles.
Note: Always check the angle of incidence for your system. Mirrors made for one angle may not work as well at another.
Polarization means the way light waves move. When light hits an optical mirror, polarization can change how much light bounces back. S-polarized light reflects better than p-polarized light. S-polarized means the electric field goes up and down. P-polarized means the field goes side to side. Some mirrors reflect s-polarized light up to 10% better. This is true for mirrors with special coatings like dichroic or dielectric layers.
Small changes in reflectivity can matter a lot in laser systems. In fluorescence microscopy, less reflected light makes images dimmer. In laser cutting, the beam’s polarization must stay the same. This keeps the cut smooth and even. If the mirror does not handle polarization well, problems can happen. The beam may heat unevenly or lose focus. Some mirrors work best with one type of polarization. Others can change linear light into circular light. This helps the system work well and gives good results.
Tip: Always check if your job needs a mirror for a certain polarization. This stops unwanted losses and keeps your system working well.
Surface flatness tells how smooth the mirror is. A flat mirror bounces light in a straight line. This keeps the beam sharp and focused. Bumps or dips can scatter or blur the light. This matters in telescopes, lasers, and cameras.
Makers use words like “lambda/10” or “lambda/20” to show flatness. “Lambda” means the wavelength of light. A smaller number means the mirror is flatter. Most science tools need a flatness of lambda/10 or better. If the mirror is not flat, images can look bent or blurry. In lasers, poor flatness spreads the beam and makes it weaker.
Note: Pick a mirror with the right flatness for your needs. High flatness gives sharp images and focused beams.
Curvature means how much the mirror bends. A flat mirror has no curve. A curved mirror can focus or spread light. The radius of curvature shows how strong the curve is. A small radius means a strong curve. A big radius means a gentle curve.
Curved mirrors help focus light to a point or spread it out. If the curve is not right, problems can happen. Simulations show that bad curvature can cause astigmatism. This means the beam focuses at different spots along different lines. The spot gets bigger and less sharp. The image quality drops and the system may not work right.
Curvature errors can:
Move the focal plane.
Make the spot bigger and uneven.
Blur images and lose detail.
Cause two focal planes, making alignment hard.
You can move the focal plane with adjustments. But you cannot fix the spot shape this way. For best results, pick a mirror with the right curve and check for flatness problems.
Laser damage threshold (LDT) shows how much laser power a mirror can handle before it gets damaged. High-power lasers can burn or pit a mirror if the LDT is too low. Each mirror has a limit, measured in watts per square centimeter (W/cm²) or joules per square centimeter (J/cm²). Dielectric mirrors often have higher LDT than metallic mirrors. This makes them better for strong laser beams. The coating type, thickness, and surface quality all affect the LDT. Users should always check the laser’s power and pulse type before choosing a mirror. If the laser power is close to the mirror’s limit, the mirror may fail quickly. For safety and long life, pick a mirror with an LDT much higher than the laser’s output.
Tip: Always match the mirror’s LDT to your laser’s power. This prevents damage and keeps the system running smoothly.
Durability means how well a mirror stands up to wear, cleaning, and the environment. Some mirrors face harsh conditions like high humidity, heat, or dust. Advanced dielectric coatings help mirrors resist humidity and temperature changes. These coatings keep the mirror working well for a long time. Makers test these mirrors in tough conditions to make sure they last. For example, high humidity and heat can speed up damage in some mirrors. Electrochromic mirrors may slow down or lose their shine if exposed to 40 °C and 80% humidity. The surface can get rough, and the mirror may not work as well. Special coatings, like polymer layers, protect the mirror from water and air. These coatings can triple the mirror’s life and keep it clear. Encapsulation and protective layers also help mirrors last longer in tough places.
High humidity and heat can cause:
Faster damage to some mirrors
Surface roughness and loss of shine
Slower switching in electrochromic mirrors
Protective coatings and layers:
Block water and air
Keep the mirror working longer
Help in labs, factories, and outdoors
Cleaning keeps an optical mirror working at its best. Dust, fingerprints, and oils can lower reflectivity and hurt performance. Users should clean mirrors with care to avoid scratches or damage. The best way to remove dust is with compressed air or dry gases like nitrogen. This method does not touch the mirror surface. For smudges or fingerprints, the Drag Method works well. This method uses lens tissue soaked in isopropyl alcohol or acetone. The tissue drags slowly across the surface, and the solvent dries without streaks. Bare metal mirrors need extra care. Solvents can harm them, so it is better to prevent dirt from getting on them. Always wear gloves or finger cots when handling mirrors. Hold mirrors by the edges, not the surface. Use only soft tools, like wooden sticks or vacuum pens, to move mirrors. Store each mirror wrapped in clean tissue in a dry place. Never stack mirrors or put heavy things on them. Automated vapor degreasing can clean strong mirrors in batches. This process uses special fluids that clean and dry mirrors without leaving spots.
Blow off dust with compressed air or dry gas.
Use the Drag Method for smudges.
Avoid touching the surface; always use gloves.
Store mirrors wrapped and dry.
Use vapor degreasing for robust mirrors.
Note: Never blow on mirrors or talk over them. Saliva can leave spots that are hard to clean.
The substrate material is the base of an optical mirror. It holds the reflective coating in place. The material affects how strong and stable the mirror is. Different materials work better for different jobs. The table below lists common substrate materials and their main features:
| Substrate Material | Key Advantages | Limitations/Notes |
|---|---|---|
| Borosilicate Glass | Cost-effective, widely used, stable for astronomy and general optics | Moderate thermal expansion; suitable for many standard uses |
| Quartz | Very low thermal expansion, stable shape during temperature changes | Often more expensive; advantages over borosilicate sometimes overstated |
| Silicon Carbide | High stiffness, strong, lightweight, excellent thermal conductivity, complex shapes possible | Can replace beryllium in high-speed scanning; advanced manufacturing needed |
| Beryllium | Superior stiffness-to-weight ratio, enables very fast scan speeds | Toxicity risks, high cost, limited supply, mainly for aerospace and defense |
Borosilicate glass is good for most regular and space mirrors. Quartz keeps its shape when temperatures change. This helps with precise optics. Silicon carbide is stiff and light. It is used in fast laser scanning. Beryllium is very stiff and light. It is best for planes and rockets, but it is costly and needs careful handling.
Tip: Pick a substrate that fits your system’s needs for weight, strength, and thermal stability.
The size and shape of an optical mirror matter a lot. Big mirrors collect more light and give better images. But large mirrors are harder to make and use. They need strong supports to keep them from bending. Flexible supports help stop errors from stress or heat. This keeps the mirror’s surface correct and the image clear.
Mirror shape changes how light moves. Flat mirrors bounce light straight. Curved mirrors focus or spread light. Some systems use mirrors made of many pieces. These pieces can be fan-shaped or hexagonal. Segmented mirrors make big openings without being too heavy. If the pieces are not lined up right, images can look wrong. Problems like blurry spots or odd shapes can happen.
Coatings can also change the mirror’s shape. Some coatings add stress and bend the mirror a little. This can mess up laser beams. Bigger mirrors show these problems more because small errors add up.
Note: Always think about the mirror’s size, shape, and support. This helps get the best optical results.
Environmental conditions can change how an optical mirror works and how long it lasts. Temperature changes can make the mirror base grow or shrink. This can bend the mirror or move its focus. Quartz and silicon carbide handle temperature changes better than other materials. High humidity can hurt some coatings or cause rust, especially on metal mirrors. Dust and chemicals can land on the mirror and lower reflectivity. Cleaning gets harder when this happens.
Some mirrors must work in tough places, like outside, in factories, or in space. Special coatings and layers help block water, dust, and chemicals. Encapsulation can also protect the mirror from the environment. For important jobs, pick mirrors tested for tough conditions.
Temperature changes can bend or twist the mirror.
Humidity and chemicals can harm coatings.
Dust and dirt lower reflectivity and mean more cleaning.
Tip: Always choose the right material and coating for where the mirror will be used. This helps the mirror last longer and work better.
Optical systems use different optical mirrors to control light. Each type works best for certain jobs because of its special features. The main groups are metallic mirrors, dielectric mirrors, and metal-dielectric mirrors.
Metallic mirrors have a thin metal layer that reflects light. These mirrors work for many wavelengths, from UV to IR. The metal used changes how the mirror works.
Aluminum mirrors reflect light well in UV, visible, and near-infrared. Scientists use them in labs and astronomy. A protective coating stops corrosion and keeps the mirror smooth. This helps the mirror last longer.
Silver mirrors reflect the most light in visible and infrared. They give bright and clear images for broadband uses. Silver can tarnish if not protected. Most silver mirrors have a thin dielectric layer on top. This layer keeps the mirror shiny and safe.
Gold mirrors reflect best in near-infrared and infrared. They do not work well in visible or UV. Gold does not rust, so these mirrors last in tough places. People use gold mirrors for thermal imaging, IR spectroscopy, and space optics.
Dielectric mirrors have many thin layers of special materials. Each layer bends light differently. These mirrors reflect almost all light at some wavelengths. They can reflect more than 99.9% of light. Dielectric mirrors handle strong lasers and do not get hot. Scientists use them in lasers, precision optics, and filters. The layers are often made from silicon dioxide or metal oxides.
Metal-dielectric mirrors mix a metal layer with one or more dielectric coatings. This design gives broad reflectance and strong protection. Enhanced aluminum mirrors are a common kind. These mirrors work well in visible and UV light. The dielectric coating protects the metal and makes reflectivity higher. Metal-dielectric mirrors are good for precision optics and lasers that need high performance and long life.
Tip: Pick the right mirror type for your light source, wavelength, and environment. Each type has special benefits for different optical setups.
| Mirror Type | Defining Characteristics | Typical Use Cases |
|---|---|---|
| Metallic Mirrors | Metal coatings (aluminum, silver, gold); broad spectral coverage; protected for durability | General optics, astronomy, broadband reflectance |
| Dielectric Mirrors | Multi-layer stacks; high reflectance at specific wavelengths; high laser damage threshold | Lasers, filters, precision optics |
| Metal-Dielectric Mirrors | Metal base with dielectric overcoat; combines reflectance and protection | Enhanced reflectance, durability, laser and UV applications |
First surface mirrors are important in many optical systems. Their reflective coating is on the front, not behind glass or plastic. Light hits the coating right away and does not go through anything first. This design gives first surface mirrors some big benefits.
Advantages of First Surface Mirrors:
They lose very little light. Almost all the light bounces back. This helps keep weak signals strong, which is needed in astronomy and science tools.
There are no ghost images. The coating is on the front, so there are no extra reflections from glass. This stops double images and keeps things clear.
The image quality is very good. The reflection does not go through glass or plastic, so there is no bending or color change. This makes first surface mirrors great for precision optics, lasers, and measuring tools.
But first surface mirrors have some problems too. The coating is open to air and touch. This makes it easy to scratch or damage. People must be careful and clean these mirrors gently.
Second surface mirrors, like the ones at home, have the coating behind glass. The glass keeps the coating safe and makes the mirror last longer. But light goes through the glass two times—before and after bouncing. This can make ghost images and make the reflection less sharp.
Note: First surface mirrors are best for science, industry, and jobs where image quality is most important. Second surface mirrors are better for daily use when you need the mirror to last longer.
Picking the right optical mirror means looking at metallic and dielectric types. Each type has its own strengths and best uses. The table below shows how they are different in reflectivity, durability, and use:
| Aspect | Metallic Mirrors | Dielectric Mirrors |
|---|---|---|
| Reflectivity | High reflectivity across broad spectrum (typically 90-95%) including visible, IR, UV | Extremely high reflectivity (≥ 99%, up to 99.9%) but within a narrow, specific wavelength range |
| Durability | Moderate durability; silver can tarnish with moisture and air; aluminum more corrosion-resistant; physically robust and withstands cleaning well | Enhanced resistance to corrosion, humidity, abrasion; more durable environmentally but can be more fragile without protective coatings |
| Application | Broad-spectrum use, high-temperature and high-pressure environments | Precision applications like lasers and telescopes requiring wavelength specificity |
Key Points:
Metallic mirrors are good for systems that need to reflect many colors. They are strong and work well in tough places.
Dielectric mirrors reflect almost all light but only for certain colors. They do not rust or get damaged by water easily, but they need gentle handling.
Tip: Pick the mirror type that fits your needs. Use metallic mirrors for many uses and strong needs. Use dielectric mirrors for high-precision and special colors.
Laser systems need mirrors that can handle strong lasers. These mirrors must reflect light very well. Dielectric mirrors with many layers work best here. They can reflect more than 95% of the light. Sometimes, they reflect up to 98% depending on the color. These mirrors do not break easily from powerful laser beams. The base materials, like BK7 or synthetic fused silica, help keep the mirror flat and steady. Most laser mirrors are very flat, about λ/10. Their surface is also very smooth, with a 10-5 scratch-dig rating. These features make them good for laser cutting, marking, and science work.
| Feature | Details |
|---|---|
| Mirror Type | Dielectric mirrors with multi-layer coatings |
| Substrate Materials | BK7, Synthetic fused silica |
| Reflectance | >95% to >98% depending on wavelength |
| Laser Damage Threshold | 2 J/cm² to 5 J/cm² (varies by wavelength) |
| Incident Angle | 45° ± 3° |
| Surface Flatness | λ/10 |
| Surface Quality | Scratch-Dig 10-5 |
| Application | High-power laser systems |
Tip: Pick a mirror with a laser damage threshold higher than your laser’s power. This keeps the mirror safe and working longer.
Spectroscopy needs mirrors that are very accurate and do not bend light. The mirror must be very flat and smooth. Any bumps should be less than a quarter of the light’s wavelength. A smooth surface, like 10/5 scratch-dig, helps stop light from scattering. This keeps the results correct. Fused silica is often used because it does not change shape when it gets hot or cold. Dielectric coatings with many thin layers can reflect almost all light at certain colors. This is important for both laser and broadband spectroscopy. These coatings last a long time and can be made for different colors. Sometimes, metallic coatings are used, but they do not reflect as much light and wear out faster. Scientists use special tests, like cavity ring down spectroscopy, to check if the mirror reflects enough light and meets strict rules.
Imaging systems, like cameras and telescopes, need mirrors that give clear pictures. The type of mirror and coating depends on what the system needs. Some coatings help stop glare and make images clearer. Other coatings protect the mirror from scratches, heat, or radiation. The number of layers and how they are put on the mirror changes how well it works and how much it costs. Common coatings are anti-reflective, highly reflective, and protective. The base material matters too. It changes the mirror’s weight, how it handles heat, and if it stays in shape. Mirrors used outside or in space need to be tough. The angle of the light hitting the mirror can also change how well it works. Engineers must match the mirror’s features to the system’s light and where it will be used to get the best results.
Imaging systems may need:
Coatings for visible, infrared, or near-infrared light
Protective layers to stop scratches
Substrates that do not change shape with heat
Even coating thickness for steady performance
Note: Knowing what the imaging system needs helps you pick a mirror that works well, lasts long, and does not cost too much.
Scanning systems use mirrors to move light fast and accurately. You can find these systems in barcode readers, laser projectors, medical imaging, and 3D mapping. The right mirror helps the system scan quickly and keeps images clear. Engineers must think about the mirror’s size, shape, and how it moves.
How the mirror moves is called the actuation method. This affects how fast and precise the mirror can be. Each actuation method has good and bad points. The table below shows how common actuation methods compare:
| Actuation Method | Advantages for Speed and Precision | Disadvantages for Speed and Precision |
|---|---|---|
| Electrostatic | Fast response, low power, no heat | Needs high voltage, risk of instability |
| Electrothermal | Large scan angle, low voltage | Slow response, heat generation |
| Electromagnetic | Large scan angle, strong drive, linear | Bulky, high power use, heat dissipation needed |
| Piezoelectric | Fast response, low power | Complex build, small scan range, small surface |
Electrostatic mirrors move very fast and use little power. They are good for small, portable devices. But they need high voltage and can sometimes become unstable. Electrothermal mirrors can swing over a big angle and use low voltage. They respond slowly and get hot. Electromagnetic mirrors can move over big angles and react quickly. They are bigger and use more power. Piezoelectric mirrors react fast and use little power. They only move a little and are harder to make.
The mirror’s size and shape are important too. Small mirrors move faster and stop more exactly. Big mirrors can scan larger areas but may slow down or lose accuracy. The mirror’s flatness and coating help it reflect light well and keep the beam sharp. For fast scanning, the mirror must stay flat even when moving quickly.
Resonant galvanometer mirrors help scanning systems go very fast. These mirrors swing back and forth at set speeds, usually between 4 and 8 kHz. This lets them scan images as fast as video. They move in a smooth, wave-like way and can cover up to 24 degrees. Their design uses balanced rods to stop shaking and keep the scan steady. But their speed changes during each swing, which can make timing hard.
Tip: When picking a scanning mirror, match the actuation method and mirror size to your system’s speed and accuracy needs. For portable devices, choose fast, low-power mirrors. For scanning big areas, pick mirrors with large scan angles and steady movement.
Scanning jobs need careful choices. The right mirror and actuation method help systems scan fast, keep images clear, and work well in many places.
Many optical systems need mirrors in special sizes or shapes. People in research and industry often want custom mirrors for their setups. Some common changes are:
Diameter sizes from 3 mm to 400 mm.
Shapes like round, rectangular, or free-form.
Spherical, concave, and convex surfaces to focus or spread light.
Right angle mirrors made from BK7 glass.
Lightweight mirrors for space or portable devices.
Modern factories use robots and computers to make these shapes. This process is called Deterministic Polishing. It helps make complex surfaces fast and the same every time. It also lowers costs and makes production quicker than old ways. But very big or tricky shapes can still take longer and cost more. They need special tools and extra checks.
Tip: If you know the size and shape early, you can save time and money.
Surface quality shows how well a mirror works in any optical system. It tells how smooth and clean the mirror is. Most mirrors use a “scratch-dig” rating to show this. The table below explains some grades and what they mean:
| Surface Quality Grade | Scratch-Dig Specification | Description | Impact on System Performance |
|---|---|---|---|
| Standard Quality | 80-50 | Some scratches and digs allowed | Slightly more scattered light, mostly cosmetic |
| Precision Quality | 60-40 | Fewer defects, better for sensitive optics | Less scattering, better for imaging |
| High Precision Quality | 20-10 | Very few defects, high-quality finish | Improved throughput, less scattered light |
| Ultra High Precision | 10-5 | Almost no defects, best for lasers | Needed for UV lasers and high-power applications |

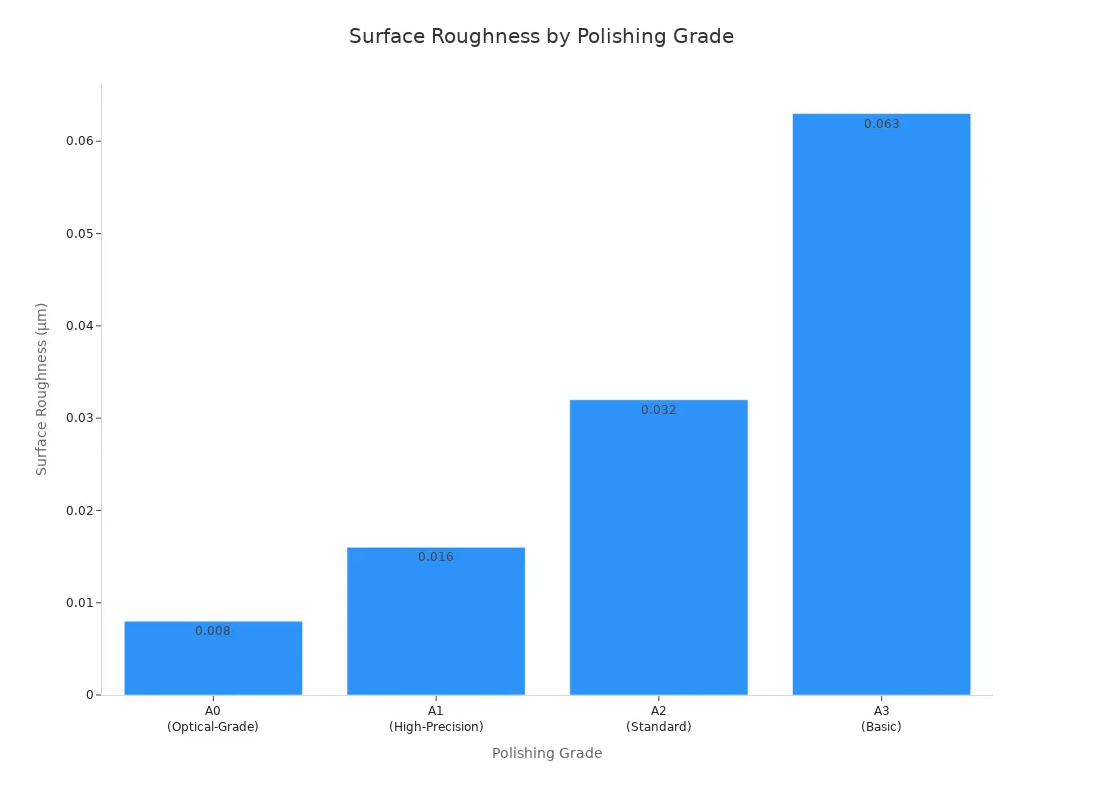

Polishing grade is important too. Ultra-smooth surfaces (A0 grade) can be as smooth as 0.008 µm. These surfaces reflect the most light and are needed for high-precision optics. Lower grades cost less but might not work as well.
The coating on an optical mirror decides how much light it reflects and which wavelengths it supports. Many jobs need a high reflection coating for the best results. Some common coatings are:
| Coating Name | Description | Reflectivity Performance |
|---|---|---|
| Protected Aluminum | Aluminum with SiO2 layer | >88% in visible range (450-650 nm) |
| Enhanced Dielectric Aluminum | Aluminum plus dielectric layers | ~95% in visible range |
| Protected Silver | Silver with dielectric protection | ~95% visible, ≥97% from 0.7 to 10 µm |
| Enhanced Silver | Silver with extra dielectric | Higher reflectivity in blue region |
| Protected Gold | Gold with dielectric overcoat | ~98% from 0.7 to 20 µm |
| Dielectric Mirror | Multilayer dielectric | >99.9% at specific wavelengths |
Different coating methods, like ion-assisted electron-beam evaporation or ion beam sputtering, have different benefits. Some ways make very stable and smooth coatings. Others are faster or cheaper. The choice depends on how much reflectivity, durability, and budget you need.
Note: Picking the right coating helps the mirror work with your system’s wavelength and power.
Some optical systems need mirrors with extra features. These features help mirrors work in hard places or follow strict rules. Engineers ask for these when normal mirrors are not enough.
Space and Vacuum Environments
Mirrors in space or vacuum face very tough conditions. They must work in very cold places, sometimes as cold as 20K. These mirrors must stay steady, even if the power is off. Small actuators, like piezo motors, move the mirror with great care. They can change the angle in tiny steps called microradians. A monolithic design means the mirror and its support are one piece. This helps the mirror cool evenly and stay strong. Isostatic kinematic mounts let the mirror handle stress from cold or moving during launch. Direct aluminum polishing makes the surface smooth and keeps the mirror’s optical quality high.
Note: Space mirrors must work well in harsh places. They need special designs and materials.
Other Common Special Requirements
Many jobs need custom features for mirrors. Here are some examples:
High-Power Lasers: Mirrors may need coatings that do not get damaged by strong laser beams. These coatings must handle lots of energy without breaking.
Cryogenic Applications: Some mirrors must work in very cold places. Materials like fused silica or special metals help the mirror keep its shape.
Radiation Resistance: In nuclear labs or space, mirrors may face high radiation. Special coatings and substrates protect the mirror from harm.
Precision Alignment: Some systems need mirrors that can be adjusted very carefully. Engineers may add mounts or actuators for easy alignment.
Cleanroom Use: Mirrors for cleanrooms must not make dust or particles. Makers use special cleaning and packing methods.
How to Specify Special Requirements
When you order a mirror with special needs, you should:
List all the things the mirror will face, like temperature, vacuum, or radiation.
Say how accurate the mirror must be, like tip-tilt control or surface flatness.
Pick materials and coatings that fit the place where the mirror will be used.
Ask for special mounting or alignment features if you need them.
Tip: If you define special needs early, you can avoid delays and extra costs. Talking clearly with the supplier helps make sure the mirror works as needed.
Special requirements help the optical mirror work well in tough or unique places. Careful planning and clear details help engineers get the right mirror for their system.
Taking care of optical mirrors helps them last longer and work better. Cleaning often keeps the mirror free from dust and dirt. A clean room protects delicate optical parts from harm. Lining up the mirror the right way makes it work its best.
Clean the mirror often so dust does not pile up.
Make sure the mirror is lined up right for good results.
Plan regular checkups for each tool you use.
Be gentle with mirrors to stop scratches or chips.
Keep your work area tidy to protect all optical parts.
Write down all cleaning and repairs to spot problems early.
Teach workers how to handle and clean mirrors the right way.
Keep extra parts close by for fast fixes or swaps.
Stay in touch with suppliers for help and quick parts.
A mirror that is cared for can work well for many years. Training and good habits stop most problems before they start.
Picking and using optical mirrors can look easy, but people often make mistakes. These errors can make the mirror work worse, not last as long, or even break costly tools. If you know what to avoid, you can get better results from your optical system.
1. Ignoring Application Requirements
Some people choose a mirror without thinking about what their system needs. They might pick a mirror with the wrong coating or wrong wavelength range. This can make the mirror reflect less light or even get damaged. Always make sure the mirror matches the light source, wavelength, and where it will be used.
2. Overlooking Angle of Incidence
People sometimes forget that the angle where light hits the mirror matters. Using the wrong angle can make the mirror reflect less light or change the color. Always check what angle is best for your mirror.
3. Neglecting Surface Quality
Scratches, dust, or marks on the surface can scatter light and make images look worse. Some users touch mirrors with bare hands or store them without covers. This can leave fingerprints or cause scratches. Always wear gloves and keep mirrors in clean, dry cases.
4. Using the Wrong Cleaning Methods
Cleaning the wrong way can ruin the mirror’s surface. Rubbing with paper towels or strong chemicals can scratch or remove coatings. The best way is to use compressed air for dust and the drag method with lens tissue for smudges.
5. Underestimating Environmental Effects
Some people do not think about humidity, temperature, or dust in the room. These things can hurt coatings or bend the mirror base. Picking the right base and protective coating helps the mirror last longer.
6. Failing to Check Laser Damage Threshold
Strong lasers can break mirrors that are not made for high energy. Some users forget to check the laser damage threshold (LDT). Always pick a mirror with an LDT higher than your laser’s power.
7. Skipping Regular Maintenance
Mirrors need to be checked and cleaned gently. If you skip this, dust, scratches, or rust can build up. A simple cleaning plan keeps mirrors working well.
Tip: You can avoid these mistakes by reading the mirror’s datasheet, following handling rules, and asking experts if you are not sure.
| Mistake | Result | How to Avoid |
|---|---|---|
| Wrong coating/wavelength | Poor reflectivity, damage | Match mirror to application |
| Wrong angle of incidence | Lower performance | Check angle specifications |
| Poor handling/cleaning | Scratches, reduced quality | Use gloves, proper cleaning |
| Ignoring environment | Shorter mirror lifespan | Choose suitable materials |
| Exceeding LDT | Mirror failure | Verify laser compatibility |
If you learn from these mistakes, you can protect your mirror and get the best results.
Picking the right optical mirror is easier with a checklist. This guide helps you remember what matters most. You can check off each step before you choose.
Find out what light source and wavelength you need.
Think about how much reflectivity your job needs.
Look at the angle where light hits the mirror.
See if polarization is important for your system.
Pick the right flatness and curvature for your mirror.
Make sure the laser damage threshold fits your laser.
Choose a substrate that works in your environment.
Get the right size and shape for your setup.
Check if humidity or temperature will affect the mirror.
Pick a coating that gives good reflectivity and lasts long.
Plan how you will clean and take care of the mirror.
Write down any special needs, like custom shapes or high precision.
✅ Use this checklist to make sure you think about everything before you buy an optical mirror.
The table below lets you compare mirror types and their features. It shows which mirror is best for different jobs. You can match your needs to the right mirror quickly.
| Application | Best Mirror Type | Key Properties to Check | Typical Coating |
|---|---|---|---|
| Laser Systems | Dielectric | High reflectivity, high LDT | Multi-layer dielectric |
| Spectroscopy | Dielectric/Metallic | Flatness, wavelength range | Protected silver/aluminum |
| Imaging | Metallic/Dielectric | Surface quality, durability | Protected silver |
| Scanning | Metallic | Lightweight, fast response | Protected aluminum |
| Industrial Use | Metallic/Dielectric | Durability, environmental resistance | Enhanced aluminum/silver |
You can use this table to compare choices and decide fast.
This quick reference section gives you an easy way to check your steps. It helps you remember what to do and make better choices for any optical system.
Choosing the right optical mirror means you must know what your project needs. This guide helps you find a mirror that fits your system. The checklist and table make picking a mirror easier and faster. If you have special needs, you should ask experts or suppliers for help. You can also write your questions or stories in the comments.
A metallic mirror uses a thin metal layer to reflect light. A dielectric mirror uses many thin layers of special materials. Dielectric mirrors reflect more light at certain colors. Metallic mirrors work for a wider range of colors.
The angle of incidence changes how much light the mirror reflects. At larger angles, some mirrors reflect less light or shift the color. Always check the mirror’s data for the best angle.
Not all mirrors work with every laser. High-power lasers need mirrors with a high laser damage threshold. The mirror’s coating and material must match the laser’s wavelength and power.
Use compressed air or dry gas to remove dust. For smudges, use the drag method with lens tissue and isopropyl alcohol. Never touch the surface with bare hands. Always wear gloves.
Surface flatness keeps the light beam sharp and focused. If the mirror is not flat, the image can look blurry or bent. High flatness is important for lasers and cameras.
Store mirrors in a clean, dry place. Wrap each mirror in lens tissue. Keep them in a case to protect from dust and scratches. Do not stack mirrors on top of each other.
Yes, many suppliers offer custom sizes, shapes, and coatings. Users should share their needs early. Custom mirrors help systems work better in unique or harsh environments.
