Views: 234 Author: Site Editor Publish Time: 2025-05-19 Origin: Site
Last updated: July 15, 2026
A microscope objective is the optical assembly positioned closest to the specimen. It collects light from the specimen and provides the primary magnification used to form the microscope image. In an infinity-corrected microscope, the objective produces parallel light rays and a tube lens forms the intermediate image.
A common three-objective teaching configuration includes 4x, 10x, and 40x objective lenses. With a 10x eyepiece, these objectives provide 40x, 100x, and 400x visual magnification. Many laboratory microscopes also include a 100x oil-immersion objective, although microscope configurations vary by manufacturer and application.
This guide explains what microscope objectives do, how the common objective powers differ, how to calculate total magnification, and how numerical aperture, working distance, optical correction, and immersion medium affect image quality.
The objective is the optical assembly closest to the specimen and provides the primary magnification of the microscope image.
A common three-objective teaching configuration uses 4x scanning, 10x low-power, and 40x high-power objectives.
With a 10x eyepiece, 4x, 10x, and 40x objectives provide 40x, 100x, and 400x total visual magnification.
Many laboratory microscopes add a 100x oil-immersion objective, producing 1000x total visual magnification with a 10x eyepiece.
Higher magnification does not automatically provide better resolution. Numerical aperture, illumination wavelength, optical correction, and system compatibility also matter.
Lower-power objectives generally provide a wider field of view and longer working distance, making it easier to locate and center a specimen.
Common objective color bands are red for 4x, yellow for 10x, light blue for 40x, and white for 100x, but the engraved specifications should always be checked.
Oil, water, glycerol, and dry objectives require different imaging media. Use only the immersion medium specified by the objective manufacturer.
The objective lens is one of the most important parts of a microscope’s imaging system. It performs several related functions.
Collecting light: The objective captures light transmitted through, reflected from, or emitted by the specimen.
Providing primary magnification: The objective enlarges the specimen information before it reaches the eyepiece or camera.
Resolving fine detail: The objective’s numerical aperture is a major factor in determining the smallest specimen details the microscope can distinguish.
Controlling the field of view: Lower magnification normally shows a larger specimen area, while higher magnification shows a smaller area.
Establishing working distance: The objective design determines the distance between its front element and the specimen when the image is in focus.

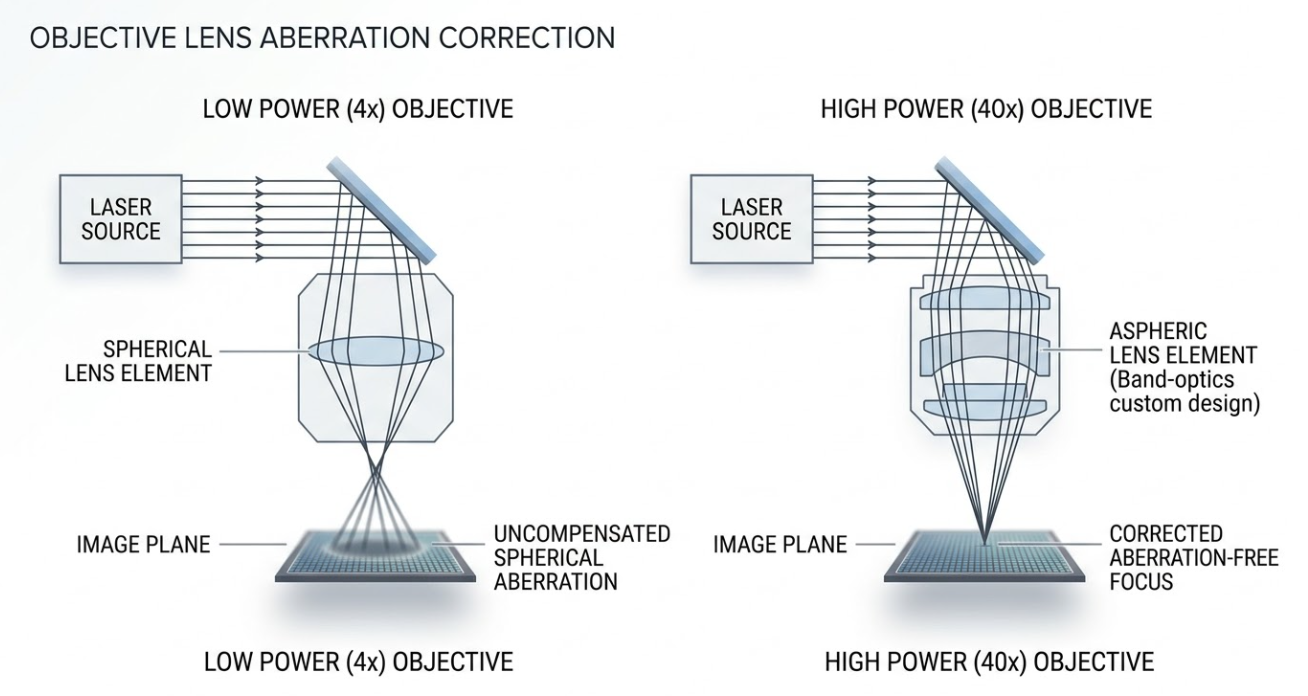

Correcting optical aberrations: Objective designs provide different levels of correction for chromatic aberration, spherical aberration, and field curvature.
In a finite-conjugate microscope, the objective forms the intermediate image directly. In a modern infinity-corrected microscope, the objective sends approximately parallel rays into the microscope body, and the tube lens forms the intermediate image. This distinction matters because infinity-corrected objectives must be matched with the correct tube-lens system.
In a common educational compound microscope, the three objective lenses are:
4x scanning objective
10x low-power objective
40x high-power objective
Some classroom materials call the 4x objective “low power” and the 10x objective “medium power.” These names are not completely consistent across manufacturers and teaching systems. The magnification engraved on the objective barrel is therefore more reliable than the descriptive name.
| Objective | Common Description | Total Magnification with 10x Eyepiece | Common Color Band | Typical Purpose |
|---|---|---|---|---|
| 4x | Scanning objective | 40x | Red | Finding, centering, and surveying the specimen |
| 10x | Low-power objective | 100x | Yellow | General observation and initial examination |
| 40x | High-power objective | 400x | Light blue | Observing smaller structures and finer detail |
| 100x | High-power immersion objective in many biological systems | 1000x | White | High-resolution observation when the objective and specimen preparation are compatible |
The color codes above are common magnification codes documented by Nikon MicroscopyU and used by many manufacturers. Specialized objectives may use additional markings for immersion medium, optical correction, phase contrast, or other functions. Always verify the complete barrel marking and manufacturer’s data sheet.

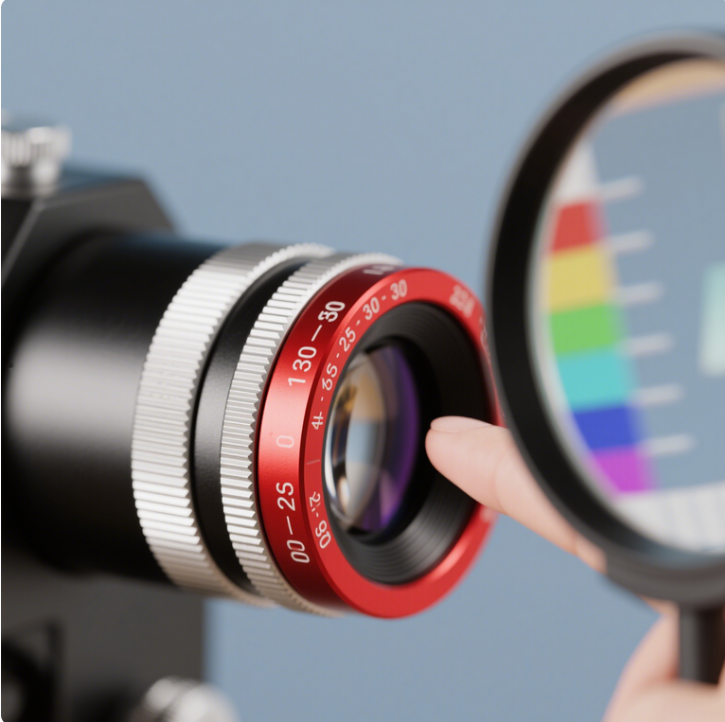

The 4x scanning objective is normally used to begin an observation. It provides a large field of view, making it easier to locate the specimen and place the area of interest near the center of the optical path.
With a 10x eyepiece, the calculation is:
4x objective × 10x eyepiece = 40x total visual magnification
A lower-magnification objective generally has a longer working distance than a conventional higher-magnification objective. However, actual working distance depends on the objective series, numerical aperture, optical correction, and whether the objective has a long-working-distance design.
Typical uses for a 4x objective include:
Finding a specimen on a prepared slide
Surveying a large tissue section
Centering the area that will later be viewed at higher magnification
Inspecting the overall arrangement of larger features

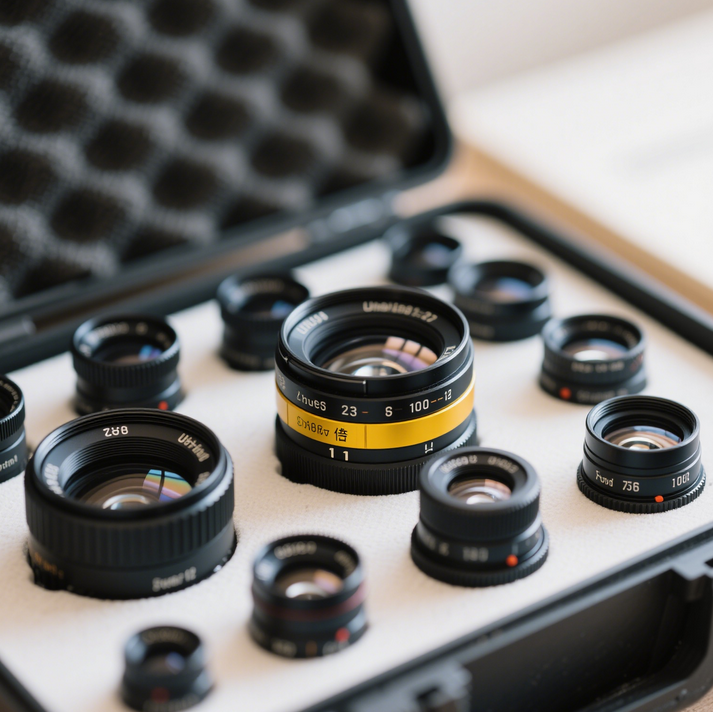

The 10x objective is commonly used for general observation after the specimen has been located at 4x. It provides more detail than the scanning objective while maintaining a relatively practical field of view and working distance.
With a 10x eyepiece:
10x objective × 10x eyepiece = 100x total visual magnification
Typical uses for a 10x objective include:
Examining general tissue organization
Locating cells or structures for higher-power observation
Routine brightfield examination
Initial focusing and illumination adjustment
Some educational materials describe 10x as a medium-power objective. Because this terminology varies, users should identify the objective by its engraved 10x magnification.

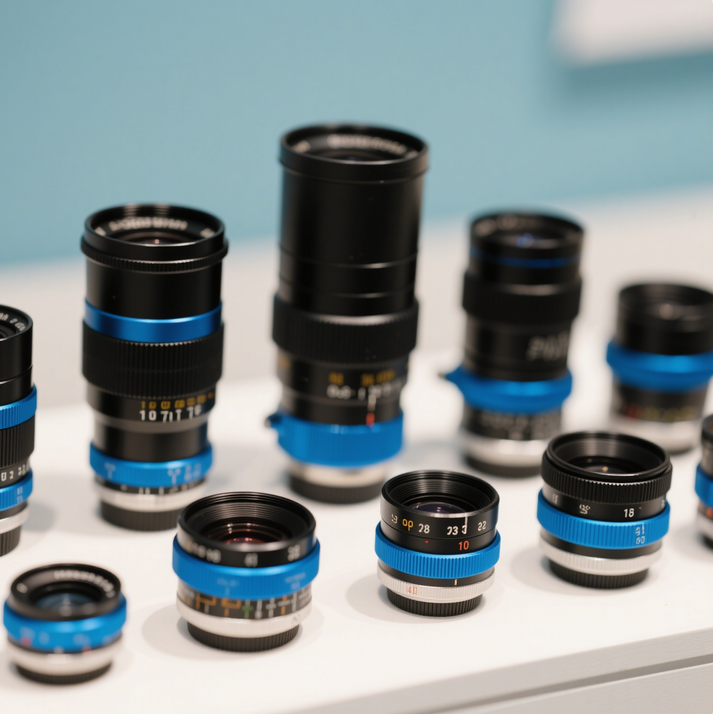

The 40x objective is commonly used to observe finer specimen details. Compared with 4x and 10x objectives, it normally provides a smaller field of view and shorter working distance.
With a 10x eyepiece:
40x objective × 10x eyepiece = 400x total visual magnification
The specimen should be located and centered with a lower-power objective before switching to 40x. Fine focus should be used carefully because the objective front element is closer to the coverslip.
Typical uses for a 40x objective include:
Observing smaller cell structures
Examining fine details in prepared biological specimens
Inspecting smaller surface features
Performing higher-detail imaging when the objective and illumination are correctly matched
A 40x objective does not automatically provide greater resolved detail than every lower-magnification objective. Useful resolution also depends on numerical aperture, illumination wavelength, specimen contrast, coverslip conditions, and optical correction.
Many biological laboratory microscopes include a 100x oil-immersion objective in addition to 4x, 10x, and 40x objectives. Other 100x designs also exist, including dry or alternative immersion objectives, so the barrel marking must be checked before use.
With a 10x eyepiece:
100x objective × 10x eyepiece = 1000x total visual magnification
An oil-immersion objective is designed to operate with a specified immersion oil between the coverslip and the objective front lens. The immersion medium reduces the refractive-index discontinuity in the optical path and allows the objective to collect a wider cone of image-forming light.
According to Evident’s microscopy technical resources, many oil-immersion objectives have numerical apertures between approximately 1.0 and 1.35, while some designs reach about 1.40. These values are not specifications for every 100x objective; the actual NA must be read from the objective barrel or product data sheet.
Important operating rules include:
Use immersion oil only with an objective marked for oil immersion.
Do not replace oil with water or glycerol unless the objective is specifically designed for that medium.
Use the immersion oil recommended by the microscope or objective manufacturer.
Remove immersion oil after use according to the manufacturer’s cleaning procedure.
Do not rotate a dry objective through immersion oil and contaminate its front element.
For direct visual observation through an eyepiece, total magnification is calculated by multiplying objective magnification by eyepiece magnification.
Total visual magnification = objective magnification × eyepiece magnification
| Objective Magnification | Eyepiece Magnification | Total Visual Magnification |
|---|---|---|
| 4x | 10x | 40x |
| 10x | 10x | 100x |
| 40x | 10x | 400x |
| 100x | 10x | 1000x |
This calculation applies to visual observation when no additional magnification-changing component is present. Intermediate lenses, zoom systems, camera adapters, relay optics, sensor size, and display magnification can change the final image scale in a digital imaging system.
| Characteristic | Lower-Power Objective | Higher-Power Objective |
|---|---|---|
| Visible specimen area | Generally larger | Generally smaller |
| Working distance | Generally longer in conventional objective series | Generally shorter, unless specially designed for long working distance |
| Finding the specimen | Easier | More difficult |
| Focusing sensitivity | Lower | Higher |
| Typical role | Scanning and general observation | Observing smaller details |
| Potential resolution | Depends on NA and system design | Can be higher when NA and system conditions support it |
Working distance should not be estimated from magnification alone. Nikon MicroscopyU notes that actual working distance varies widely with optical correction, numerical aperture, manufacturer, and application. Long-working-distance objectives can therefore differ substantially from conventional objectives of the same magnification.
For a focused comparison, read Low-Power vs High-Power Microscope Objectives.
In a common 4x, 10x, and 40x three-objective configuration, the 4x scanning objective provides the least total magnification.
When used with a 10x eyepiece:
4x × 10x = 40x total visual magnification
This answer applies specifically to a microscope whose lowest installed objective is 4x. Some microscope systems include 1x, 2x, 2.5x, or other lower-magnification objectives. The installed objective with the lowest engraved magnification will provide the least objective magnification.
Learn more in Which Objective Lens Has the Lowest Magnifying Power?
Among 4x, 10x, and 40x objectives, the 40x objective provides the highest total magnification. With a 10x eyepiece, it provides 400x total visual magnification.
If the same microscope also includes a 100x objective, the 100x objective provides 1000x total visual magnification with a 10x eyepiece.
However, the highest numerical magnification is not always the most useful setting. Magnification beyond the optical system’s resolving capability only makes the existing blur larger without revealing additional specimen detail. This is commonly called empty magnification.
Objective barrels contain important technical information. A hypothetical marking such as:
Plan 40x/0.65 ∞/0.17
may communicate the following information:
| Marking | Meaning |
|---|---|
| Plan | The objective is designed to provide improved field flatness. |
| 40x | The nominal objective magnification when used with the intended tube-lens system. |
| 0.65 | The objective’s numerical aperture. |
| ∞ | The objective is intended for an infinity-corrected optical system. |
| 0.17 | The objective is designed for a nominal 0.17 mm coverslip under the specified conditions. |
This example does not describe every 40x objective. Magnification, NA, coverslip requirements, immersion medium, tube-lens compatibility, correction collar, and optical correction vary between objective models.
Other common markings include:
Oil: Use the specified immersion oil.
W or Water: Use the specified water-immersion conditions.
Gly or Glycerol: Use the specified glycerol immersion medium.
Achromat: An objective with basic chromatic and spherical aberration correction.
Fluor or Fluorite: An objective with a higher correction level and generally higher performance than a basic achromat.
Apo or Apochromat: A highly corrected objective designed for demanding color and resolution performance.
LWD, ELWD, or SLWD: Long, extra-long, or super-long working-distance designs.
Ph: An objective designed for a specified phase-contrast system.
Infinity-corrected objective systems are not automatically interchangeable between microscope brands. Tube-lens focal length, correction strategy, mounting thread, parfocal distance, and other design factors must be compatible.

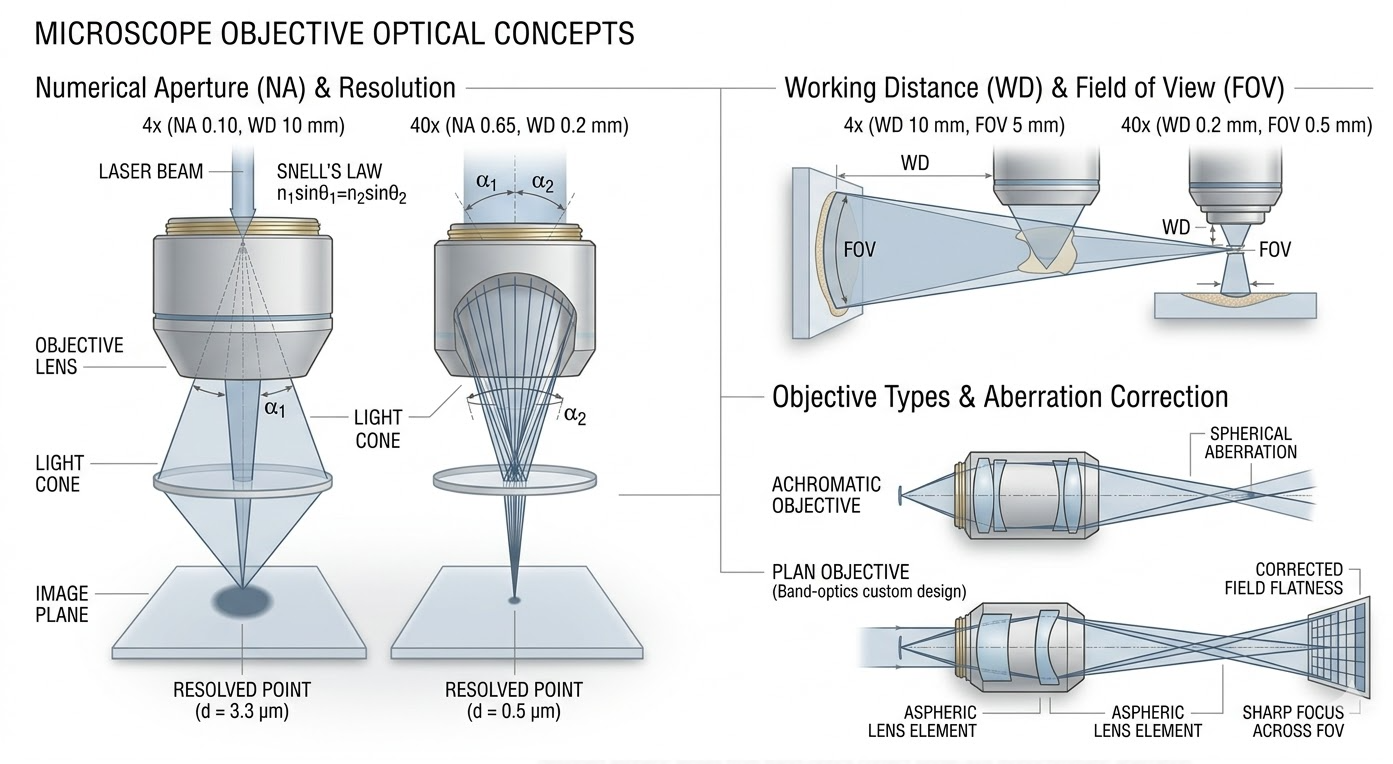

Numerical aperture is a measure related to the angular range of light an objective can collect and the refractive index of the medium between the specimen and objective.
The standard expression is:
NA = n × sin(θ)
Where:
n is the refractive index of the imaging medium.
θ is half the angular aperture of the objective’s accepted light cone.
For a simplified diffraction-limited system, lateral resolution is commonly expressed as:
d ≈ λ / (2 × NA)
Where:
d is the minimum separation between two points that can be resolved under the stated model.
λ is the illumination wavelength.
NA is the numerical aperture.
The formula shows why magnification alone does not determine resolution. A shorter illumination wavelength or higher numerical aperture can reduce the theoretical resolvable distance. Actual image performance also depends on aberration correction, illumination, contrast method, specimen preparation, sampling, alignment, and system compatibility.
Nikon MicroscopyU gives a commonly used practical range for total useful magnification of approximately:
500 to 1000 × objective NA
This is a guideline rather than a universal guarantee. Magnifying an image beyond the useful range does not necessarily reveal additional detail.
The answer cannot be determined from magnification alone. Compare the numerical aperture and the full optical design of the objectives.
Within comparable objective designs, a higher numerical aperture means the objective can accept a wider cone of image-forming light. This generally supports greater resolving capability and can increase collected signal, but final image brightness also depends on magnification, illumination mode, transmission, exposure, camera settings, and specimen properties.
Therefore, a 40x objective should not automatically be described as collecting more light than every 10x objective. The actual NA and system conditions must be compared.
The specimen field diameter viewed through an eyepiece can often be estimated with:
Specimen field diameter ≈ eyepiece field number ÷ objective magnification
This simplified relationship applies when no additional magnification-changing optics are present. It explains why increasing objective magnification generally reduces the visible specimen area.
Working distance is the distance between the objective’s front element and the specimen or coverslip when the specimen is in focus. In conventional objective series, working distance generally decreases as magnification and numerical aperture increase. Specialized long-working-distance objectives are important exceptions.
Do not publish one fixed working-distance value for all 10x, 40x, or 100x objectives. The correct value must come from the data sheet for the specific objective model.
Objective selection should begin with the application, not with the highest available magnification.
| Selection Factor | Why It Matters |
|---|---|
| Magnification | Determines the nominal image scale when used with the intended microscope system. |
| Numerical aperture | Affects light collection and diffraction-limited resolving capability. |
| Working distance | Determines the physical clearance available between the objective and specimen. |
| Field of view | Determines how much of the specimen can be observed at one time. |
| Optical correction | Affects chromatic correction, spherical correction, and field flatness. |
| Immersion medium | Must match the objective design: dry, oil, water, glycerol, silicone, or another specified medium. |
| Coverslip requirement | High-NA objectives can be sensitive to coverslip thickness and specimen mounting conditions. |
| Tube-lens system | Infinity-corrected objectives must be matched to a compatible tube lens. |
| Wavelength range | Coatings and aberration correction must suit the illumination and detection wavelengths. |
| Contrast method | Brightfield, fluorescence, phase contrast, DIC, and other methods can require different objective features. |
| Observation Task | Common Starting Point |
|---|---|
| Find and center a specimen | 4x scanning objective |
| General observation | 10x objective |
| Observe smaller specimen structures | 40x objective, when compatible with the specimen and imaging method |
| High-NA biological observation | A compatible immersion objective selected for the specimen and method |
| OEM inspection or compact imaging system | An objective selected or designed from system-level optical requirements |
Place the prepared specimen on the microscope stage.
Select the 4x scanning objective.
Locate and center the area of interest.
Adjust illumination and focus according to the microscope manufacturer’s instructions.
Rotate to the 10x objective and refine focus.
Re-center the feature before moving to 40x because the field of view will become smaller.
At 40x, use the appropriate fine-focus procedure and avoid contact between the objective and coverslip.
Use immersion medium only if the selected objective is specifically designed for it.
These are general principles. Always follow the operating instructions for the specific microscope, objective, stage, specimen holder, and focusing system.
Objective lenses are precision optical components with sensitive optical surfaces and coatings. Use the cleaning method specified by the microscope or objective manufacturer.
Inspect the optical surface under suitable illumination before cleaning.
Remove loose dust with an appropriate clean air blower.
Use optical-grade lens paper rather than facial tissue, paper towels, or ordinary cloth.
Apply a small amount of manufacturer-approved cleaning fluid to the lens paper rather than flooding the objective.
Wipe the optical surface gently using the method recommended by the manufacturer.
Use a fresh piece of lens paper for each cleaning pass.
Inspect the surface again for oil, dust, fibers, or residue.
Evident/Olympus publishes a general method using lens paper and a suitable lens-cleaning fluid, but material and coating compatibility can differ. Follow the instructions for the specific objective instead of assuming that one solvent is safe for every optical assembly.
After using an oil-immersion objective, remove the oil promptly according to the objective manufacturer’s procedure. Avoid transferring oil to dry objectives when rotating the nosepiece.
When a standard catalog objective does not satisfy the required working distance, field of view, wavelength range, mechanical envelope, or imaging performance, the objective may need to be evaluated as part of the complete optical system.
For an engineering review, prepare the following information:
Target magnification
Required numerical aperture or resolution
Working distance
Object and image field requirements
Wavelength range
Tube-lens focal length or finite conjugate distance
Sensor format and pixel size
Optical correction requirements
Mechanical mounting dimensions
Operating environment and production quantity
View Band Optics Micro-Objective Capabilities | Submit an Optical Design Requirement
The objective collects image-forming light from the specimen and provides the primary magnification. Its numerical aperture, optical correction, working distance, and compatibility with the microscope system strongly influence image quality.
A common three-objective educational configuration includes 4x scanning, 10x low-power, and 40x high-power objectives. Other microscopes may include more or different objective magnifications.
A lower-power objective is used to locate, center, and observe a relatively large specimen area. It generally provides a wider field of view and longer working distance than a conventional higher-power objective.
A high-power objective enlarges a smaller specimen area for detailed observation. The amount of resolved detail depends on numerical aperture and the complete optical system, not magnification alone.
In a 4x, 10x, and 40x set, the 4x objective provides the least total magnification. With a 10x eyepiece, it provides 40x total visual magnification.
Among 4x, 10x, and 40x objectives, the 40x objective provides the highest total magnification. If a 100x objective is installed, it provides greater objective magnification than the other three.
Under a widely used objective color-coding convention, a 10x low-power objective has a yellow band and a 40x high-power objective has a light-blue band. The engraved magnification and specifications should still be checked because descriptive terms and specialized markings vary.
Not when it is viewed through a magnifying eyepiece. A 40x objective combined with a 10x eyepiece provides 400x total visual magnification.
No. Resolution depends strongly on numerical aperture and illumination wavelength. Magnification beyond the detail resolved by the optical system produces a larger image without revealing additional information.
This cannot be determined from magnification alone. Compare the numerical aperture, transmission, immersion medium, illumination conditions, and complete objective design.
Only if the 40x objective is specifically marked and documented as an oil-immersion objective. Many 40x objectives are dry objectives and must not be immersed in oil.
It depends on the objective design. Many 100x biological objectives are designed for oil immersion, but dry and other immersion variants exist. Follow the barrel marking and manufacturer’s data sheet.
Nikon MicroscopyU. Microscope Objective Specifications . Reference for objective barrel markings, magnification color codes, immersion-media codes, and optical specifications.
Nikon MicroscopyU. Properties of Microscope Objectives . Reference for numerical aperture and diffraction-limited resolution.
Nikon MicroscopyU. The Microscope Optical Train . Reference for objective, eyepiece, tube-lens, intermediate-image, and total-magnification principles.
Nikon MicroscopyU. Objective Working Distance . Reference for working distance and its relationship with magnification, numerical aperture, and objective design.
Nikon MicroscopyU. Useful Magnification Range . Reference for the practical guideline relating useful magnification to objective numerical aperture.
ZEISS Microscopy. Understanding Numerical Aperture and Image Resolution . Reference for the effect of numerical aperture on microscope resolution.
ZEISS Microscopy. Microscope Objective Specifications . Reference for magnification, aperture, corrections, immersion medium, and barrel labeling.
Leica Microsystems. Microscope Objective Lens . Reference for objective function, numerical aperture, resolution, working distance, and depth of field.
Leica Microsystems. What Is Empty Magnification? . Reference for the difference between numerical magnification and resolved image detail.
Evident Scientific. Numerical Aperture . Reference for numerical aperture, immersion media, and typical oil-immersion objective ranges.
Evident Scientific. Immersion Media . Reference for oil, water, glycerol, refractive index, and immersion-objective operation.
Evident/Olympus Life Science. How to Clean and Sterilize Your Microscope . Reference for lens paper, cleaning fluid, wiping method, and post-cleaning inspection.
This article provides general optical and microscopy information. Objective specifications and operating requirements vary by product. Always verify the barrel marking, technical data sheet, and manufacturer’s operating instructions for the exact objective and microscope system being used.
