B270 Windows are optical components manufactured from B270 optical glass, a material known for its high transmission in the visible spectrum and good homogeneity. These windows are commonly used where optical clarity, dimensional stability, and cost efficiency are required without the need for premium optical glass grades.
Band Optics produces B270 Windows for OEMs, system integrators, and equipment manufacturers across imaging, illumination, and inspection industries. B270 glass is particularly well suited for applications such as protective covers, viewing windows, and optical interfaces in controlled environments. All products are manufactured under a custom optics wholesale model, ensuring dimensions, tolerances, and finishing are matched to system requirements.
Engineering support and production coordination are available directly through www.band-optics.com.
B270 Windows provide excellent transmission across the visible wavelength range. This makes them suitable for cameras, displays, sensors, and lighting systems where color fidelity and brightness are important.
Compared to higher-grade optical materials, B270 offers a strong balance between optical performance and affordability. This makes B270 Windows ideal for volume applications where performance consistency and budget control are both critical.

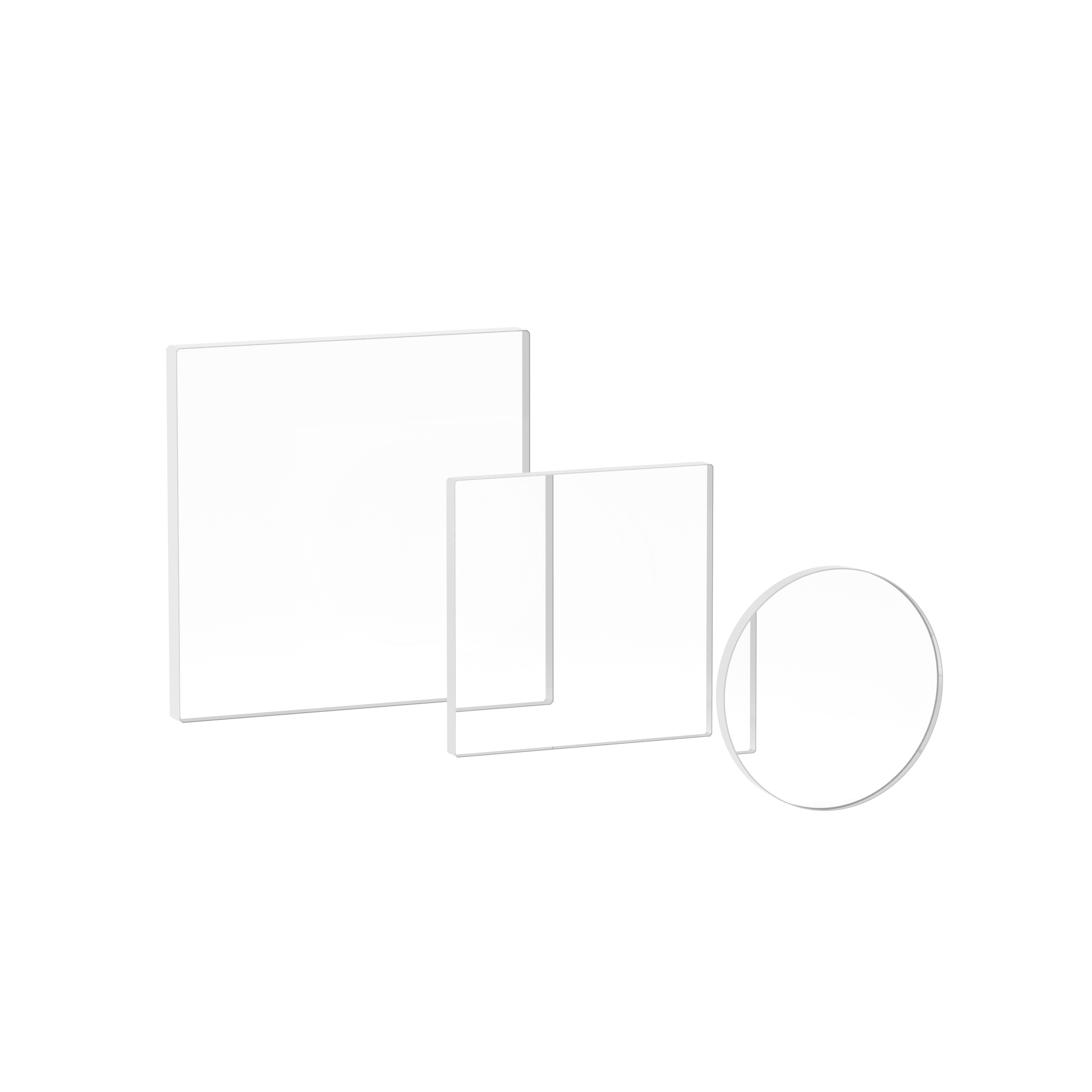

As a custom optics wholesale supplier, Band Optics supports round, rectangular, and custom-shaped B270 Windows. Thickness, edge finishing, and surface quality can be tailored for mechanical and optical integration.
B270 glass blanks are cut and shaped using CNC-controlled processes to achieve tight dimensional tolerances. Custom geometries are supported for specific system designs.
Polishing processes deliver smooth surfaces and controlled flatness suitable for optical transmission. Each B270 Window is inspected to meet defined surface quality standards.
Band Optics supports prototype development, pilot runs, and volume manufacturing. All workflows are designed for reliability and repeatability within custom optics wholesale supply chains. Manufacturing capabilities and consultation are available at www.band-optics.com.
B270 Windows manufactured by Band Optics are commonly used in:
Machine vision and inspection systems
Camera and imaging device protection
LED lighting and illumination optics
Display covers and viewing panels
Laboratory and educational optical equipment
These applications benefit from high transmission, stable quality, and economical material selection.
| Parameter | Typical Range |
|---|---|
| Material | B270 Optical Glass |
| Wavelength Range | 380–1100 nm |
| Optical Transmission | > 92% (visible, typical) |
| Surface Flatness | λ/4 @ 632.8 nm |
| Surface Quality | 60/40 or better |
| Thickness Tolerance | ±0.1 mm |
| Clear Aperture | > 90% |
| Coating Options | Uncoated or AR (optional) |
In-house cutting, polishing, edge finishing, and inspection facilities ensure consistent dimensional and optical quality.
ISO-certified quality systems support traceability, process consistency, and compliance with international optical manufacturing standards.
Long-term cooperation with global OEMs and system integrators demonstrates reliability in large-scale optical component supply.
They are commonly used as optical or protective windows in visible-light systems such as cameras, sensors, and illumination equipment.
B270 offers high visible transmission and good uniformity at a lower cost than premium optical glasses, making it suitable for many commercial applications.
Yes. Dimensions, thickness, surface quality, edge finishing, and coatings can all be customized to meet specific requirements.
No. All B270 Windows are produced exclusively under a custom and wholesale-only manufacturing model.
Quality is ensured through controlled machining, polishing, optical inspection, and ISO-based quality management systems.
