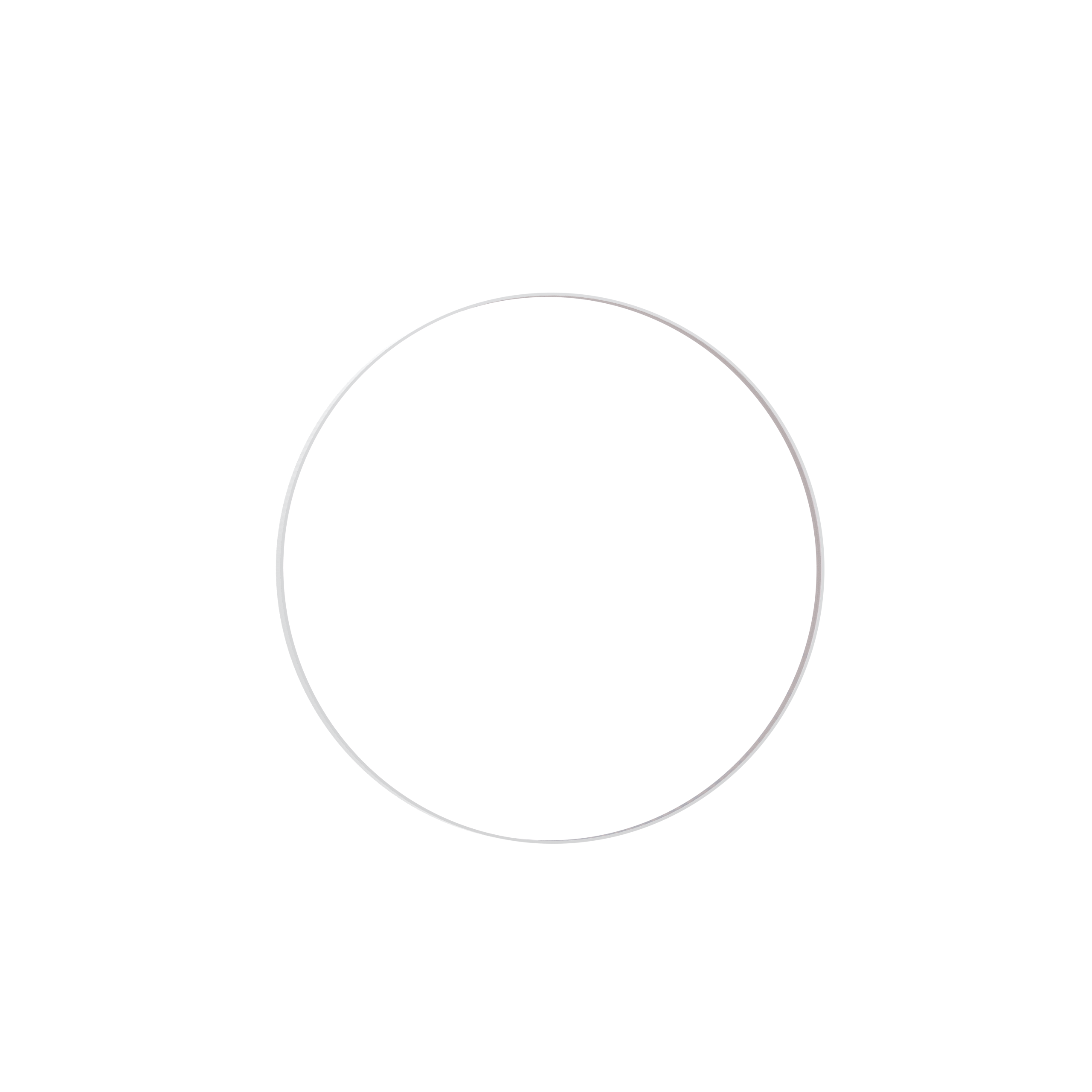

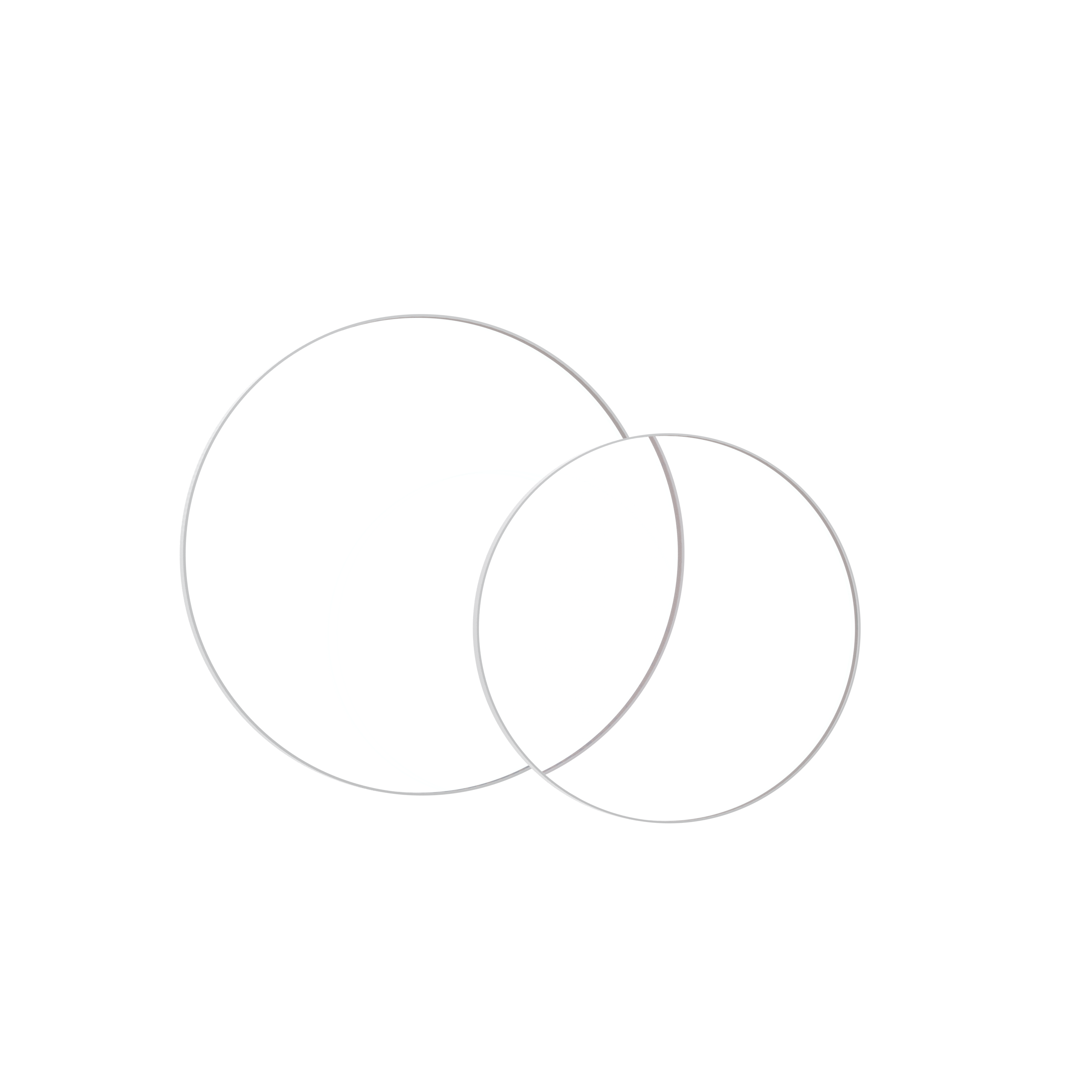

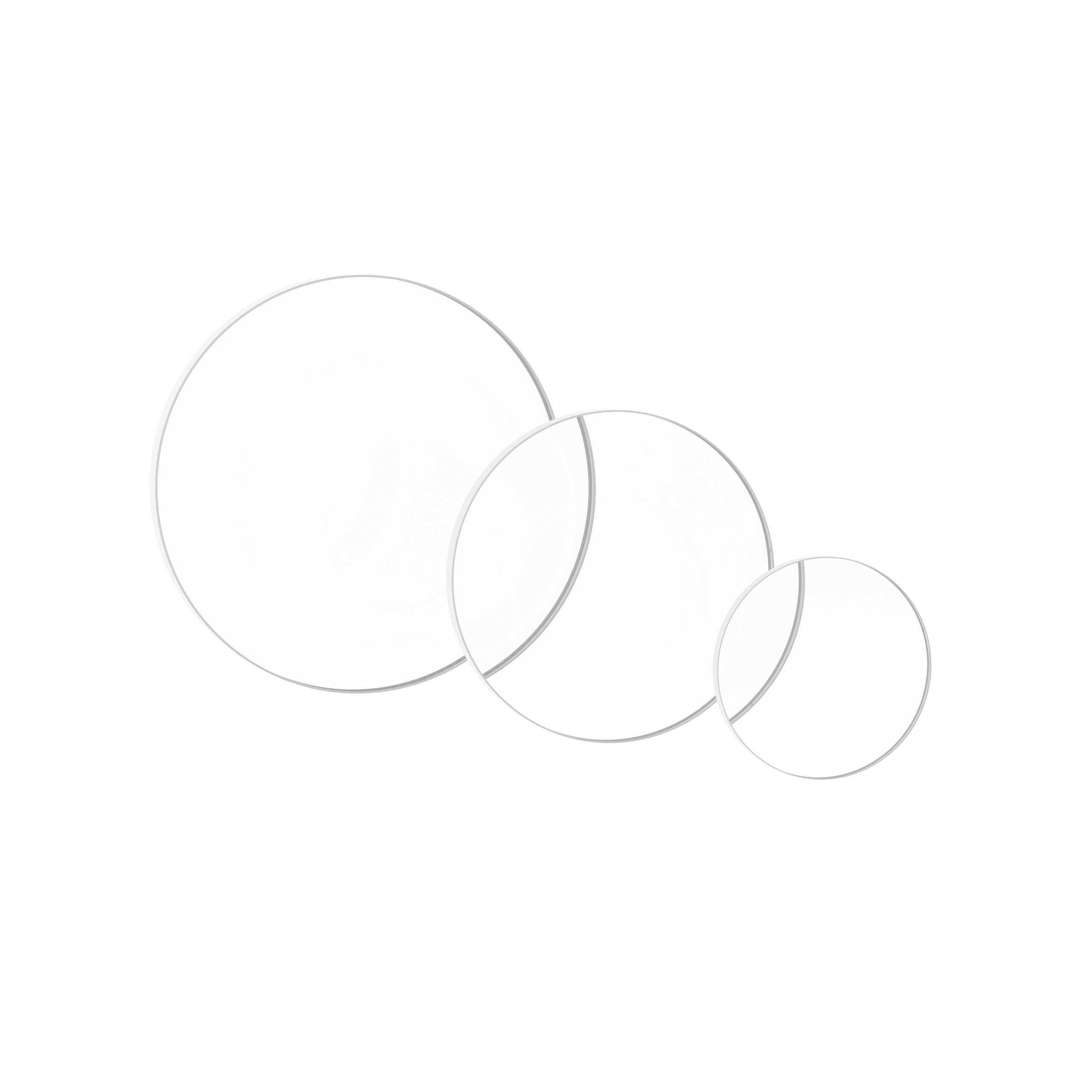

N-BK7 Wedged Windows are precision optical components engineered with a small wedge angle between the two surfaces. This geometry prevents parallel reflections, reducing etalon effects and ghost images that can interfere with system accuracy. As a result, these windows are essential in laser cavities, imaging paths, and sensitive measurement instruments.
Band Optics manufactures N-BK7 Wedged Windows for OEMs, research institutes, and system integrators who require consistent optical performance and mechanical reliability. N-BK7 glass is widely selected for its excellent homogeneity, transmission, and cost efficiency in visible and near-infrared applications. All products follow a custom optics wholesale model to ensure each window meets exact system specifications.
Customers working directly with Band Optics through www.band-optics.com receive engineering support from design validation to volume production.
The controlled wedge angle in N-BK7 Wedged Windows separates secondary reflections from the primary optical path. This significantly improves signal quality in interferometry, laser alignment, and imaging systems.
N-BK7 offers high transmission, low bubble content, and stable refractive index properties. These characteristics make N-BK7 Wedged Windows suitable for precision optical assemblies requiring predictable behavior.
As a custom optics wholesale manufacturer, Band Optics supports a wide range of diameters, thicknesses, and wedge angles. This flexibility allows N-BK7 Wedged Windows to integrate seamlessly into custom optical designs.
Optical blanks are cut and ground to achieve the specified wedge angle. Angular tolerances are tightly controlled to ensure consistent beam separation.
Advanced polishing processes deliver smooth surfaces and accurate flatness. Each N-BK7 Wedged Window is inspected to meet defined surface quality standards.
Band Optics supports prototype development, small-batch orders, and large-scale manufacturing. Production workflows are optimized for reliability and repeatability within custom optics wholesale supply chains. Additional details are available at www.band-optics.com.
N-BK7 Wedged Windows produced by Band Optics are commonly used in:
Laser systems requiring reflection suppression
Imaging and projection optics
Interferometry and metrology equipment
Optical sensors and detectors
Scientific research and laboratory instruments
These applications benefit from reduced interference and stable optical transmission.
| Parameter | Typical Range |
|---|---|
| Material | N-BK7 Optical Glass |
| Wavelength Range | 350–2000 nm |
| Wedge Angle | 0.5° – 5° (custom) |
| Surface Flatness | λ/8 @ 632.8 nm |
| Surface Quality | 40/20 or better |
| Thickness Tolerance | ±0.1 mm |
| Clear Aperture | > 90% |
| Coating Options | Uncoated or AR (optional) |
In-house cutting, polishing, coating, and inspection facilities ensure consistent optical quality and dimensional accuracy.
ISO-certified quality systems support traceability, process control, and compliance with international optical manufacturing standards.
Long-term partnerships with global OEMs, system integrators, and research organizations demonstrate technical expertise and delivery reliability.
A wedged window prevents parallel surface reflections, reducing ghost images and interference effects in optical systems.
N-BK7 provides excellent optical clarity, stable refractive properties, and cost-effective performance for visible and near-infrared applications.
Yes. N-BK7 Wedged Windows can be fully customized in diameter, thickness, wedge angle, and surface quality.
No. All N-BK7 Wedged Windows are manufactured exclusively under a custom and wholesale-only model.
Quality is ensured through precision machining, controlled polishing processes, and inspection under ISO-certified quality systems.
