Mastering the F-theta scanning lens is essential for anyone working with high-precision laser systems. Whether you’re into laser engraving, cutting, LIDAR, or medical imaging, understanding how F-theta lenses work—and why they outperform traditional optics—can seriously upgrade your results. In this guide, we’ll explore how these flat-field lenses ensure consistent focus, reduce spot distortion, and enable ultra-accurate scanning. Ready to discover the power of F-theta lens technology and its real-world applications? Let’s dive in.

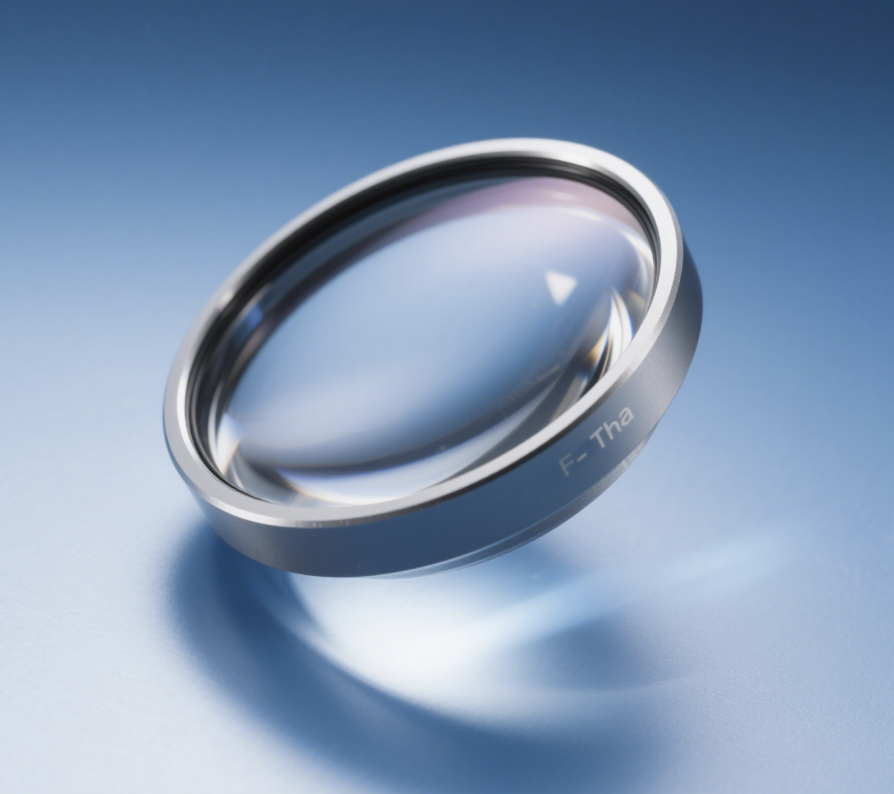

An F-theta scanning lens is a specialized optical component used in laser scanning systems. It focuses a laser beam onto a flat imaging plane rather than a curved one—unlike standard spherical lenses.This lens works alongside galvanometer scanners. These scanners move mirrors that deflect the laser beam across a surface. The F-theta lens corrects how the beam is focused, so the laser spot stays small and consistent across the entire scan area.
In laser engraving, marking, and cutting machines, these lenses ensure uniform beam quality, even at the edges. Without it, you’d get blurry or stretched laser spots far from the center.
“F” refers to the focal length of the lens.
“Theta (θ)” is the scan angle—the angle at which the laser beam hits the lens.
Put together, F-theta describes a key feature of this lens:
It produces an image height that’s linearly proportional to the product of the focal length and the scan angle (θ).
In regular lenses, as the scan angle changes, the image height shifts non-linearly. That’s a big problem in laser systems where precision matters.But F-theta lenses change the game. They maintain a linear relationship between the angle and the position of the laser spot on the work surface. So when the mirror deflects the laser beam by 10°, the spot shifts exactly as expected—no surprises.

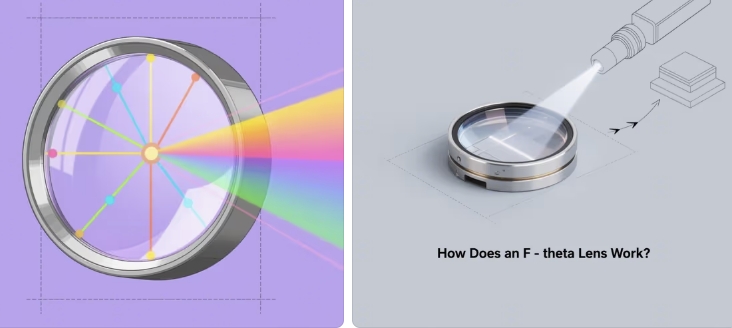

An F-theta lens works as part of a laser scanning system. It’s usually combined with a galvanometer scanner—a fast-moving mirror system that redirects the laser beam.This setup allows the laser to move quickly across two dimensions. Think of it like drawing with a laser pen controlled by tiny, super-fast motors and a precision lens.
Here’s the process:
The laser hits mirror 1. It deflects the beam along the X-axis.
Then it bounces to mirror 2, which controls the Y-axis.
From there, the beam enters the F-theta lens.
The lens focuses it onto a flat work surface.
Standard lenses don’t do well in scanning systems. Because they focus the laser beam onto a curved surface.That means:The laser spot is sharp at the center.But it’s blurred or stretched near the edges.And energy density becomes uneven.F-theta lenses fix this. They’re engineered for scanning applications. Their optical design adjusts for angle-based distortion and curvature.
Here’s a comparison:
| Feature | Conventional Lens | F-theta Lens |
|---|---|---|
| Focused Surface | Curved | Flat |
| Image-to-Angle Relationship | Non-linear | Linear (f × θ) |
| Edge Spot Quality | Poor | Consistent |
| Best Use Case | Imaging, general focus | Laser scanning |
F-theta lenses are often called flat-field scan lenses. Because they focus the laser across a flat plane, even when the beam enters from a wide angle.This is key in laser engraving, marking, and cutting.With an F-theta lens:Every laser spot is tightly focused.Beam remains perpendicular to the surface (in telecentric designs).
The scanning angle is the key factor that defines an F-theta lens’s field of view. As the angle increases, the beam can reach farther across the surface.So, wider angles = larger working areas.In modern laser systems,Most F-theta lenses use angles below 60°.A 50–60° range is considered wide-angle.These are great for covering large surfaces quickly.
When the laser moves across a surface, we want the spot to stay sharp and the energy to stay stable—everywhere.Wide-angle F-theta lenses offer flexibility but require precise engineering.
| Scanning Angle (°) | Lens Type | Application Focus |
|---|---|---|
| < 50° | Standard | Small-to-medium fields |
| 50°–60° | Wide-angle F-theta | Large fields, industrial |
The entrance pupil aperture is where the laser beam first enters the lens system. Its size must match the beam diameter.If the beam is too wide, part of it gets clipped. If it’s too small, energy density may drop.When properly matched,The lens focuses the beam efficiently.The spot shape stays clean.Laser power is used to the max.
This matching is especially important for:
Engraving fine details
Cutting thin materials
High-speed marking
There are two types of working distance in F-theta systems:Front Working Distance: From the galvanometer to the entrance of the lens;Rear Working Distance: From the lens to the surface being worked on.Rear distance is more critical—it affects focus on the material.Then there’s the flange distance.That’s the gap between the mounting face of the lens and the work surface.It affects the mechanical setup and alignment stability.It defines how the lens fits into your system housing.
Telecentricity describes how light rays hit the target surface. In a telecentric lens, all beams strike the working plane at a 90° angle, no matter where they enter the field.This keeps the laser spot shape consistent from center to edge.
In non-telecentric (standard) F-theta lenses:The center beam hits straight on.Edge beams tilt at an angle.That tilt distorts the shape of the laser spot.A round spot in the middle becomes elliptical at the edge.
When the beam angle changes across the field:The spot size changes.The spot shape deforms.The focus depth becomes uneven.This leads to real problems in precision machining:Etching depth varies from center to edge,line thickness becomes unpredictable and accuracy drops at high scan speeds.
Here’s what it looks like:
| Field Position | Beam Entry Angle | Spot Shape | Result |
|---|---|---|---|
| Center | Perpendicular | Round | Clean, even cut |
| Edge | Tilted | Elliptical | Distorted, inconsistent |
Telecentric F-theta lenses are specially designed to correct this tilt.They bend incoming rays so that:Every beam stays perpendicular to the target.The spot shape stays round across the full scan field.These lenses are perfect for micromachining and precision laser engraving.
| Factor | Telecentric Lens | Standard F-theta Lens |
|---|---|---|
| Size | Larger housing | Compact design |
| Weight | Heavier | Lighter |
| Design Effort | High (more complex elements) | Lower complexity |
| Cost | More expensive | Budget-friendly |
| Performance | High precision | Good enough for many tasks |
To make a lens telecentric, manufacturers add extra optics or change focal geometry. This increases:Lens height and diameter,manufacturing difficulty and overall cost.Therefore, telecentric lenses are usually chosen when high precision is critical and edge consistency is required.
In LIDAR (Light Detection and Ranging), F-theta lenses help steer laser beams with precision. These systems bounce laser pulses off objects to measure distance.An F-theta lens keeps the beam tightly focused as it scans across the scene. It helps ensure accurate depth mapping, especially in dynamic 3D environments.
They’re also ideal for autonomous vehicles. These cars rely on compact LIDAR units. F-theta lenses let the system stay small, but powerful.They enable fast object detection, obstacle avoidance, and safe navigation.LIDAR technology offers several key advantages, including accurate beam steering for precise targeting, precise spatial measurements for detailed mapping, and a small form factor that allows it to fit into tight spaces.
F-theta lenses are widely used in scanning laser microscopes. These instruments need precise laser control to image tiny biological structures.The lens keeps the laser beam uniform across the scan field, so it captures high-resolution images from edge to edge.They also work well with adaptive optics—a technique that adjusts for distortions in real time. Together, they enhance clarity and scanning speed.In live cell imaging, researchers need fine structures and high-speed scanning of details.F-theta lenses deliver both without distortion.
In OCT systems, F-theta lenses focus the laser beam into tissue layers. OCT is a non-invasive imaging technique that uses light to capture cross-sectional images.
These lenses are used in:
Ophthalmology (retina scans)
Dermatology (skin layers)
Cardiology (vessel structure)
The F-theta lens ensures the light enters at the right angle, so images stay sharp across the entire scan depth.Even ultra-compact OCT units benefit. These lenses help maintain performance in portable, point-of-care diagnostic tools.Every micron counts—so beam stability matters.
The material of an F-theta lens affects how well it transmits light. You need to match it to your laser’s wavelength and power.Two common materials:Fused silica is excellent for applications ranging from UV to near-infrared (200–2200 nm) due to its low thermal expansion, making it ideal for high-power lasers, semiconductor processing, and ultrafast lasers. Meanwhile, Zinc Selenide (ZnSe) performs well in the mid-infrared spectrum (up to 11 µm), making it suitable for CO₂ laser systems and commonly used in plastics cutting, engraving, or marking.
Every optical surface reflects a bit of light. That’s bad for laser efficiency. So F-theta lenses use anti-reflective (AR) coatings to reduce this.Uncoated glass reflects ~4% per surface. AR coatings cut this to <0.2%.There are two main types of anti-reflective coatings: Wavelength-specific AR coatings are tailored for one laser type, like 1064 nm or 532 nm, and offer the best efficiency. Broadband coatings, on the other hand, work over a wider range and are useful when one lens is used for multiple lasers.
For high-power lasers, lenses should be made of low-absorption materials, use coatings that resist thermal damage, and avoid using bonded surfaces (use air-gap designs).
These three factors are linked.Focal Length affects both spot size and field size.Longer focal lengths = larger working area, larger spot.Shorter focal lengths = smaller field, sharper focus.The trick is to balance:beam resolution (detail) and scan area (coverage).Choose based on the size of your part and the resolution you need.
| Focal Length | Spot Size | Field Size | Use Case |
|---|---|---|---|
| Short (100 mm) | Small | Narrow | Precision engraving, micro-cutting |
| Long (300 mm) | Larger | Wide | Marking large surfaces |
Traditional focusing lenses were never designed for scanning. They focus light onto a curved surface, not a flat one.This creates a problem where the beam focuses well at the center but lands above or below the target at the edges, resulting in blurry, stretched, or distorted laser spots.This issue gets worse as the scanning angle increases. Spot distortion grows. Laser energy spreads out unevenly. That’s bad for cutting, engraving, or precision machining.
F-theta lenses fix this.They focus the beam onto a flat plane, not a curved one. This eliminates the spot stretching at the edges and keeps power density even across the whole field.
| Feature | Traditional Lens | F-theta Lens |
|---|---|---|
| Focus Surface | Curved | Flat |
| Spot Shape at Edge | Elliptical or distorted | Round and sharp |
| Power Uniformity | Low | High |
| Application Precision | Inconsistent | Consistent across field |
When the scan surface is flat—but the laser focus is curved—you get mismatches. That causes depth errors in the material, uneven beam intensity, and misshaped engravings at the edges.Flat-field scanning solves this.F-theta lenses are designed so that the image height is directly proportional to the focal length × scanning angle. This keeps the laser spot aligned with the scan surface—even at wide angles.
That’s why F-theta lenses are used in laser engraving systems, marking machines, cutting equipment, and scientific scanners.They ensure that every position in the scan field receives the same spot size, focus level, and laser energy.
F-theta lenses are now being paired with diffractive optical elements (DOEs). These are specially engineered surfaces that shape and split light in complex ways.They help improve beam shaping, enhance energy distribution, and reduce aberrations at wide angles.In LIDAR, DOEs increase scanning efficiency. In industrial systems, they let one lens handle multiple beam profiles.DOEs allow more flexible, custom beam control than purely refractive designs.
Newer F-theta systems are blending optics with computational imaging. This means software works alongside hardware to correct distortions, enhance clarity, or speed up data processing.In microscopy and OCT, algorithms fix minor aberrations in real time, making scanning faster and more accurate, and allowing smaller lenses to perform like larger, more complex optics.
Tunable lenses are one of the most exciting breakthroughs. These lenses can adjust focal length on demand, making the optical system more dynamic.Unlike fixed-focus systems, tunable F-theta lenses offer flexibility in real-time, allowing the system to adapt to different materials, working distances, or scanning depths without replacing hardware. This capability is particularly useful in variable-depth laser engraving, adaptive LIDAR systems, and inspection setups requiring fast switching between focal planes.
A: Yes, but they must be color-corrected and made from low-absorption materials like fused silica. Regular lenses can’t handle the broad bandwidth and may distort the spot or suffer internal damage.
A: Telecentric lenses keep all laser beams perpendicular to the surface, ensuring uniform spot shape across the field. Non-telecentric lenses create elliptical spots at the edges due to angled beam entry.
A: Use lenses with anti-reflective coatings, ghost-free designs, and materials like fused silica. Avoid cemented elements and ensure proper beam alignment to minimize back reflections.
Whether you’re optimizing a laser engraving system, building a next-gen LIDAR unit, or diving into biomedical imaging, mastering the F-theta scanning lens gives you a serious edge. From precise beam control to flat-field correction, it’s clear this lens isn’t just a component—it’s the backbone of high-precision laser applications.
