Finite conjugate systems are important in optics and microscopy. In these systems, the objective lens sends light from the object to the focal plane of the eyepiece. The eyepiece then makes the light rays go straight. This method saves money and works well for regular microscopes. It is different from more complicated designs.
Knowing about conjugate planes helps fix image problems.
Putting optical parts in the right place stops common imaging issues.
Finite conjugate systems are important for clear images in microscopes. They help people see small details in cells and tissues.
Putting optical parts in the right place stops common problems. This helps make images look better and clearer.
Knowing object and image distances is very important. It lets people measure and improve their setups for good results.
Cleaning and adjusting lenses often helps stop blurry images and mistakes. This keeps pictures sharp and easy to see.
Picking finite or infinity-corrected systems depends on what you need. Finite systems are easier and cheaper for simple jobs.

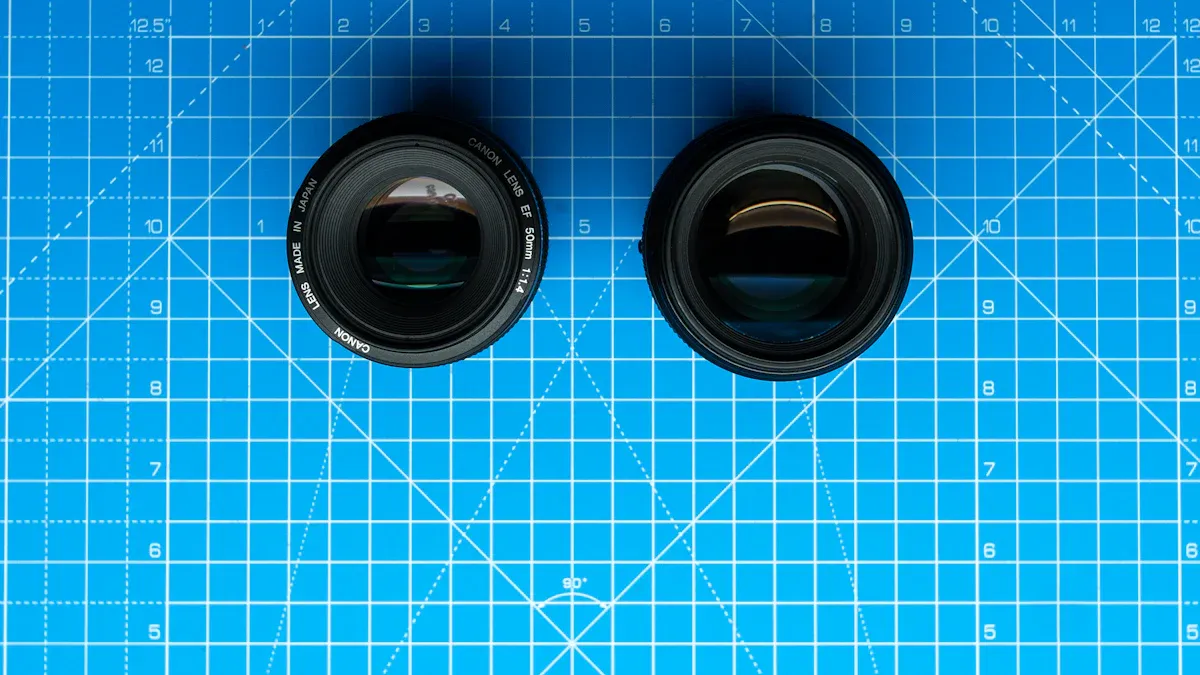

Image Source: unsplash
Finite conjugate systems use lenses to focus light from an object at a certain spot. The image forms at another spot you can measure. This setup helps people see clear images and take measurements. The object and image are not super far away. Both have real places you can find.
A finite conjugate lens sends light from a source at a set spot to another spot that matches.
You can measure how far the object and image are. This helps the system work better.
Lenses for finite conjugate systems work best when the size stays close to 1:1.
The table below shows common values for object and image distances in microscopy:
| Parameter | Value |
|---|---|
| Field of View | 5 mm |
| Horizontal Sensing Distance | 6.4 mm |
| Minimum Object Distance | 50 mm or greater |
These numbers help people put samples and sensors in the right place. The field of view and sensing distance change how much of the sample you see. The minimum object distance tells you how close you can put the sample to the lens.
Microscopes often use finite conjugate systems to make real images in the middle. These systems put things like slides or coverslips at exact spots from the objective lens. The lens makes a sharp image at a certain place, usually inside the tube.
Finite conjugate systems help scientists see tiny details in cells and tissues. They let users move samples and lenses to get a clear view.
Microscope objectives for finite conjugate systems do not need extra tube lenses. The image goes straight to the eyepiece or camera sensor. This makes microscopes easier to use and cheaper. Many teaching microscopes and basic research models use this kind of setup.
Engineers make lenses in finite conjugate systems to focus light from the object onto a certain image plane. The objective lens gathers light and brings it to a sharp point at the focal plane. This helps make a clear and detailed picture. The table below lists key ideas for designing these systems:
| Design Principle | Description |
|---|---|
| Conjugate Distance | The lens must match the spots of the middle and final image planes exactly. |
| Image Quality | It is important to reduce problems like spherical, coma, astigmatism, field curvature, distortion, and chromatic aberrations. |
| Magnification Control | The tube lens magnification (like 1× or 2×) changes how much bigger the system makes things. |
| Working Distance | There must be enough space for things like filters, beam splitters, or scanning devices. |
Good lens design helps stop image problems and makes pictures clearer. Scientists and engineers use these ideas to build optical systems that work well.
Finite conjugate systems make images by focusing light from the object at a set distance onto the image plane. The objective lens does not make the rays go straight. It brings the light to a real point. Infinity-corrected systems use tube lenses to make the light rays go straight before making the image. This difference changes how each system uses accessories and affects image quality.
The table below shows how different optical systems form images:
| System Type | Description | Advantages/Applications |
|---|---|---|
| Single Element | The simplest finite conjugate system uses one lens. | It is cheap and easy to design. |
| Two Element | Uses more than one part for different focal lengths. | It gives better image quality. |
| Real Lens Solutions | Uses achromats to make images better in some cases. | It gives high-quality images for special uses. |
| Application Example | Wire bond inspection uses certain object and image distances. | It shows how finite conjugate systems can be used. |
Many microscopes use finite conjugate systems because they are simple and direct for making images. These systems are good for teaching and basic research. Users can put samples and sensors at known spots to get the best results.
Image Source: pexels
Scientists and engineers pick between two main optical designs. These are finite conjugate systems and infinity-corrected systems. Each design has special features that change how microscopes work. The table below shows the main differences in how they are built and used:
| Feature | Finite Conjugate Systems | Infinity-Corrected Systems |
|---|---|---|
| Object and Image Distance | Both are at finite distances from the lens | One is at an infinite distance |
| Optical Performance | Optimized for specific, small magnifications | Generally used for broader applications |
| Design Implications | Better performance for specific finite distances | More versatile for varying distances |
In finite conjugate systems, both the object and image are close to the lens. You can measure these distances. This setup is best for jobs that need a set magnification. It is also good when you want simple alignment. Infinity-corrected systems put the object at the focal point of the lens. The light comes out as straight, parallel rays. A tube lens then focuses the light to make the image. This design lets you add more optical parts easily.
The table below shows more technical differences in how these systems work in microscopes:
| Feature | Finite Conjugate System | Infinity-Corrected System |
|---|---|---|
| Objective Placement | Slightly greater than focal length (dS > fO) | Exactly at focal length (dS = fO) |
| Light Behavior | Diverges after passing through the lens | Collimated light behind the objective |
| Tube Lens Placement | Fixed distance from the objective | Arbitrary distance from the objective |
| Fourier Plane Interaction | Overlaps with the second lens | May not overlap with the second lens |
| Image Properties | Always diverging on the sensor | Can be collimated, diverging, or converging on the sensor |
Choosing between these two systems is important for many reasons. Each design changes how people use their microscopes.
Infinity-corrected systems let you add filters and other parts. You do not lose image quality. This helps with advanced imaging, like fluorescence microscopy.
You can change magnification in infinity-corrected systems. You do this by swapping tube lenses with different focal lengths. This is harder to do with finite conjugate systems.
Finite conjugate systems are good for simple setups. These include projectors, factory tools, and scanner lenses. They work well when the object and image stay at set distances.
Note: Infinity-corrected systems are better for complex experiments. Finite conjugate systems are cheaper and good for basic tasks.
Engineers and scientists must think about their needs before picking a system. If you need to add many optical parts or change magnification, pick infinity-corrected systems. If you want a simple and strong setup, pick finite conjugate systems.
Defocus happens when the lens does not focus light right. This makes images look blurry or less clear. In microscopy, defocus makes it hard to see tiny things. Coherent imaging systems handle defocus better than incoherent ones. How much defocus a system can take depends on spatial frequency. If spatial frequency is high, the system loses detail faster when defocus happens.
Defocus lowers resolution and image quality. If the lens is not set right, the picture gets less sharp. Scientists must adjust the lens to keep images clear.
Defocus works with other optical problems too. The pupil size changes how much defocus affects the image. Bigger pupils make the effect stronger. People use small adjustments to fix defocus and get the best focus.
Aberrations are flaws in the lens that change how light bends. These flaws can make images look weird or have bad contrast. Spherical aberration is a common type. It makes depth-of-focus bigger but can lower contrast. Other aberrations like coma and astigmatism also change image quality.
The table below shows how defocus and aberrations change performance:
| Evidence Description | Key Points |
|---|---|
| Spherical Aberration and Depth-of-Focus | Spherical aberration makes depth-of-focus bigger but may lower contrast. |
| Interaction of Defocus and Aberrations | Defocus and other aberrations work together, and pupil size changes the effects. |
| MTF Sensitivity | A lens with aberrations has bigger depth-of-focus but less sharpness at best focus. |
| Visual Performance Metrics | Defocus changes how well you see and how clear things look. |
| Asymmetry in MTF Trends | Defocus and aberrations make sharpness uneven across the image. |
Aberrations and defocus together can make images less good for research or teaching. Scientists use special lens designs and regular cleaning to fix these problems. They clean lenses, check alignment, and use small adjustments to keep things working well. Regular checks and training help teams find problems early and keep microscopes working great.
Paying close attention to lens quality and setup helps users get the best images from finite conjugate systems.
Finite conjugate systems help scientists and engineers make clear images. These systems work best in simple setups. The object and image distances do not change. People should use finite conjugate systems for basic imaging jobs. They are good when you want to save money. More people are buying these systems now. New technology and automation need better imaging tools. Knowing the limits of these systems helps users get sharper pictures. It also helps them improve their results.
A finite conjugate system uses lenses to focus light. The light comes from an object at a set distance. It goes onto an image plane. Scientists use these systems in basic microscopes. They also use them in imaging tools.
Microscopes use finite conjugate systems for clear images. The design is simple and easy to use. Teachers and students can work with them easily. These systems cost less than advanced models.
Most finite conjugate systems do not support many accessories. Adding filters or beam splitters can lower image quality. Infinity-corrected systems work better for extra parts.
Users move the lens to make the image sharp. Cleaning the lenses helps too. Checking alignment is important. Regular maintenance keeps images clear. It also helps the microscope work better.
