Quick Answer: On most standard compound microscopes, the 4x objective lens has the lowest magnification and is commonly called the scanning objective. Its wide field of view and relatively long working distance make it useful for locating and centering a specimen before switching to 10x, 40x, or higher magnification. However, specialized research and industrial systems may also use 1x, 2x, 2.5x, or other low-magnification objectives.
The 4x scanning objective is usually the lowest-power objective on a standard classroom or laboratory compound microscope.
With a 10x eyepiece, a 4x objective provides 40x total visual magnification.
Starting at low power provides a wider view, makes focusing easier, and reduces the risk of the objective contacting the slide.
Field of view, numerical aperture, resolution, and working distance depend on the specific objective and microscope system; magnification alone does not determine them.
Specialized OEM and industrial microscopes may use objectives below 4x, so the engraved magnification and manufacturer’s data sheet should always be checked.
Table of Contents

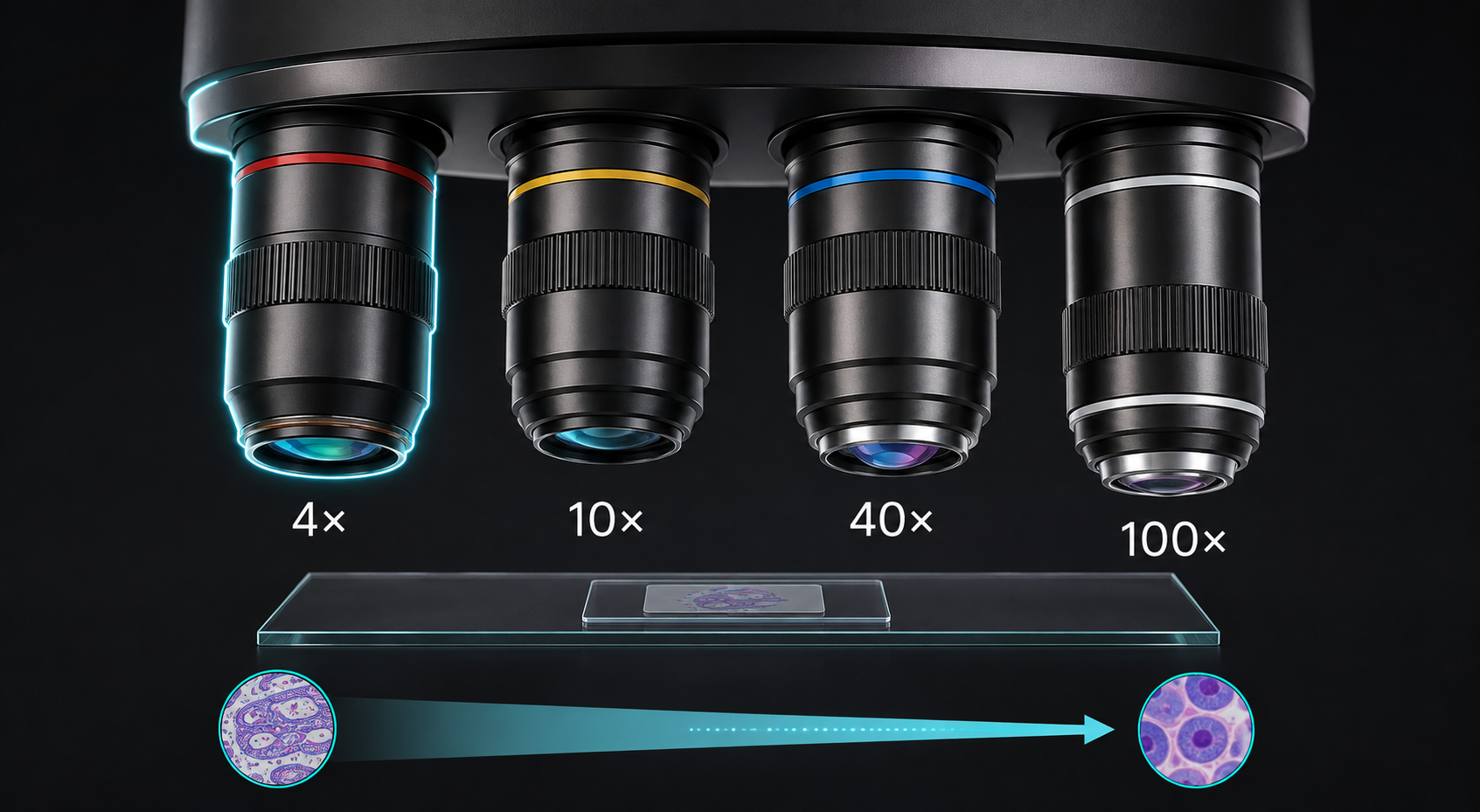

In a common compound microscope fitted with 4x, 10x, 40x, and 100x objectives, the 4x objective provides the lowest objective magnification. It is normally selected first because it shows a larger specimen area and makes the area of interest easier to locate.
When visual observation uses a 10x eyepiece, total magnification is calculated as:
Total visual magnification = objective magnification × eyepiece magnification
Therefore, a 4x objective used with a 10x eyepiece provides 40x total visual magnification.

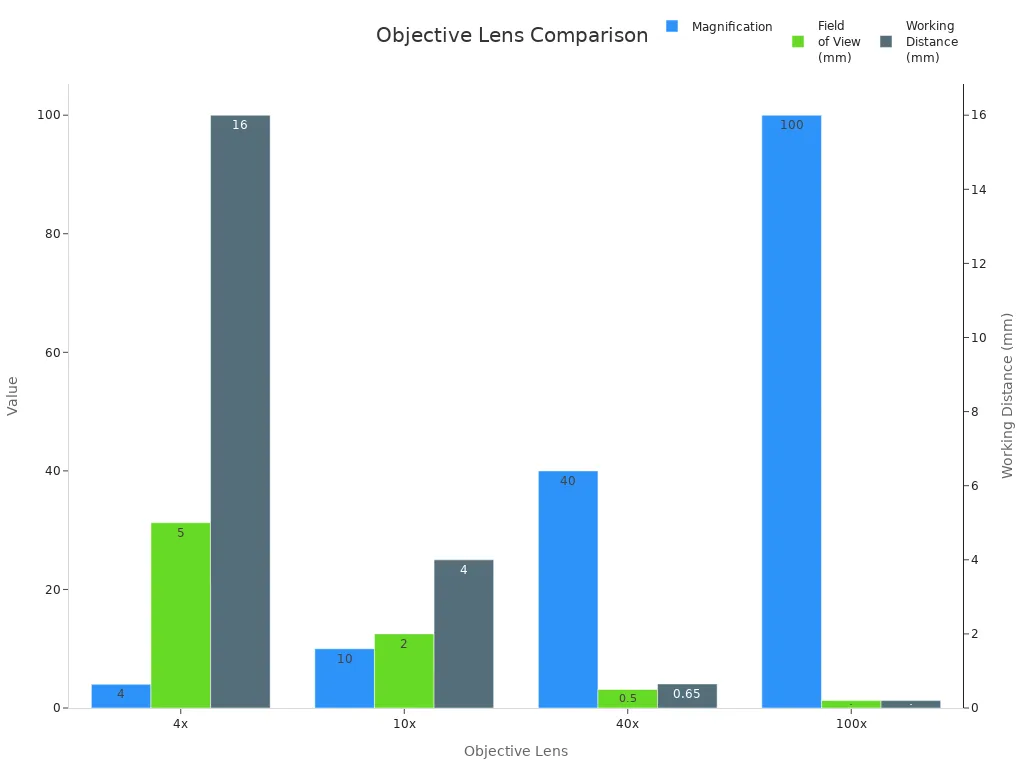

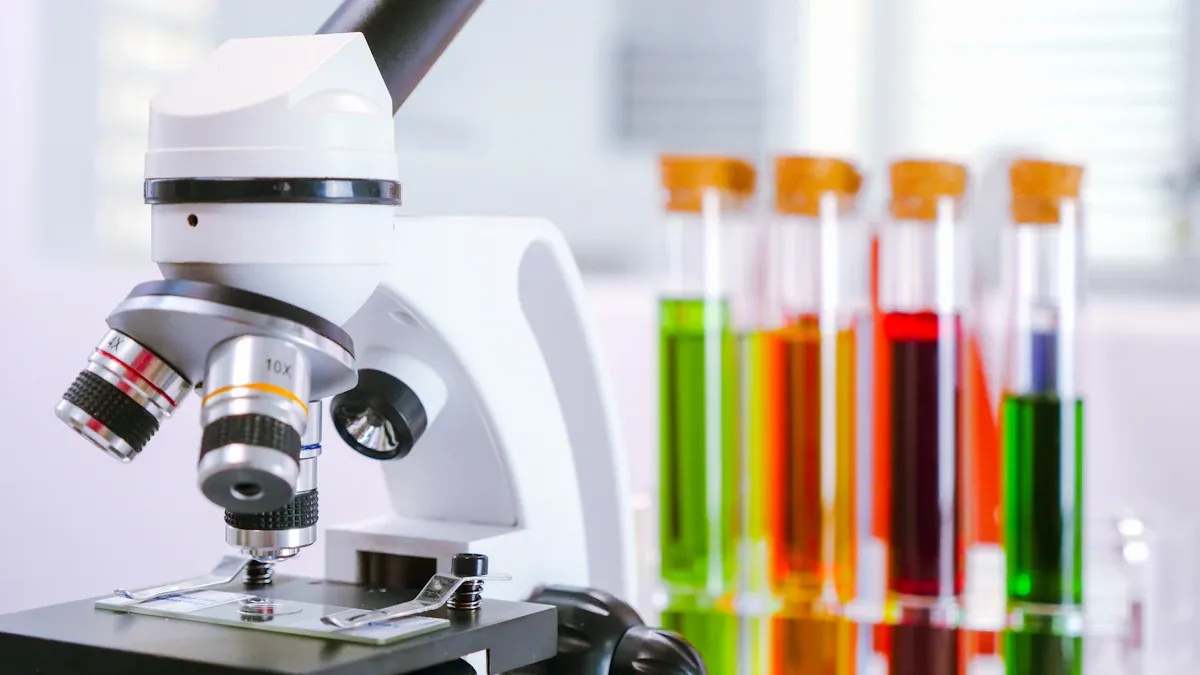

Objective | Common Description | Total Magnification with 10x Eyepiece | Typical Purpose |
|---|---|---|---|
4x | Scanning objective | 40x | Locating and centering the specimen |
10x | Low-power objective | 100x | General observation |
40x | High-power objective | 400x | Observing smaller structures |
100x | High-power immersion objective in many biological systems | 1000x | High-resolution observation when the objective and immersion medium are compatible |
The descriptive names are not completely consistent. Some educational materials call the 4x objective “low power” and the 10x objective “medium power.” The magnification engraved on the objective barrel is more reliable than the descriptive name.
Starting with the 4x scanning objective is recommended for several practical reasons.

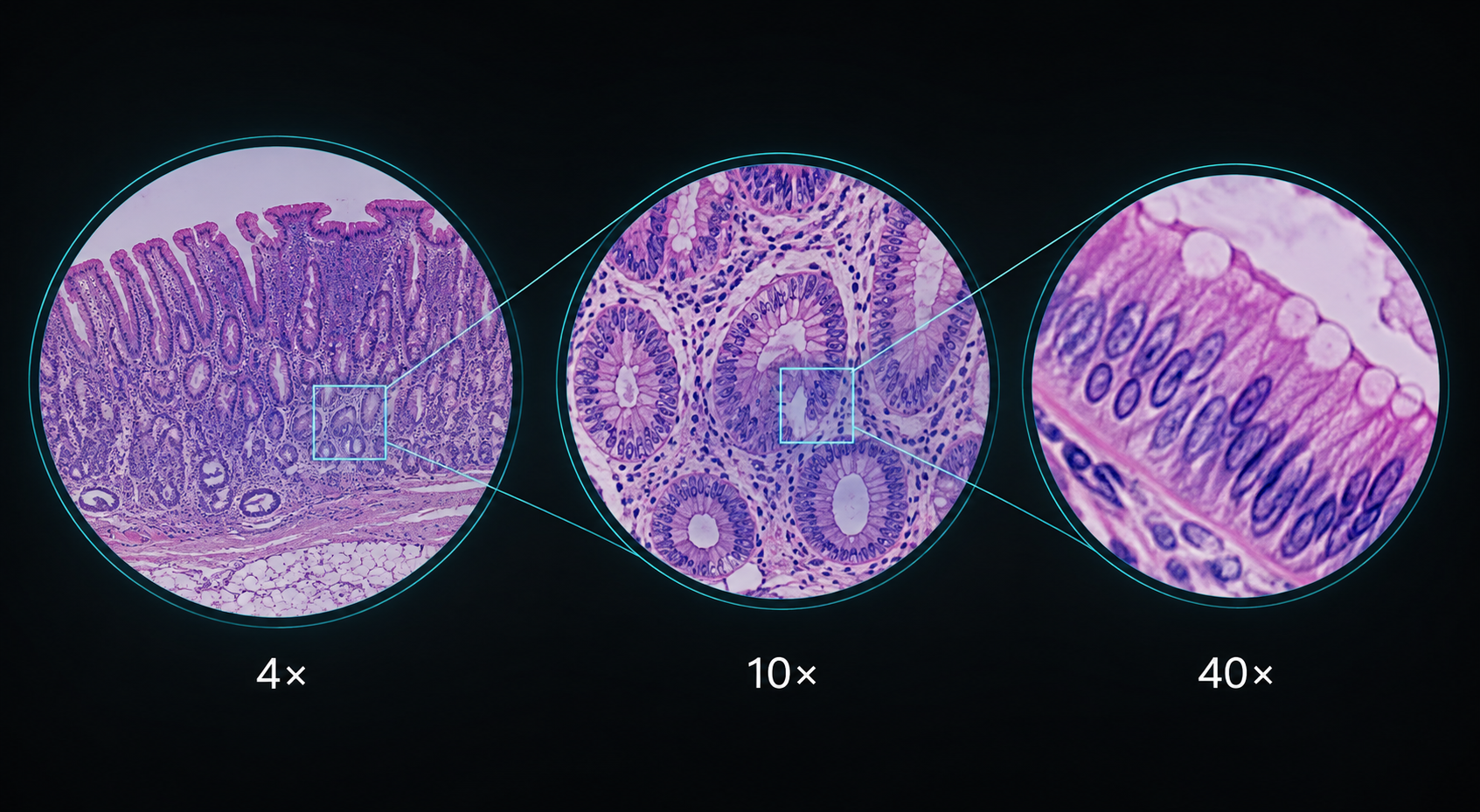

A lower-power objective normally displays a larger specimen area. This helps the user find the sample, recognize its overall structure, and center the region that will later be examined at higher magnification.
The 4x objective is generally less sensitive to small focus changes than a higher-power objective. Users can bring the specimen into view more easily before moving to 10x or 40x.
Within a conventional objective series, lower-magnification objectives generally have a longer working distance. This provides more clearance between the objective front element and the slide, reducing the risk of accidental contact. Actual working distance still varies by objective design and must be checked on the model data sheet.
A peer-reviewed Scientific Reports study documented a microscope system using a 5x/0.15 NA objective with a 12 mm working distance and a 2.6 × 2.6 mm field of view, compared with a 10x/0.30 NA objective with an 11 mm working distance and a 1.3 × 1.3 mm field of view. These system-specific values illustrate how magnification, NA, working distance, and field of view change together; they should not be treated as universal specifications for every 5x or 10x objective.
Once the specimen is focused and centered at 4x, it is easier to move to a higher-magnification objective without losing the area of interest. Re-centering is important because the visible specimen area becomes smaller as magnification increases.
Magnification affects what the user sees, but it does not describe the complete optical performance of an objective.
For visual observation through an eyepiece, the approximate specimen field diameter can be calculated as:
Specimen field diameter ≈ eyepiece field number ÷ objective magnification
For example, a microscope with a field number of 20 would provide the following approximate fields of view:
Objective Magnification | Approximate Field of View with FN 20 |
4x | 5 mm |
10x | 2 mm |
20x | 1 mm |
40x | 0.5 mm |
These are calculated examples, not universal specifications. A microscope with a different field number, tube-lens configuration, relay optic, or camera system will produce a different field of view.

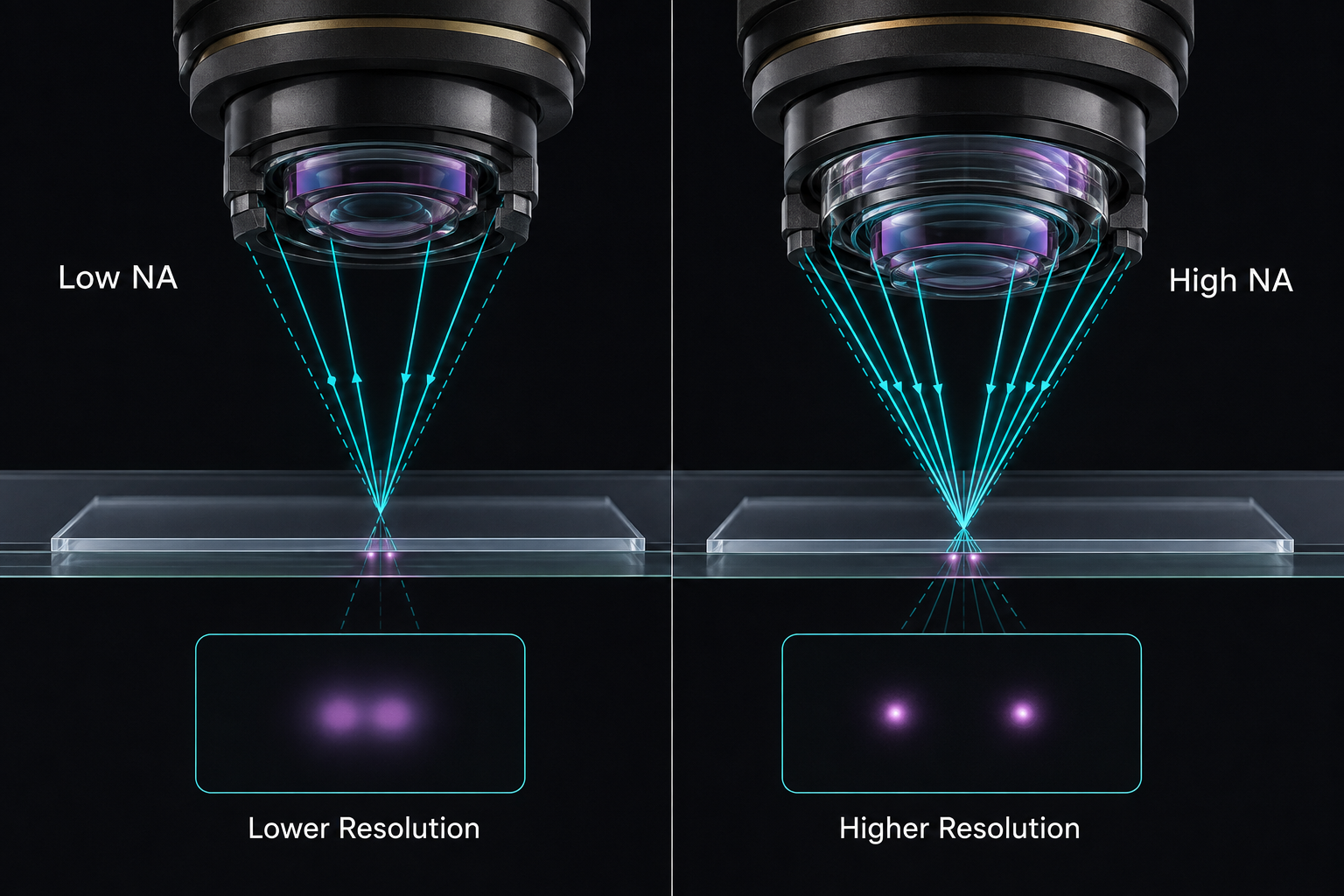

Numerical aperture (NA) describes an objective’s ability to accept image-forming light and resolve fine specimen detail. Higher magnification does not automatically guarantee better resolution; useful resolution also depends on NA, illumination wavelength, optical correction, specimen contrast, and system alignment.
For example, a conventional plan-achromat series may use an NA of approximately 0.10 at 4x, 0.25 at 10x, and 0.40 at 20x. These values are representative examples rather than specifications for every objective. Always use the NA engraved on the barrel or listed in the manufacturer’s data sheet.
Using the Rayleigh relation discussed in Goodwin’s peer-reviewed review, D = 0.61λ/NA, 550 nm light gives theoretical lateral-resolution values of approximately 3.36 µm at NA 0.10, 1.34 µm at NA 0.25, and 0.84 µm at NA 0.40. These are calculated diffraction estimates rather than guaranteed system specifications; actual performance also depends on illumination, contrast, aberrations, sampling, and alignment.
A peer-reviewed Biophysics Reviews article reports that 500 nm light with an NA 1.4 objective corresponds to a theoretical spatial resolution of 178 nm, while the field of view at 100x is more than six times smaller than at 40x. The authors also note that oversampling with unnecessarily small camera pixels does not add optical resolution and can reduce detection sensitivity. This reinforces why magnification, NA, field size, and detector sampling must be evaluated together.

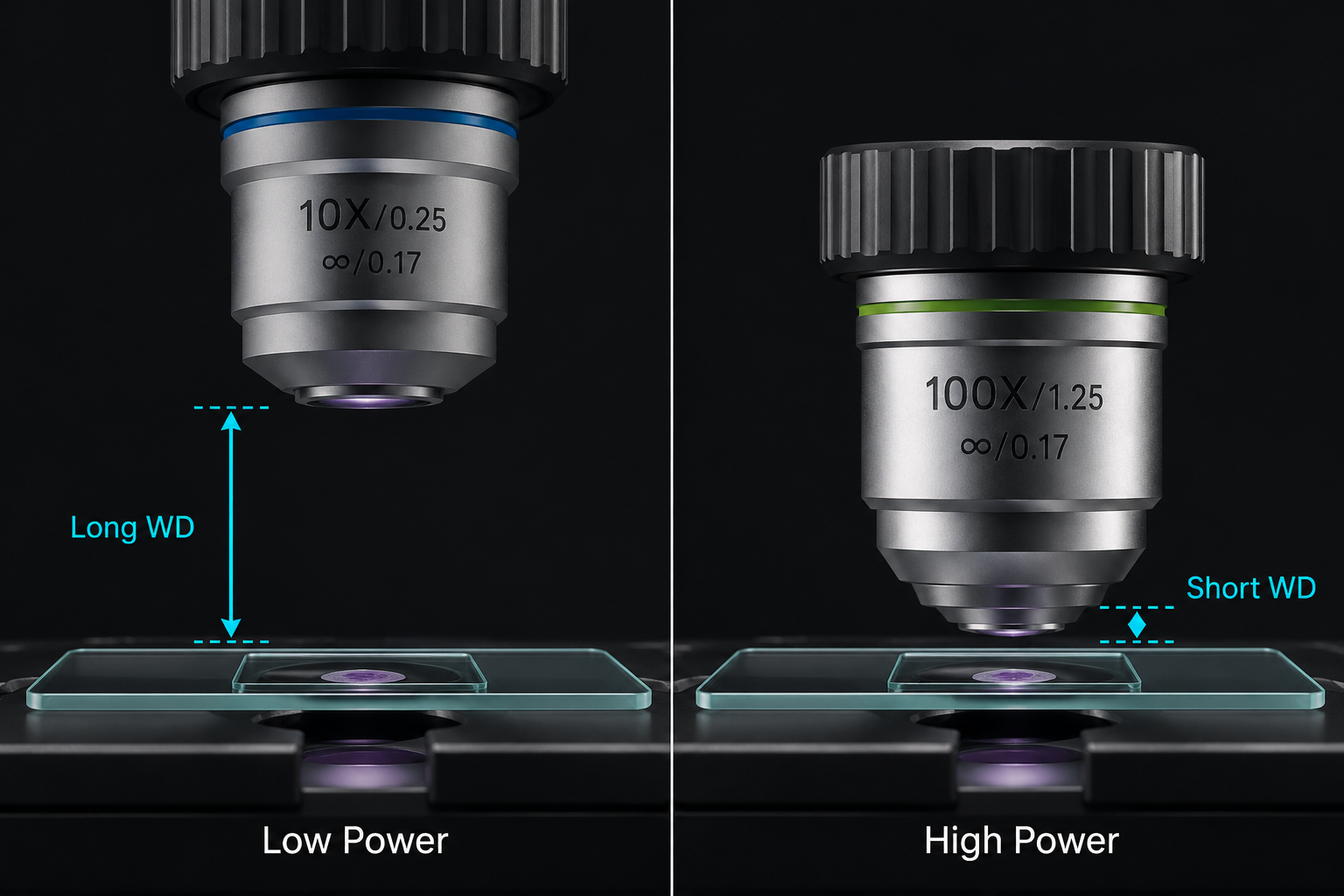

Working distance is the distance between the objective front element and the specimen or coverslip when the image is in focus. It generally becomes shorter as magnification and NA increase within a conventional series, but long-working-distance and specialized objectives are important exceptions. For this reason, one fixed working-distance value should not be published for every 4x, 10x, or 40x objective.
A peer-reviewed Review of Scientific Instruments paper reported a specialized objective that combined NA 0.40 with an 18.2 mm working distance at 852 nm through a 5 mm fused-silica window; the reported design provided a 0.61 mm diffraction-limited field of view and 1.3 µm resolution. This is a purpose-built research design, not a typical catalog objective, but it confirms that working distance is a design variable rather than a fixed consequence of magnification.
Yes. The 4x objective is usually the lowest-power lens on a standard teaching microscope, but it is not the lowest magnification available across all microscope and imaging systems.

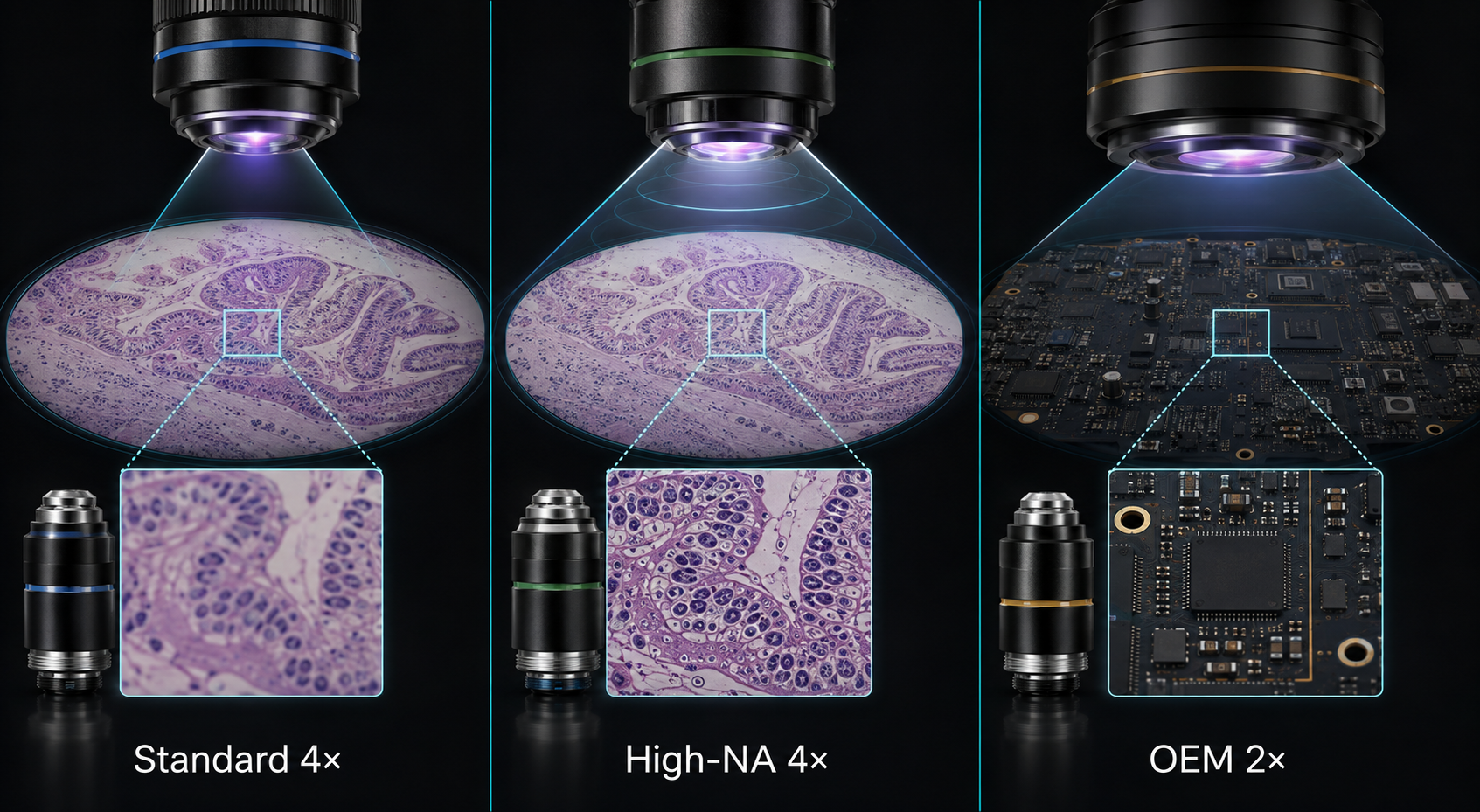

Specialized research, inspection, and OEM imaging systems may use 1x, 2x, 2.5x, or other low-magnification objectives when they require a larger object field, longer working distance, or broader sample overview.
Low magnification also does not necessarily mean low resolving power. In a peer-reviewed eLife study, McConnell and colleagues demonstrated a specialized 4x Mesolens with NA 0.47 and a 6 mm field of view; it resolved detail better than 1 µm and supported three-dimensional imaging of specimens up to 3 mm thick. The result illustrates why magnification, NA, field size, and working distance must be evaluated together.
For example, the Band Optics MC-LD-2X micro-objective is a model-specific 2x objective with an NA of 0.055, a 25 mm working distance, and a Ø16.5 mm field of view over a 430–670 nm wavelength range. These figures describe that specific optical design and should not be treated as universal values for all 2x objectives.
The most accurate answer is therefore:
On most standard compound microscopes, the 4x scanning objective has the lowest magnification. On specialized systems, the lowest installed objective may be 1x, 2x, 2.5x, or another value.
Use the engraved specifications rather than relying only on lens size or color.
Check the magnification marking. Look for values such as 2x, 4x, 10x, or 40x. The smallest installed value is the lowest-power objective.
Read the numerical aperture. A marking such as 4x/0.10 indicates 4x objective magnification and an NA of 0.10.
Check the optical-system marking. Infinity-corrected objectives are usually marked with an infinity symbol, while finite-conjugate objectives may show a tube length such as 160 mm.
Confirm the immersion medium. Objectives may be designed for dry use, oil, water, glycerol, or another specified medium.
Use color bands only as a secondary guide. A red band commonly identifies a 4x objective, but the engraved specification and data sheet remain the authoritative sources.
Place the microscope on a stable surface and prepare the illumination according to the manufacturer’s instructions.
Rotate the nosepiece until the 4x objective locks into position.
Secure the slide and position the specimen above the illumination path.
Bring the specimen into view using the focusing procedure specified for the microscope.
Center the area of interest before switching to 10x or 40x.
After increasing magnification, refine the image carefully and use fine focus where required.
For cleaning, first remove loose dust with a suitable clean air blower. Use optical-grade lens tissue and only the cleaning fluid recommended for the specific objective. Do not assume that one solvent or cleaning method is safe for every optical coating or assembly.
A standard 4x microscope objective may not meet every industrial or OEM imaging requirement. A custom or application-specific objective may be needed when the system requires a particular field of view, working distance, wavelength range, sensor format, numerical aperture, mechanical envelope, or tube-lens configuration.
Before requesting an optical design review, define the following requirements:
Target magnification and field of view
Required working distance
Sensor format and pixel size
Numerical aperture or resolution target
Wavelength and coating range
Tube-lens focal length or finite conjugate distance
Mounting dimensions and available mechanical space
Environmental conditions and production quantity
Band Optics provides micro-objective lenses and custom optical services for OEM imaging systems that require model-specific optical and mechanical performance.
On most standard compound microscopes, the 4x objective is called the scanning objective because it is used to scan the slide, locate the specimen, and center the area of interest.
The installed objective with the smallest engraved magnification provides the least objective magnification. In a common 4x, 10x, 40x, and 100x set, the 4x objective provides the least magnification. With a 10x eyepiece, it produces 40x total visual magnification.
It is often described as a low-power objective, while the 4x lens is called the scanning objective. Terminology varies between teaching systems, so identify an objective by its engraved magnification rather than its descriptive name.
A 4x objective is useful for locating a specimen and viewing large structures or the overall tissue arrangement. It normally does not provide enough resolved detail for examining small cellular structures, which usually requires a compatible higher-NA objective.
Yes. Low-magnification objectives such as 1x, 2x, and 2.5x are used in some research, inspection, and OEM imaging systems. The lowest-power objective depends on the objectives installed on the specific instrument.
The 4x scanning objective is usually the lowest-magnification objective on a standard compound microscope. It provides a wide field of view, makes initial focusing easier, and helps users locate and center a specimen before switching to higher power. However, magnification labels such as “scanning” and “low power” are not universal, and specialized systems may use objectives below 4x.
Objective performance should always be evaluated using the full model specification, including NA, field of view, working distance, wavelength range, optical correction, and system compatibility. Band Optics develops and manufactures precision optical components and micro-objectives for OEM imaging applications, with model-specific inspection and optical performance requirements considered during design and production.
