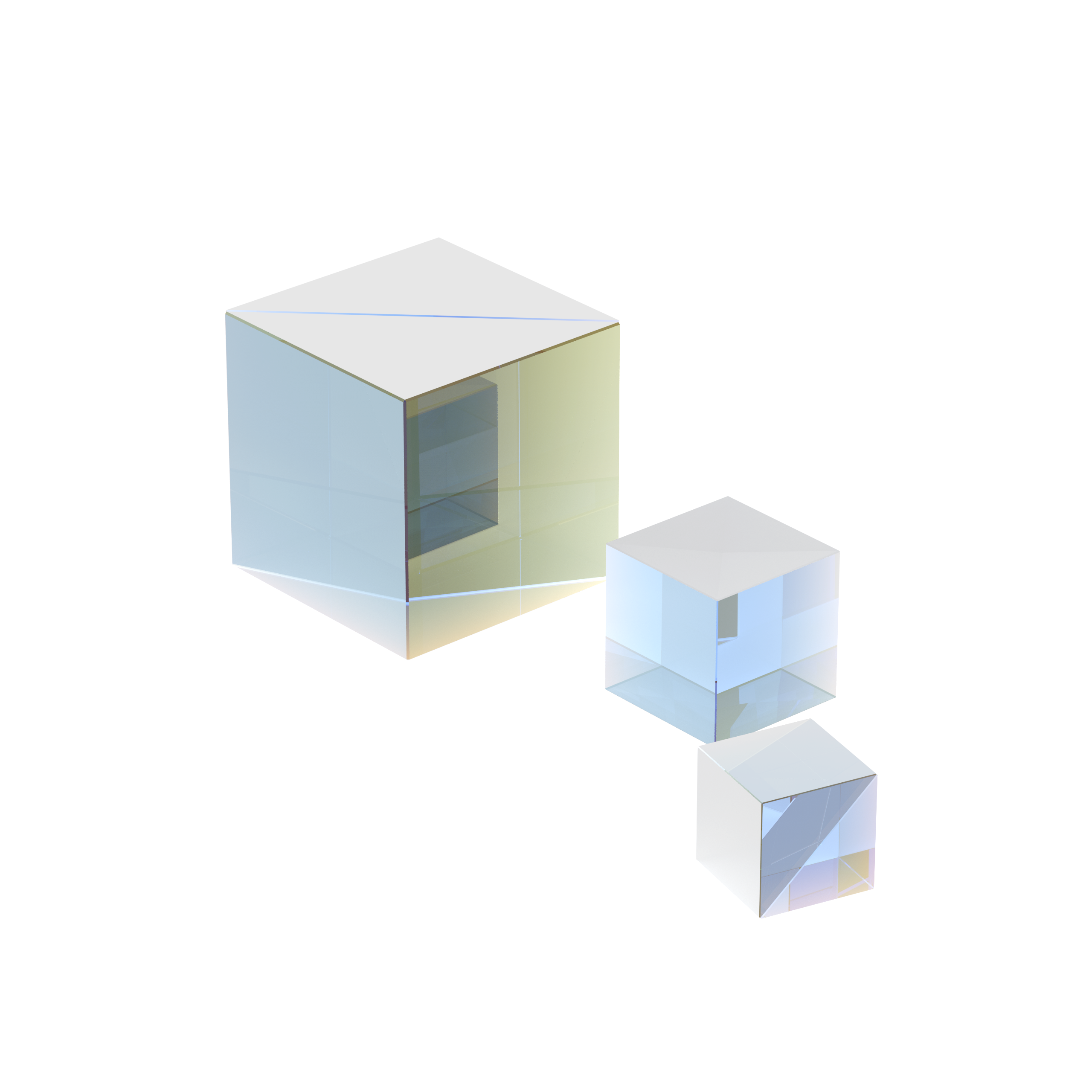

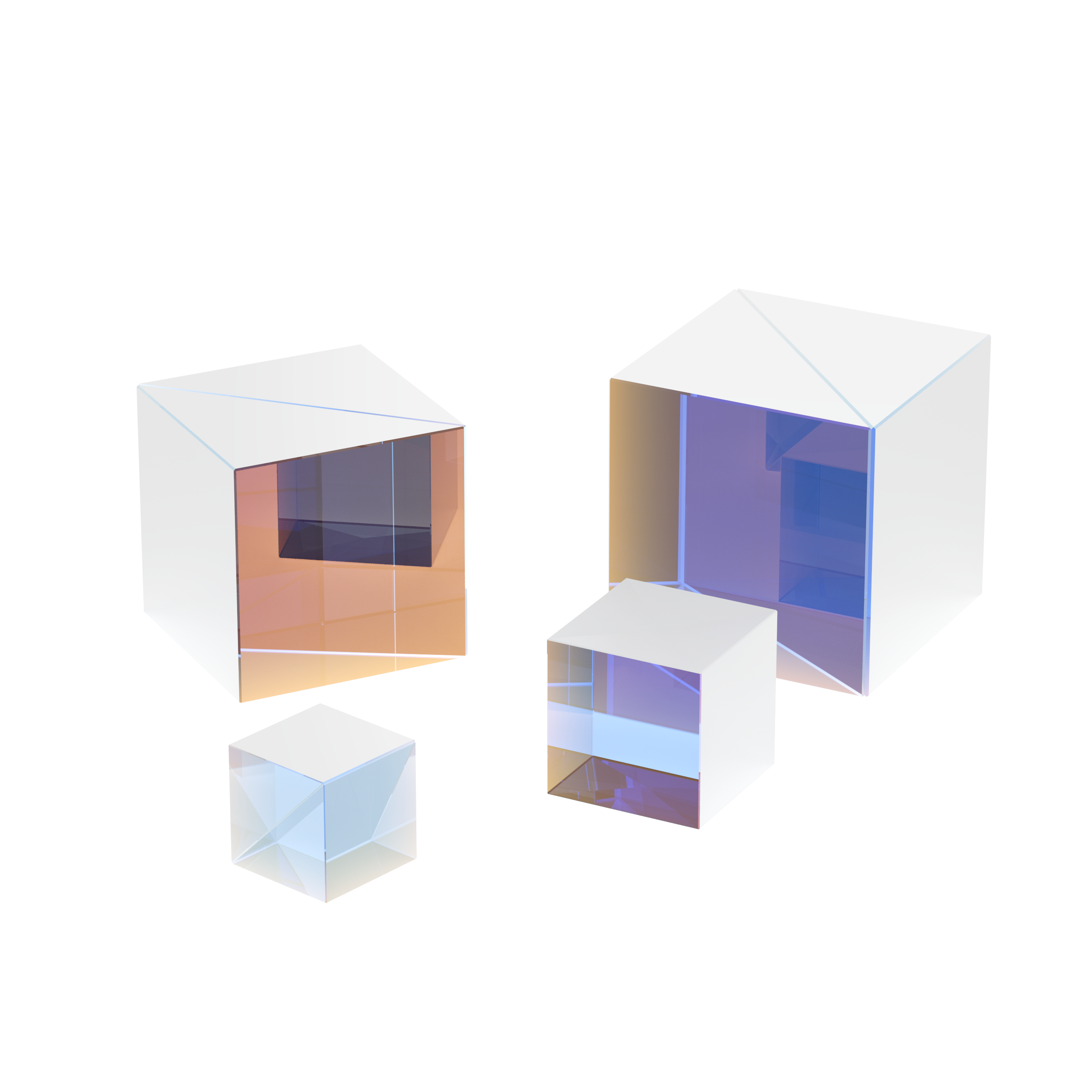

Broadband Polarizing Cube Beamsplitters are precision optical components designed to separate unpolarized light into orthogonal s- and p-polarized beams across a wide wavelength range. Unlike narrowband alternatives, broadband polarizing cube beamsplitters maintain stable polarization performance over extended spectral regions, making them ideal for multi-wavelength and tunable optical systems.
At Band Optics, these broadband polarizing cube beamsplitters are produced under a fully customized, B2B-oriented custom optics wholesale model. There is no retail inventory. Each unit is manufactured to order, ensuring compatibility with system-level requirements such as wavelength range, extinction ratio, and mechanical integration.
Broadband polarizing cube beamsplitters are designed to operate efficiently across visible, near-infrared, or extended spectral bands. Long-tail product variants such as broadband polarizing cube beamsplitters for imaging systems or broadband polarizing cube beamsplitters for tunable lasers benefit from consistent polarization separation without frequent optical realignment.
Key benefits include:
Stable extinction ratio across a broad wavelength range
Minimal beam deviation and angular sensitivity
Reduced chromatic effects compared to plate polarizers
Reliable performance in multi-wavelength applications
The cube configuration consists of two right-angle prisms bonded with a polarization-selective dielectric coating. This compact structure improves mechanical stability and simplifies optical alignment. As a custom optics wholesale manufacturer, Band Optics optimizes coating design and prism bonding to ensure repeatable performance in both prototype and volume production.
Material selection directly impacts transmission, durability, and spectral performance. Common prism materials include:
N-BK7 for visible and near-infrared applications
UV-grade fused silica for ultraviolet or high-power laser systems
Custom glass options for extended spectral ranges
Each broadband polarizing cube beamsplitter is engineered based on wavelength coverage, power density, and environmental conditions.
The internal dielectric coating is the core functional element of broadband polarizing cube beamsplitters. Coating designs can be customized to achieve:
High transmission for p-polarized light
High reflection for s-polarized light
Broadband AR coatings on external faces
Optimized performance for specific angular ranges
Engineering consultation through www.band-optics.com ensures coating designs align with system requirements.
| Parameter | Typical Specification |
|---|---|
| Product Type | Broadband Polarizing Cube Beamsplitter |
| Prism Material | N-BK7 / Fused Silica (custom) |
| Wavelength Range | 400–700 nm / 700–1100 nm / custom |
| Extinction Ratio | >1000:1 (typical) |
| Transmission (P-pol) | >90% |
| Reflection (S-pol) | >99% |
| Surface Quality | 40-20 (optional 20-10) |
| Clear Aperture | ≥ 90% |
| Angular Tolerance | ≤ 5 arcmin |
| Operating Temperature | Based on material selection |
Broadband polarizing cube beamsplitters are widely used in:
Machine vision and imaging systems
Biomedical and analytical instruments
Tunable and multi-line laser systems
Optical metrology and interferometry
Research and laboratory optics platforms
Their broadband capability makes them especially valuable in systems that require wavelength flexibility without replacing optical components.
ISO 9001 certified optical manufacturing facility
In-house prism fabrication, coating, and metrology
Documented process control and inspection records
Factory floor images, ISO certificates, and customer logo wall available upon request
These credentials reinforce Band Optics as a reliable custom optics wholesale supplier for broadband polarizing cube beamsplitters used in demanding optical systems.
Broadband versions maintain stable polarization separation across a wider wavelength range, reducing the need for wavelength-specific components.
Yes. Wavelength range, prism material, coating design, and mechanical dimensions can all be customized.
Yes. With appropriate material and coating selection, they are suitable for low to moderate laser power applications.
No. All broadband polarizing cube beamsplitters are produced exclusively under a custom, wholesale manufacturing model.
