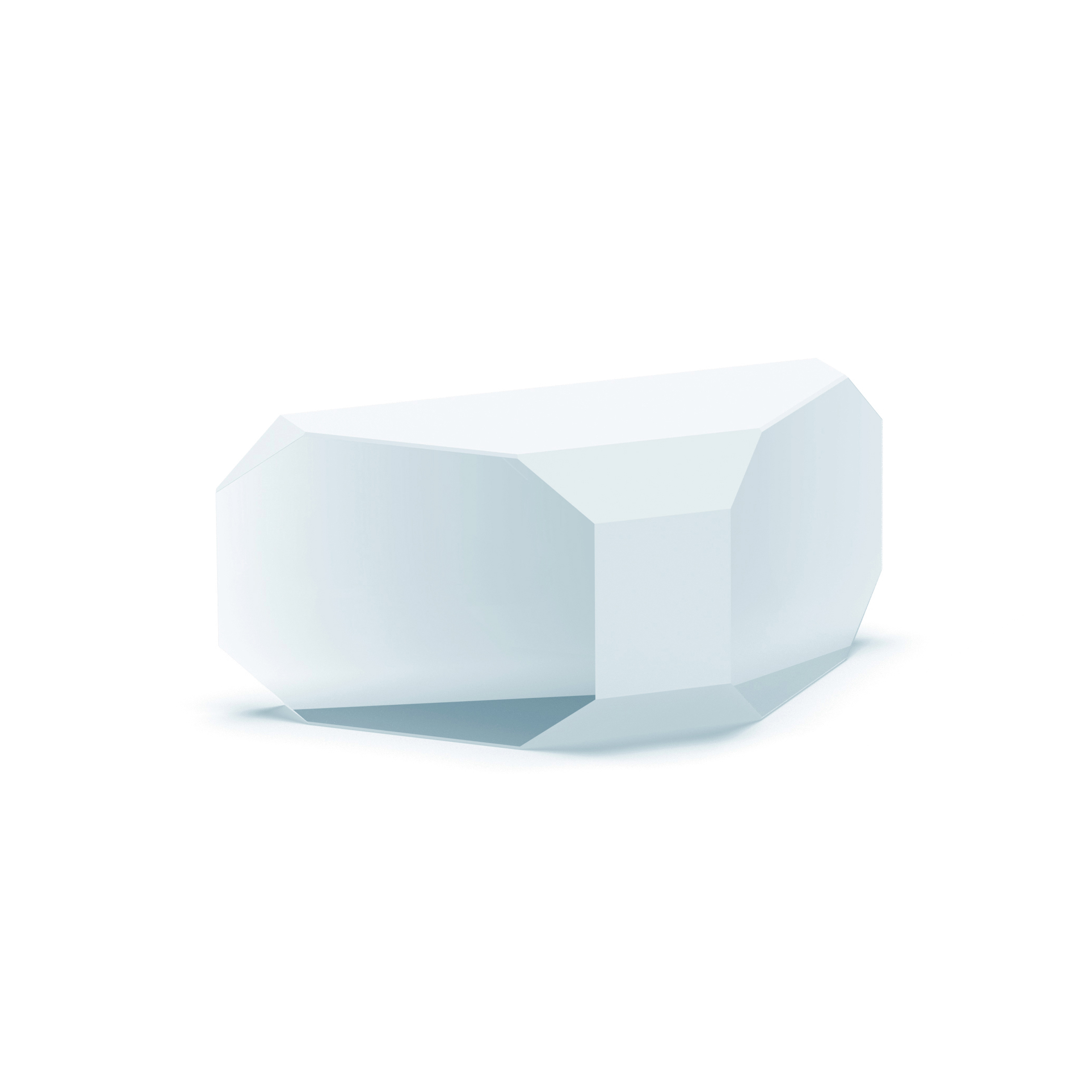

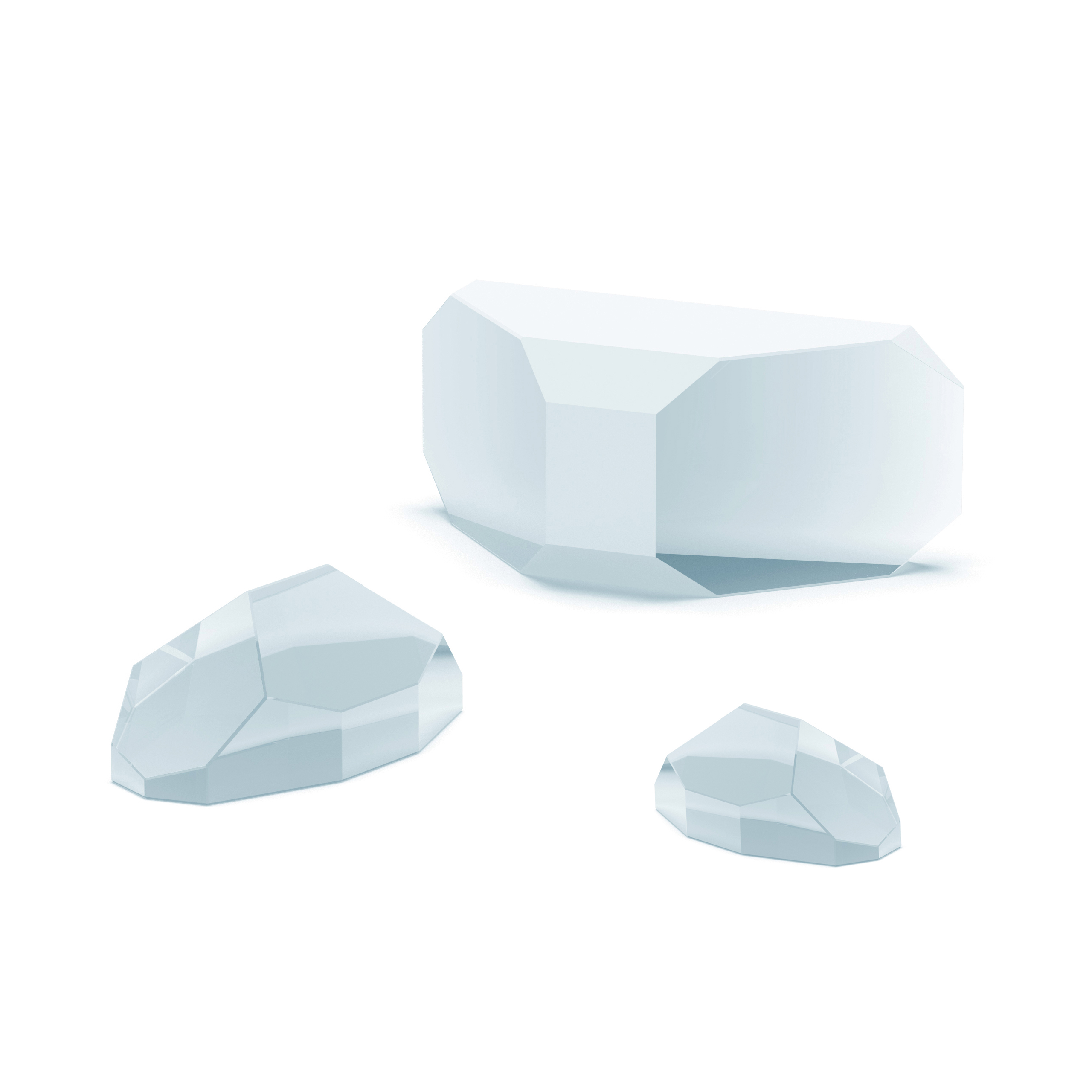

Roof Prisms

Key Features

The unique roof structure eliminates lateral image flipping common in conventional prisms, maintaining correct visual orientation without compromising device compactness . Total Internal Reflection (TIR) technology is complemented by advanced coatings to ensure consistent performance across varying light conditions. These prisms excel in maintaining polarization stability and minimizing optical losses, critical for high-precision imaging systems .

Applications

Roof Prisms find extensive use across multiple industries:

• Optical Instruments: Binoculars, spotting scopes, and telescopes benefit from their compact design and image correction capabilities .

• Defense & Aerospace: Integrated into targeting systems, surveillance cameras, and periscopes for reliable field performance .

• Consumer Electronics: Enabling slim profiles in digital cameras and laser rangefinders .

• Industrial & Medical Devices: Used in optical tooling, microscopy, and medical imaging equipment requiring precise beam steering .

Custom Solutions

We offer tailored Roof Prism configurations, including roof penta and amici variants, with rapid prototyping and full-scale production capabilities. Our engineering team works closely with clients to optimize prism design for specific wavelengths, environmental conditions, and mechanical constraints .

For applications demanding uncompromising optical performance, our Roof Prisms deliver the precision and reliability required in today’s most advanced imaging systems.
