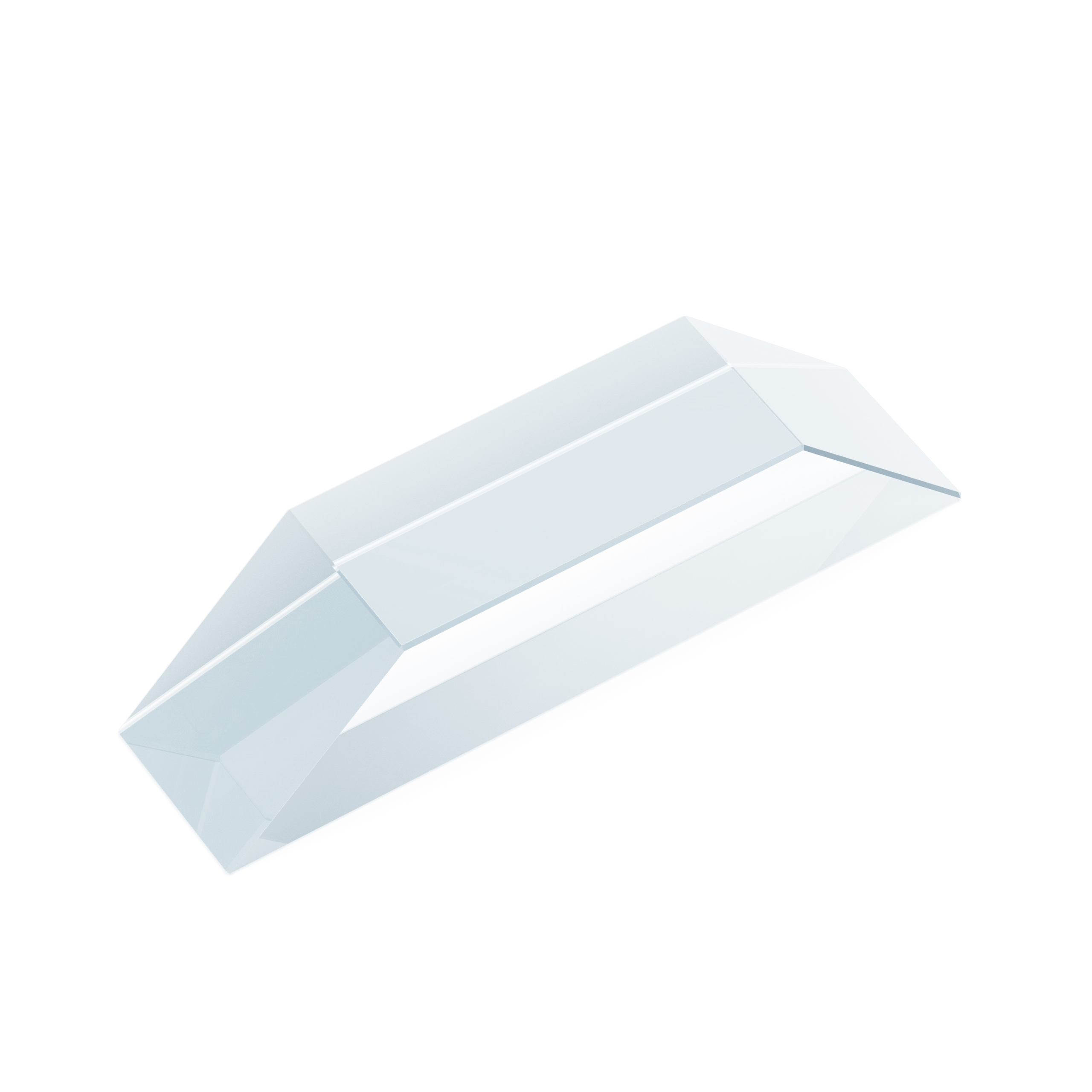

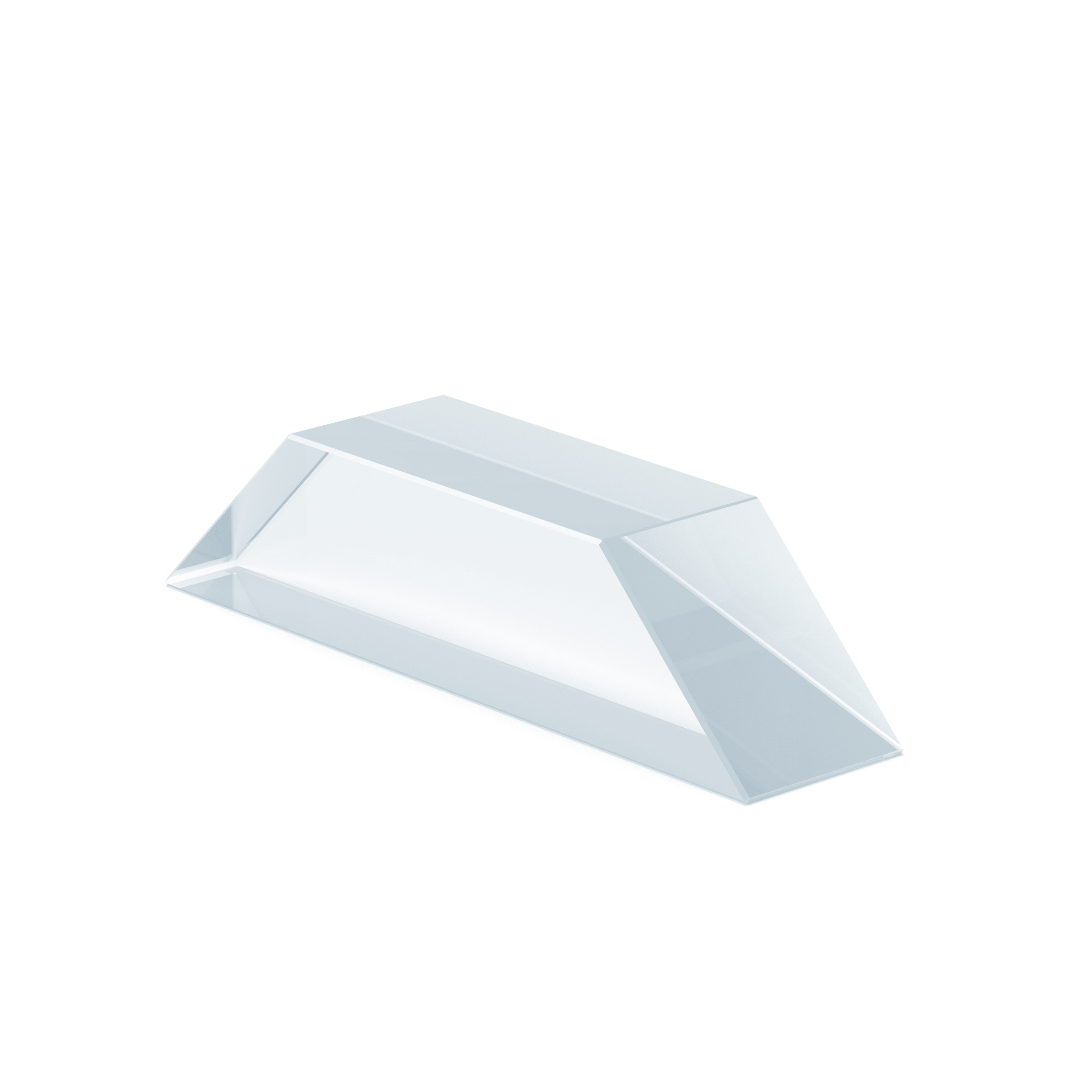

Dove Prisms

Product Overview

Unlike Porro prisms (which invert images but do not provide continuous rotation) or roof prisms (which require more complex multi-reflection designs), Dove prisms offer continuous rotation proportional to their angular displacement: rotating the prism by θ° results in 2θ° image rotation. This dynamic control makes them invaluable in applications requiring real-time orientation adjustment, such as microscopy or surveillance systems. Their compact, one-piece design (no glued interfaces) eliminates alignment complexity and reduces light loss (transmission efficiency >95%), ensuring reliable performance in space-constrained setups .

Product Features

• Materials: Manufactured from Schott BK7 (a crown glass with excellent visible-light transmission, ideal for general imaging applications), Hoya fused silica (high UV and NIR transmission, suitable for laser-based systems), and sapphire (aluminum oxide, known for extreme hardness—Mohs hardness 9—and high-temperature resistance). BK7 is cost-effective for visible-range use (400-700nm), while fused silica extends performance to 185-2100nm (UV to NIR). Sapphire, though more expensive, is ideal for harsh environments (e.g., industrial sensors exposed to dust or vibration)

• Critical Tolerances: Achieves angular tolerance <2 arcseconds (ensuring precise 180° rotation without image tilt) and flatness PV<1/10λ (measured at 632.8nm). These tolerances are critical for minimizing image distortion—even a 5 arcsecond angular deviation can cause a 0.1° tilt in the rotated image, which is unacceptable in precision applications like semiconductor wafer inspection .

• Surface Specifications: Surface quality 20-10 (standard grade, suitable for most imaging systems) with optional blackened edges (a matte black coating applied to non-optical surfaces). Blackened edges suppress internal reflections (stray light <0.5%) that would otherwise cause ghost images—faint duplicates of the main image that degrade clarity. For high-sensitivity applications (e.g., low-light microscopy), a 10-5 surface quality grade is available to further reduce scatter .

• Size Range: Standard dimensions from 5mm to 100mm (5mm models for miniaturized devices like smartphone microscopes, 100mm models for large-format imaging systems like industrial cameras) with custom sizes up to 300mm (for aerospace applications like satellite-based imaging). All models feature a truncated apex (the top corner of the right-angle prism), which reduces the prism’s overall height by 30-50% compared to a full right-angle prism, saving space in compact systems .

• Environmental Stability: Resistant to thermal expansion, with a coefficient of thermal expansion (CTE) of <7×10⁻⁶/°C for BK7 and <0.5×10⁻⁶/°C for fused silica. This stability ensures performance in -40°C to 80°C environments—critical for outdoor surveillance cameras (exposed to temperature fluctuations) or industrial sensors (used near heating or cooling equipment). Sapphire models offer even greater stability, withstanding temperatures up to 1000°C .

Applications

Dove prisms excel in precision optical systems:

• Biotechnology: Rotating samples in fluorescence microscopy (e.g., imaging living cells) and cell sorting systems (used in flow cytometry) without repositioning the light source. In flow cytometry, rotating the image of cell populations allows researchers to view cells from multiple angles, improving the detection of rare cell types (e.g., cancer cells in blood samples). In fluorescence microscopy, image rotation eliminates the need to physically move the sample, reducing the risk of damaging delicate cells .

• Defense: Enabling image stabilization in surveillance cameras (mounted on drones or military vehicles) and targeting systems (e.g., tank-mounted laser rangefinders). When the camera or rangefinder moves due to vibration, the Dove prism rotates to counteract the movement, keeping the image aligned with the target. This stabilization improves target tracking accuracy by up to 40% in high-vibration environments .

• Instrumentation: Correcting orientation in spectrometers (e.g., Raman spectrometers, where scattered light images may be inverted) and interferometers (used for precision length measurement). In interferometers, image rotation ensures that interference fringes (the light patterns used to measure distance) are aligned with the detector, improving measurement precision to within 1nm .

• Entertainment: Adjusting projection angles in laser displays (e.g., 3D holographic projections) and 3D mapping projectors (used in theme park attractions). In 3D mapping, rotating the projected image allows for seamless alignment of multiple projectors, creating a single, unified 3D map of large spaces (e.g., a museum hall). Laser displays use Dove prisms to rotate laser patterns, creating dynamic visual effects like spinning logos or moving text .

FAQ

Q: How does rotation angle relate to prism movement?

A: The relationship is linear and predictable: rotating the prism by θ° results in 2θ° image rotation. This doubling effect arises from the single internal reflection within the prism—light enters the prism, reflects off the hypotenuse surface, and exits, with the reflection effectively "doubling" the prism’s rotation. For example, rotating the prism 30° clockwise will rotate the image 60° clockwise. This predictable relationship allows for precise control over orientation, making Dove prisms ideal for applications where real-time adjustment is needed (e.g., remote-controlled surveillance cameras) .

Q: Can Dove prisms work with polarized light?

A: Yes, but performance depends on the polarization state of the incident light. P-polarized light (polarized parallel to the plane of incidence) minimizes reflection losses at the prism’s input and output surfaces—reflection losses are typically <1% for P-polarized light at Brewster’s angle. S-polarized light (polarized perpendicular to the plane of incidence), by contrast, has higher reflection losses (up to 5%), which can reduce image brightness. For polarized light applications (e.g., polarizing microscopy), we recommend specifying prisms with anti-reflective coatings optimized for the polarization state, or using P-polarized light to maximize throughput .

Q: What causes image distortion?

A: Image distortion in Dove prisms primarily arises from two factors: off-axis light and surface irregularities. Off-axis light (light rays that enter the prism at an angle to the optical axis) experiences different path lengths through the prism, leading to magnification differences across the image (keystone distortion). Maintaining <5° field angles (the angle between the optical axis and the outermost light rays) mitigates this issue. Surface irregularities (e.g., scratches or uneven flatness) can also cause distortion by scattering light; using prisms with 10-5 surface quality and AR coatings further reduces this effect. In high-precision applications (e.g., semiconductor inspection), we recommend collimated light sources (which produce parallel rays) to minimize off-axis distortion .
