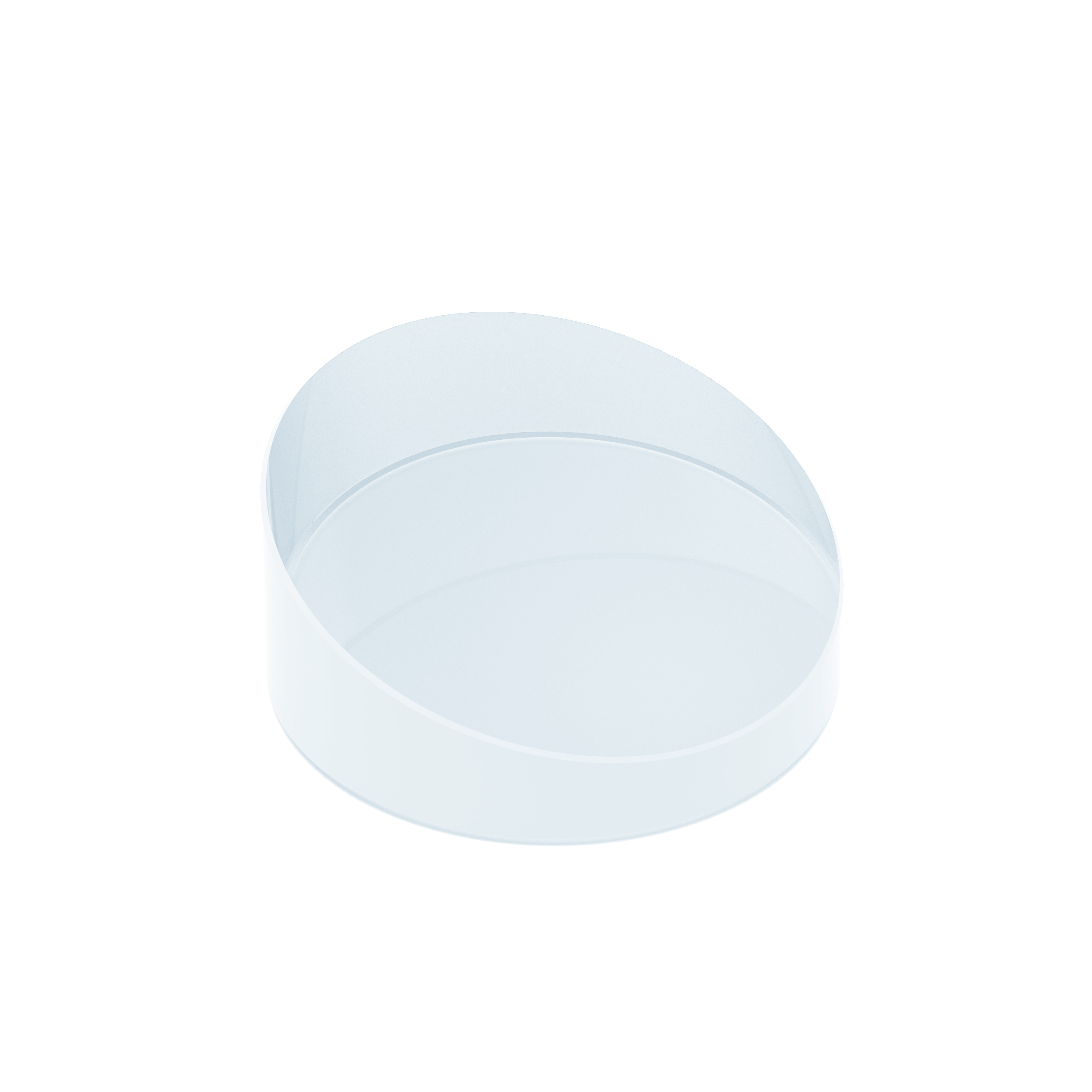

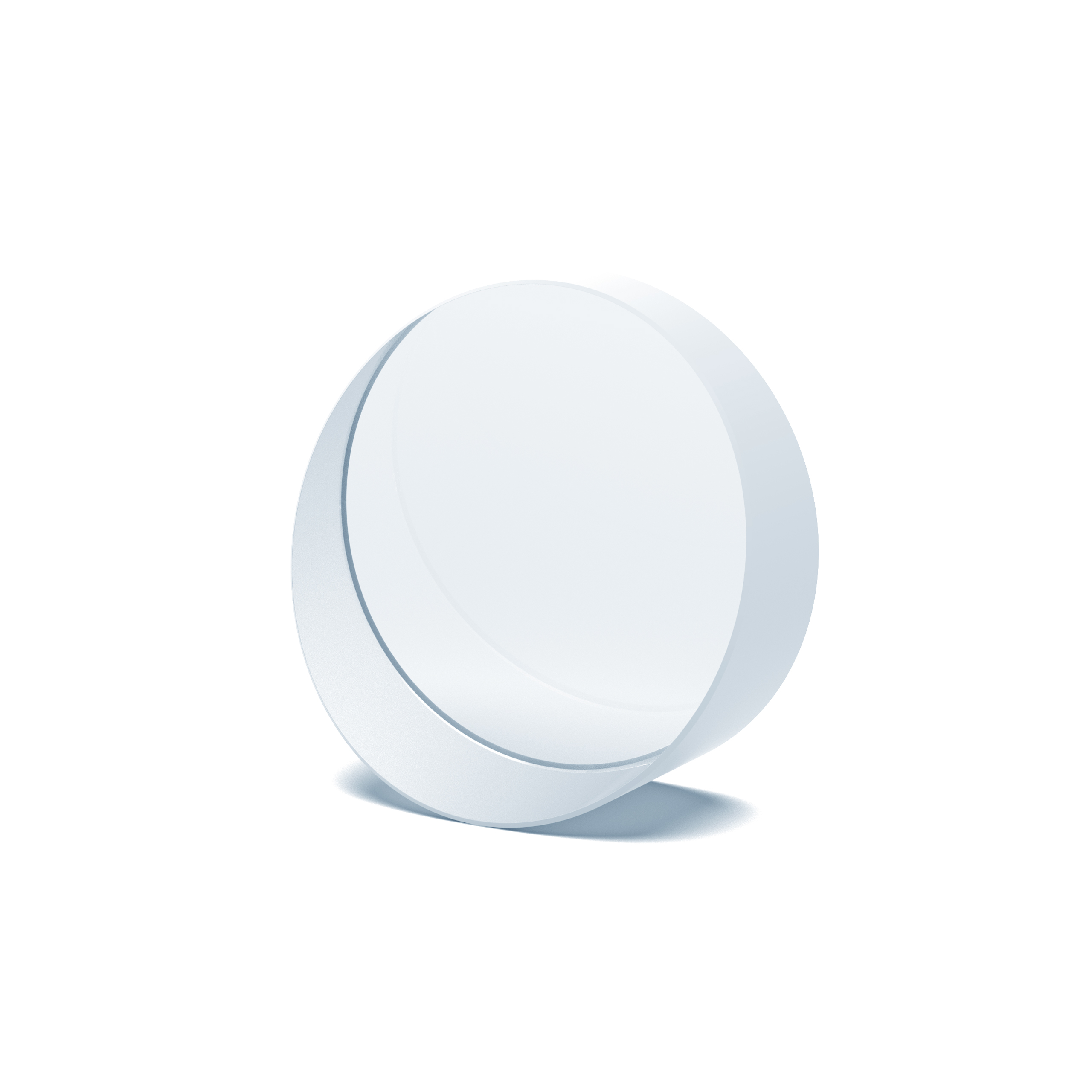

Unlike mirrors (which require precise tilt to adjust deflection angle), wedge prisms offer adjustable beam steering: rotating a single prism changes the deflection direction, while pairing two prisms (in a rotating mount) enables continuous 360° beam control. The deflection angle is determined by the prism’s wedge angle (the angle between the two faces) and refractive index—smaller wedge angles (e.g., 1°) produce smaller deflections (e.g., ~0.5° for BK7), while larger wedge angles (e.g., 30°) produce larger deflections (e.g., ~15° for BK7). Our Wedge Prisms deliver deflection accuracy <0.1°, making them indispensable for aligning laser systems, optical benches, and industrial scanners .
Material Choices: Schott glass (BK7 for visible-range applications, 400-700nm, cost-effective for general use), fused silica (UV and NIR transmission, 185-2100nm, low thermal expansion for precision systems), and ZnSe (mid-IR, 2-12μm, ideal for CO₂ lasers). BK7 is used in consumer applications (e.g., laser pointers), fused silica in UV curing or NIR fiber lasers, and ZnSe in industrial CO₂ laser systems (10.6μm wavelength). Each material is selected for its spectral compatibility and deflection performance—for example, ZnSe’s high refractive index (n=2.402) produces larger deflections for a given wedge angle than BK7 (n=1.5168) .
Deflection Capabilities: Single prisms offer 0.74° to 25° deflection, depending on wedge angle and material:
1° wedge angle (BK7): ~0.74° deflection.
5° wedge angle (BK7): ~3.7° deflection.
30° wedge angle (ZnSe): ~25° deflection.
Paired systems (two prisms mounted in a rotating cage) achieve 360° steering by rotating the prisms in opposite directions—rotating one prism 90° clockwise and the other 90° counterclockwise changes the deflection direction by 180°. This flexibility makes paired prisms ideal for dynamic applications like laser scanning .
Optical Precision: Angular tolerance <2 arcseconds (ensuring consistent deflection angle across the beam), surface quality 20-10 (standard grade, suitable for most industrial applications), and flatness PV<1/10λ (at 632.8nm, minimizing wavefront distortion). The two faces are polished to a parallelism of <1 arcsecond, ensuring the wedge angle is uniform—even a 1 arcsecond variation in wedge angle can cause a 0.00028° error in deflection, which is unacceptable for precision alignment. For high-power lasers, prisms with 10-5 surface quality are available to reduce scatter .
Mounting Options: Available unmounted (for custom integration into optical systems) or in 360° rotatable cages (aluminum or stainless steel holders with locking set screws). Rotatable cages allow precise adjustment of deflection direction, with angle markings (0-360°) for repeatable positioning. Some cages include fine-tuning knobs (with 0.1° resolution) for ultra-precise alignment—critical for lab applications like interferometry. For industrial use, waterproof and dustproof cages are available to protect prisms in harsh environments .
Coating Solutions: AR coatings tailored to specific wavelengths reduce surface reflections to <0.5% per surface (visible) or <1% (IR/UV). For example:
Visible AR coatings (400-700nm) for BK7 prisms in laser pointers.
UV AR coatings (248-400nm) for fused silica prisms in UV curing.
IR AR coatings (10.6μm) for ZnSe prisms in CO₂ lasers.
Blackened edges (matte black coating) suppress stray light (stray light <0.5%), preventing interference with other optical components. For high-power lasers, high-damage-threshold (HDT) AR coatings (dielectric coatings) are used to withstand pulse energies up to 1J/cm² .
Wedge prisms are critical in:
Engineering: Adjusting laser scanners for 3D modeling (architectural scanning of historic buildings, where the prism steers the laser to capture detailed surfaces) and dimensional inspection (semiconductor wafer inspection, where the prism aligns the laser with the wafer’s edge). 3D scanners use paired wedge prisms to achieve 360° scanning, capturing every angle of the building with <0.1mm resolution. Wafer inspection systems use small (5-10mm) fused silica prisms to align the laser, ensuring defects (e.g., scratches) as small as 1μm are detected .
Defense: Steering beams in targeting systems (fighter jet laser targeting pods, where the prism adjusts the beam to track moving targets) and adaptive optics (telescopes, where the prism corrects for atmospheric distortion). Targeting pods use high-speed rotating wedge prisms to track targets moving at 1000km/h, with deflection adjustments made in milliseconds. Adaptive optics systems use multiple wedge prisms to correct wavefront errors, improving telescope image resolution by 50% .
Research: Controlling light paths in interferometers (precision length measurement, where the prism adjusts the path length of one beam to create interference fringes) and optical tweezers (manipulating small particles like cells, where the prism steers the laser to trap and move particles). Interferometers use wedge prisms to fine-tune path length differences (down to 1nm), enabling measurement of distances with atomic-scale precision. Optical tweezers use paired prisms to steer the laser beam, allowing researchers to move cells or nanoparticles with <1μm accuracy .
Q: How is deflection angle calculated?
A: For small wedge angles (α < 10°), the deflection angle (δ) is approximated by the formula: δ = (n - 1) × α, where n is the prism’s refractive index and α is the wedge angle (in degrees). This approximation is accurate to within 1% for small angles. For larger angles, the full refraction formula (using Snell’s law) is required:
Calculate the angle of refraction at the first face: n₁ × sin(θ₁) = n₂ × sin(θ₂), where n₁=1 (air), θ₁=α (incident angle), n₂=n (prism).
Calculate the incident angle at the second face: θ₃ = α - θ₂.
Calculate the deflection angle: δ = θ₁ + θ₄ - α, where θ₄ is the angle of refraction at the second face (n₂ × sin(θ₃) = n₁ × sin(θ₄)).
Example: BK7 prism (n=1.5168) with α=5°:
Small-angle approximation: δ ≈ (1.5168 - 1) × 5 ≈ 2.584°.
Full calculation: δ ≈ 2.6°, very close to the approximation .
Q: What’s the advantage of paired wedge prisms?
A: Paired wedge prisms offer two key advantages over single prisms:
360° Beam Steering: Rotating the two prisms in opposite directions (e.g., one clockwise, one counterclockwise) changes the deflection direction without changing the deflection angle. For example, rotating both prisms 45° in opposite directions shifts the deflection direction by 90° while keeping δ constant. This is impossible with a single prism, which can only change direction by rotating the entire prism (which also changes the angle of incidence, altering δ).
Variable Deflection Angle: Rotating the prisms in the same direction changes the effective wedge angle—rotating both 30° in the same direction doubles the effective wedge angle (and thus δ) for small angles. This allows dynamic adjustment of deflection angle, making paired prisms ideal for applications like laser scanning where δ needs to change in real time .
Q: Can they handle high-power lasers?
A: Yes, when made from heat-resistant materials and coated with HDT coatings. The key considerations are:
Material: Sapphire or ZnSe are preferred:
Sapphire: Handles CW laser powers up to 1kW/cm² in the visible range, high thermal conductivity (46 W/m·K) dissipates heat.
ZnSe: Handles up to 5kW/cm² in the mid-IR (10.6μm), ideal for CO₂ lasers.
Coatings: HDT dielectric AR coatings (instead of metal coatings) have damage thresholds >10kW/cm² for CW lasers and >1J/cm² for pulsed lasers (e.g., femtosecond lasers).
Cooling: For ultra-high-power applications (e.g., 10kW+ industrial lasers), water-cooled mounts are used to dissipate heat, preventing prism damage. For example, a water-cooled ZnSe wedge prism can handle 20kW CO₂ laser power without overheating .
