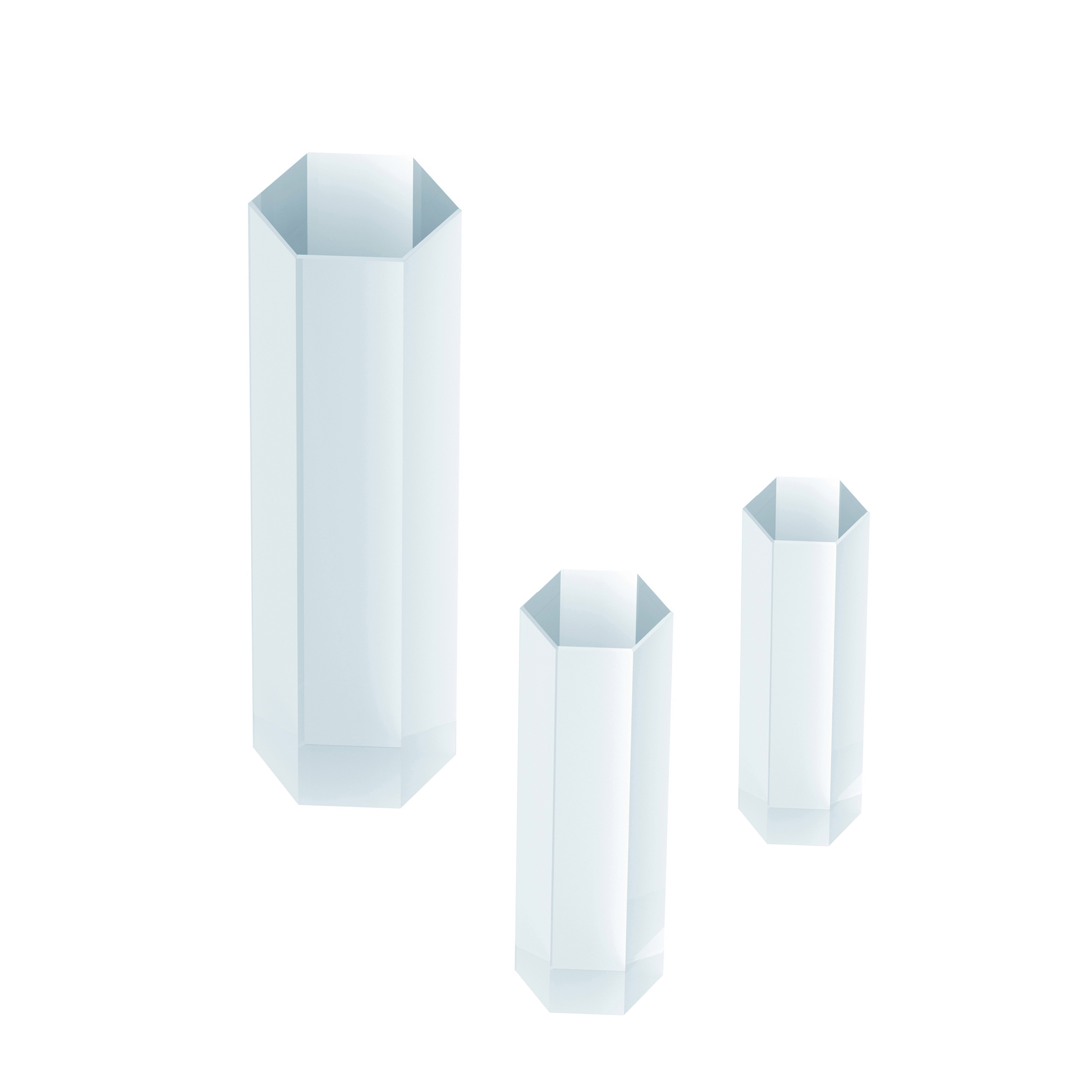

Unlike diffractive optical elements (DOEs) that rely on wavefront manipulation, homogenizing rods use geometric optics—each reflection redistributes light energy across the rod’s cross-section, resulting in a uniform intensity distribution at the output. Thorlabs' hexagonal light mixing rods, for example, are engineered with precision-polished internal surfaces (60-40 scratch-dig finish) to minimize light loss and maximize uniformity, making them essential for applications where consistent illumination is non-negotiable (e.g., medical imaging, laser material processing). These rods utilize UV fused silica (UVFS) substrates—chosen for their high transmittance (>90% at 300 nm) and resistance to laser damage—with optional broadband antireflection (AR) coatings, ensuring efficient light transmission across 350-700 nm (visible) or 650-1050 nm (NIR) wavelength ranges .
Exceptional Homogenization Performance: Convert non-uniform input beams into flat-top profiles with minimal intensity variation—typically <5% across the output surface (measured at the 1/e⊃2; beam diameter). This level of uniformity is critical for applications like laser welding, where uneven energy distribution would cause inconsistent joint strength .
Low Loss Coatings: Broadband AR coatings are applied to both input and output faces, providing <0.5% average reflectance per surface in the specified wavelength range (e.g., 350-700 nm for visible applications). Compared to uncoated rods (which have ~4% reflectance per surface due to Fresnel losses), coated versions increase overall transmission efficiency by 7-9%—a significant improvement for low-power LED systems .

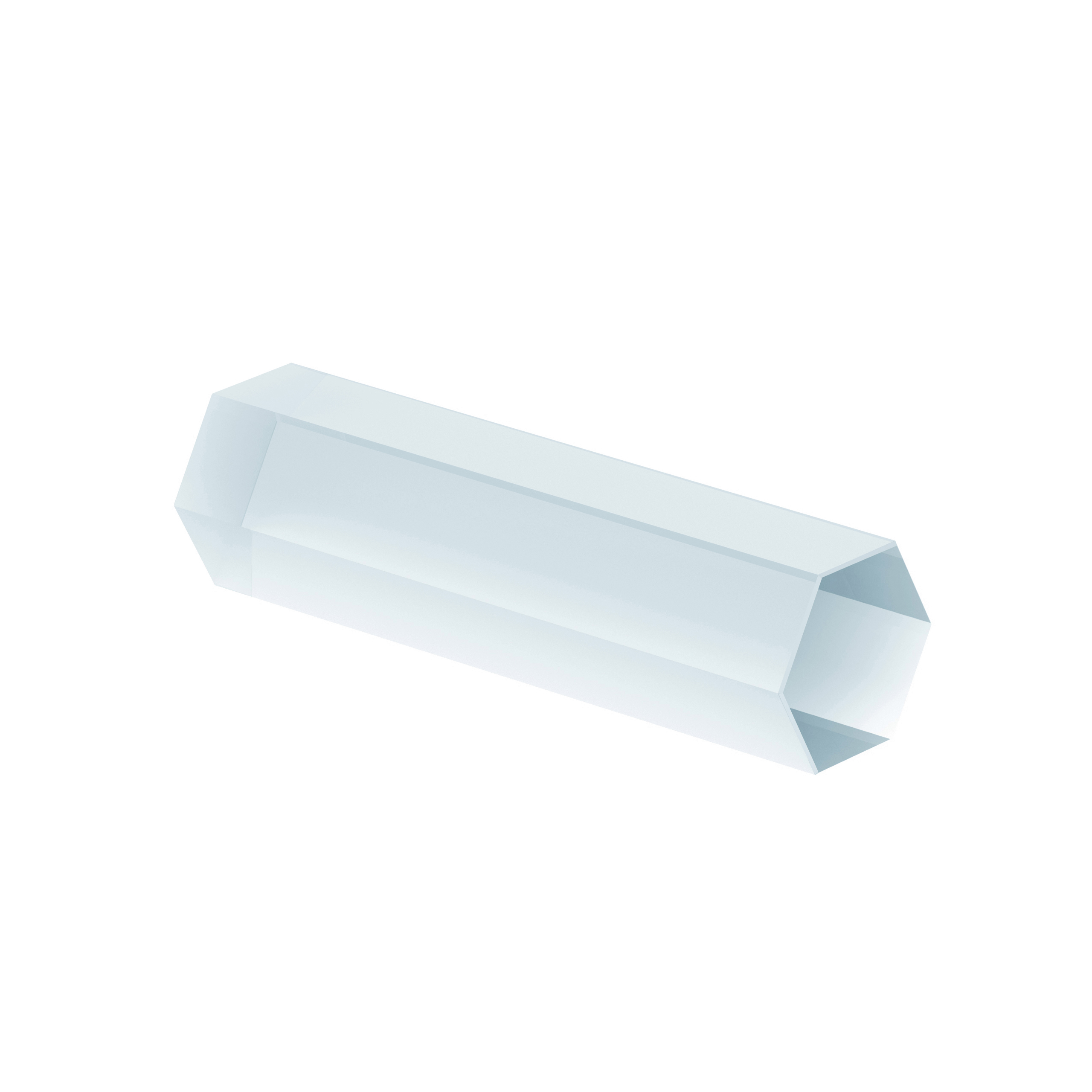

Hexagonal Geometry: Optimizes TIR efficiency compared to round or square rods. The hexagonal cross-section ensures that light rays reflect off six internal surfaces (vs. four for square rods), reducing "hot spots" and ensuring more consistent beam mixing. For example, a 4 mm hexagonal rod produces a flat-top profile with 20% better uniformity than a 4 mm square rod of the same length .
Precision Manufacturing: Fabricated with ultra-tight dimensional tolerances, including ±0.1 mm center thickness (ensuring consistent beam path length) and 60-40 scratch-dig surface quality (minimizing light scattering). The rod’s length-to-aperture ratio (typically 6:1 for standard models) is carefully calibrated to balance homogenization performance and compactness .
Versatile Sizing and Customization: Available in standard lengths (25.0 mm, 50.0 mm) and aperture sizes (4.0 mm, 6.0 mm), with custom options for specialized systems (e.g., 10 mm aperture rods for high-power lasers). Customizations also include chamfered edges (to prevent chipping during mounting) and anti-reflection coatings tailored to specific wavelengths (e.g., 405 nm for UV LEDs) .
LED Illuminators: Enhance uniformity in industrial lighting systems (e.g., inspection lamps for printed circuit boards) and display backlighting (e.g., LCD screens in medical monitors). For example, in PCB inspection, homogenizing rods ensure that solder joints are illuminated evenly, reducing the risk of missed defects (e.g., cold solder) .
Medical Imaging: Provide consistent illumination for endoscopes (e.g., laparoscopic, bronchoscopic) and fluorescence microscopy, where uniform light is essential for accurate tissue visualization. In fluorescence microscopy, a homogenized beam ensures that all regions of a tissue sample receive the same excitation intensity, preventing false-negative results .
Laser Material Processing: Ensure uniform energy distribution in laser welding, cutting, and marking applications. For instance, in stainless steel cutting, a flat-top beam profile from a homogenizing rod produces cleaner edges (with <5 μm burr height) compared to a Gaussian beam (which creates uneven heat distribution and larger burrs) .
Machine Vision: Improve inspection accuracy in automated systems (e.g., bottle defect detection, semiconductor wafer inspection) by providing evenly distributed lighting across target surfaces. In bottle inspection, uniform illumination highlights subtle defects like cracks or uneven walls that would be obscured by a non-uniform beam .
OEM Integration: Customizable for incorporation into specialized optical systems, such as flow cytometers (where uniform laser illumination ensures accurate cell counting) and 3D scanners (where consistent light intensity improves point cloud density). OEM versions often include mounting flanges or alignment marks for easy integration into production lines .
A working distance of 3 mm is optimal to achieve the full flat-top beam profile at the exit surface. Beyond this distance, the beam begins to diverge slightly (typical divergence angle: 0.5°), which reduces uniformity—at 10 mm, intensity variation can increase to 10-15%. For applications requiring a longer working distance (e.g., large-format printing), pair the rod with a collimating lens to maintain flat-top profile integrity .
Yes, but performance depends on the substrate and coating. UV fused silica (UVFS) models—commonly used for high-power applications—support pulsed laser energy densities up to 55 J/cm² (1 µs pulse at 980 nm) and continuous wave (CW) power densities up to 6 W/cm² at 980 nm. For higher power levels (e.g., 20 W CW lasers), consider rods with heat-dissipating mounts or sapphire substrates (which have higher thermal conductivity: 46 W/m·K vs. 1.4 W/m·K for UVFS) .
AR coatings reduce surface reflections, which not only increases transmission efficiency but also minimizes back-reflections that can damage the light source (e.g., LED chips or laser diodes). For example, in a 350-700 nm visible system, a coated rod transmits ~92% of input light, while an uncoated rod transmits ~85%. Additionally, AR coatings reduce stray light in the system, improving signal-to-noise ratio in imaging applications .
The primary cause of non-uniformity is input beam misalignment beyond the rod’s critical angle (θc ≈ 14° for UVFS). If the input beam is tilted by more than ±2° relative to the rod’s optical axis, some light rays escape through the rod’s sides (instead of undergoing TIR), creating hot spots. To resolve this, use precision mounting hardware (e.g., kinematic mounts) to align the beam within ±0.5° of the axis. Other causes include surface contamination (clean rods as described earlier) and rod damage (replace rods with scratches deeper than 1 µm) .
