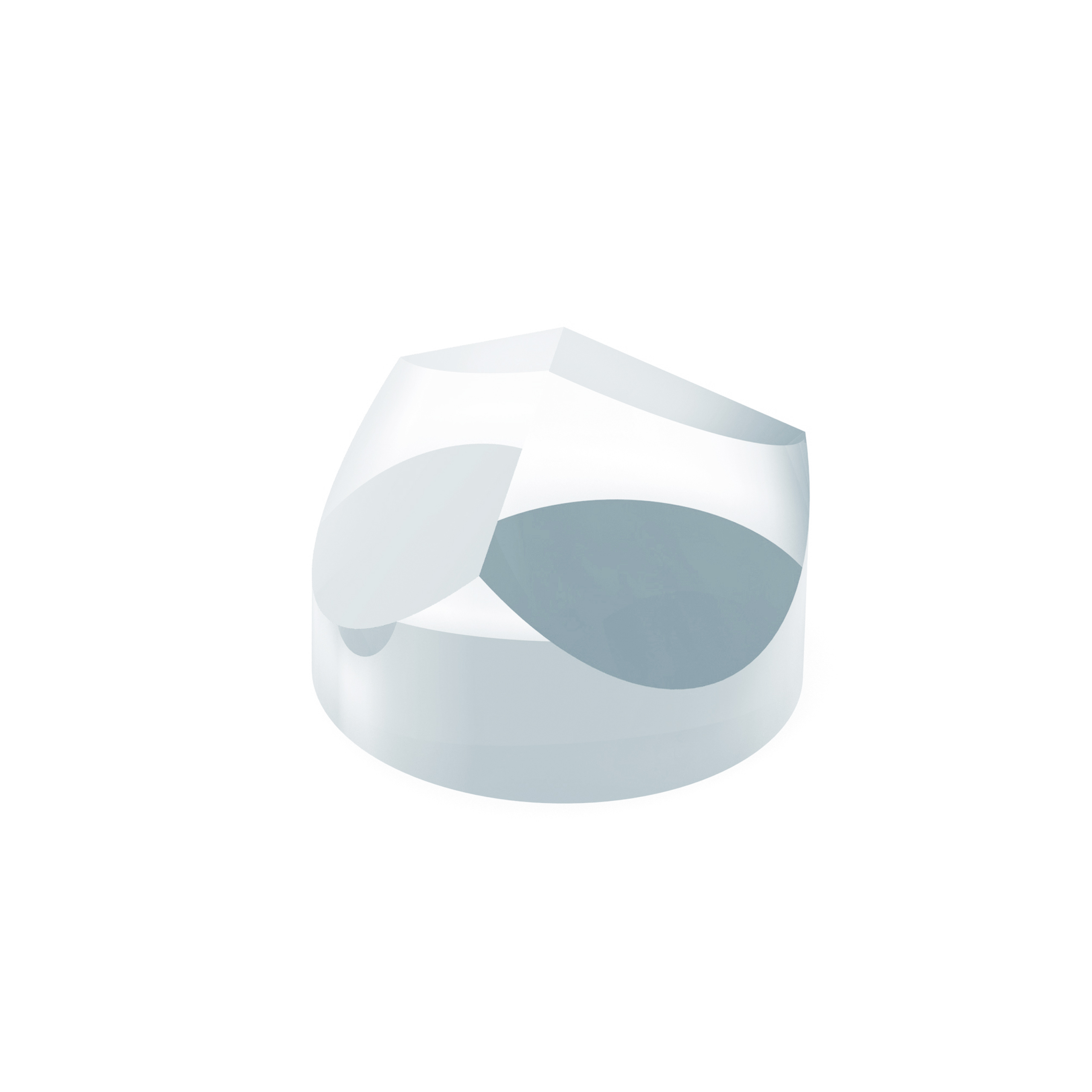

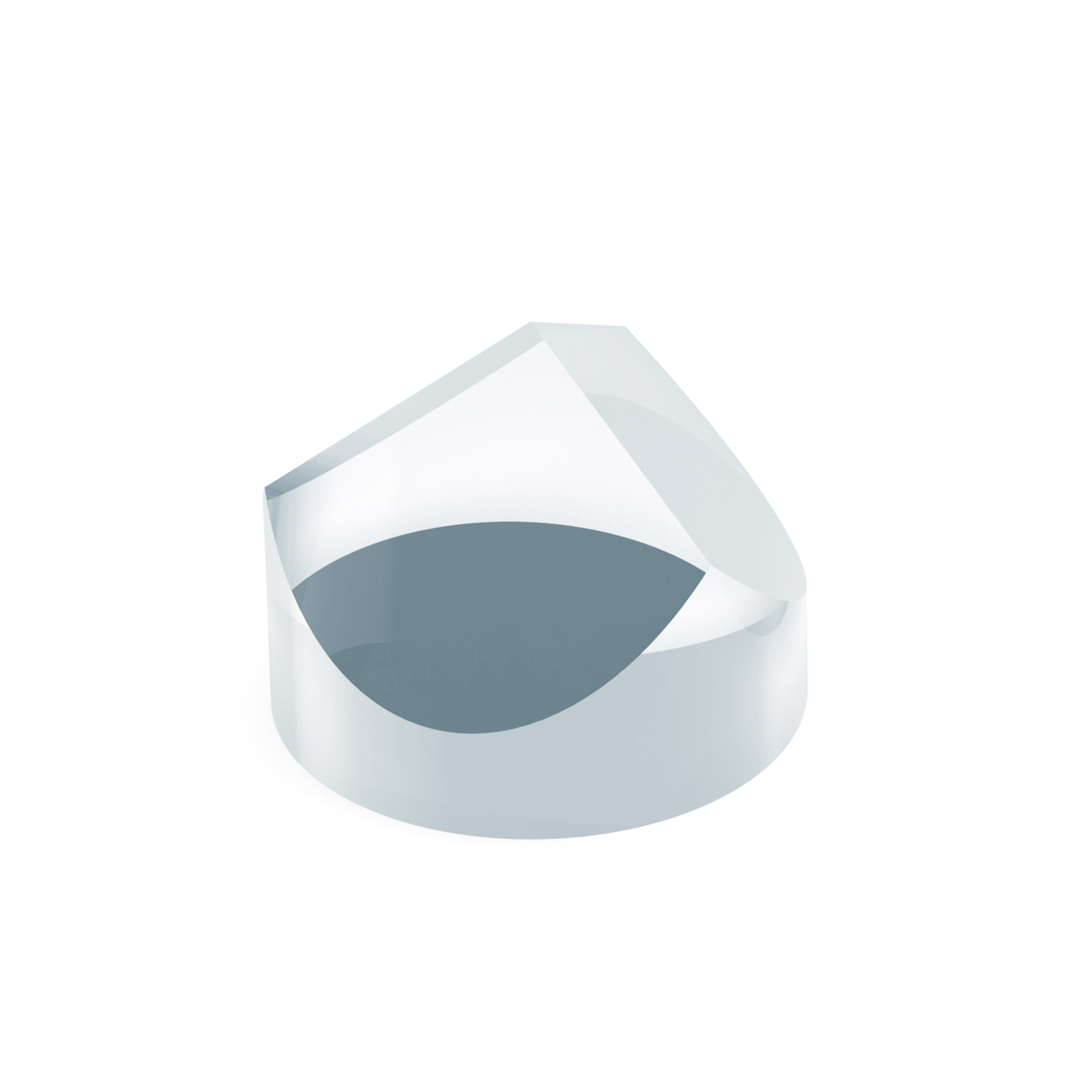

Unlike conventional mirrors that rely on strict surface alignment to maintain beam direction, these retroreflectors utilize three mutually perpendicular, high-precision reflective surfaces (typically polished to 20-10 scratch-dig quality) to achieve 180° ray deviation through either total internal reflection (TIR) or vacuum-deposited metallic coatings. This unique geometric design eliminates the need for constant realignment, making them indispensable in applications where environmental vibrations, temperature fluctuations, or remote operation make consistent alignment challenging or time-consuming. For instance, Edmund Optics' Techspec® N-BK7 corner cube retroreflectors are engineered with ultra-tight dimensional tolerances (±0.01 mm on surface perpendicularity) and offer reliable performance across a 400-2200 nm wavelength range—spanning visible to near-infrared (NIR) spectra—making them suitable for diverse optical systems, from laboratory interferometers to outdoor surveying equipment .
Superior Beam Deviation Control: High-quality corner cubes achieve beam deviation as low as <5 arcsec (arcseconds), a critical specification for precision measurements where even minute angular shifts can introduce significant errors (e.g., in long-distance laser ranging). This level of control ensures minimal signal loss and maintains measurement accuracy within ±0.1 mm over 100 meters .
Dual Coating Options: Available with two primary surface treatments: uncoated surfaces, which rely on TIR to deliver >99% reflectivity for wavelengths where the substrate (e.g., N-BK7) has high refractive index contrast, and silver coatings (with optional protective SiO₂ overcoats) that provide a larger acceptance angle (up to ±15° vs. ±8° for uncoated versions), making them more forgiving of misalignment in outdoor or industrial settings .
Durable Substrates: Constructed from N-BK7 glass, a material renowned for its excellent mechanical stability (Young’s modulus of 82 GPa) and optical clarity (transmittance >92% at 550 nm). Some industrial-grade models feature protective black overcoats on non-reflective surfaces, which not only reduce stray light but also increase the overall diameter by 30-60 µm to enhance mechanical grip during mounting .
Broad Aperture Range: Offered in sizes from 7.16 mm (miniature models for compact devices) to 76.2 mm (large-aperture versions for high-power lasers), with a 95% clear aperture—meaning only 5% of the total diameter is occupied by mounting edges, ensuring maximum beam utilization .
Environmental Resistance: Engineered to withstand harsh operating conditions, including temperature fluctuations (-40°C to +80°C for standard models) and mechanical stress (resistant to 500 N compressive force). The combination of robust substrates and protective coatings prevents degradation from humidity (up to 95% relative humidity) and minor chemical exposure (e.g., industrial dust, mild solvents) .
Surveying and Geodesy: Essential for land surveying equipment, such as total stations and GPS receivers, where they enable precise distance measurements over long ranges (up to 10 km) by reflecting laser pulses back to the source. In geodetic projects (e.g., tectonic plate monitoring), they are paired with satellite-based laser ranging (SLR) systems to track ground movements with millimeter-level accuracy .
Laser Interferometry: Used in optical delay lines and Michelson interferometers, where consistent beam alignment is critical for measuring small displacements (down to nanometers) in semiconductor manufacturing or gravitational wave detection. For example, in semiconductor wafer inspection, they help calibrate stage movements to ensure <10 nm positioning accuracy .
Automotive LiDAR Systems: Provide reliable reflection for distance sensing in autonomous vehicles, where LiDAR sensors use retroreflectors as reference points to map surroundings and avoid collisions. Their wide acceptance angle ensures detection even when the vehicle is at an angle to the reflector (e.g., at intersections) .
Aerospace Navigation: Integrated into aircraft (e.g., commercial airliners) and satellite systems (e.g., low-Earth orbit satellites) for position tracking and orbital alignment. In satellite applications, they are often mounted on external panels to reflect laser signals from ground stations, enabling orbit determination with <10 cm precision .
Industrial Metrology: Ensure accuracy in dimensional measurement tools, such as coordinate measuring machines (CMMs) and laser scanners, where they act as reference targets to calibrate measurement volumes. In automotive manufacturing, they are used to verify the dimensions of car body panels with ±0.05 mm tolerance .
Uncoated corner cubes rely on total internal reflection, which delivers higher reflectivity (>99%) for wavelengths within the substrate’s optimal range (e.g., 400-2200 nm for N-BK7) but has a narrower acceptance angle (±8°). Silver-coated versions, by contrast, have a broader acceptance angle (±15°) and work across a wider wavelength range (200-2000 nm) but offer slightly lower reflectivity (95-98%). For example, in outdoor surveying (where misalignment is common), coated cubes are preferred, while uncoated cubes are ideal for laboratory interferometry (where precision alignment is achievable) .
The N-BK7 substrate used in most corner cubes has a low coefficient of thermal expansion (7.1 × 10⁻⁶ /°C), which minimizes dimensional changes across typical operating temperatures (-40°C to +80°C). This thermal stability ensures that the perpendicularity of the reflective surfaces remains within ±0.001°, resulting in beam deviation changes of <0.5 arcsec—negligible for most applications. For extreme-temperature environments (e.g., aerospace), specialized substrates like fused silica (thermal expansion coefficient 0.55 × 10⁻⁶ /°C) are available .
Yes, but laser-induced damage thresholds (LIDT) must be considered to avoid surface degradation. Most standard N-BK7 corner cubes (uncoated) handle continuous wave (CW) power densities up to 5 W/cm² at 810 nm, while silver-coated versions can withstand up to 3 W/cm² (due to higher absorption in the metal layer). For high-power applications (e.g., 100 W lasers), high-LIDT models with dielectric coatings (LIDT >20 W/cm² at 1064 nm) are recommended .
Regular maintenance focuses on keeping reflective surfaces clean and free of contamination. Use lint-free lens tissue dampened with reagent-grade isopropyl alcohol (99.9% purity) to gently wipe surfaces—avoid circular motions to prevent scratching. Never touch reflective surfaces with bare hands, as skin oils can cause permanent staining; use nitrile gloves when handling. For industrial environments, inspect monthly for dust buildup and clean as needed; in laboratory settings, quarterly inspections are sufficient .
