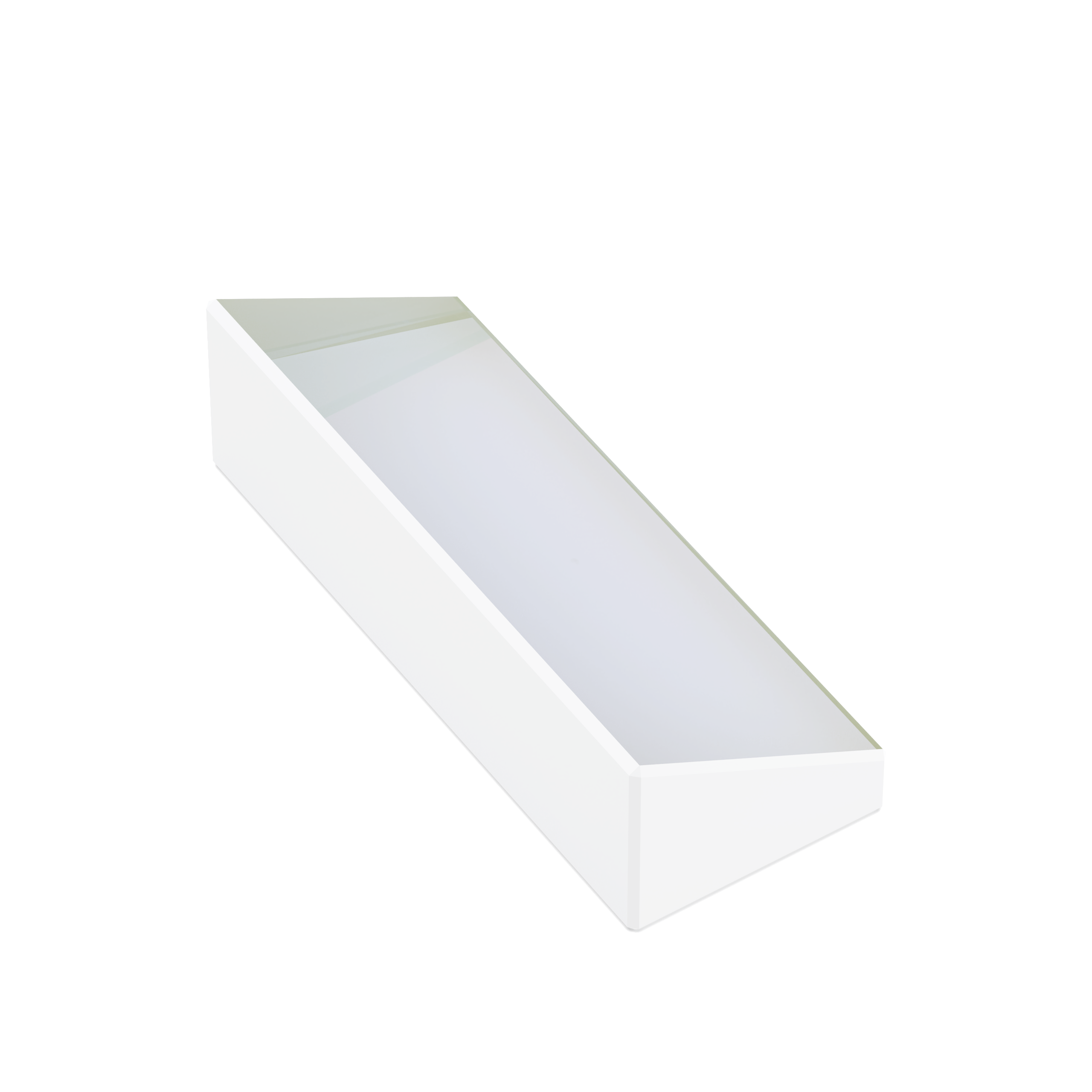

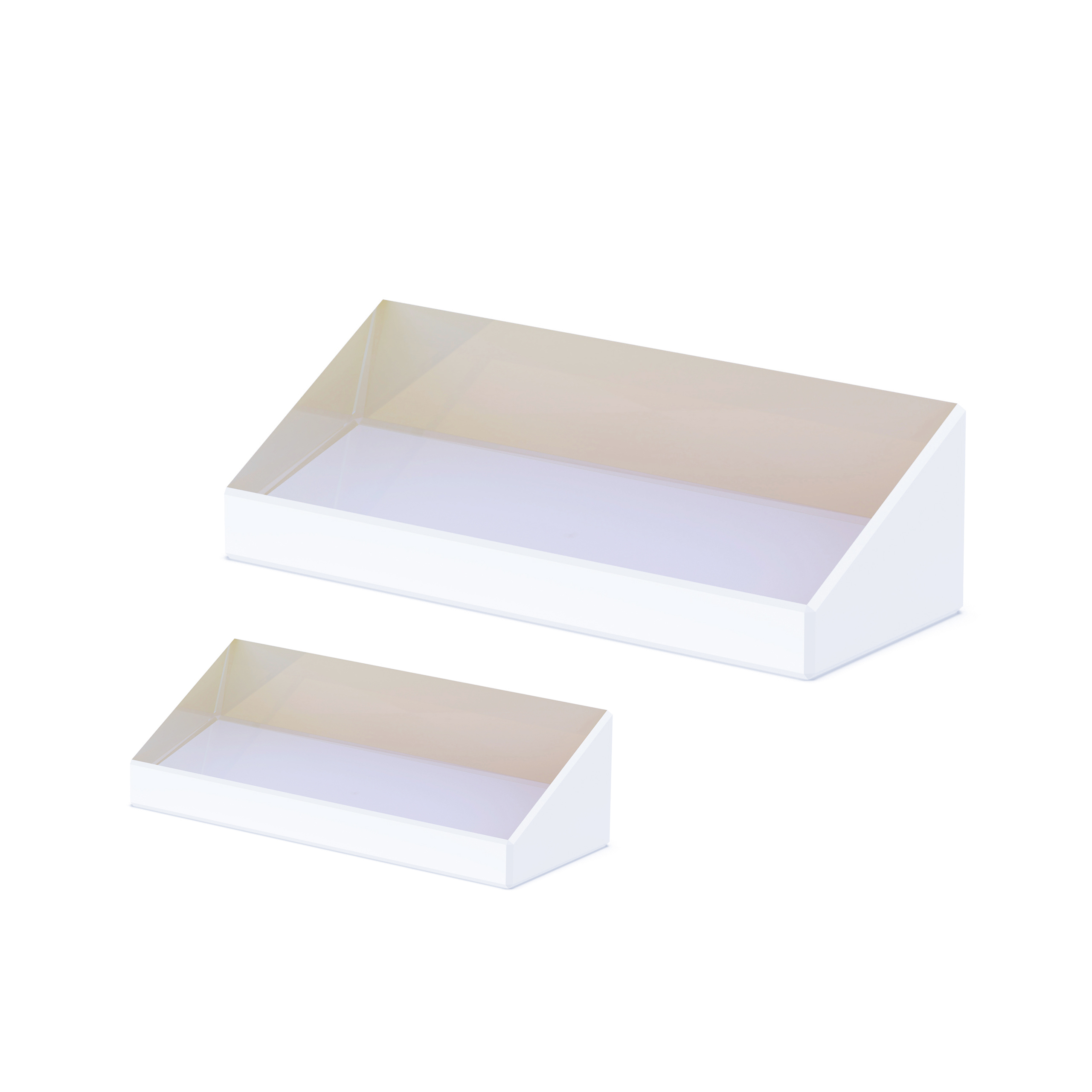

Unlike spherical optics, which symmetrically expand beams but fail to address elliptical outputs (a common issue in laser diodes, where diode structures produce beams with unequal horizontal and vertical divergence angles), these prism pairs reshape elliptical profiles into nearly circular outputs. This transformation directly improves irradiance consistency (reducing hotspots by up to 80% in high-power setups) and focusing accuracy, as circular beams achieve tighter focal spots with minimal energy loss. Our Anamorphic Prism Pairs leverage advanced optical design—including precision-polished interface surfaces and optimized prism angle ratios—to achieve magnification ratios from 2:1 to 6:1. This range makes them indispensable in high-precision laser systems, such as medical laser scalers or industrial laser cutters, where beam symmetry directly impacts treatment precision or cutting edge quality .
• Materials: Crafted from premium optical glasses including Schott (known for low thermal expansion and high refractive stability), Ohara (offering ultra-high homogeneity for minimal beam distortion), and Hoya (specialized for high-power laser resistance) substrates. These materials ensure exceptional refractive stability across spectral ranges, from visible (400-700nm) to near-infrared (NIR, 700-1700nm), preventing performance degradation under temperature fluctuations .
• Dimensional Precision: Available in sizes from 2mm to 300mm with a tolerance of ±0.25mm. The 2mm miniaturized models are ideal for compact lab-scale devices like portable laser spectrometers, while 300mm large-format prisms cater to industrial laser systems (e.g., automotive body welding lasers) requiring broad beam coverage .
• Optical Performance: Features surface quality of 20-10 or 10-5 scratch-dig (the 10-5 grade is recommended for ultra-sensitive applications like semiconductor lithography) and flatness PV<1/10λ (measured at 632.8nm, the He-Ne laser wavelength). These specifications minimize light scattering (reducing stray light by <5%) and ensure optimal beam transmission, preserving over 98% of incident light intensity .
• Coating Options: Custom AR coatings tailored for 350-700nm (visible), 650-1050nm (NIR for fiber lasers), or 1050-1700nm (long-wave NIR for thermal imaging) ranges. When aligned at Brewster’s angle (the angle where reflected light is fully polarized), these coatings achieve >95% throughput, eliminating reflection losses that would otherwise reduce beam power .
• Angular Control: Maintains angular tolerance <2 arcseconds, a critical parameter for consistent beam shaping in laser modules. Even minor angular deviations (e.g., 5 arcseconds) can cause beam misalignment in precision applications like laser-based 3D scanning, making this tight tolerance essential for repeatable performance .
Anamorphic prisms excel in applications requiring precise beam control:
• Laser Technology: Convert elliptical diode beams in spectroscopy (e.g., Raman spectroscopy, where uniform beams ensure accurate molecular detection), laser welding (automotive component joining, where circular beams create symmetric weld seams), and medical lasers (ophthalmic surgery, where circular beams prevent uneven tissue ablation). In dental lasers, for example, 2:1 ratio prisms transform diode beams to ensure consistent enamel removal .
• Defense & Aerospace: Improve targeting system precision by ensuring uniform beam profiles in rangefinders (e.g., military laser rangefinders used for artillery aiming) and surveillance lasers (drone-mounted night vision lasers). Uniform beams reduce false readings caused by uneven light distribution, enhancing target detection accuracy by up to 30% .
• Entertainment: Enable sharp, distortion-free projections in laser displays (large-scale outdoor concerts) and 3D mapping systems (architectural scanning for building renovations). In 3D mapping, circular beams ensure equal resolution across horizontal and vertical scan planes, avoiding stretched or compressed details .
• Biotechnology: Enhance fluorescence microscopy imaging by delivering uniform excitation beams to samples. In cell imaging, uneven beams can cause some cells to receive excess excitation light (leading to photobleaching) while others receive insufficient light (resulting in faint signals). Anamorphic prisms eliminate this issue, ensuring consistent signal intensity across the entire field of view .
Q: What magnification ratio is suitable for laser diode applications?
A: For most edge-emitting laser diodes (the most common type in industrial and medical devices), a 2:1 to 4:1 ratio effectively circularizes beams, as these diodes typically have an aspect ratio (horizontal:vertical divergence) of 2:1 to 3:1. For high-aspect-ratio sources—such as some quantum cascade lasers (QCLs) used in gas sensing, which may have aspect ratios up to 5:1—6:1 ratio prisms are required to achieve optimal circularity .
Q: Can anamorphic prisms work with infrared lasers?
A: Yes, when fabricated from germanium or silicon (materials with high transmission in IR ranges) with appropriate AR coatings. Infrared-based prisms operate efficiently in the 1050-1700nm NIR range (used in thermal imaging lasers), while silicon prisms extend to 3000nm (suitable for mid-IR lasers in chemical detection). These materials also offer high thermal conductivity, preventing overheating in high-power IR laser systems .
Q: How critical is alignment to performance?
A: Proper orientation at Brewster’s angle is extremely critical—misalignment by just 1° can reduce throughput by 10-15%. Mounted versions come pre-aligned in precision metal housings (with locking screws to prevent shifting), making them ideal for users without specialized alignment tools. Unmounted prisms require precision positioning (using optical benches and angle meters) to ensure maximum throughput; even small rotational errors can introduce beam astigmatism, compromising shape uniformity .
