Transmission Spheres are special optical devices. They help test lenses and mirrors for quality and accuracy. These tools shape light in a way that lets scientists and engineers check if an optical surface is smooth and precise. Accurate results from these tests make sure cameras, telescopes, and other optical systems work their best.
Transmission Spheres are important for testing lenses and mirrors. They help make sure optical systems work well and are correct.
Picking the right f-number for a Transmission Sphere is important. A lower f-number lets in more light. This helps get clearer results.
Transmission Spheres help spread light evenly. This makes it easier to test surfaces and find small flaws.
These spheres can test both concave and convex surfaces. They are useful tools in many areas, like healthcare and electronics.
Setting up the equipment right is very important. The room must be controlled well. Small mistakes can cause wrong results. So, careful setup and good room conditions are needed.
Transmission Spheres are made with a unique design. Each part helps the sphere test optical parts better. The table below lists the main parts and how they help the sphere work well:
| Structural Component | Contribution to Optical Performance |
|---|---|
| High porosity entry layers | Let light in easily, so more radiation is absorbed |
| Denser rear zone | Catches and absorbs light that goes through, making the sphere work better |
| Bi-layer fine-structure ceramic absorber | Has a spikey surface that lets more light in and absorbs more radiation |
| Hierarchically-layered metal absorber | Helps light go deeper inside the sphere |
| High-conduction materials | Keeps the temperature steady, so there are fewer hot or cold spots |
| Packed bed of transparent/semi-transparent spheres | Makes more space for heat to move and lowers energy loss |
The f-number is a key part of Transmission Spheres. It shows how much light the sphere can collect and focus. If the f-number is lower, the sphere gathers more light. This helps get better measurements. The f-number also changes how the sphere works in different systems, like ones using infrared light. When the f-number is correct, the sphere gives clearer and more accurate results.
Tip: Picking the right f-number for your Transmission Sphere can make your optical tests better.
Transmission Spheres do a few main things in optical testing:
They make sure light spreads out evenly inside the sphere. This helps scientists get the same amount of light everywhere.
They measure how much light goes through or bounces off a surface.
The inside has a special coating that reflects light. This coating helps the light bounce around and mix, so measurements are more accurate.
Transmission Spheres are used in many areas. For example, they help test camera lenses and telescope mirrors. They are also used in healthcare and electronics to see how light works with different materials.
Image Source: pexels

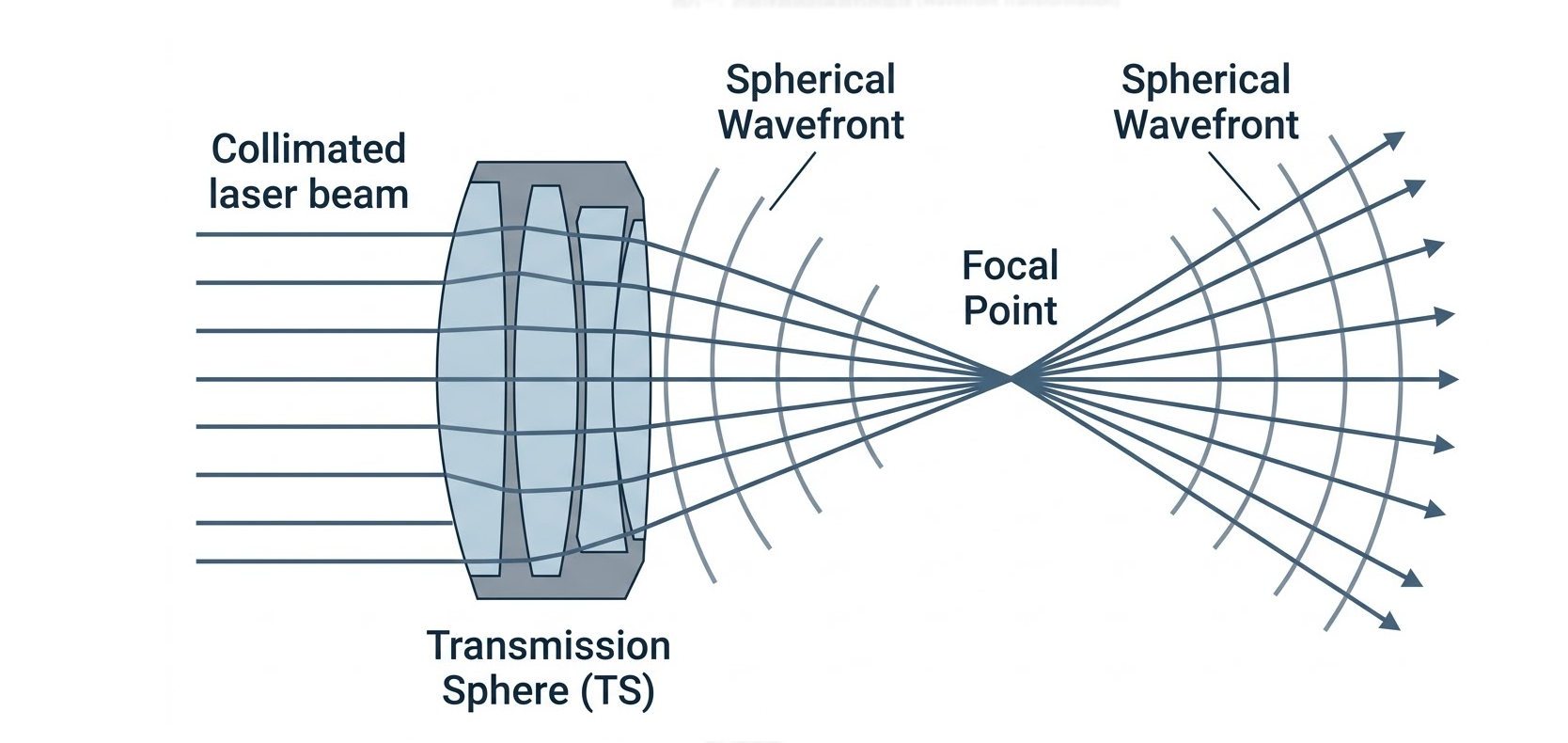

Transmission Spheres are important for shaping light in tests. When a straight beam of light goes in, the sphere changes it. The light becomes curved and is called a spherical wavefront. This is needed because many lenses and mirrors are curved. The curved light matches the shape of the surface. Scientists use this to see if the surface is made right.
This way of testing is called a null test. In this test, the center of the curved surface matches the focus point of the Transmission Sphere. If the surface is perfect, the light comes back the same. If there are bumps or dips, the light changes shape. This helps experts find even small mistakes on the surface. Many labs use this because it gives very good results.
Note: Transmission Spheres can make a perfect spherical wavefront. This is why they are trusted for checking high-quality optics.
Fizeau interferometry is a common way to check optical surfaces. Transmission Spheres help by acting like a lens and a beamsplitter. When light goes in, the sphere splits it into two paths. One path goes to the surface being tested. The other path is used as a reference.
After bouncing off, the two light paths meet again. They make a pattern called interference fringes. These fringes show if the surface is smooth or has problems. Scientists look at these patterns to see how good the surface is. This method works for many kinds of optics, like flat, concave, and convex shapes.
Transmission Spheres make these tests work by shaping and splitting the light just right.
Transmission Spheres are very important in many science and engineering jobs. They are used when people need to test optical parts very carefully. Some main ways they are used are:
Checking how smooth or rough an optical surface is
Using interferometric testing to look at wavefronts
Making sure parts are made with high quality
These spheres let scientists and engineers measure the surface and wavefront of curved optical parts. They use a special method called interferometric testing. In this method, the part being tested goes inside the sphere. The sphere makes a reference wavefront that matches the shape of the part. If the part is not perfect, the light waves make patterns. These patterns show if there are any mistakes or bumps.
Tip: You must line up the optic inside the sphere very carefully. Even a small mistake can change the results.
The table below lists some technical things needed for using transmission spheres:
| Specification | Description |
|---|---|
| F/# | This is the ratio of focal length to entrance pupil size. Different F/#s are needed for different optics. |
| Reference Surface | This is the last surface in the assembly. It should be perfect for good wavefront measurement. |
| Optical Quality | Surfaces must be very smooth and shiny. This helps keep wavefronts regular, with quality up to λ/40. |
Transmission Spheres do not only test flat surfaces. They also test concave and convex optical parts. This means they are useful for many lenses and mirrors, like those in telescopes and cameras.
They check the shape and smoothness of curved optics.
They are used in dynamic interferometry for big telescope mirrors and flat screens.
Designers need to think about some things when using these spheres for more tests. The table below shows some important design points:
| Design Consideration | Description |
|---|---|
| Reference Surface Quality | The last surface must be very good for correct measurements. |
| f/# and R/numbers | The f/# should be the same as or higher than the R/# of the test surfaces. |

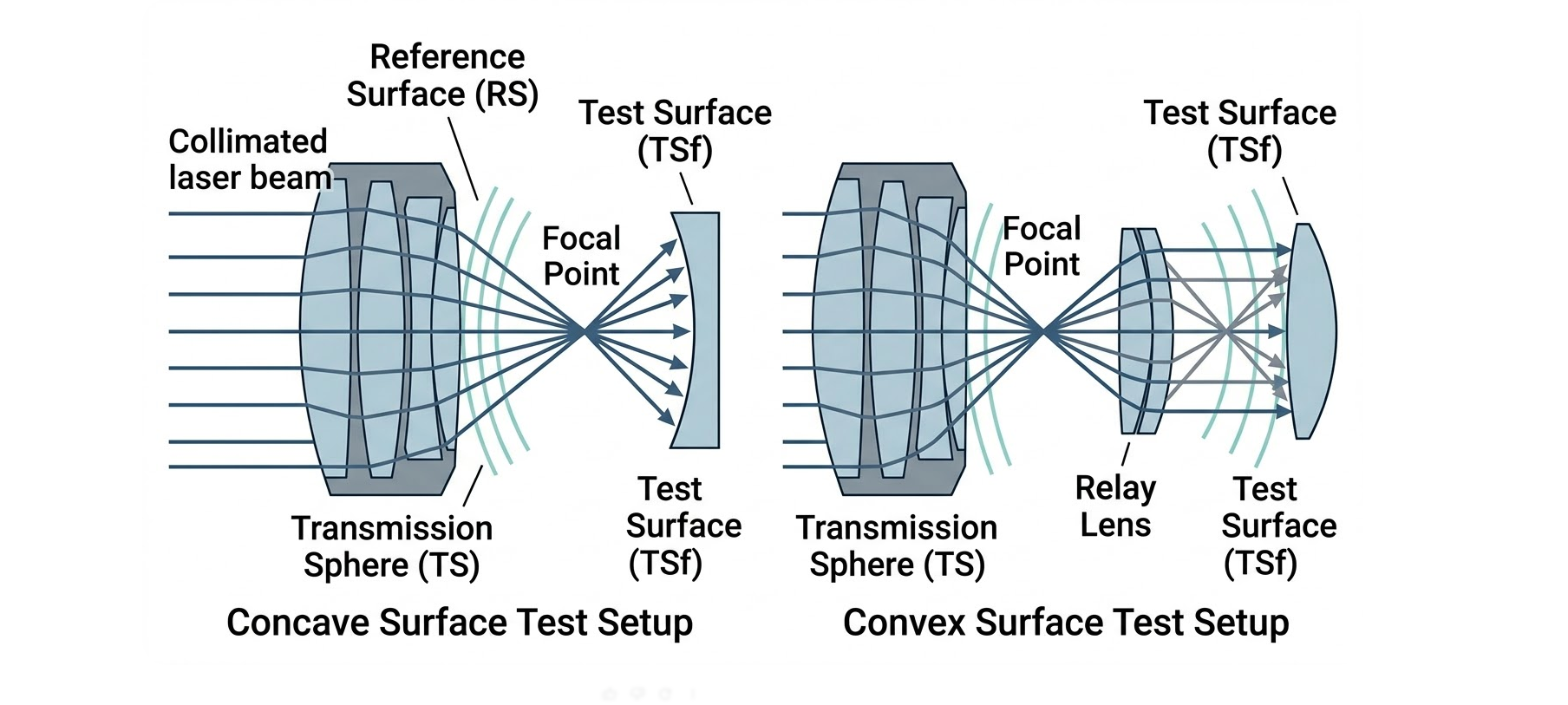

| Surface Testing | Concave surfaces are tested with spreading beams. Convex surfaces use beams that come together. |
| Zoom Feature | A 6X zoom helps fix problems when f/# and R/# do not match. |
| f/numbers Range | Spheres with f/numbers from f/0.75 to f/11 can test many surfaces. |
Transmission Spheres help make sure all kinds of optical parts are made very well.
Transmission spheres let scientists and engineers measure surfaces very well. Many things help make these measurements correct:
Fill Factor: This tells how much the light fills the sample’s opening. If the fill factor is almost 100%, the test checks the whole surface. This gives better results.
Focus: Good focus is needed. Scientists use a math rule called the thin lens equation to set the focus. When the focus is right, the measurements are more exact.
Physical Constraint: The curve of the sample should not be more than 80% of the sphere’s working distance. This keeps the test safe.
Aperture Size: The opening where light goes in can change how good the test is. If the opening is bigger or smaller, it can change the results.
Testing Method: Some ways to test, like the Inverse Adding-Doubling (IAD) technique, are very good for measuring how much light is taken in or spread out. Other ways, like the Dahm equation, work better for thin or tricky samples.
Transmission spheres are trusted because they can measure many kinds of surfaces. Their shape and special coatings help make the results correct. Making these parts better can lower mistakes, especially when testing things that take in a lot of light, like biological tissues.
Tip: Always check the fill factor and focus before you start a test. This helps you get the best results.
Transmission spheres have many good points, but there are some problems to think about:
Shaking or moving can mess up the test and make it less correct.
Air moving in the room can change the light’s path and the results.
One transmission sphere cannot test every kind of surface or size. Sometimes, you need different spheres for different jobs.
The f-number of the sphere must be the same as or higher than the surface you are testing. This makes sure the whole surface is checked.
Concave and convex surfaces need different setups. Concave surfaces use beams that spread out. Convex surfaces use beams that come together.
Some special features, like a 6X zoom, help when the sphere and surface do not match.
Picking the right sphere depends on the shape, size, and what you want to measure.
Transmission spheres work well, but you must control the room and pick the right setup for each test. Planning ahead helps stop mistakes and gives the best results.
Transmission spheres are very important for making optical parts better. They help scientists and engineers get more accurate data when testing lenses and mirrors. In some tests, like those on moving organs such as the heart, these spheres help a lot. They cut down errors caused by movement. This makes the results more trustworthy and correct.
For example, when scientists use transmission spheres in optical transmission spectroscopy, they can measure light even if the object moves. The sphere collects and mixes the light, so shaking or motion does not ruin the data. This gives better measurements and helps companies build high-quality optical parts. Good data is needed for making cameras, telescopes, and medical devices that people use every day.
Note: Using transmission spheres lowers mistakes in measurements, especially in hard testing situations.
Transmission spheres are changing as technology gets better. New trends and ideas are shaping how these tools will be used later. The table below shows some of the newest trends:
| Trend/Development | Description |
|---|---|
| Hybrid and EV drivetrain servicing | Learning about electric motors and batteries is becoming important. |
| Software and control unit diagnostics | Technicians need to update and program control units for better performance. |
| Advanced lubrication knowledge | New fluids are needed for electric and hybrid systems. |
| Rise of electric drive units (EDUs) | Some electric cars use simple or multi-speed transmissions. |
| AI-driven transmission control | Smart systems can change gears based on how the car is driven. |
| 48-volt mild hybrid technology | Small electric motors work with engines, needing special transmissions. |
New ideas are also helping transmission spheres do more things. These include:
Helping quantum computing by controlling light at tiny scales.
Making solar panels work better by spreading light evenly.
Adding smart sensors to devices for health and environment checks.
Improving consumer electronics like phones and wearables.
Creating new coatings for buildings that look good and spread light well.
Allowing 3D printing of complex optical parts.
Mixing spheres with new materials for stronger and smarter products.
Tip: Following these trends can help engineers and companies stay ahead in the optical industry.
Transmission spheres let scientists check optical parts very carefully. They make light spread out the same everywhere. They also test how much light goes through or bounces off a surface. The table below lists their main ideas:
| Key Point | Description |
|---|---|
| Structure | Spheres can be big or small, from two centimeters up to two meters wide. |
| Function | They give out even light and measure all the power from a light source. |
| Significance | They set rules for light tests and help with many optical checks. |
People use transmission spheres for things like reflectance, transmittance, and scatter tests. If you want to know more, you can find resources about lens testing, sphere design, and LiDAR optics.
A transmission sphere checks optical parts like lenses and mirrors. It changes light so scientists can see if surfaces are smooth and correct.
The sphere spreads light the same everywhere. This lets scientists find small mistakes on optical surfaces. Good measurements help cameras and telescopes work well.
Yes. Transmission spheres test curved surfaces that go in (concave) or out (convex). They work for many kinds of optical parts.
The f-number tells how much light the sphere takes in. A lower f-number means more light and better results. Choosing the right f-number gives clear measurements.
Moving or air changes can mess up tests. Different surfaces need different spheres. Scientists must pick the right setup for each test.
