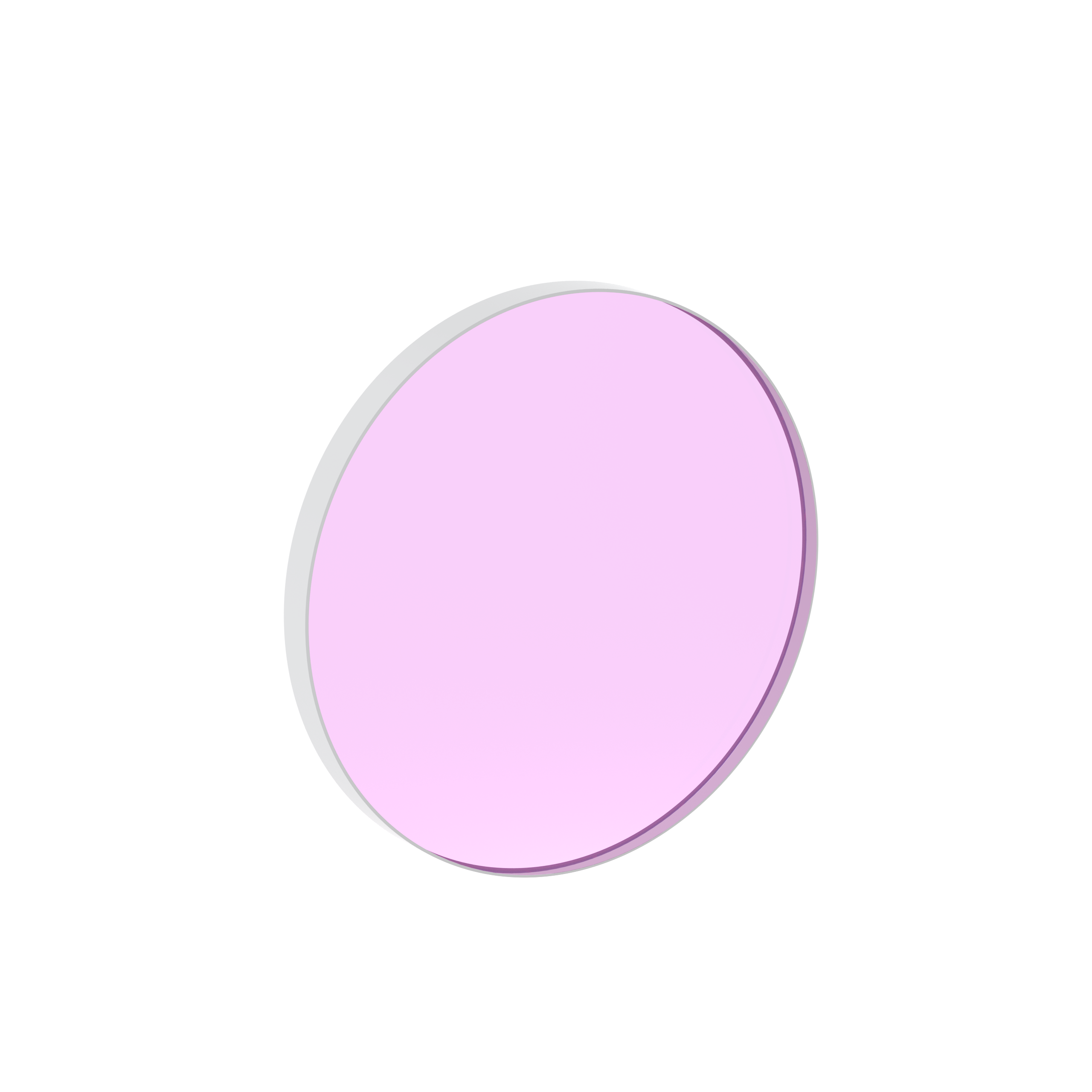

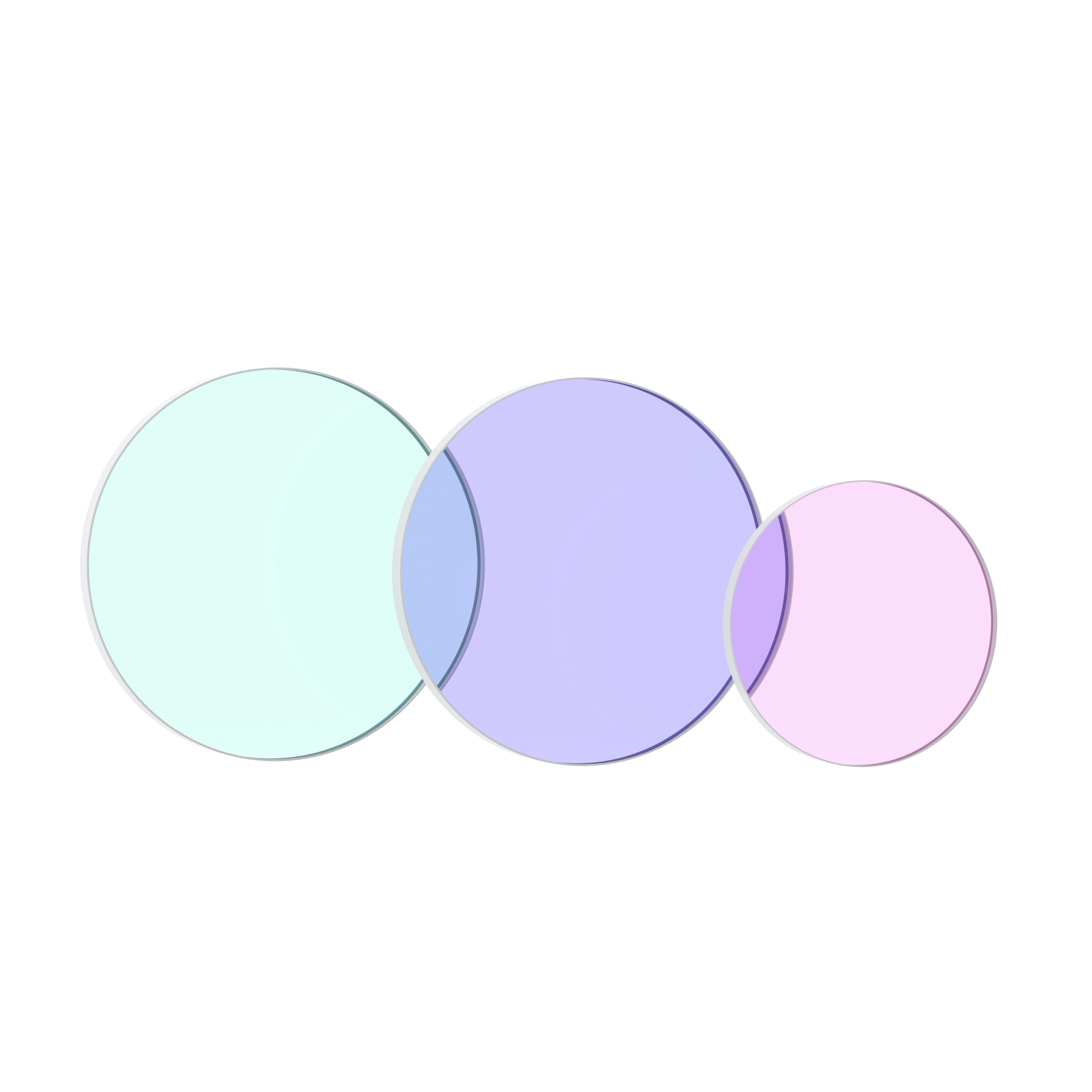

Waveplates are optical elements that alter the polarization state of transmitted light by introducing a controlled phase delay between orthogonal polarization components. Common types include quarter-waveplates and half-waveplates, which are fundamental in laser systems, imaging optics, and optical communication setups.
Band Optics manufactures Waveplates for OEMs, research laboratories, and system integrators who demand stable polarization performance. By focusing on substrate quality, crystal orientation, and precise thickness control, these waveplates deliver consistent retardation across defined wavelength ranges. All products are supplied under a custom optics wholesale model, ensuring they meet exact system specifications.
Customers engaging with Band Optics through www.band-optics.com gain direct access to optical engineers for material selection and application optimization.
Waveplates can be designed as zero-order or multiple-order configurations. Zero-order waveplates provide higher temperature stability and lower sensitivity to wavelength drift, making them suitable for demanding laser environments.
Typical materials include crystalline quartz, MgF₂, and polymer films. Material choice affects transmission range, thermal behavior, and damage threshold. As a custom optics wholesale supplier, Band Optics supports material selection based on system-level requirements.
Accurate crystal orientation and thickness polishing ensure that Waveplates achieve the specified retardation value. This precision is critical for polarization rotation, beam shaping, and interference-based systems.
Waveplates are fabricated by precisely cutting birefringent crystals along defined optical axes. Orientation accuracy is verified using polarimetric inspection methods.
High-precision polishing ensures uniform thickness and surface flatness. This directly impacts phase accuracy and optical clarity.
Band Optics supports prototype development, low-volume validation, and large-scale production. All manufacturing follows documented processes designed for reliable custom optics wholesale supply. Additional production information is available at www.band-optics.com.
Waveplates produced by Band Optics are widely used in:
Laser polarization rotation and control
Optical isolators and modulators
Interferometry and metrology systems
Imaging and microscopy equipment
Fiber-optic and free-space communication systems
These applications depend on stable retardation accuracy and long-term reliability.
| Parameter | Typical Range |
|---|---|
| Wavelength Range | 250–2000 nm (material dependent) |
| Retardation | λ/4, λ/2, Custom |
| Retardation Tolerance | ±λ/300 |
| Surface Flatness | λ/8 @ 632.8 nm |
| Surface Quality | 20/10 – 40/20 |
| Clear Aperture | > 90% |
| Substrate Materials | Quartz, MgF₂ |
| Coating Options | Uncoated or AR (optional) |
Band Optics operates in-house crystal processing, polishing, and optical inspection facilities to ensure process control and consistency.
ISO-certified quality systems support traceability, repeatability, and compliance with international optical standards.
Long-term partnerships with global OEMs, research institutes, and photonics companies validate manufacturing reliability and technical expertise.
A waveplate is used to modify the polarization state of light by introducing a specific phase delay. It is commonly used in laser systems, imaging optics, and polarization-sensitive applications.
Common types include quarter-waveplates and half-waveplates. Custom retardation values are also available depending on application needs.
Yes. Band Optics provides full customization of wavelength range, retardation accuracy, material, and dimensions under a custom optics wholesale model.
No. All waveplates are manufactured exclusively for custom and wholesale orders with no retail inventory.
Quality is ensured through ISO-based process control, in-house inspection, and optical performance verification at each production stage.
