Understanding Prisms Definition, Shapes, and Types

A prism is a solid shape with two matching, flat bases that are parallel to each other. So, what is a prism exactly? It’s a three-dimensional figure with flat faces on the sides. Many people ask, “What is a prism?” because it’s a common shape found in everyday objects like boxes, tents, and pencils. Prisms play a key role in both geometry and optics. In optics, a prism can split white light into a spectrum of colors, helping us understand how light separates into different hues. Students often explore what a prism is by using real-life examples to see how these shapes appear around them. The table below highlights common types of prisms you encounter daily:

Using physical models and digital tools, students can better grasp what a prism is and how it works. These resources make learning about shapes and the way light behaves more engaging and easier to understand.

Key Takeaways

• A prism is a 3D shape. It has two matching bases. The bases are parallel to each other. Flat faces connect the bases.

• There are many types of prisms. Their names come from their base shapes. Some examples are triangular, rectangular, and hexagonal prisms.

• Prisms are not like pyramids or cylinders. Prisms have two bases and flat sides. They do not have curves or a point at the top.

• You can see prisms in daily life. Books, boxes, pencils, and candy bars are examples.

• Use these formulas for prisms: Surface Area = 2 × Base Area + Base Perimeter × Height. Volume = Base Area × Height. These help you find prism measurements.

What Is a Prism

Prism Definition

A prism is a solid with two matching bases. These bases are polygons and are parallel to each other. One base is a copy of the other, just moved over. The sides of the prism are parallelograms that connect the bases. This is how most math books describe a prism. The bases can be any polygon, like a triangle, rectangle, or hexagon. The name of the prism comes from its base shape. For example, a triangular prism has triangle bases. A pentagonal prism has pentagon bases.

Prisms always have flat faces and straight edges. If you cut a prism parallel to its bases, the slice looks the same as the base. This is true no matter where you cut it along its length. Prisms are polyhedrons, so they only have flat surfaces and no curves.

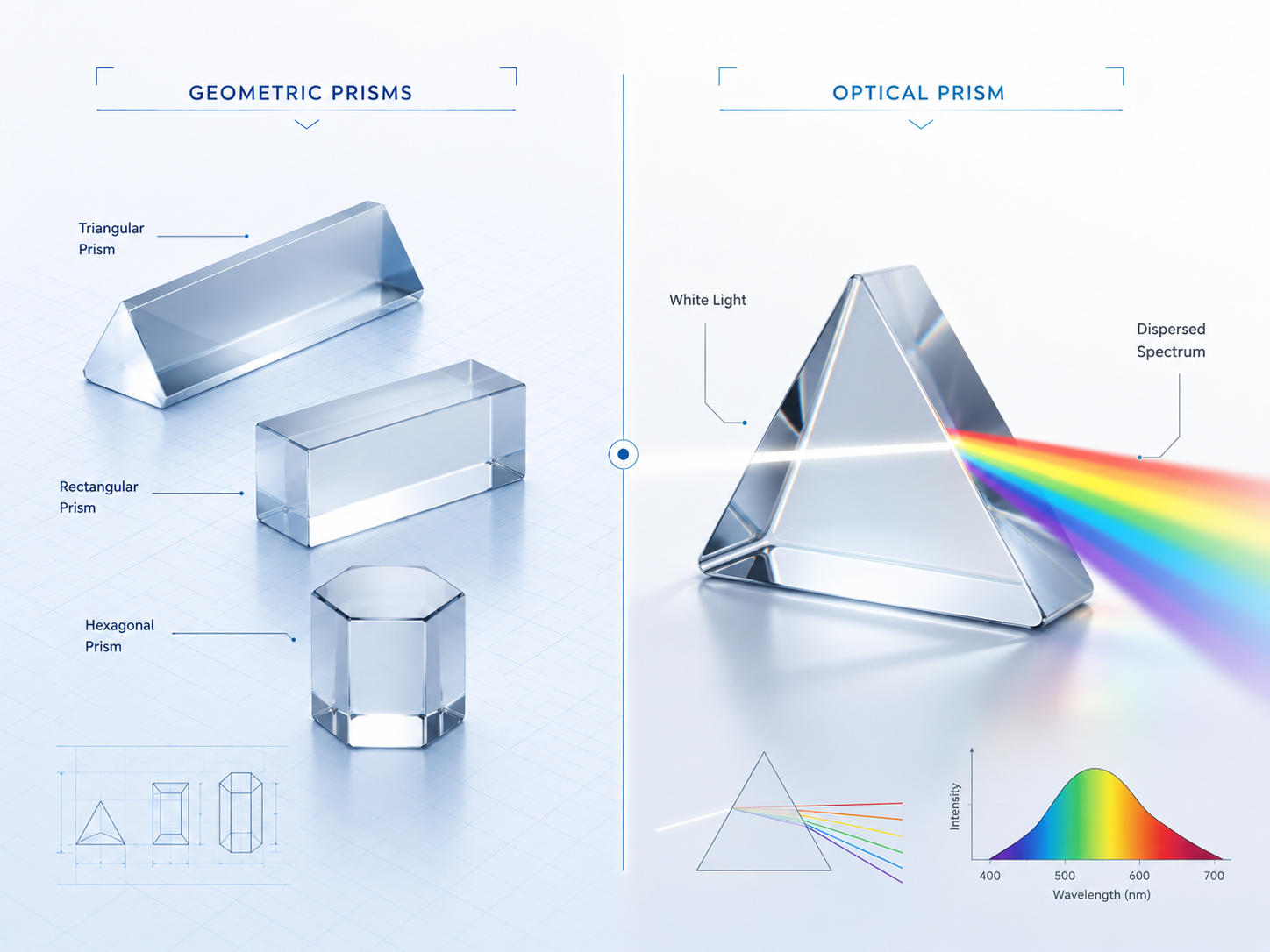

In geometry, people ask “what is a prism” to learn about these features. In other subjects, the word prism can mean something else. In optics, a prism is clear and made of glass. It bends and splits light into colors. In mineralogy, a prism is a crystal with similar shapes. These different meanings show prisms are important in both math and science.

For example, a Toblerone bar is shaped like a triangular prism. A cereal box is a rectangular prism. These real-life objects help us see what a prism is.

Key Properties

Prisms have special features that make them different from other solids. The table below shows these features:

The number of faces, edges, and corners depends on the base shape. The formulas below show how these numbers change:

The formulas are:

• Faces (F) = n + 2

• Edges (E) = 3n

• Vertices (V) = 2n

Every prism has two bases and parallelogram sides. The cross-section stays the same all the way through. These features make prisms strong and steady. Builders use prisms in construction because they spread weight well. Tests show 3D-printed prisms are as strong as bricks. This makes them good for building and design.

Prism vs. Other Solids

Prisms are not the same as other solids. The table below compares prisms to cubes, pyramids, and cylinders:

Prisms do not have an apex, but pyramids do. All faces on a prism are flat, but cylinders have curved sides. A cube is a special kind of rectangular prism with all square faces.

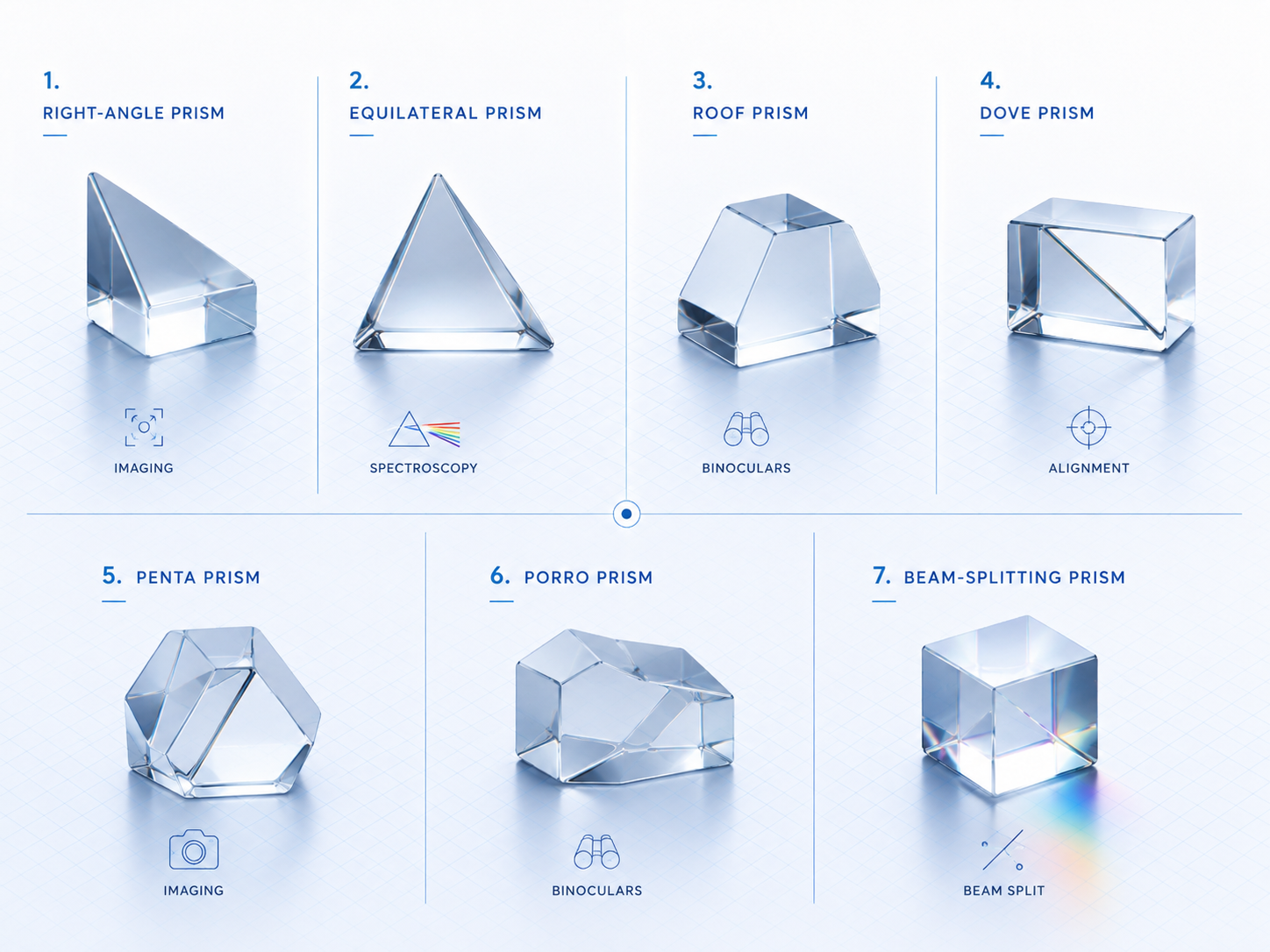

In optics, prisms bend, split, and change the direction of light. Optical prisms have flat, shiny sides to move light. These prisms are used in binoculars and periscopes. They help fix images and make devices smaller. Not every geometric prism is used in optics, but both have flat faces and straight edges.

Prisms are important in geometry and optics. They help scientists and engineers make new tools that use light.

Types of Prisms

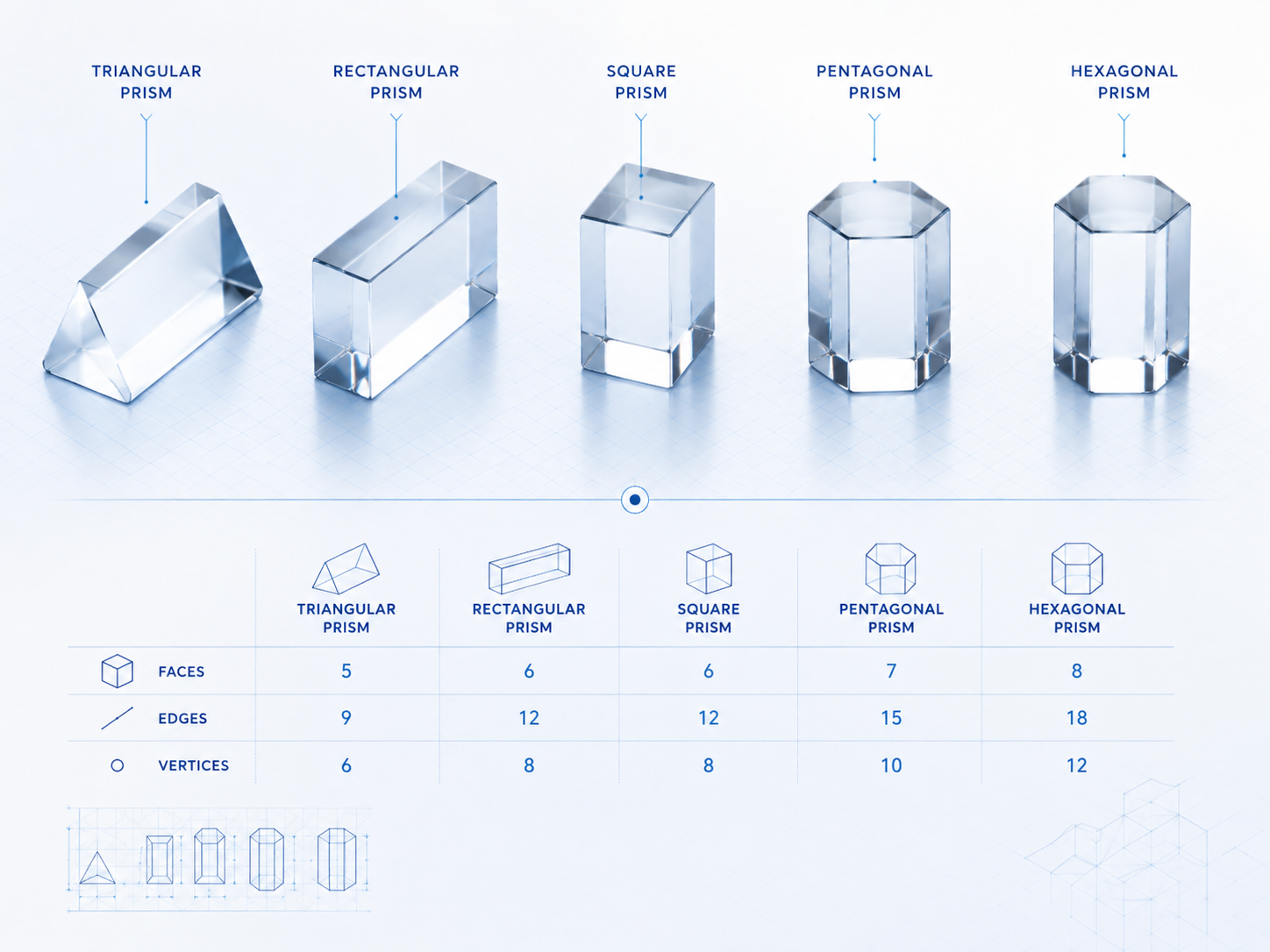

Prisms get their names from the shape of their bases. Each prism has two matching bases that are polygons and are parallel. All faces are flat, and the bases are always the same size and shape. In geometry class, students usually learn about the most common types. These include triangular, square, rectangular, pentagonal, and hexagonal prisms.

Triangular Prism

A triangular prism has two bases shaped like triangles. It also has three sides that are rectangles. This prism has five faces, nine edges, and six corners. The cross-section is always a triangle, no matter where you cut it. Triangular prisms are found in roof frames, binoculars, and Toblerone candy bars. Engineers use this shape to make buildings strong and to change how light moves in tools.

Triangular prisms help students see 3D shapes and are often in geometry sets.

Rectangular Prism

A rectangular prism has two rectangle bases and four rectangle sides. People also call it a cuboid. It has six faces, twelve edges, and eight corners. The cross-section is always a rectangle. You see rectangular prisms everywhere. Rooms, bricks, books, and boxes all use this shape. Builders use rectangular prisms to figure out space and materials. Box makers use them because they are easy to stack and ship. Furniture like tables, cabinets, and shelves are often rectangular prisms.

Rectangular prisms help store things and make math easier for builders and designers.

Square Prism

A square prism has two square bases and four rectangle sides. If all the faces are squares, it is a cube. You can spot square prisms in dice, ice cubes, and some blocks. Square prisms help students tell the difference between cubes and other rectangular prisms.

Pentagonal Prism

A pentagonal prism has two bases shaped like pentagons and five rectangle sides. It has seven faces, fifteen edges, and ten corners. Pentagonal prisms are used in science and engineering. Scientists have made tiny pentagonal prisms using DNA. Nature shows pentagonal shapes in flowers, starfish, and water drops. The special angles in a pentagonal prism connect to the golden ratio, which is seen in art and nature. If the bases are not regular pentagons, the prism is called irregular and looks more complex.

Hexagonal Prism

A hexagonal prism has two bases shaped like hexagons and six rectangle sides. It has eight faces, eighteen edges, and twelve corners. In chemistry, hexagonal prisms make up ice crystals and some minerals. Scientists use them to build tiny things with DNA. Unsharpened pencils and honeycombs are shaped like hexagonal prisms.

Other Prisms

Some prisms have less common base shapes. Trapezoidal prisms have bases shaped like trapezoids and are called irregular prisms. Regular prisms have bases with all sides and angles the same. Irregular prisms have bases with sides or angles that are not equal. Prisms can also be right or slanted, depending on how the sides join the bases.

Prisms come in many shapes, but all have flat faces and two matching, parallel bases.

Prism Classification

Regular vs. Irregular

Prisms are sorted by the shape of their bases. A regular prism has bases that are regular polygons. This means every side and angle in the base is the same. For example, a prism with hexagon bases where all sides match is a regular prism. These shapes look even and balanced. Regular prisms show up a lot in math because their symmetry makes math problems easier.

An irregular prism has bases that are irregular polygons. The sides or angles in the base are not all the same. For example, a prism with a pentagon base where some sides are longer is an irregular prism. These prisms look uneven or tilted. Builders sometimes use irregular prisms for creative designs or to fit odd spaces. Both types have flat faces and straight edges, but their base shapes make them different.

Tip: To check if a prism is regular or irregular, look at the base. If all sides and angles are equal, it is a regular prism.

Right vs. Oblique

Prisms are also different by how their sides meet the bases. A right prism has sides that meet the bases at a 90-degree angle. This makes the sides rectangles and the prism stands up straight. Most boxes and books are right prisms. An oblique prism has sides that do not meet the bases at a right angle. The sides become parallelograms, and the prism looks slanted.

Here are some main differences between right and oblique prisms:

• Right prisms have sides that are rectangles because they meet the base straight.

• Oblique prisms have slanted sides, so the sides are parallelograms.

• Both types have the same number of faces, edges, and corners.

• The volume formula for both is base area times height, where height is measured straight up from the base.

Right prisms are seen more often in daily life, but oblique prisms are used in art and design. Both types use the same rules for counting faces and finding volume.

Prism Formulas

Surface Area

The surface area of a prism measures the total area of all its faces. Every prism has two bases and several side faces. The formula for the surface area of a prism depends on the shape of its base. However, a general formula works for all prisms:

Total Surface Area = 2 × (Base Area) + (Base Perimeter × Height)

This formula means you add the area of both bases and the area of all the side faces. The side faces together form the lateral surface area. The table below shows how the formula changes for different types of prisms:

The base area and perimeter change with the base shape. Students should always check the base before using the formula.

Volume

The volume of a prism tells how much space it fills. The formula for the volume of a prism is simple:

Volume = (Area of Base) × (Height of Prism)

This formula works for any prism. For example, if a square prism has a base side of 8 cm and a height of 10 cm, the base area is 64 cm². Multiply by the height to get a volume of 640 cm³. The formula uses the base area as the cross-section and extends it through the height.

Example Calculations

1. Rectangular Prism Example

• V = 11 × 5 × 3 = 165 cm³

• SA = 2[(11 × 5) + (11 × 3) + (3 × 5)] = 2[55 + 33 + 15] = 2[103] = 206 cm²

• Given: length = 11 cm, width = 5 cm, height = 3 cm

• Surface area of a prism:

• Volume of a prism:

2. Another Rectangular Prism

• V = 8 × 4 × 2 = 64 cm³

• SA = 2[(8 × 4) + (8 × 2) + (2 × 4)] = 2[32 + 16 + 8] = 2[56] = 112 cm²

• Given: length = 8 cm, width = 4 cm, height = 2 cm

• Surface area of a prism:

• Volume of a prism:

Students can use these formulas for any prism by finding the base area and height. Always write down the units for each answer.

Prisms are special 3D shapes with two matching bases. These bases are parallel and all faces are flat. The shape of the base gives each prism its name. Prisms are different from cones and spheres, which have curved sides. Pyramids meet at one point, but prisms do not. Prisms always have flat sides and no curved edges. You can find prisms in things like books and boxes. Learning about prisms helps students see how geometry is used in real life and science.

FAQ

What is the difference between a prism and a pyramid?

A prism has two matching, parallel bases and flat sides. A pyramid has one base and all sides meet at a single point called the apex. Prisms do not have an apex.

Can a cylinder be called a prism?

A cylinder cannot be called a prism. Prisms have flat polygon bases and flat sides. Cylinders have curved surfaces and circular bases. Learn more about cylinders on Wikipedia.

Where do people use prisms in real life?

People use prisms in buildings, packaging, and science tools. Engineers use them in construction. Scientists use glass prisms to split light in experiments. Prisms also appear in art and design.

How do you find the volume of any prism?

To find the volume, multiply the area of the base by the height of the prism.
Formula:
Volume = Base Area × Height

Are all cubes prisms?

All cubes are prisms. A cube is a special type of rectangular prism where all sides are equal. Every face of a cube is a square.
