Aspheric and freeform optics give optical designers more control over aberration, beam shape and system packaging than conventional spherical surfaces. Band Optics manufactures these components from customer drawings, optical prescriptions, surface equations, sag tables and application requirements. Projects can begin with prototypes for optical and mechanical verification and continue into repeat OEM production after the manufacturing and inspection criteria are approved.
The product range includes rotationally symmetric aspheric lenses, infrared aspheres, off-axis parabolic mirrors and non-rotationally symmetric freeform optics. Geometry, material, diameter or outline, center and edge thickness, clear aperture, surface form, surface quality, roughness, centration and coating are reviewed together because these requirements influence tooling, process selection and measurement strategy.

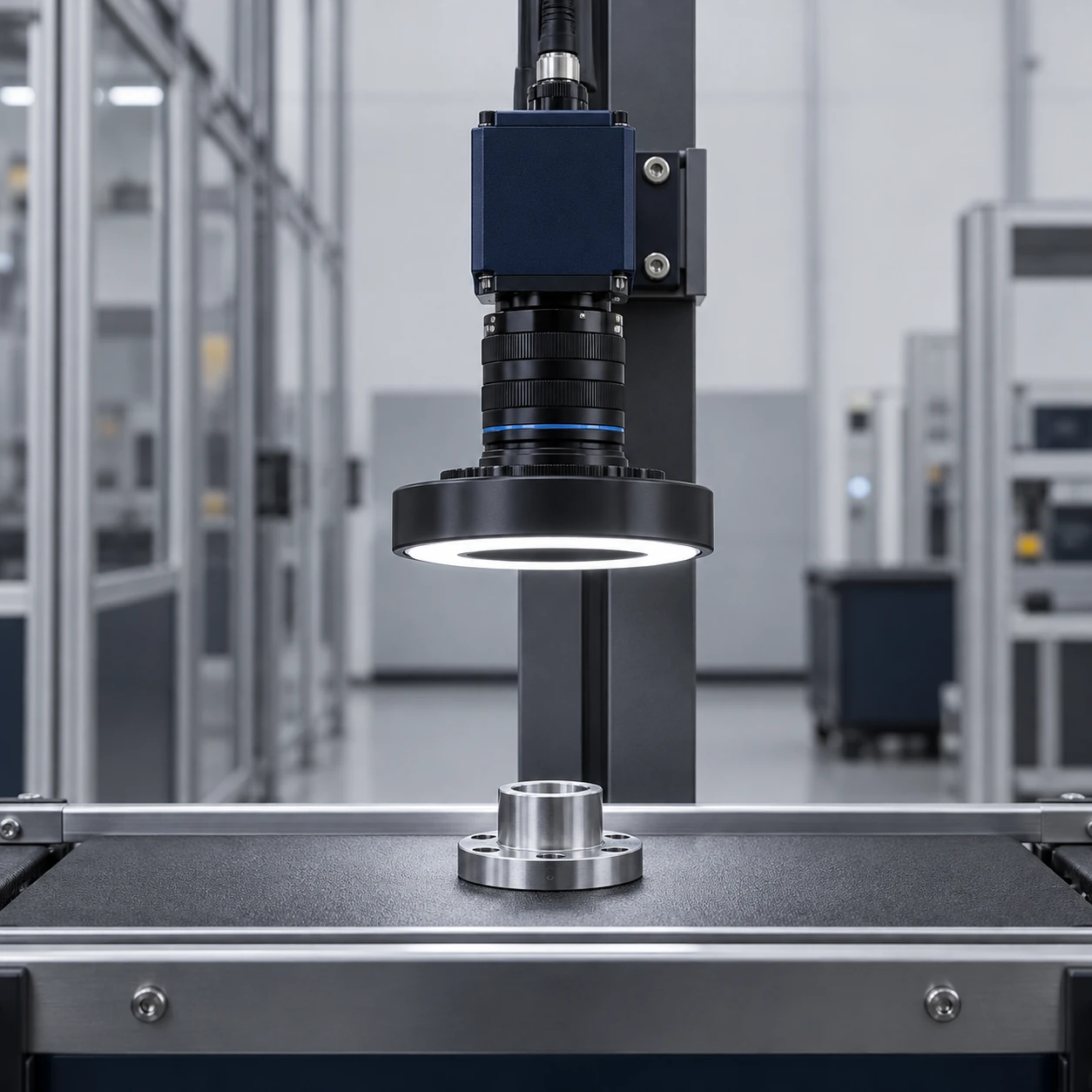

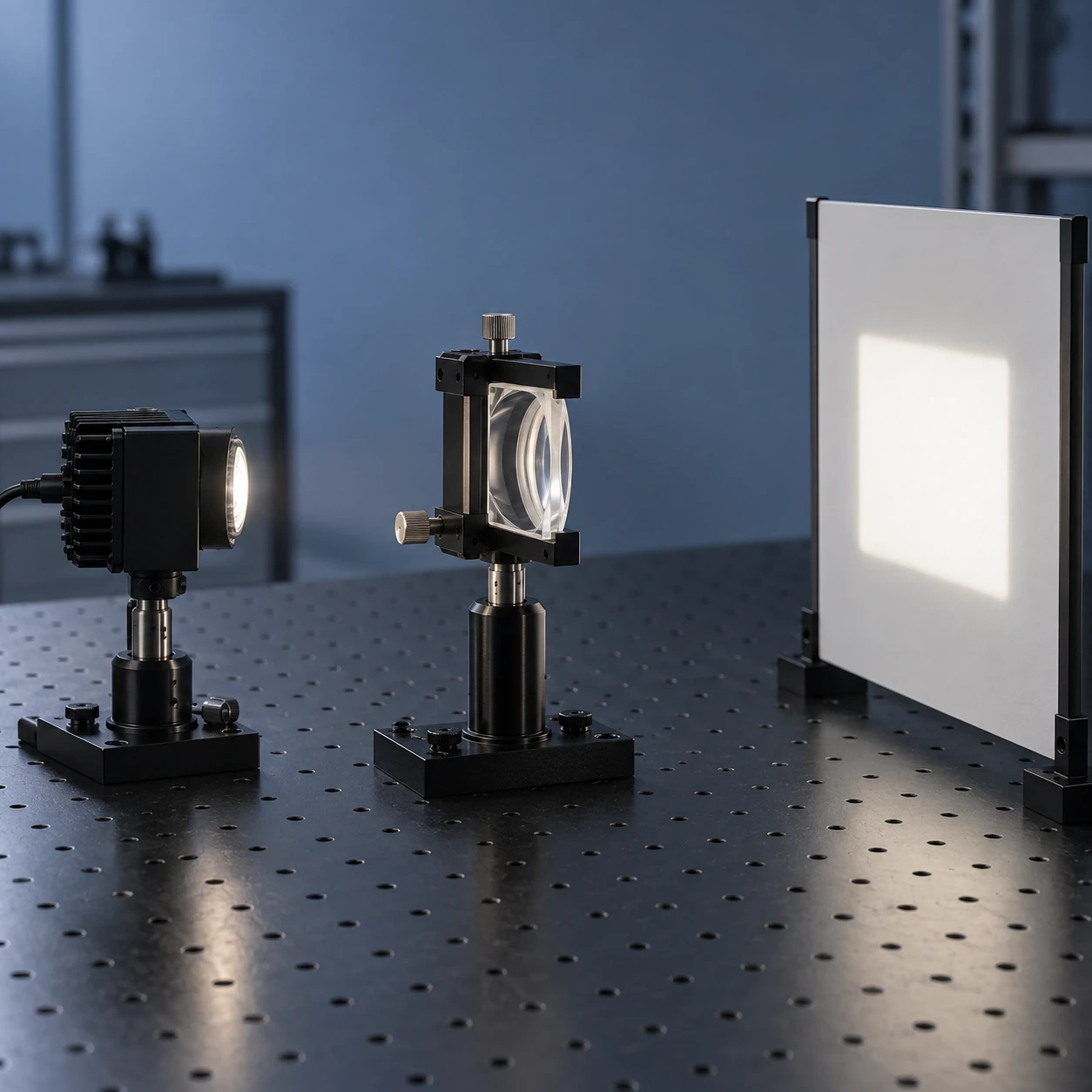

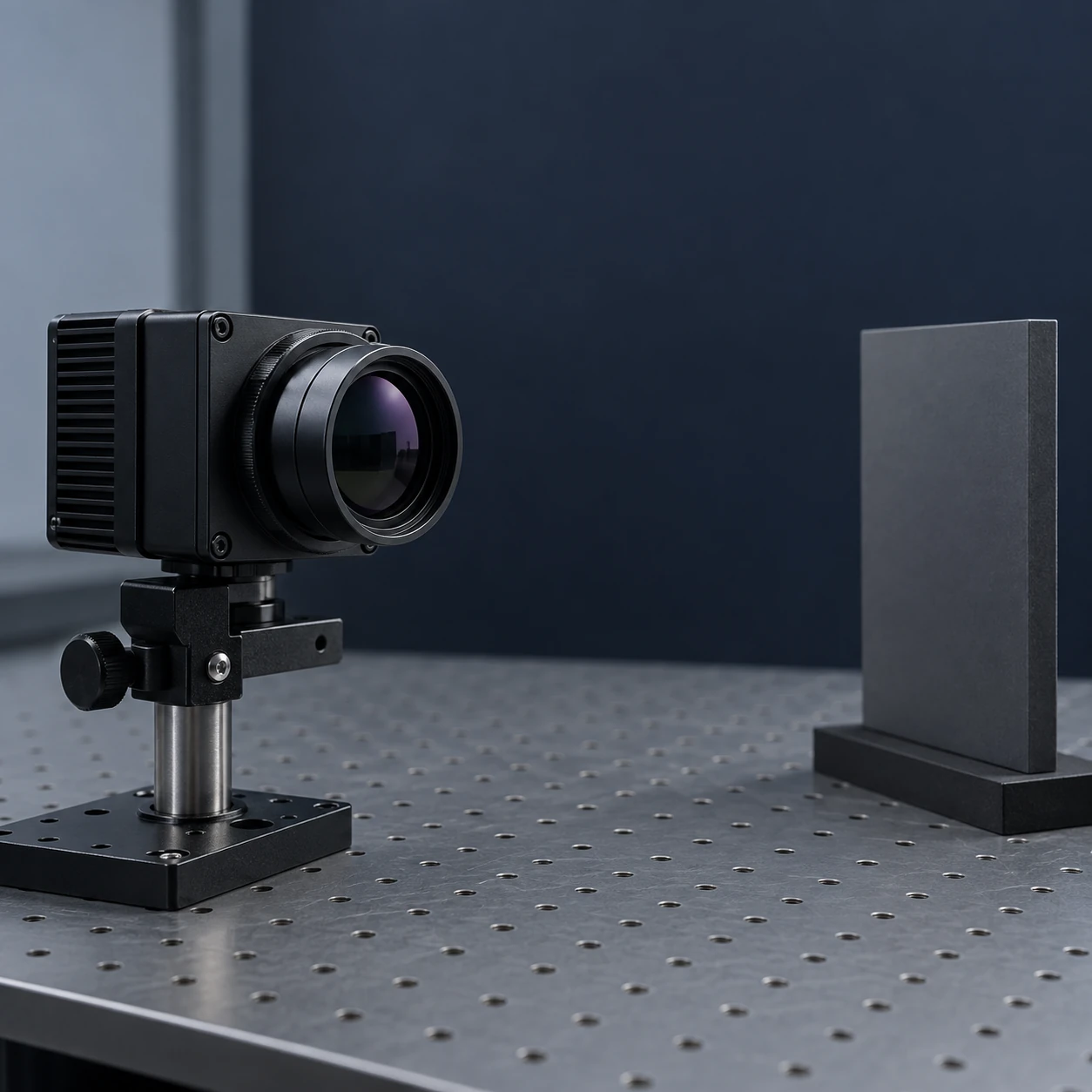

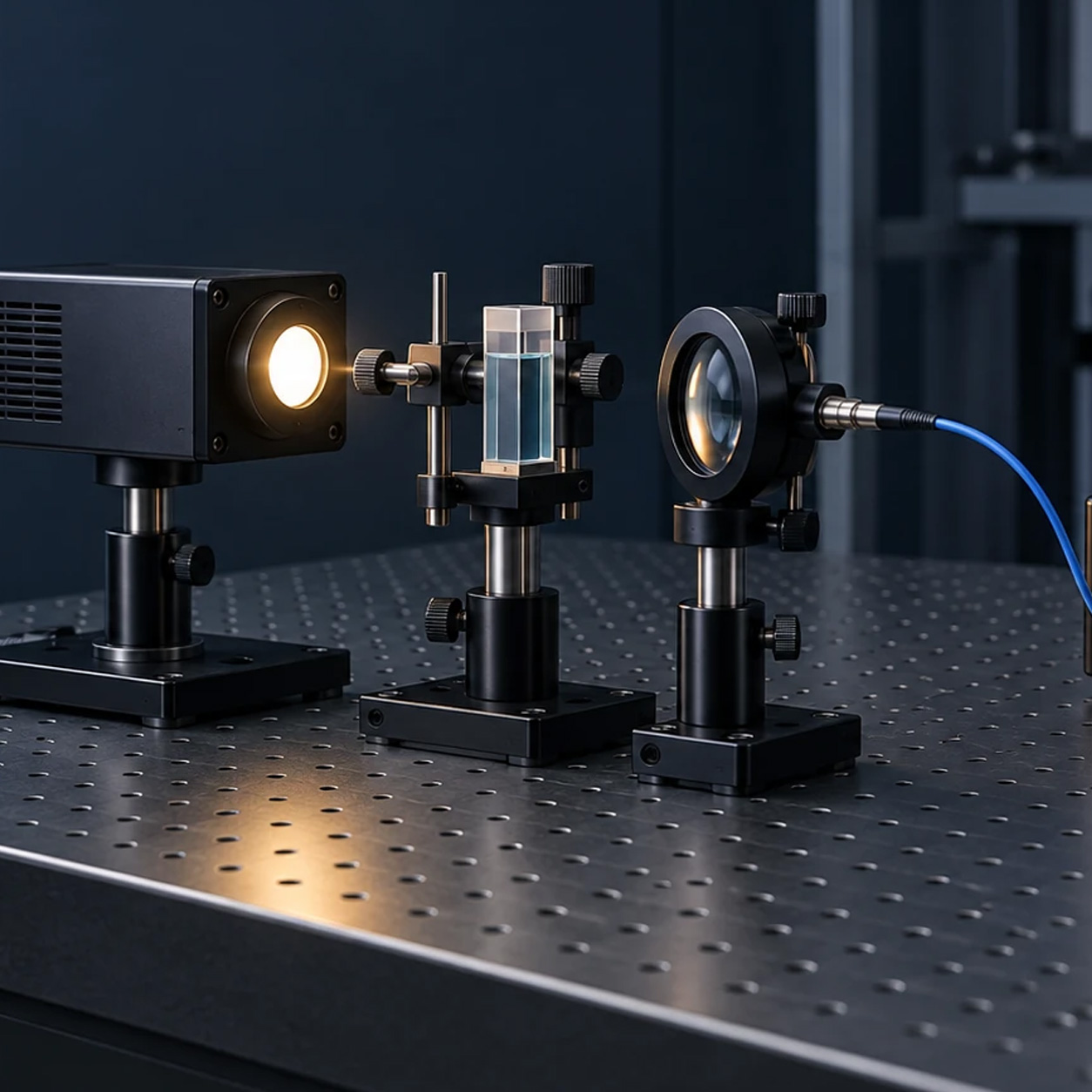

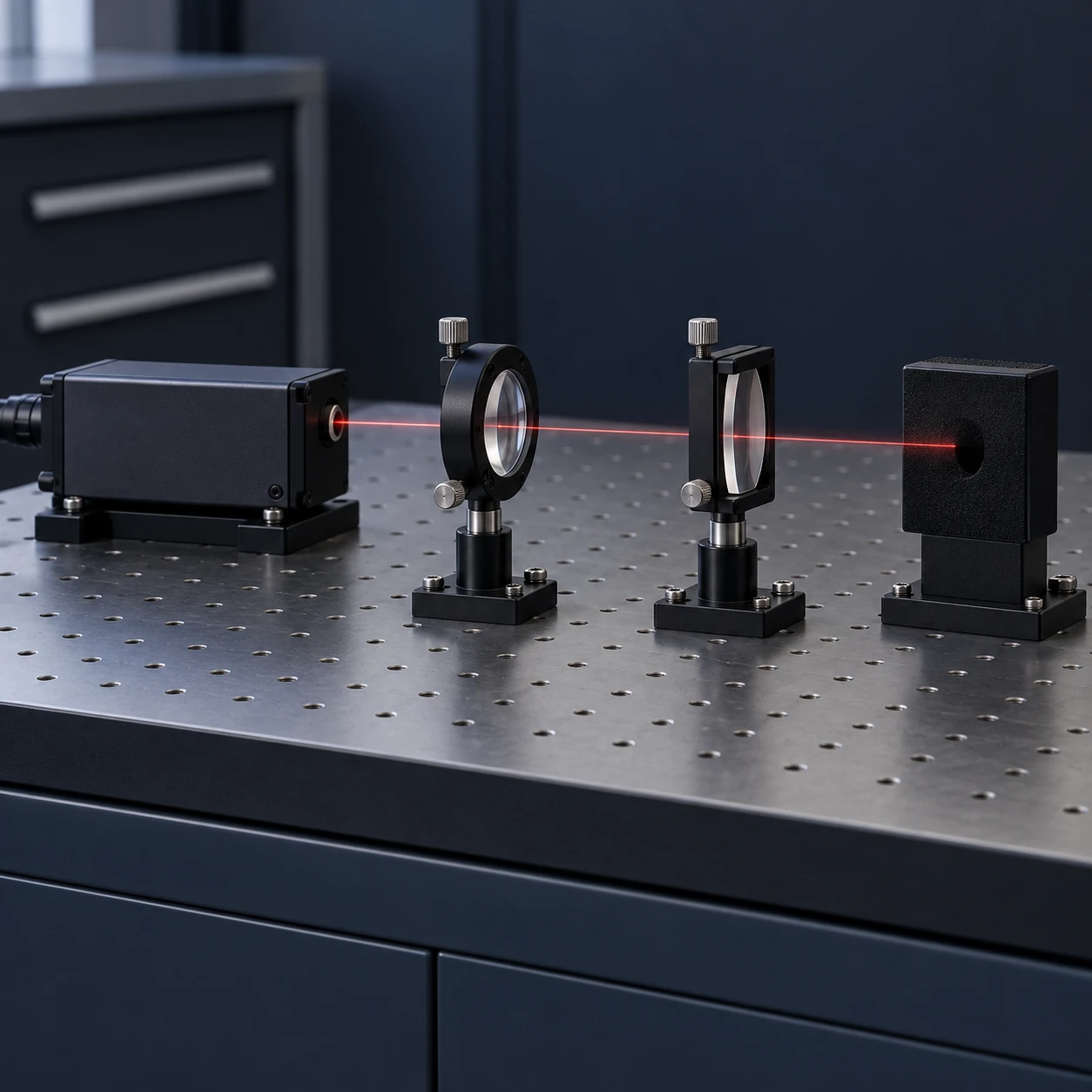

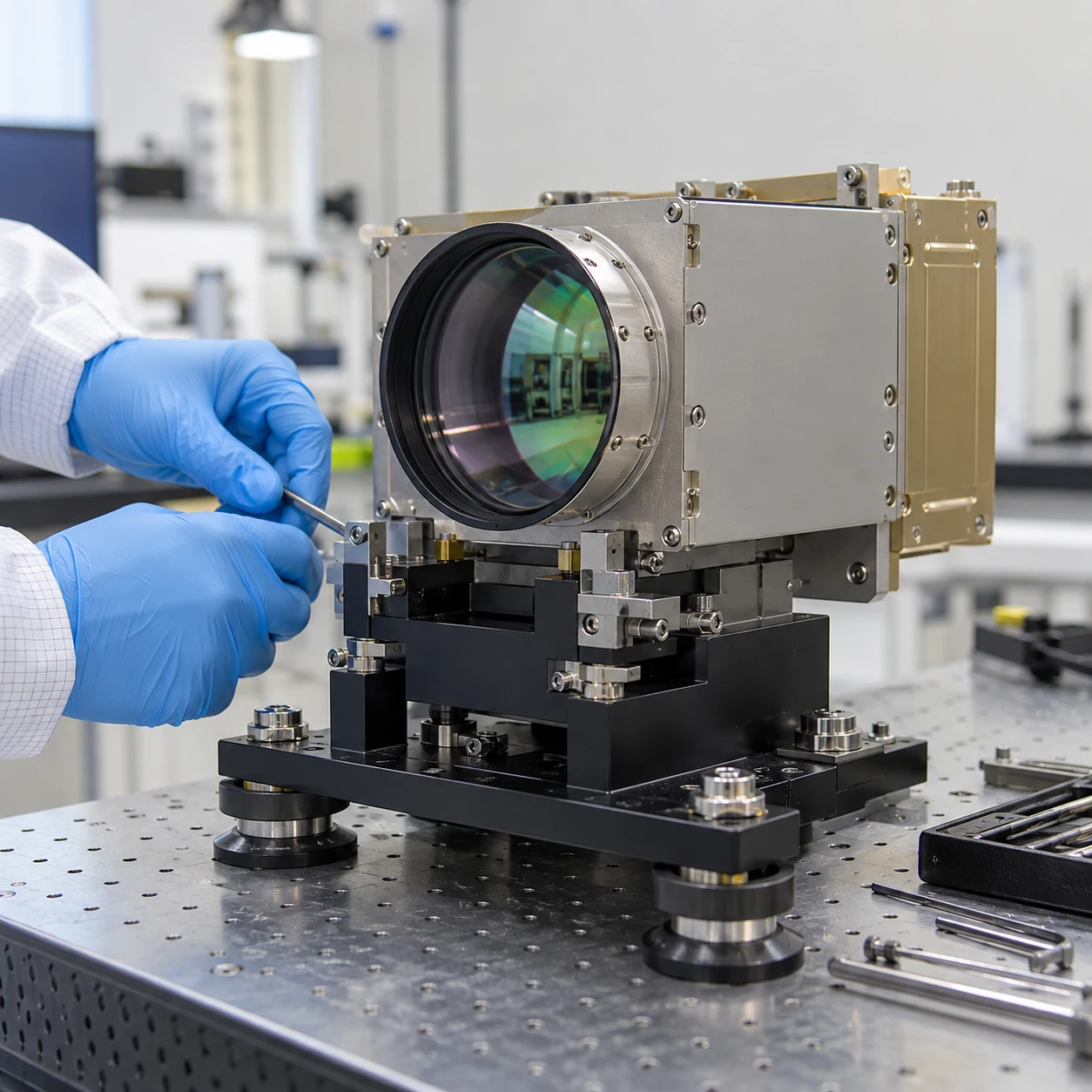

Components are manufactured for imaging, thermal detection, laser beam delivery, spectroscopy, aerospace sensing and compact analytical instruments. Engineering support can coordinate CNC generation, polishing, diamond turning, coating and metrology so that the finished component has a defined relationship between the optical surface, mechanical datums and acceptance method.
The table below presents Band Optics manufacturing and customization capabilities for Aspheres & Freeforms. Values are capability references for customer-facing evaluation, not a list of fields the customer must complete.
| BAND OPTICS TECHNICAL CAPABILITIES | ||||||
| Capability Item | Band Optics Manufacturing Range | Capability Item | Band Optics Manufacturing Range | |||
| Product Types | Aspherical lenses, infrared aspheric lenses, off-axis parabolic mirrors and freeform optics | Surface Quality | Documented aspheric example 20-10 scratch-dig or better | |||
| Surface Definitions Accepted | Base radius and conic constant, polynomial coefficients, sag table, CAD model, point data, parent paraboloid and off-axis definition | Surface Roughness | Documented aspheric example Rq <1 nm | |||
| Transmissive Materials | Optical glass, fused silica, ZnSe, ZnS, silicon and CaF2 | Geometry Control | Center and edge thickness, local slope, surface departure, clear aperture and mechanical datums | |||
| Reflective Substrates | Zerodur, aluminum and other engineering-approved substrates | Manufacturing Processes | CNC generation, precision polishing, compatible diamond turning and corrective/MRF polishing | |||
| Diameter / Outline | Custom round and non-round apertures manufactured to approved drawings | Centering / Edging | Finished diameter, bevels and reference surfaces controlled relative to the optical surface | |||
| Thickness | Approximately 1-80 mm for documented aspheric-lens references | Coating Capability | AR, BBAR, V-coating, HR, metallic and dielectric reflection, plus selected IR protective coatings | |||

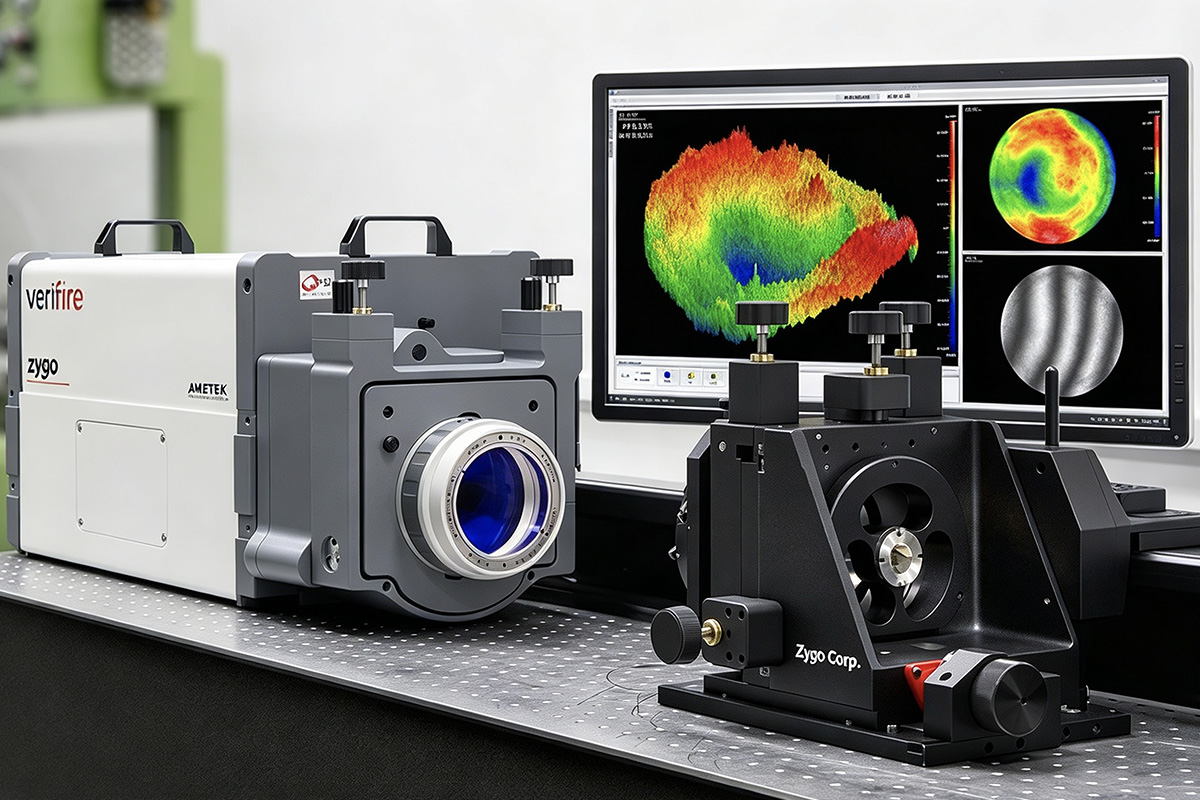

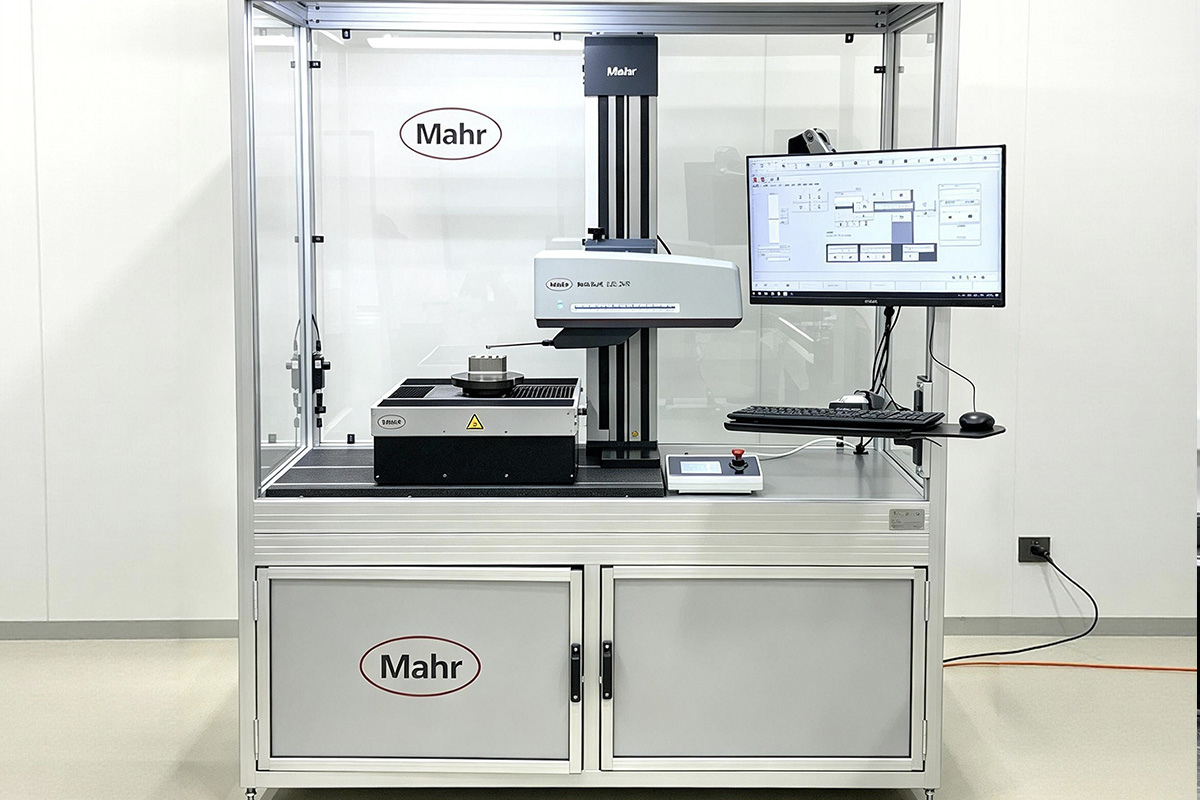

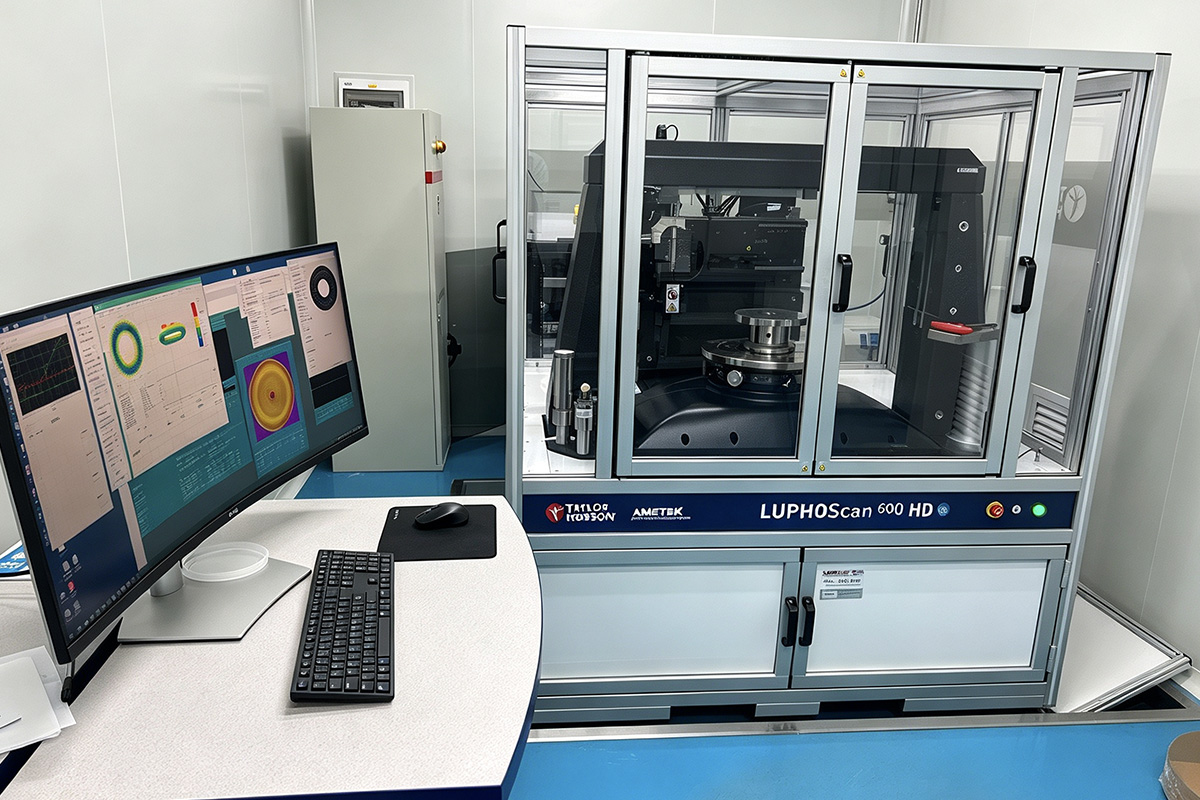

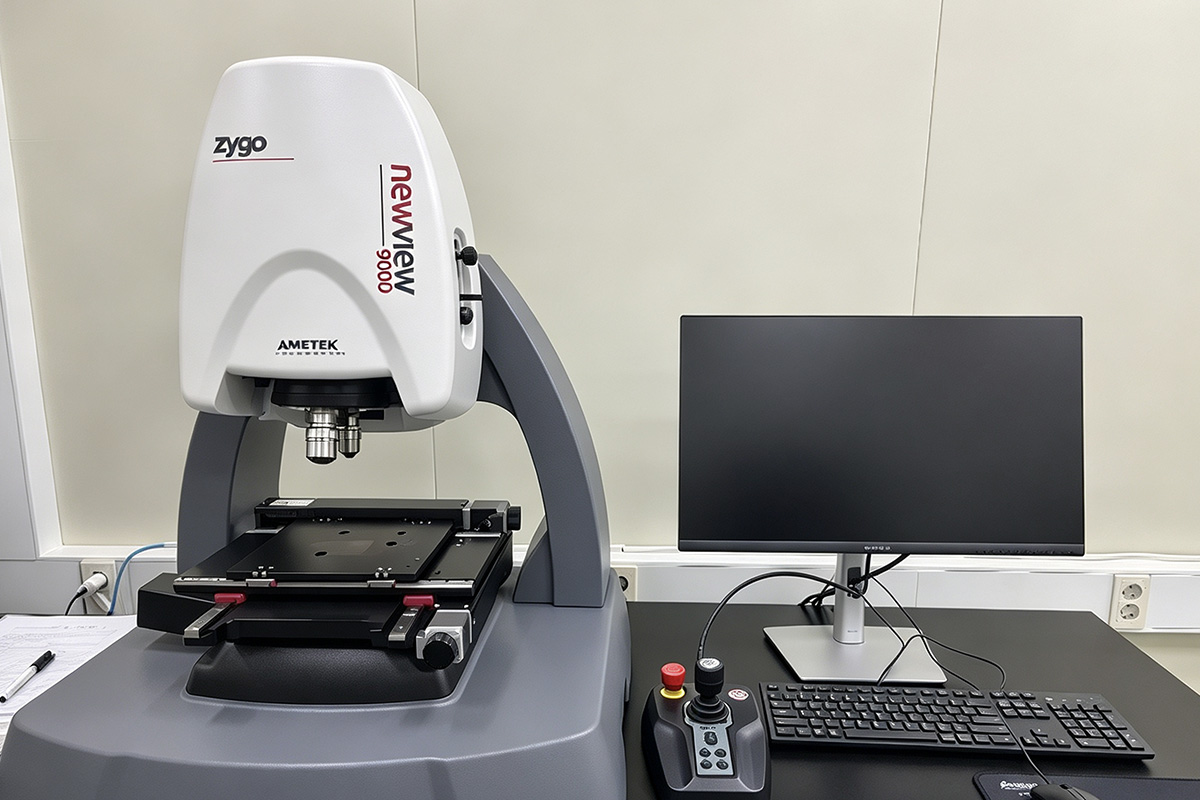

| Clear Aperture | Approximately 85%-100% in documented examples | Inspection Capability | Profilometry, suitable interferometry/CGH, 3D topography, roughness, centration, dimensional and spectral inspection | |||
| Surface Form | Documented examples include PV < λ/4 and RMS < λ/20 | Production Support | Prototype, pilot and repeat OEM production | |||
Available combinations depend on material, geometry, dimensions, precision, coating and inspection requirements. Final specifications are confirmed through engineering review.
Material selection affects spectral transmission, refractive index, dispersion, thermal behavior, density, achievable finish, tooling wear and coating compatibility. The surface prescription may need to be recalculated if the material changes, so substitutions should be reviewed against the optical design rather than transmission range alone.

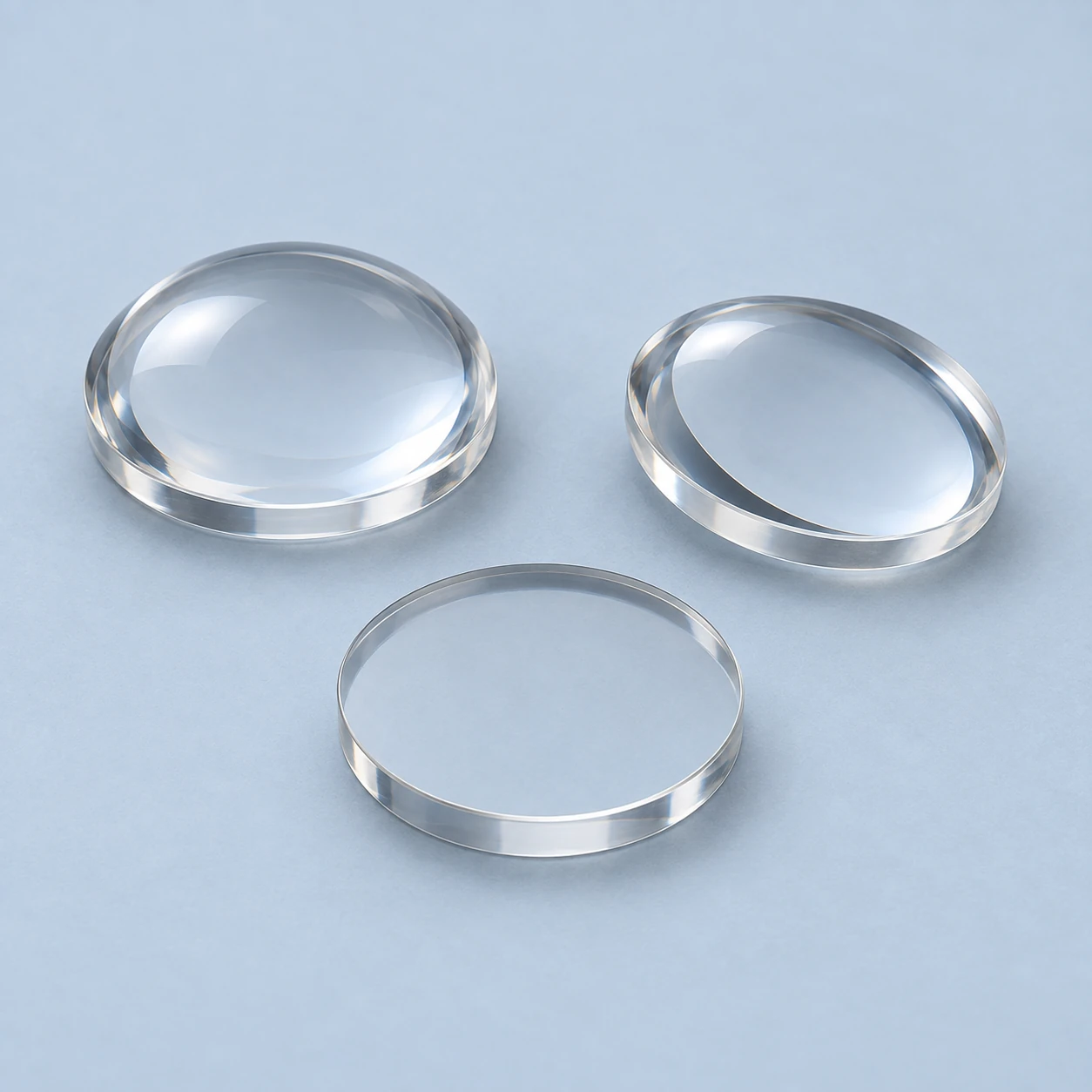

Optical glasses provide a wide range of refractive-index and dispersion options for visible and near-infrared aspheric lenses used in imaging and instrumentation.

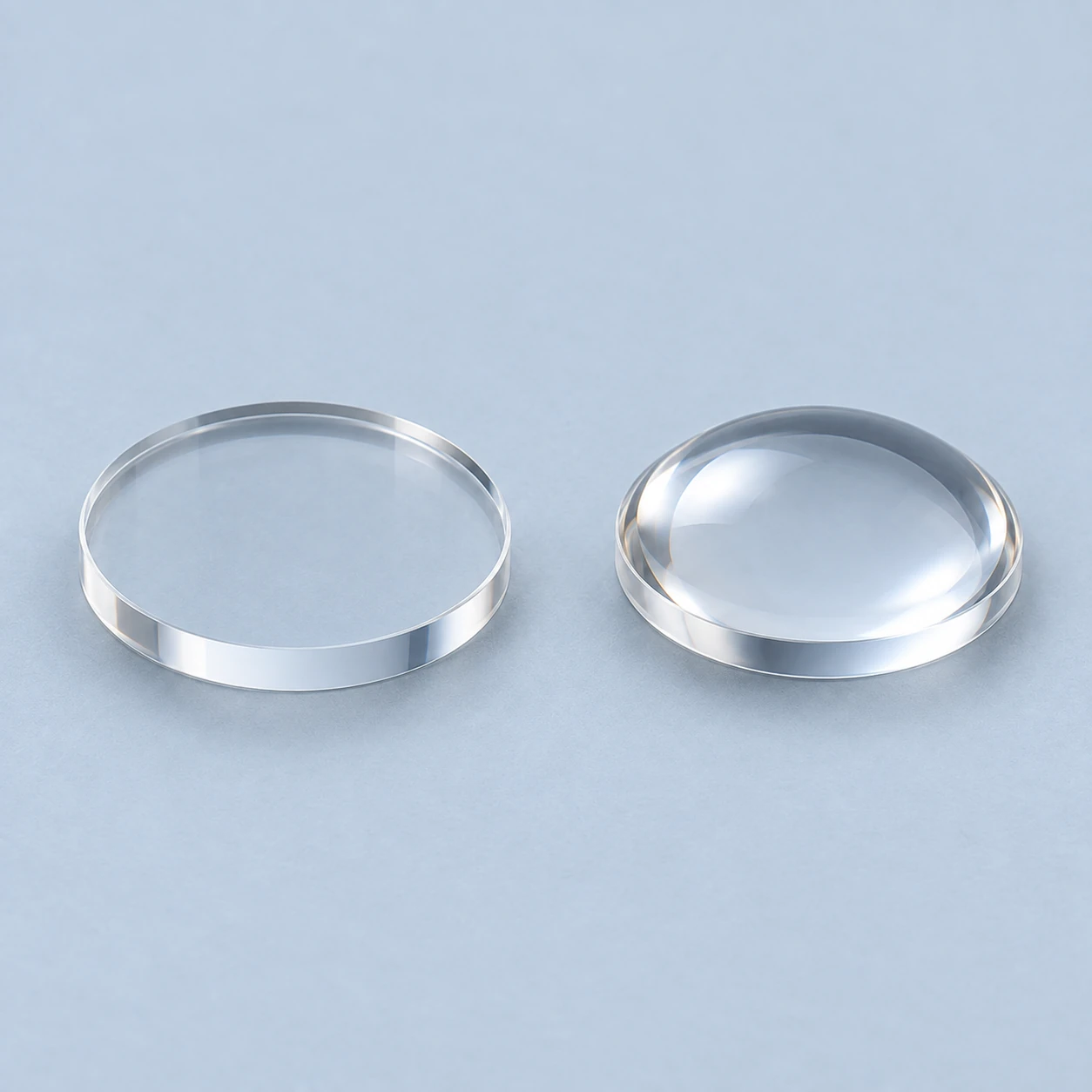

Fused silica is considered for ultraviolet, visible, near-infrared and laser applications requiring low thermal expansion and good optical homogeneity.

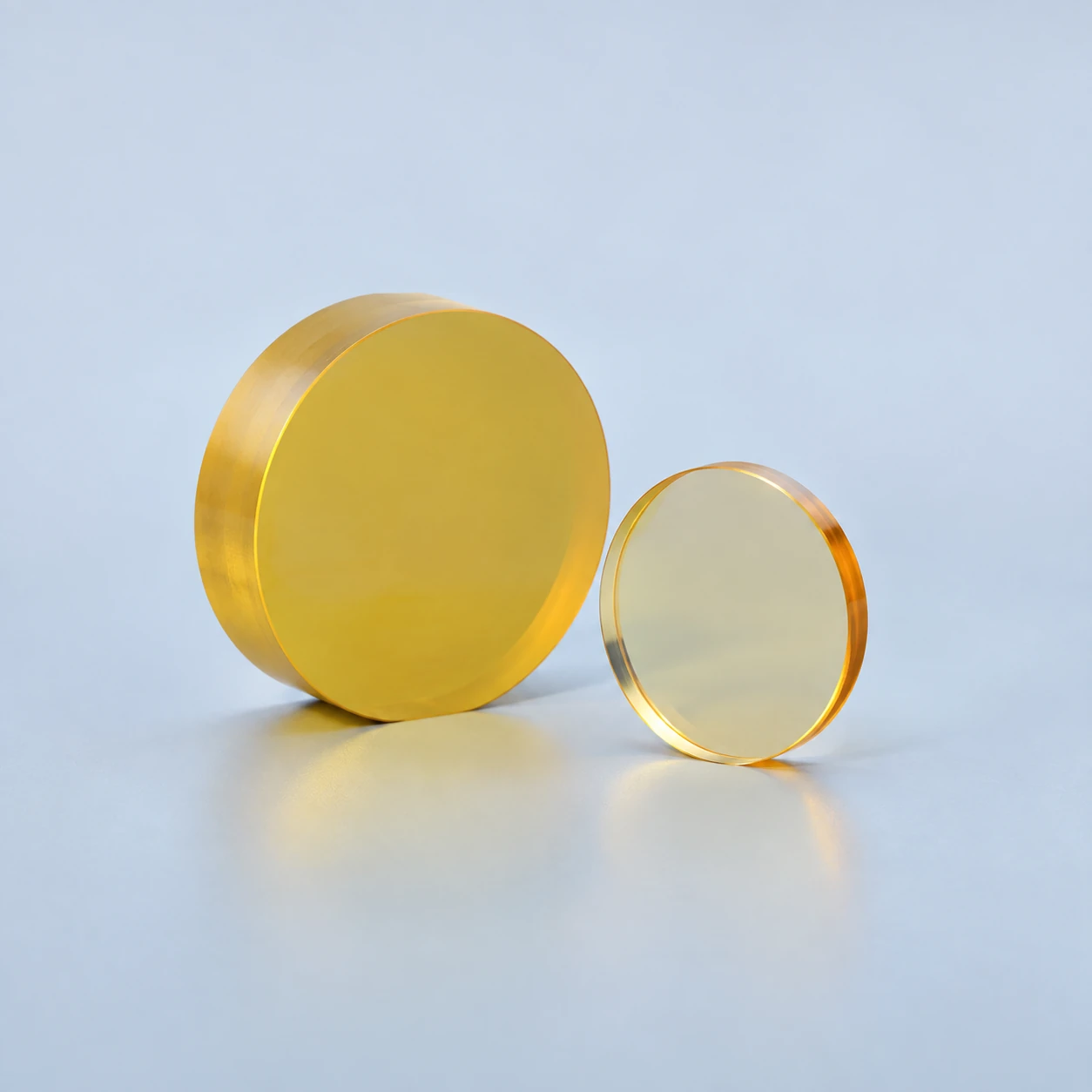

ZnSe supports infrared transmission and is used for selected thermal imaging, CO2 laser and sensing applications, subject to geometry, handling and coating requirements.

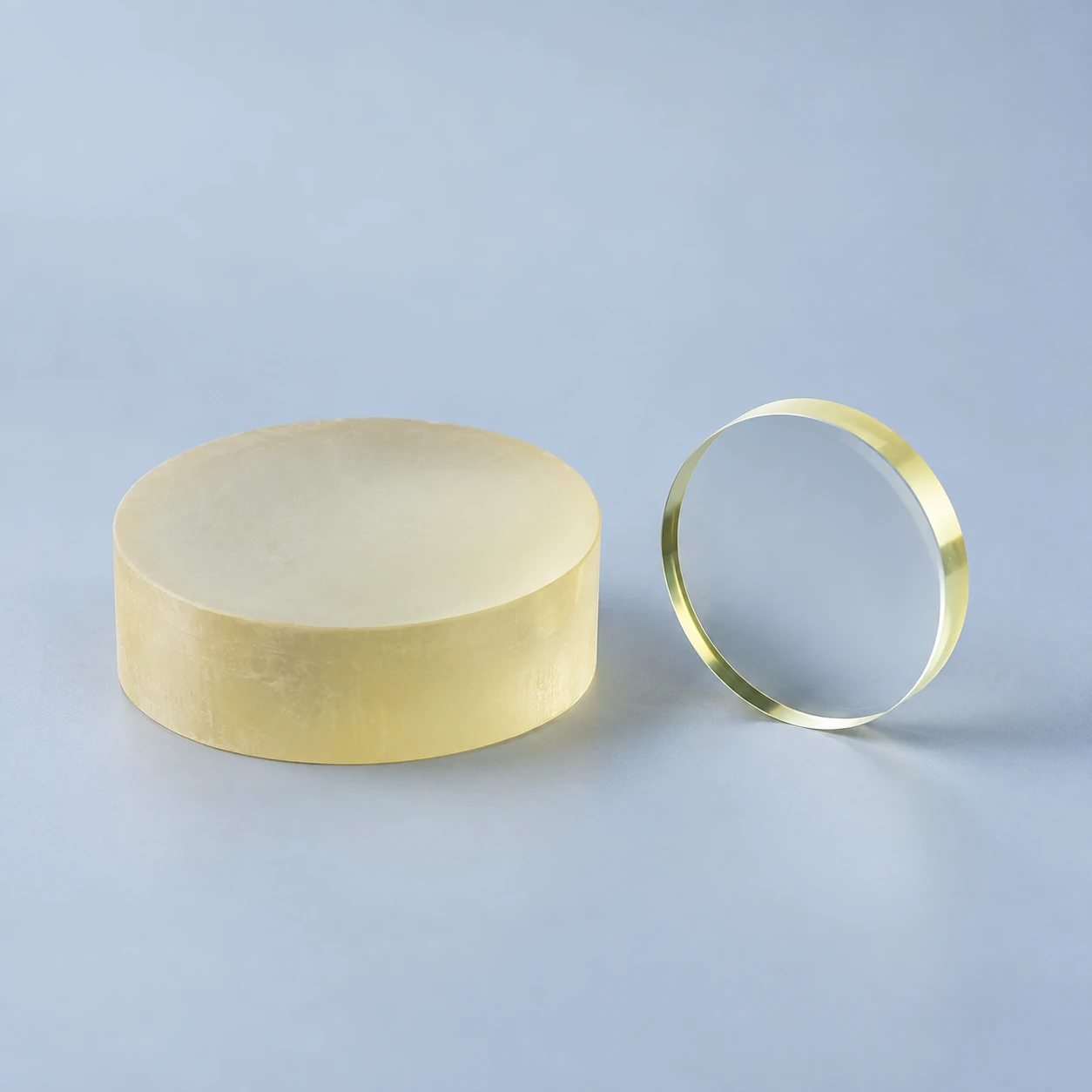

ZnS can support visible-to-infrared or infrared optical designs depending on grade. Grade, wavelength range and environmental exposure must be defined before manufacture.

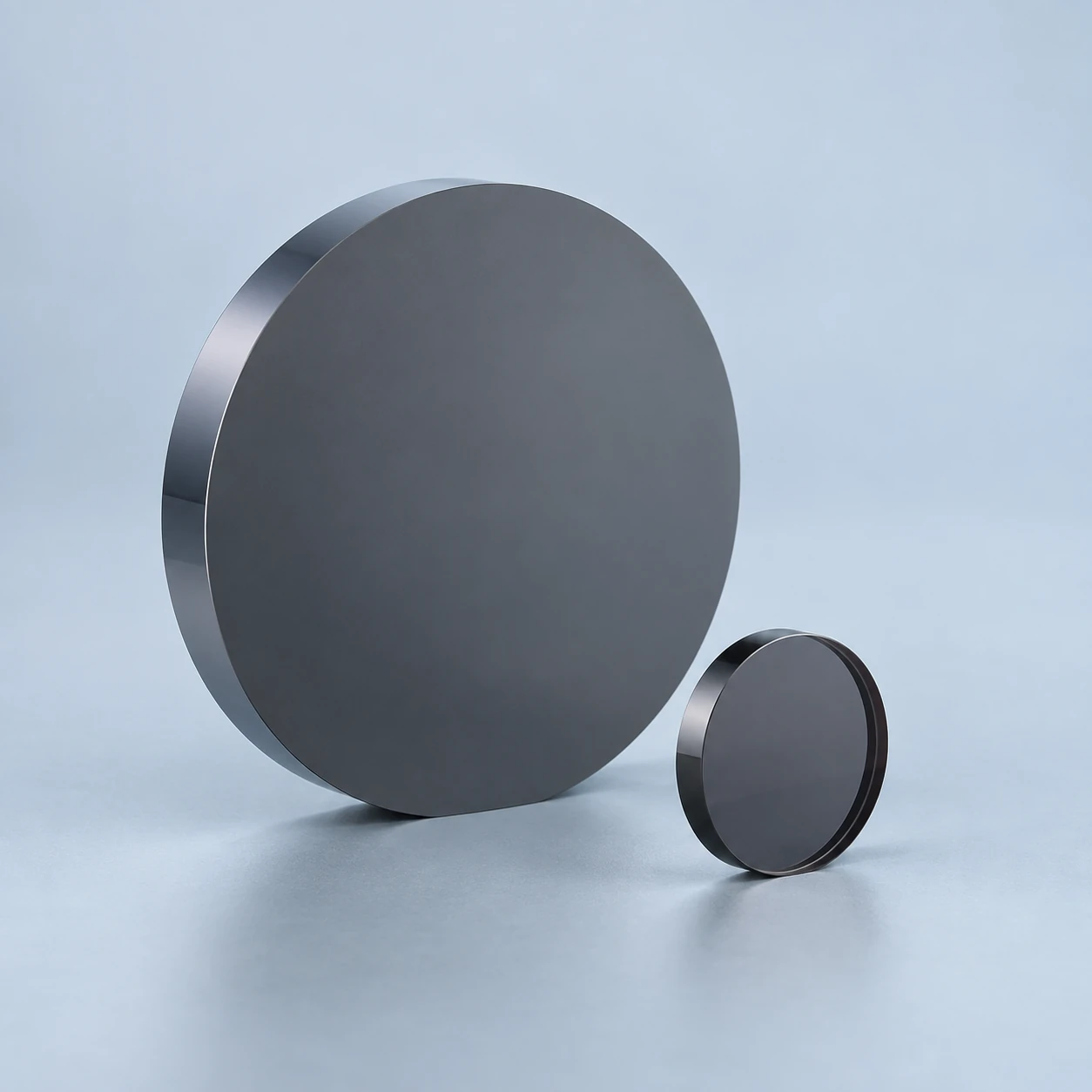

Description: Silicon is used for selected near- and mid-infrared aspheric components and is compatible with suitable precision machining and coating routes.

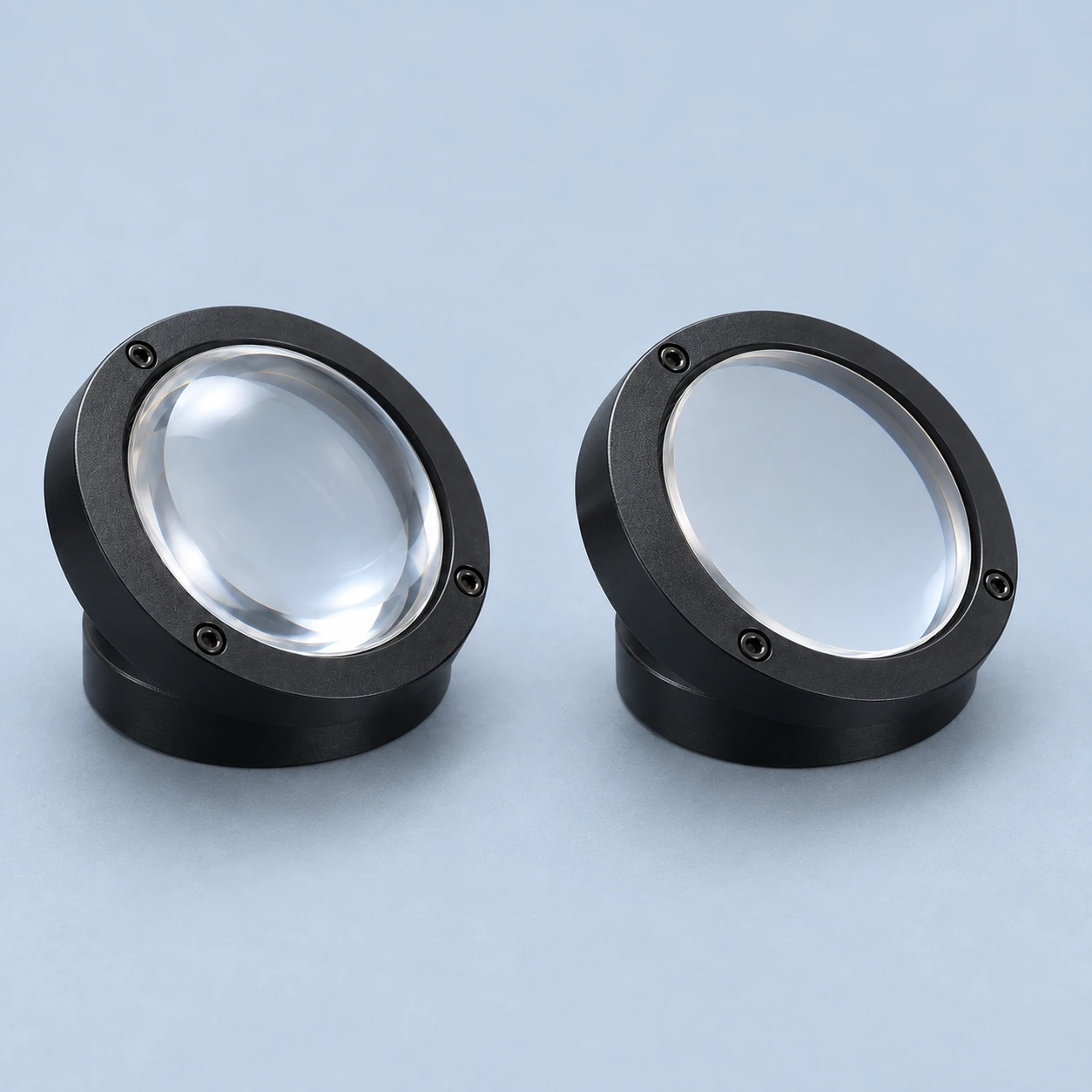

CaF2 provides ultraviolet and infrared transmission with low dispersion, while its mechanical and thermal characteristics require appropriate handling and process planning.

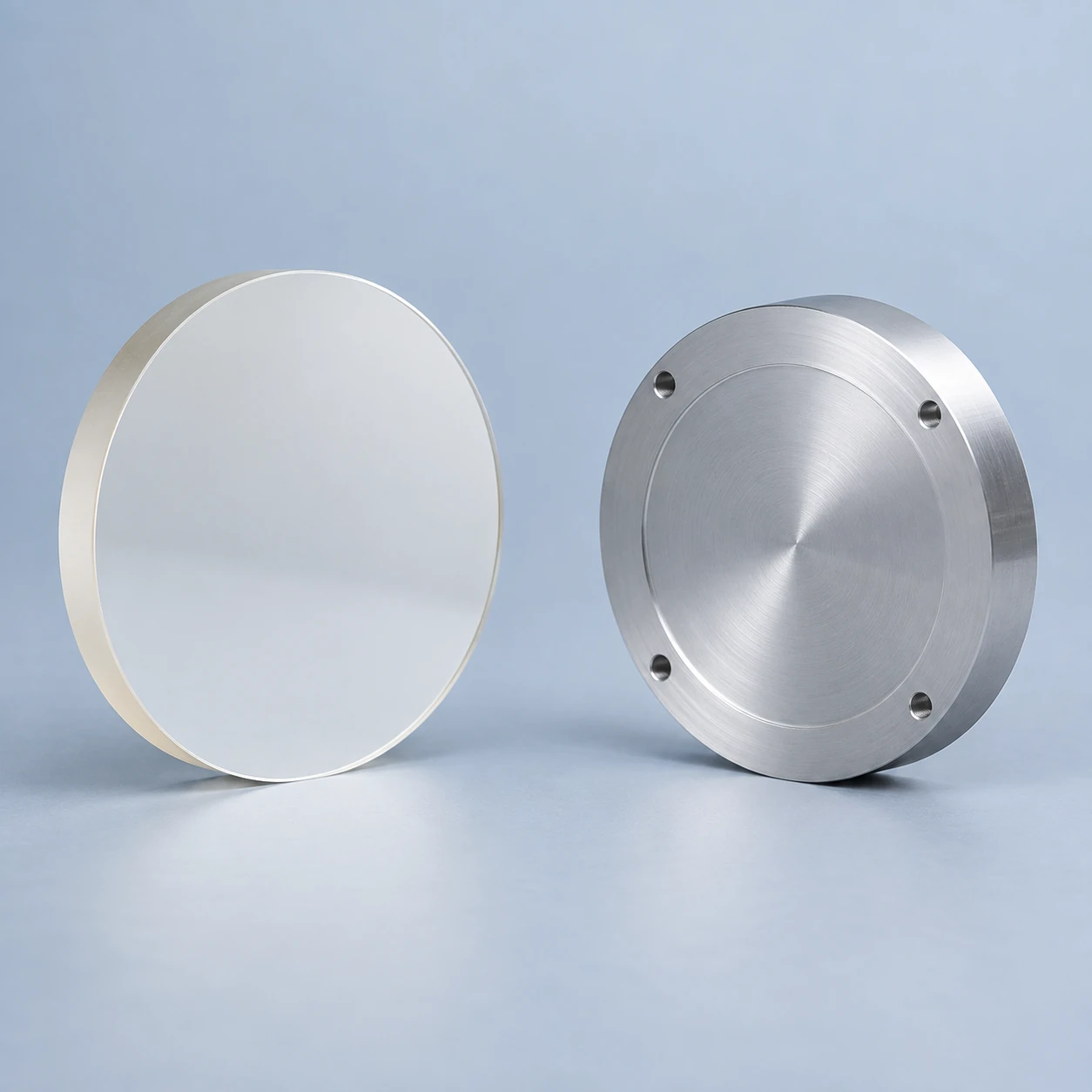

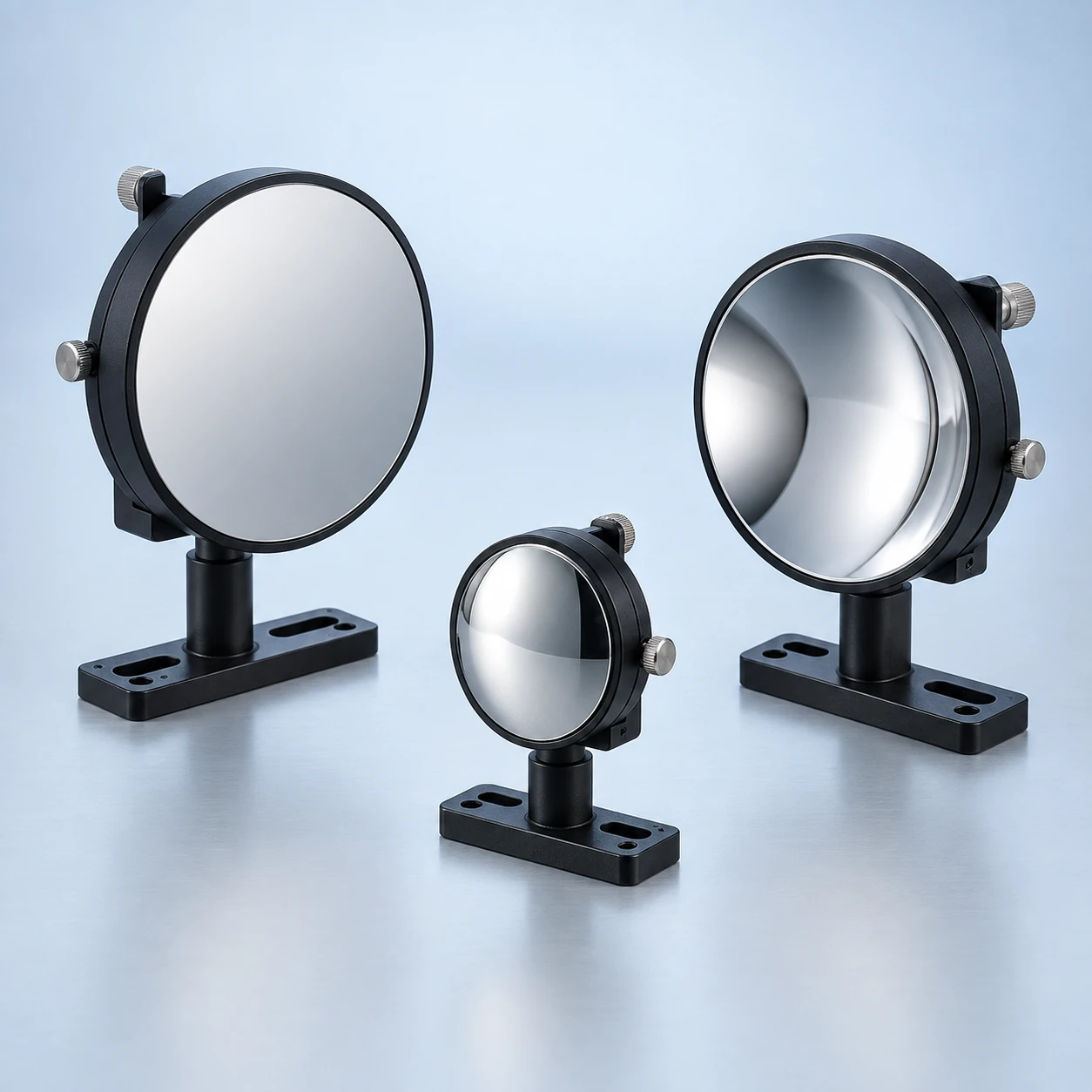

Zerodur, aluminum and other approved substrates can be evaluated for off-axis parabolic mirrors and reflective freeform components according to thermal, mass, finish and coating requirements.
The process route is released only after the optical prescription, mechanical drawing, material, coating and inspection plan have been reviewed together. Process steps vary by substrate and geometry, but the following sequence provides a typical project framework.
01
Engineering checks the equation, datums, material, aperture, tolerances, coating, quantity and acceptance method and resolves missing or conflicting requirements.
02
The approved material is prepared with allowance for the optical surface, finished outline, thickness, mounting features and handling.
03

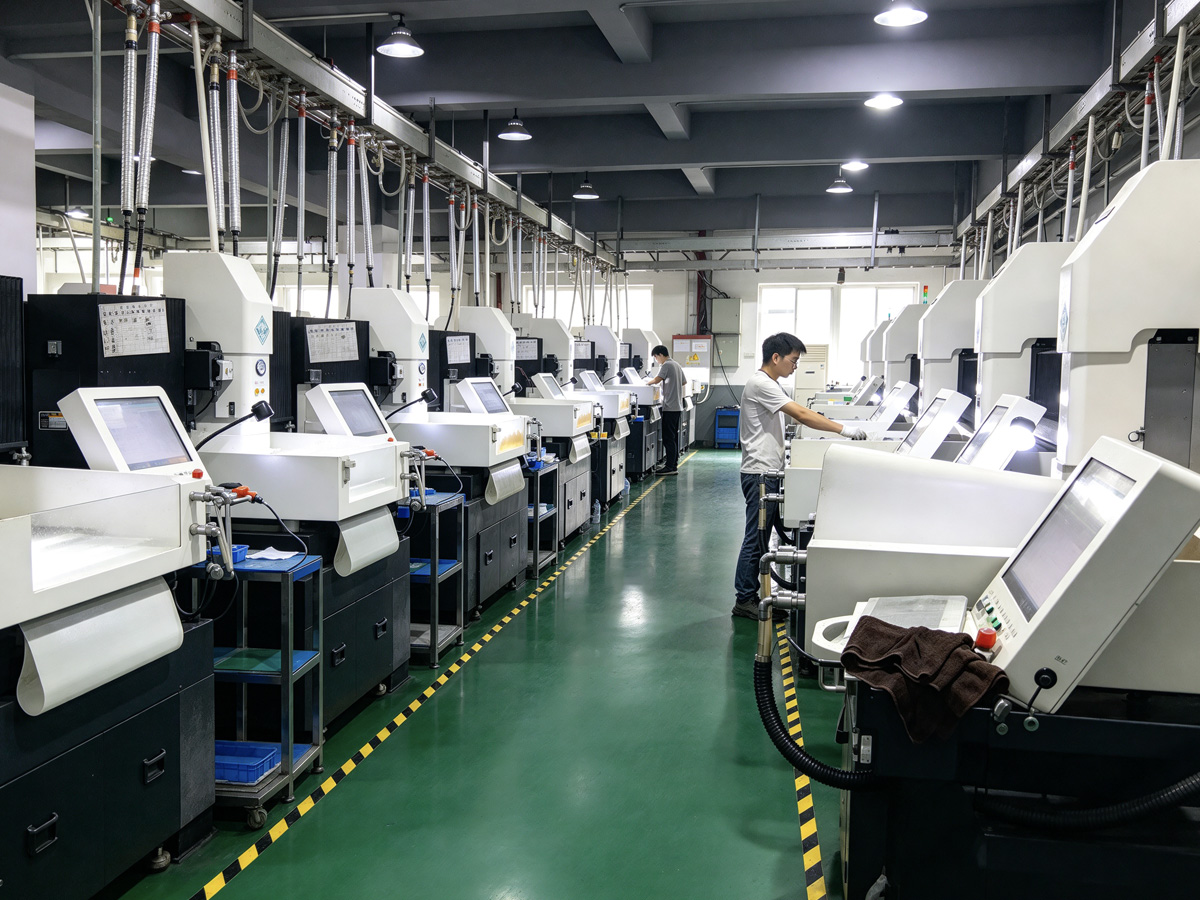

CNC grinding, machining or diamond turning establishes the preliminary profile and leaves the controlled allowance required for finishing.
04
The surface is refined to reduce subsurface damage and approach the required form, finish and usable aperture.
05
Measured profile or error-map data are compared with the approved prescription, and corrective processing is applied when the material and error distribution support it.
06

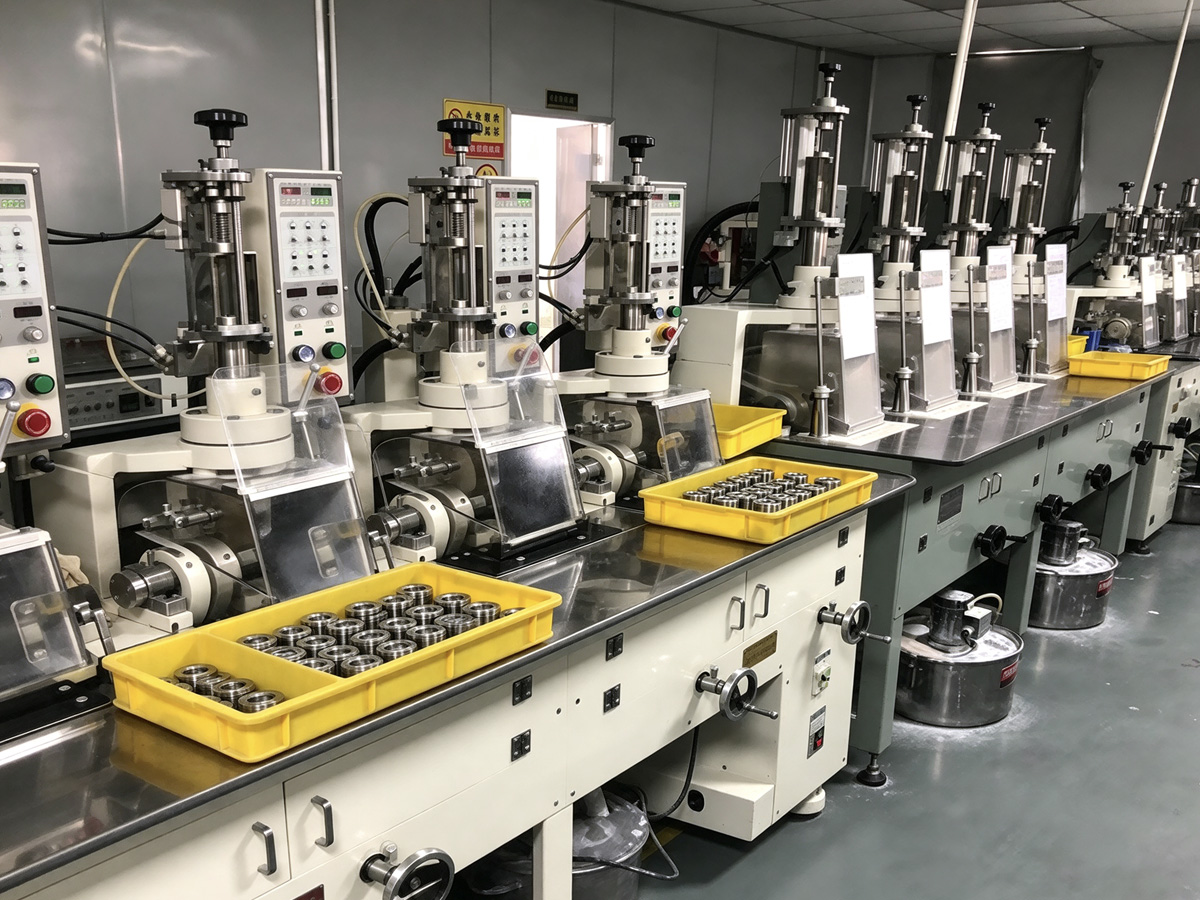

Diameter, outline, bevels and reference features are completed in relation to the optical surface and specified datums.
07

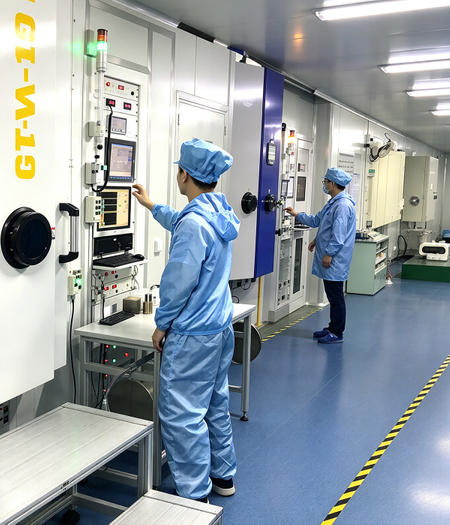

Cleaned components receive the approved transmissive, reflective or protective coating with appropriate masking and fixture control.
08

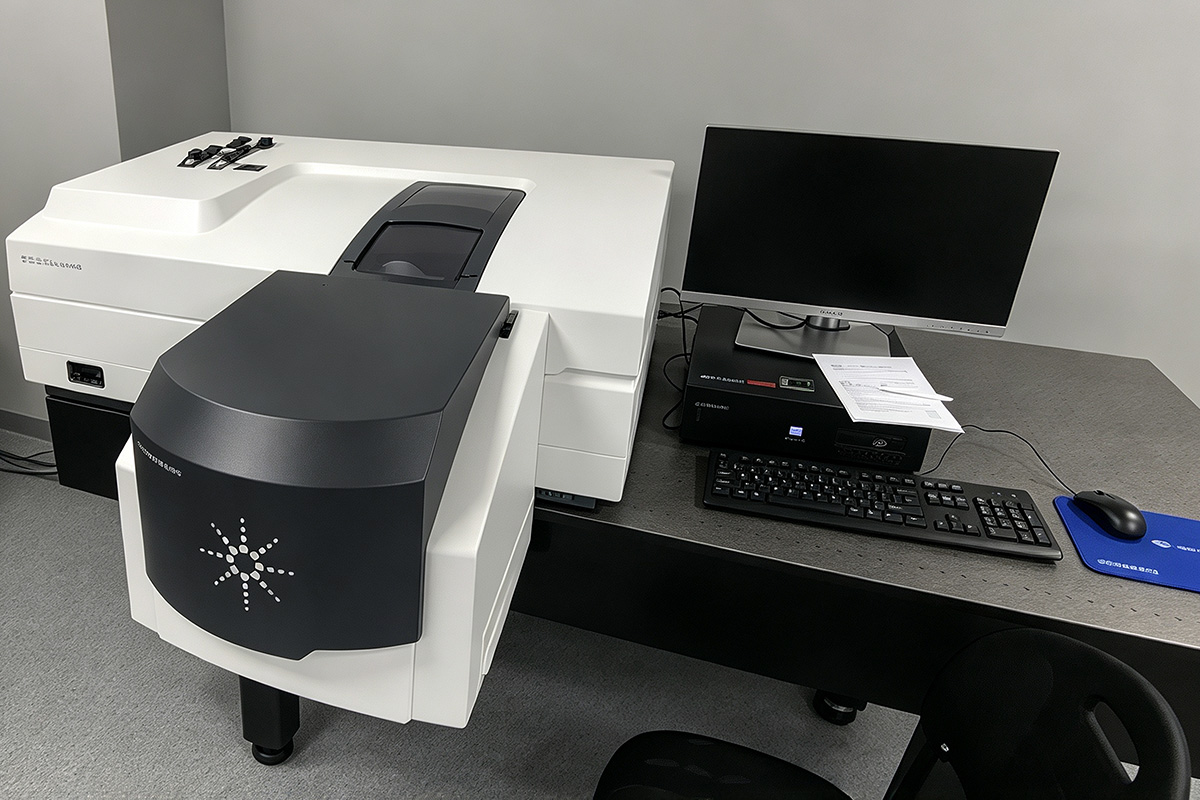

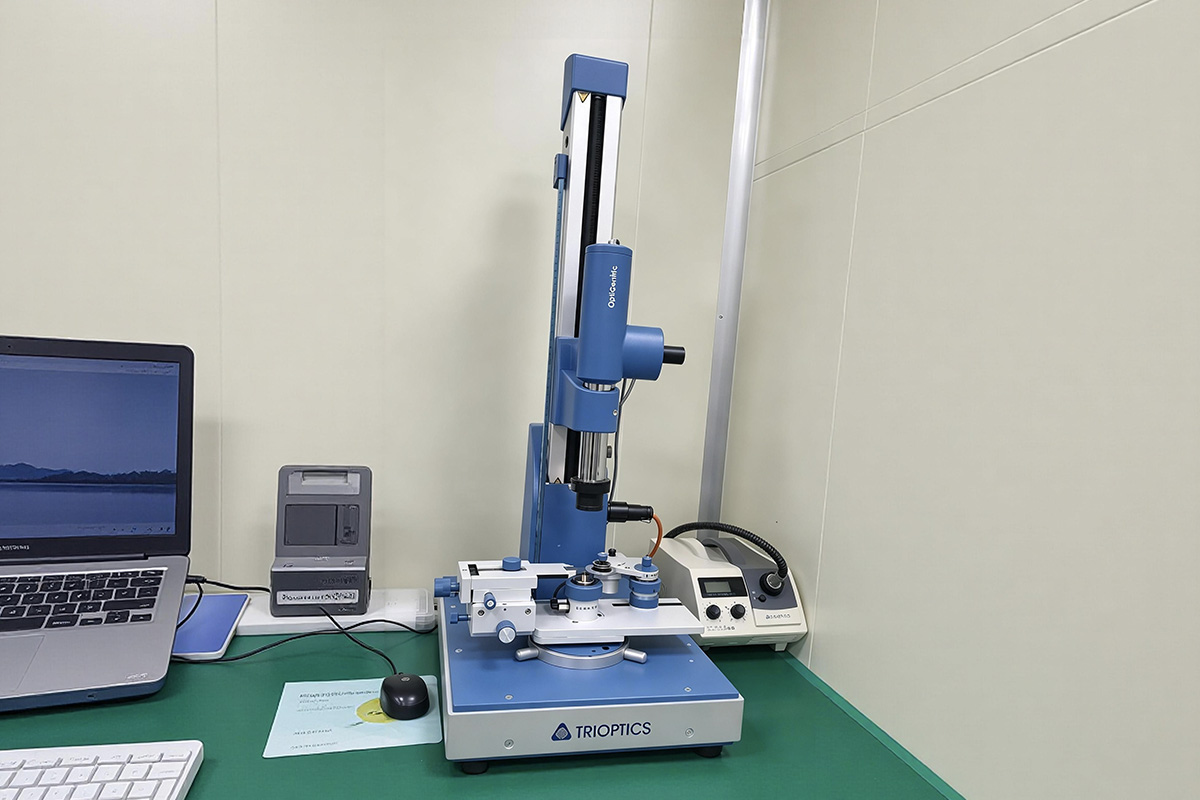

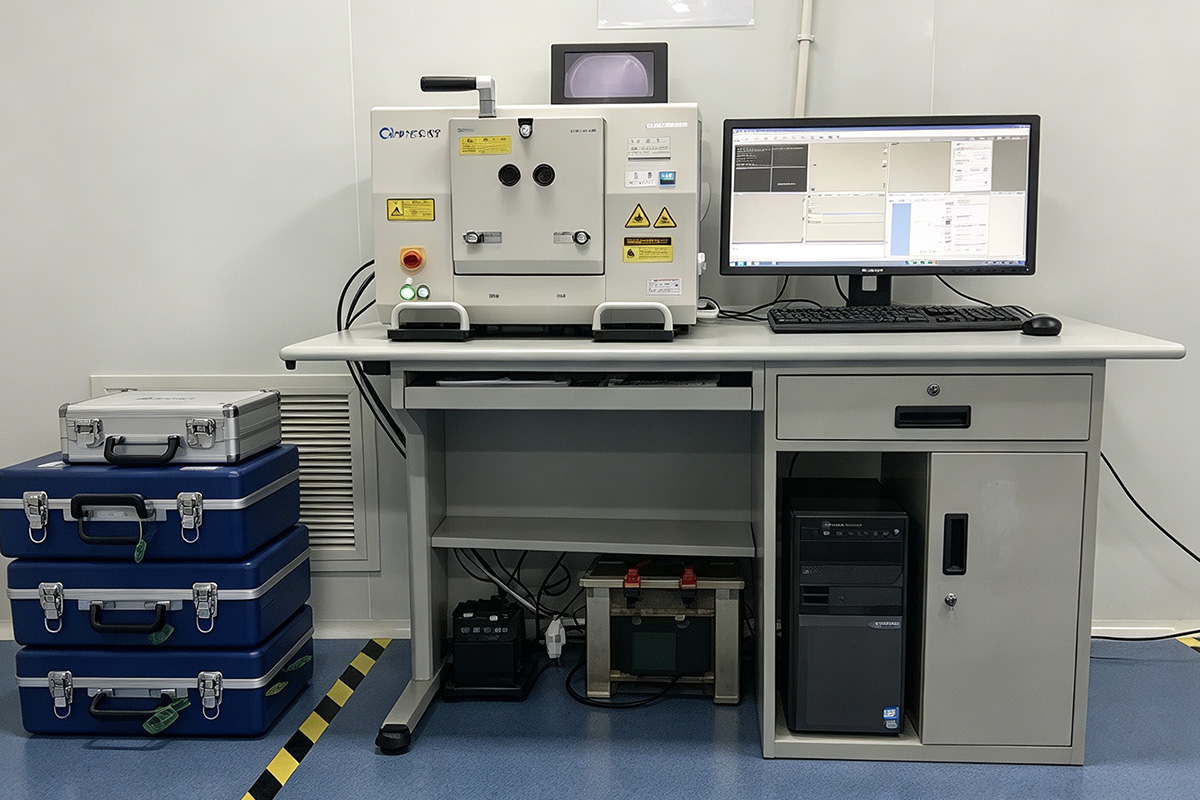

Dimensions, surface form, roughness, surface quality, centration and coating performance are verified according to the agreed plan before release.
